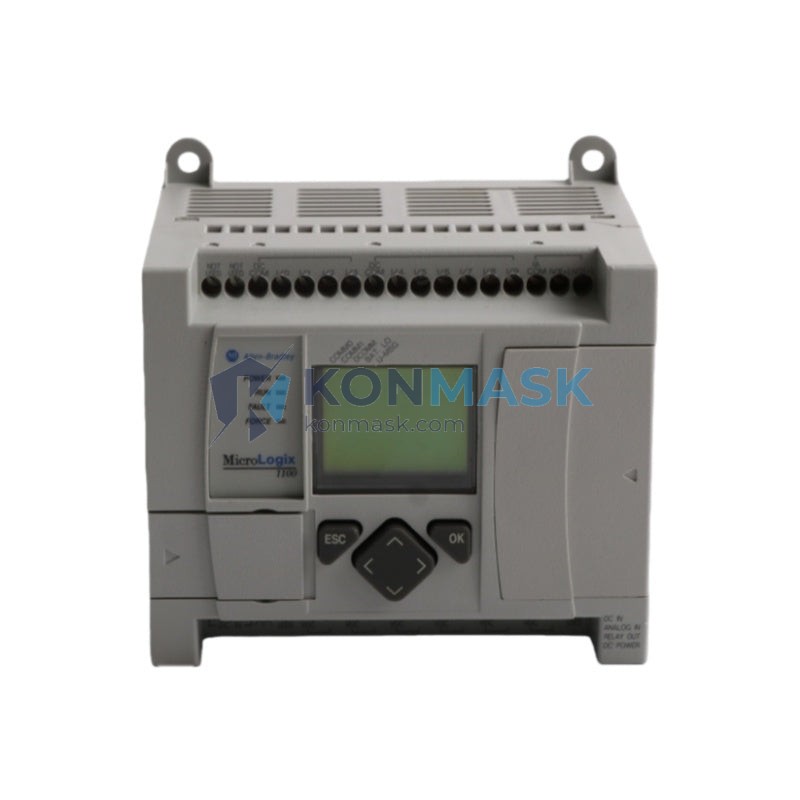

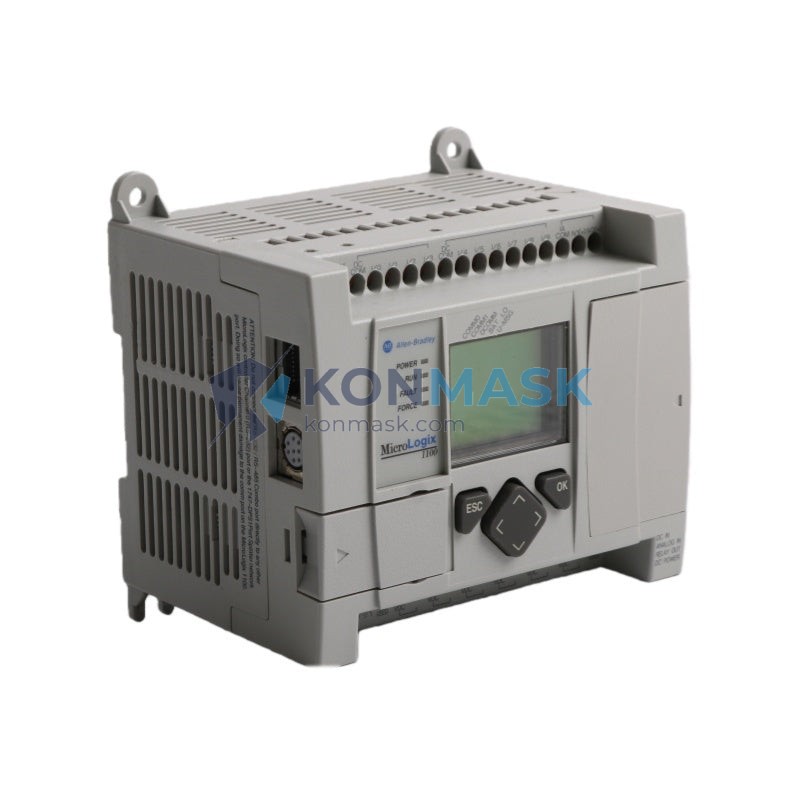

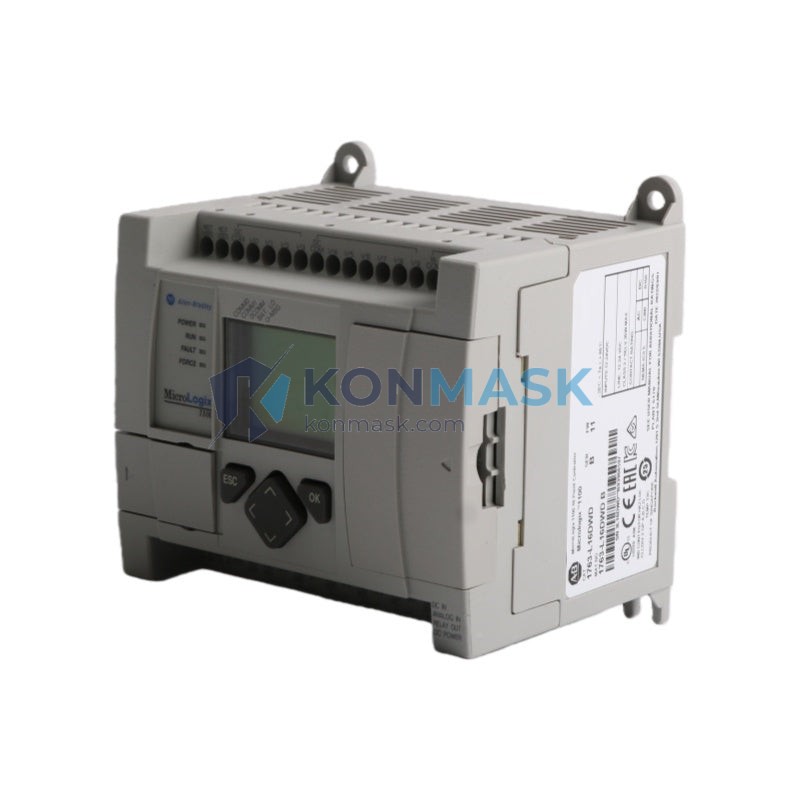

Genuine Allen-Bradley 1763-L16BWA MicroLogix 1100 PLC Controller | MicroLogix Series – Verified Source
The Allen-Bradley 1763-L16BWA is a compact, high-performance programmable logic controller from Rockwell Automation’s MicroLogix 1100 series. Konmask.com supplies only factory-authentic units sourced through verified industrial distribution channels — backed by our 4-step quality verification process.
Technical Specifications
- Part Number / SKU: 1763-L16BWA
- Series: MicroLogix 1100
- Manufacturer: Allen-Bradley / Rockwell Automation
- Digital Inputs: 10 (24V DC sink/source)
- Digital Outputs: 6 (Relay, 240V AC / 30V DC, 2A per point)
- Power Supply: 100–240V AC, 50/60 Hz
- Memory: 8 KB user program + 4 KB data
- Communication Ports: RS-232 (DH-485 / DF1), Ethernet/IP (RJ-45)
- Real-Time Clock: Built-in
- LCD Display: Built-in operator panel with 4 user-configurable keys
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% (non-condensing)
- Dimensions (H × W × D): 90 × 130 × 87 mm
- Weight: Approx. 450 g
- Certifications: UL, CE, RCM, cUL
- Country of Origin: USA
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: All units are procured exclusively from authorized distributors or factory-surplus channels with traceable documentation.
- Step 2 — Physical Inspection: Each module is inspected for label integrity, housing condition, connector pin alignment, and counterfeit indicators.
- Step 3 — Functional Testing: Power-on self-test (POST) and I/O point verification are performed prior to shipment.
- Step 4 — Secure Packaging: Units are packed in anti-static ESD bags with foam cushioning and tamper-evident sealing to ensure safe delivery.
Key Features & Benefits
- Integrated Ethernet/IP port enables seamless network connectivity without additional communication modules
- Built-in LCD display and keypad allow on-site monitoring and parameter adjustment without a laptop
- Relay outputs provide robust switching for AC/DC loads, motors, solenoids, and contactors
- Real-time clock supports time-stamped data logging and scheduled control tasks
- Compatible with RSLogix 500 / Studio 5000 Logix Designer programming environments
- Compact DIN-rail form factor minimizes panel space requirements
- Wide AC power input range (100–240V) suits global installation environments
Typical Applications
- Machine automation and OEM equipment control
- Building HVAC and environmental monitoring systems
- Conveyor and material handling systems
- Pump and motor control panels
- Food & beverage processing lines
- Water treatment and utility infrastructure
- Small-scale batch process control
Compatible System Components
- Expansion I/O: 1762-Lxx series MicroLogix 1200/1500 expansion modules
- Communication: 1761-NET-ENI (Ethernet Interface), 1761-NET-AIC (Advanced Interface Converter)
- Programming Cable: 1761-CBL-PM02 (RS-232 to mini-DIN)
- Software: RSLogix 500 (v8.0+), RSLinx Classic, FactoryTalk Activation
- Power Supply: 1606-XLP series (recommended for panel builds)
- HMI: PanelView Component C400 / C600 series
Global Sourcing & Shipping Capabilities
Konmask.com ships the 1763-L16BWA worldwide from our warehouse in China. We support the following logistics options:
- Express (3–7 days): DHL, FedEx, UPS — door-to-door with full tracking
- Economy Air (7–15 days): ePacket / China Post Registered Air Mail
- Sea Freight: Available for bulk orders (MOQ applies)
- Export Documentation: Commercial invoice, packing list, and certificate of origin provided upon request
- Customs Compliance: HS Code 8537.10 — we assist with customs declarations for major markets (US, EU, AU, UK, SEA)
Certifications & Compliance Statement
- UL Listed: UL 508 (Industrial Control Equipment)
- CE Marked: EN 61131-2 (Programmable Controllers)
- RoHS Compliant: Directive 2011/65/EU
- cUL: Canadian Standards compliance
- RCM: Australian/New Zealand regulatory compliance
All units supplied by Konmask.com carry original manufacturer markings. We do not supply relabeled, refurbished-as-new, or counterfeit goods. Authenticity documentation available upon request.
How to Order
- Click Add to Cart or Buy Now to place an order directly online.
- For bulk orders (5+ units), B2B pricing, or lead-time inquiries, email support@konmask.com.
- Provide your shipping address and preferred courier for an accurate freight quote.
- Payment accepted via: PayPal, T/T (Bank Wire), Western Union, and major credit cards.
- Order confirmation and tracking number issued within 1 business day of payment clearance.
Authenticity & Trust FAQ
Q: Are these units genuine Allen-Bradley / Rockwell Automation products?
A: Yes. All 1763-L16BWA units are sourced from verified industrial channels. We provide sourcing documentation upon request.
Q: Do you offer a warranty?
A: Yes — 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced at no cost within 30 days of delivery.
Q: Can I return the product if it doesn’t meet my requirements?
A: We accept returns within 14 days of delivery for unused, unopened units in original packaging. Contact support@konmask.com to initiate.
Q: Do you provide test reports or inspection certificates?
A: Yes. Functional test reports are available for bulk orders. Contact us before purchase to arrange pre-shipment inspection (PSI).
Q: What if I need a different MicroLogix model?
A: We stock a wide range of Allen-Bradley MicroLogix, CompactLogix, and ControlLogix modules. Contact us with your part number for availability and pricing.
