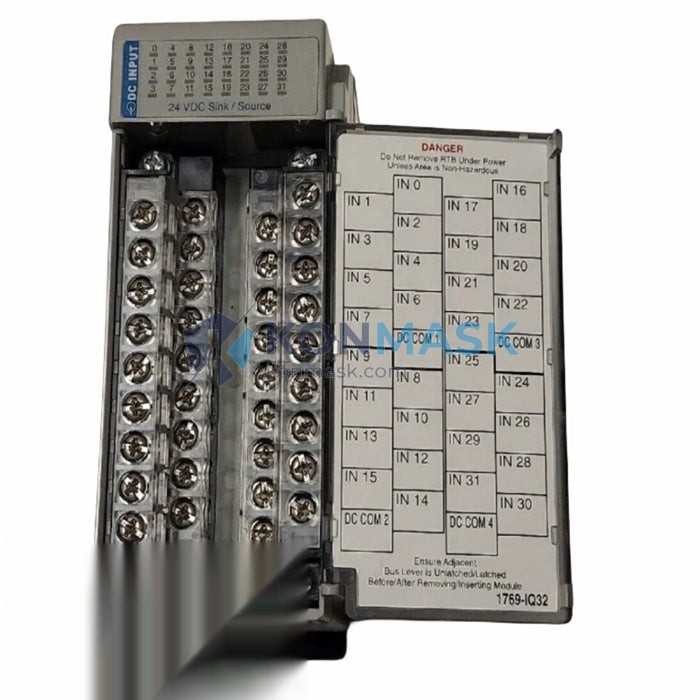

Allen-Bradley 1769-IQ32 32-Point Digital Input Module – CompactLogix 1769 Series
Imagine a high-speed packaging line grinding to a halt because a single digital input module fails to register sensor signals — conveyor belts stop, safety interlocks trip, and every minute of downtime costs thousands. The Allen-Bradley 1769-IQ32 is the frontline defense against exactly this scenario. As the primary interface between field-level sensors and the CompactLogix controller, it translates the physical world — pushbuttons, proximity switches, photoelectric sensors, and limit switches — into the precise digital signals your PLC logic depends on. Without a reliable 32-point input module in this slot, your entire control architecture is blind.
Within the CompactLogix 1769 family, the 1769-IQ32 occupies a critical density tier: 32 points of 24V DC sink/source input capacity in a single compact module footprint. This makes it the preferred choice for machine builders and system integrators who need to maximize I/O density without expanding the rack. Globally, the 1769 series is one of the most widely deployed compact PLC platforms across automotive, food & beverage, material handling, and discrete manufacturing — making the 1769-IQ32 one of the most sourced spare and replacement modules in the industrial automation aftermarket.
Technical Specifications
- Catalog Number: 1769-IQ32
- Series: CompactLogix 1769
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: Digital DC Input
- Number of Input Points: 32
- Input Voltage: 24V DC (sink/source)
- Input Current: Per Rockwell Automation published datasheet
- Backplane Current: Per Rockwell Automation published datasheet
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Isolation: 500V AC between field side and backplane
- Indicators: Per-point LED status indicators
- Compatibility: CompactLogix 1769 bus-compatible controllers and expansion modules
- Certifications: UL, CE, CSA (verify current listing with Rockwell Automation)
Note: All specifications are sourced from Rockwell Automation official documentation. Contact us for the full datasheet.
Key Features & Benefits
- High I/O Density: 32 input points in a single module slot — maximizes CompactLogix rack utilization and reduces system footprint.
- Sink/Source Flexibility: Compatible with both NPN and PNP field devices, eliminating wiring constraints when integrating sensors from multiple vendors.
- Per-Point LED Diagnostics: Instant visual status for each input channel accelerates troubleshooting and reduces MTTR on the plant floor.
- Hot-Swap Capable: Supports removal and insertion under power (RIUP) in compatible CompactLogix configurations, minimizing planned downtime.
- Robust Isolation: 500V AC field-to-backplane isolation protects the controller from field-side transients and noise.
- Seamless Studio 5000 Integration: Fully supported in Rockwell’s Studio 5000 Logix Designer environment with auto-configuration and tag-based addressing.
- Wide Operating Range: Rated for 0–60°C ambient, suitable for demanding industrial enclosure environments.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white assembly lines, welding cell interlocks, and transfer press control.
- Food & Beverage: Filling machine sensor arrays, conveyor jam detection, and packaging line gate monitoring.
- Material Handling: Sorter divert confirmation, pallet presence detection, and AGV interface signals.
- Discrete Manufacturing: CNC machine tool I/O expansion, robotic cell safety monitoring, and press brake control.
- Water & Wastewater: Pump run/fault status, valve position feedback, and level switch monitoring.
- Oil & Gas: Wellhead control panel digital inputs and pipeline valve status monitoring.
System Integration & Compatible Parts
The 1769-IQ32 is designed for seamless integration within the CompactLogix 1769 ecosystem. Compatible and commonly paired components include:
- Controllers: 1769-L16ER-BB1B, 1769-L18ER-BB1B, 1769-L24ER-QB1B, 1769-L27ERM-QBFC1B, 1769-L30ER, 1769-L33ER, 1769-L36ERM
- Digital Output Modules: 1769-OB32, 1769-OB16, 1769-OW8
- Analog Modules: 1769-IF4, 1769-OF4, 1769-IF8
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- End Caps: 1769-ECR (right end cap), 1769-ECL (left end cap)
- Communication Modules: 1769-L19ER-BB1B (EtherNet/IP integrated)
Need help verifying compatibility with your existing system? Contact our engineering team with your controller catalog number and firmware revision.
Our Quality Assurance Process
At Konmask.com, every 1769-IQ32 module offered goes through a structured sourcing and verification process before it reaches you:
- Authorized & Verified Supply Chain: We source from traceable distribution channels to minimize counterfeit risk — a critical concern in the industrial automation aftermarket.
- Visual & Physical Inspection: Each unit is inspected for label integrity, connector condition, housing damage, and firmware revision markings.
- Functional Verification: Where applicable, modules are bench-tested for basic I/O response prior to shipment.
- Secure Packaging: ESD-safe packaging with moisture barrier protection for international transit.
- Documentation: Certificate of conformance and test records available upon request for MRO and OEM procurement teams.
How to Order
- Submit an inquiry via the “Request a Quote” button on this page, or email support@konmask.com.
- Provide your required quantity, preferred delivery timeline, and destination country.
- Our team will respond within 1 business day with pricing, lead time, and shipping options.
- Upon order confirmation, we issue a proforma invoice and arrange secure payment.
- Shipment is dispatched with full tracking and export documentation.
For urgent requirements or large-volume MRO procurement, please call or WhatsApp: +0086 19859288691
Why Choose Konmask.com?
- 🔧 Industrial Automation Specialists: We focus exclusively on PLC, DCS, and automation hardware — not a generalist marketplace.
- 🌍 Global Export Experience: Serving buyers in Southeast Asia, the Middle East, Europe, and the Americas with compliant cross-border shipping.
- ⚡ Fast Response: Dedicated B2B inquiry team with <24-hour quote turnaround.
- 📦 Reliable Sourcing: Traceable supply chain with anti-counterfeit verification for mission-critical automation components.
- 🤝 Engineering Support: Our team can assist with compatibility checks, system integration questions, and alternative part recommendations.
- 📋 Documentation Ready: COC, test reports, and export documents available for procurement compliance.
Frequently Asked Questions
Q: Is the 1769-IQ32 compatible with MicroLogix controllers?
A: No. The 1769-IQ32 is designed exclusively for the CompactLogix 1769 bus architecture. MicroLogix systems use a different I/O bus and are not compatible with 1769-series expansion modules.
Q: Can the 1769-IQ32 be used with both NPN and PNP sensors?
A: Yes. The module supports both sink (NPN) and source (PNP) wiring configurations, providing flexibility when integrating sensors from different manufacturers.
Q: What is the maximum number of 1769-IQ32 modules I can add to a CompactLogix system?
A: The maximum I/O module count depends on the specific CompactLogix controller model and its local/expansion bus capacity. Refer to your controller’s installation manual or contact us for system sizing assistance.
Q: Do you provide a warranty on the 1769-IQ32?
A: Yes. We offer a limited warranty on all modules. Warranty terms are provided with each order. Contact support@konmask.com for details.
Q: Can you supply the 1769-IQ32 in bulk quantities for MRO or OEM projects?
A: Absolutely. We regularly fulfill bulk orders for MRO stocking programs and OEM production lines. Contact us with your quantity and timeline for a volume pricing quote.
Q: How do I verify the firmware revision of the module I receive?
A: The firmware revision is printed on the module label. We can also provide this information in the shipment documentation upon request.
