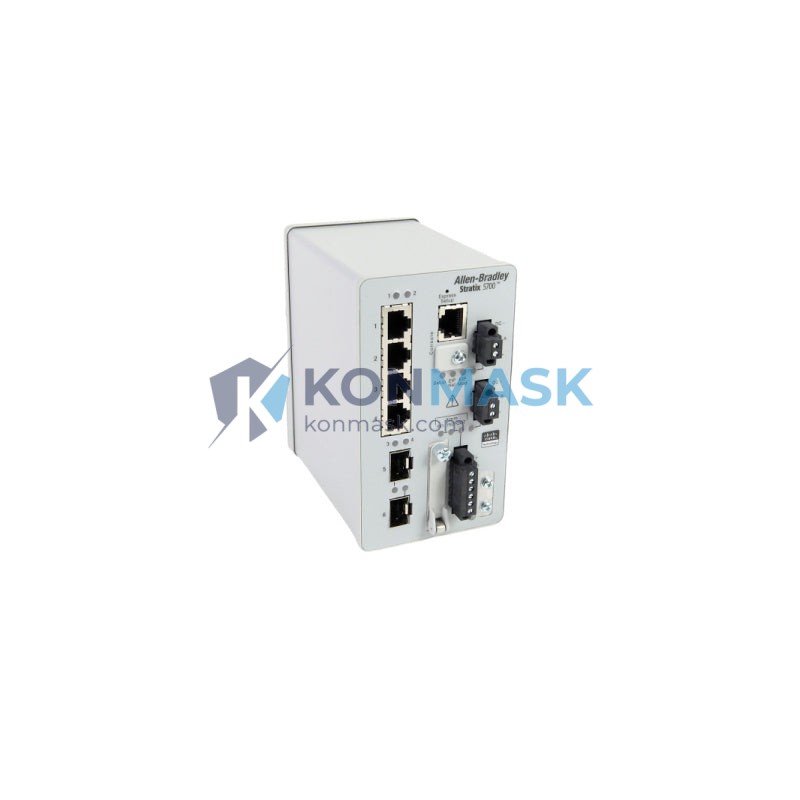

Industrial EtherNet/IP Networking Solution – Allen-Bradley 1783-BMS06SL | Stratix 5700
Where This Product Is Used
The Allen-Bradley 1783-BMS06SL Stratix 5700 6-port managed Ethernet switch is purpose-built for demanding industrial environments where reliable, deterministic network communication is non-negotiable. Engineers and system integrators deploy this switch across a wide range of applications:
- Automotive Assembly Lines – Backbone networking for robot controllers, vision systems, and servo drives communicating over EtherNet/IP.
- Food & Beverage Processing – Hygienic-zone panel integration connecting PLCs, HMIs, and variable frequency drives in wash-down environments.
- Oil & Gas Facilities – Reliable ring-topology networks in remote pump stations and compressor control panels.
- Water & Wastewater Treatment – SCADA-connected switch nodes in distributed control architectures spanning large plant footprints.
- Pharmaceutical Manufacturing – Validated network segments supporting 21 CFR Part 11 compliant control systems.
- Material Handling & Logistics – High-speed conveyor and sortation system networks requiring low-latency I/O communication.
- Machine Builder OEM Panels – Compact 6-port form factor ideal for space-constrained control cabinets shipped globally.
Technical Specifications
| Attribute | Value |
|---|---|
| Catalog Number | 1783-BMS06SL |
| Series | Stratix 5700 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Number of Ports | 6 × 10/100BASE-TX (RJ45) |
| Switch Type | Managed Layer 2 |
| Protocol Support | EtherNet/IP, IGMP Snooping, RSTP/STP, QoS, VLANs |
| DIN Rail Mounting | Yes (35 mm DIN rail) |
| Power Supply Input | 24V DC (18–32V DC range) |
| Power Consumption | ≤ 7 W typical |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Weight | 1,570 g (approx.) |
| Configuration Interface | Studio 5000 / RSLogix 5000 Add-On Profile (AOP), Web UI, CLI |
| Firmware Management | Rockwell Automation FactoryTalk Network Manager compatible |
Why Engineers Specify This Model
- Native EtherNet/IP Integration – Configurable directly from Studio 5000 Logix Designer via Add-On Profile, eliminating the need for separate network management tools.
- Compact 6-Port Footprint – Optimized for machine-level panels where rack space is at a premium; no wasted ports, no wasted space.
- Device Level Ring (DLR) Support – Enables fault-tolerant ring topologies with sub-millisecond failover, critical for high-availability production lines.
- IGMP Snooping & QoS – Prioritizes I/O traffic and suppresses multicast flooding, ensuring deterministic communication for time-sensitive control data.
- VLAN Segmentation – Isolates control traffic from enterprise or HMI traffic, improving cybersecurity posture in converged IT/OT networks.
- Wide DC Power Range – 18–32V DC input tolerates voltage fluctuations common in industrial power distribution panels.
- Rockwell Ecosystem Compatibility – Fully supported by FactoryTalk Network Manager for centralized monitoring, alerting, and firmware updates.
Complete System Bill of Materials
For a complete EtherNet/IP machine network, engineers typically pair the 1783-BMS06SL with the following components:
- PLC / Controller – Allen-Bradley ControlLogix (1756 series) or CompactLogix (5370/5380 series)
- I/O Modules – 1734 POINT I/O or 1756 ControlLogix I/O with EtherNet/IP adapters
- HMI – PanelView Plus 7 or PanelView 5510 connected via EtherNet/IP
- Power Supply – 1606-XLP or 1606-XLS 24V DC DIN rail power supply
- Patch Cables – Industrial-grade Cat5e/Cat6 shielded cables (Belden 7923A or equivalent)
- Uplink Switch – 1783-BMS10CGL Stratix 5700 for aggregation layer connectivity
- Network Management – FactoryTalk Network Manager (FTNM) software license
Compliance & Industry Standards
- UL Listed (UL 508 Industrial Control Equipment)
- CE Marked – EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
- ODVA EtherNet/IP Conformance Tested
- IEEE 802.3 (Ethernet), IEEE 802.1Q (VLANs), IEEE 802.1D (STP/RSTP)
- IEC 61131-2 compatible control system environment
- RoHS Compliant
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley 1783-BMS06SL unit is subject to a rigorous multi-point quality process before shipment:
- Authenticity Verification – Each unit is inspected against Rockwell Automation OEM markings, date codes, and label specifications to confirm genuine origin.
- Functional Pre-Check – Power-on test and port link verification performed prior to packaging.
- Secure Packaging – Anti-static ESD bags, foam-lined cartons, and moisture-barrier sealing for safe international transit.
- Traceability – Lot and serial number records maintained for full supply chain traceability.
- Warranty – 12-month replacement warranty against manufacturing defects.
How to Source This Part
- Add to Cart – Click “Add to Cart” above and proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Request a Quote – For bulk orders (5+ units) or project BOM sourcing, email support@konmask.com for volume pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock items typically sourced within 7–15 business days.
- Export Documentation – We provide commercial invoices, packing lists, and certificates of origin for customs clearance in all major markets.
- Technical Support – Pre-sales engineering support available via email or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Can the 1783-BMS06SL be configured without a Rockwell PLC?
A: Yes. The switch includes a web-based management interface and CLI (Telnet/SSH) for standalone configuration, making it usable in non-Rockwell environments.
Q: Does this switch support Device Level Ring (DLR)?
A: Yes. The 1783-BMS06SL supports DLR as a ring supervisor or ring node, enabling fault-tolerant topologies with sub-millisecond recovery.
Q: What is the maximum cable distance per port?
A: Up to 100 meters (328 ft) per segment using standard Cat5e or Cat6 copper cabling.
Q: Is this switch compatible with FactoryTalk Network Manager?
A: Yes. Full FTNM integration is supported for centralized monitoring, SNMP traps, and firmware management.
Q: Can I use this switch in a ring topology with non-Stratix devices?
A: DLR ring supervisor functionality requires compatible DLR-capable devices. For linear or star topologies, any standard Ethernet device is compatible.
Q: What redundant power options are available?
A: The 1783-BMS06SL supports dual 24V DC power inputs for redundant power supply configurations, eliminating single points of failure.
