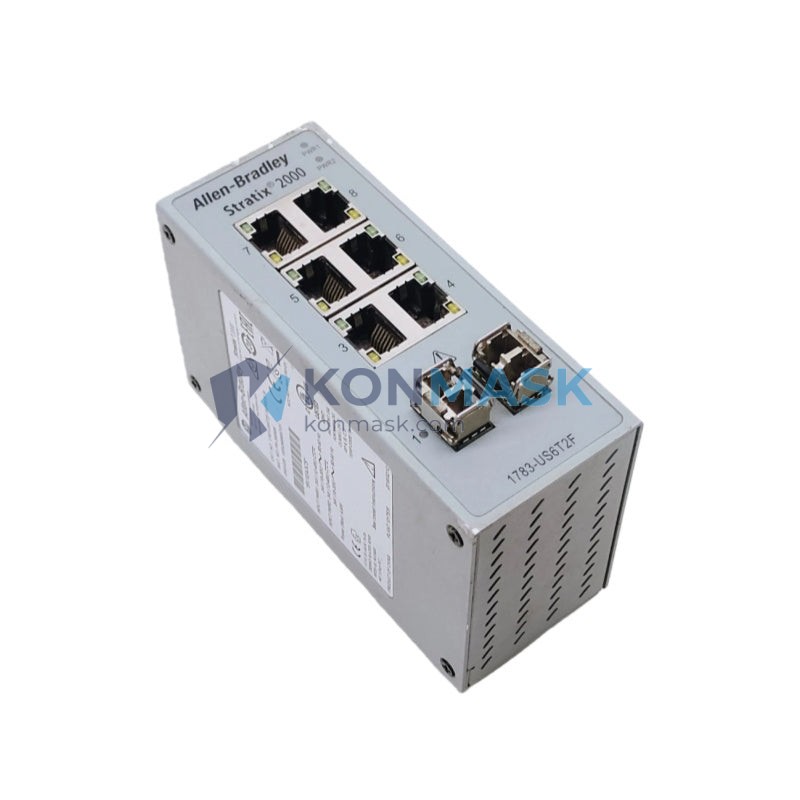

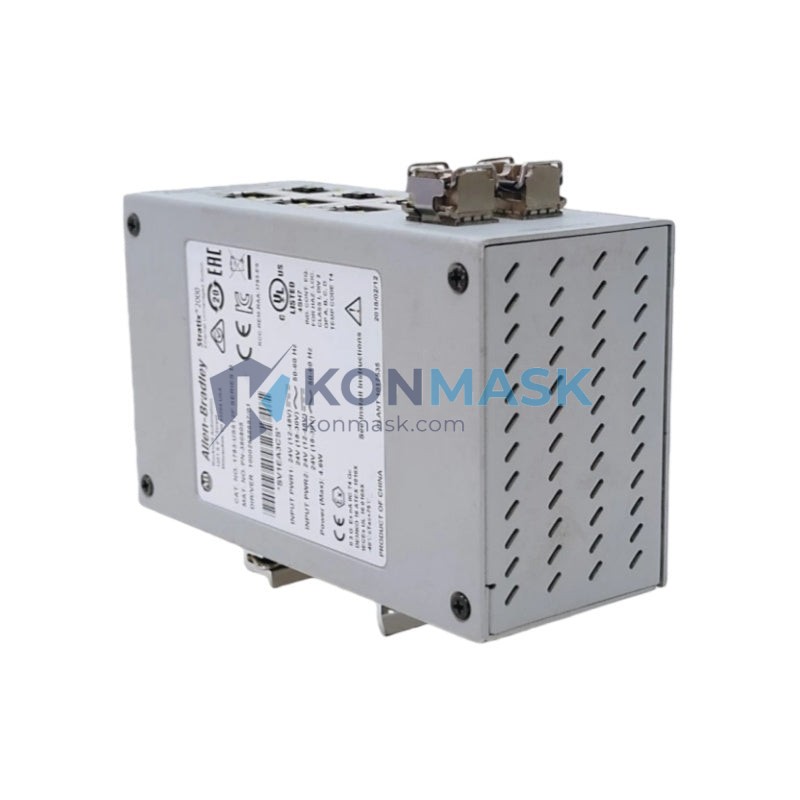

Allen-Bradley 1783-US6T2F 6-Port Unmanaged Industrial Ethernet Switch – Stratix 2000 Series
When a single network node fails silently on the plant floor, the consequences cascade fast — a robotic arm freezes mid-cycle, a conveyor stops, and a production line worth thousands of dollars per minute grinds to a halt. The root cause is often invisible: an aging, consumer-grade switch that was never designed for the electromagnetic noise, temperature swings, and 24/7 uptime demands of industrial environments. The Allen-Bradley 1783-US6T2F exists precisely to eliminate this risk. Built for the factory floor, not the server room, it delivers deterministic, plug-and-play Ethernet connectivity that keeps your automation network running without compromise.
Within the Stratix 2000 family — Rockwell Automation’s entry-level industrial Ethernet switch line — the 1783-US6T2F occupies a critical niche: maximum port density in a compact, DIN-rail-mounted form factor, with four 10/100 copper RJ45 ports and two 100BASE-FX fiber SFP uplink ports. This hybrid copper-fiber topology makes it the preferred choice for segment isolation and long-distance backbone connections in automotive, food & beverage, and discrete manufacturing cells worldwide. As part of the broader Rockwell Automation ecosystem, it integrates natively with Studio 5000, FactoryTalk, and EtherNet/IP architectures — a combination trusted by systems integrators across North America, Europe, and Asia-Pacific.
Technical Specifications
- Part Number: 1783-US6T2F
- SKU: 190501-00-00-04
- Series: Stratix 2000 Unmanaged Ethernet Switch
- Manufacturer: Allen-Bradley / Rockwell Automation
- Total Ports: 6 (4 × RJ45 copper + 2 × 100BASE-FX fiber SFP)
- Copper Port Speed: 10/100 Mbps, Auto-MDI/MDIX
- Fiber Uplink: 100BASE-FX, SFP (LC connector)
- Management: Unmanaged (plug-and-play, no configuration required)
- Mounting: DIN rail
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)

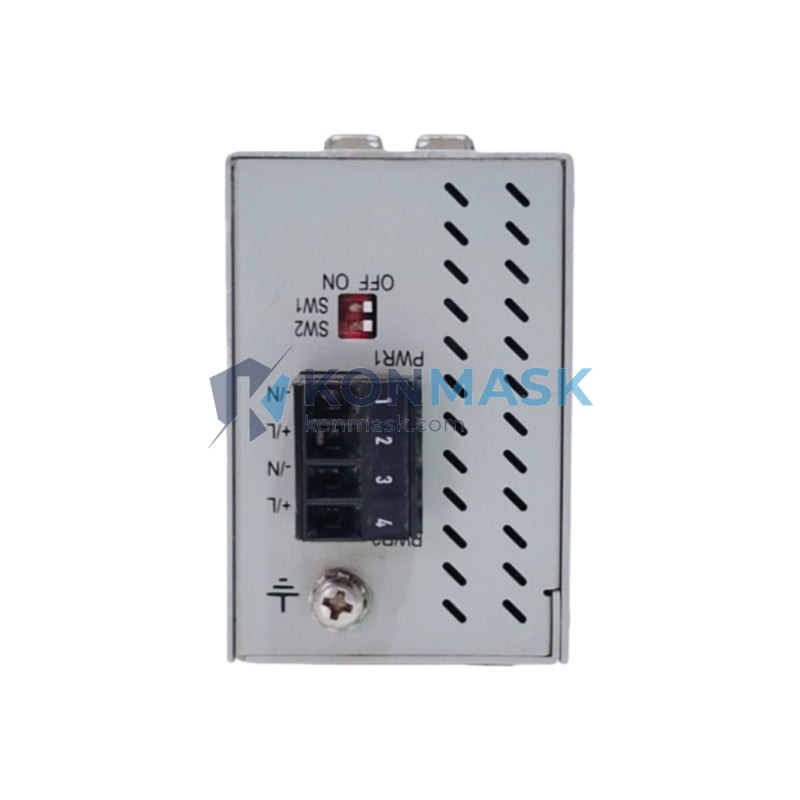

- Power Supply: 24V DC redundant input
- Weight: 160 g
- Protocol Support: EtherNet/IP, IEEE 802.3, IEEE 802.3u
- Certifications: UL, CE, cUL (verify current listing with Rockwell Automation)
Key Features & Benefits
- Hybrid Copper + Fiber Architecture: Four RJ45 ports handle local device connections while two fiber SFP uplinks extend network reach up to 2 km — ideal for large plant layouts where copper distance limits apply.
- True Plug-and-Play: No IP address, no CLI, no configuration software required. Power it on and it works — reducing commissioning time and eliminating misconfiguration risk.
- Industrial-Grade Durability: Hardened enclosure rated for wide temperature ranges, high vibration, and EMI-rich environments typical of motor drives, welding cells, and heavy machinery.
- DIN Rail Mounting: Snaps directly into standard control panel rails, saving panel space and simplifying cable management.
- Redundant Power Input: Dual 24V DC inputs provide power redundancy without additional hardware, supporting high-availability architectures.
- EtherNet/IP Native: Fully compatible with Allen-Bradley PLCs, drives, and I/O modules — no protocol conversion needed.
- Low Latency: Store-and-forward switching with minimal latency, supporting time-sensitive control traffic.
Industry & Equipment Applications
- Automotive Manufacturing: Robotic welding cells, body-in-white assembly lines, paint shop conveyors
- Food & Beverage: Hygienic processing lines, packaging machinery, cold-chain monitoring
- Discrete Manufacturing: CNC machine tool networks, press lines, assembly stations
- Oil & Gas: Remote pump station control, pipeline SCADA edge nodes
- Water & Wastewater: Pump control panels, remote lift station networks
- Material Handling: Conveyor control networks, sortation systems, AGV infrastructure
System Integration & Compatible Parts
The 1783-US6T2F is designed to operate within the broader Allen-Bradley / Rockwell Automation EtherNet/IP ecosystem. Commonly paired components include:
- Allen-Bradley ControlLogix & CompactLogix PLCs (1756, 1769 series)
- PowerFlex Variable Frequency Drives (520, 525, 753, 755 series)
- Point I/O and Flex I/O EtherNet/IP adapters
- Stratix 5700 / 5400 managed switches (for uplink to managed network layer)
- Rockwell Automation 1783-SFP100FX SFP fiber modules
- PanelView Plus HMI terminals
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley component passes through a documented 4-stage verification process before shipment:
- Stage 1 — Source Verification: We trace each unit to authorized distribution or OEM-certified channels. No grey-market or refurbished units are listed without explicit disclosure.
- Stage 2 — Physical Inspection: Label integrity, serial number format, housing condition, and connector quality are checked against Rockwell Automation reference standards.
- Stage 3 — Functional Test: Where applicable, units are powered on and port-link activity is verified prior to packaging.
- Stage 4 — Secure Packaging: Anti-static packaging, moisture barrier bags, and foam-lined boxes protect units during international transit.
How to Order
- Submit your inquiry via the Contact / Quote Request form on this page.
- Include your required quantity, delivery timeline, and destination country.
- Our technical team responds within 1 business day with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange export documentation, customs clearance support, and tracked international shipping.
- Post-delivery technical support is available via email and WhatsApp.
Contact: support@konmask.com | +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialist Focus: We stock only industrial automation components — PLCs, drives, switches, I/O modules — not general electronics.
- ✅ Global Export Experience: We ship to 60+ countries with full export documentation, including commercial invoices, packing lists, and certificates of origin.
- ✅ B2B Inquiry-First Model: No pressure to buy online. We support RFQ, PO, and blanket order workflows preferred by procurement teams.
- ✅ Technical Pre-Sales Support: Our engineers can confirm compatibility, suggest alternatives, and review your BOM before you commit.
- ✅ Transparent Sourcing: We disclose product condition (new, surplus, refurbished) clearly on every listing.
Frequently Asked Questions
- Q: Is the 1783-US6T2F compatible with ControlLogix and CompactLogix PLCs?
- A: Yes. The 1783-US6T2F supports EtherNet/IP natively and connects directly to any Allen-Bradley PLC with an Ethernet port, including the full ControlLogix (1756) and CompactLogix (1769) families.
- Q: What fiber SFP modules are compatible with the 1783-US6T2F?
- A: The fiber ports use standard 100BASE-FX SFP (LC) modules. Rockwell Automation’s 1783-SFP100FX is the recommended module. Third-party 100BASE-FX SFPs with LC connectors are generally compatible but should be validated in your specific application.
- Q: Does this switch require any software configuration?
- A: No. The Stratix 2000 series is fully unmanaged. There is no web interface, no CLI, and no Studio 5000 configuration required. It operates as a transparent Layer 2 switch immediately upon power-up.
- Q: What is the maximum fiber distance supported?
- A: 100BASE-FX multimode fiber supports up to 2 km per segment. For longer distances, single-mode fiber SFPs and appropriate cabling would be required.
- Q: Can you provide a certificate of origin or customs documentation?
- A: Yes. We provide full export documentation including commercial invoice, packing list, and certificate of origin for all international shipments. Contact us for specific customs requirements for your country.
