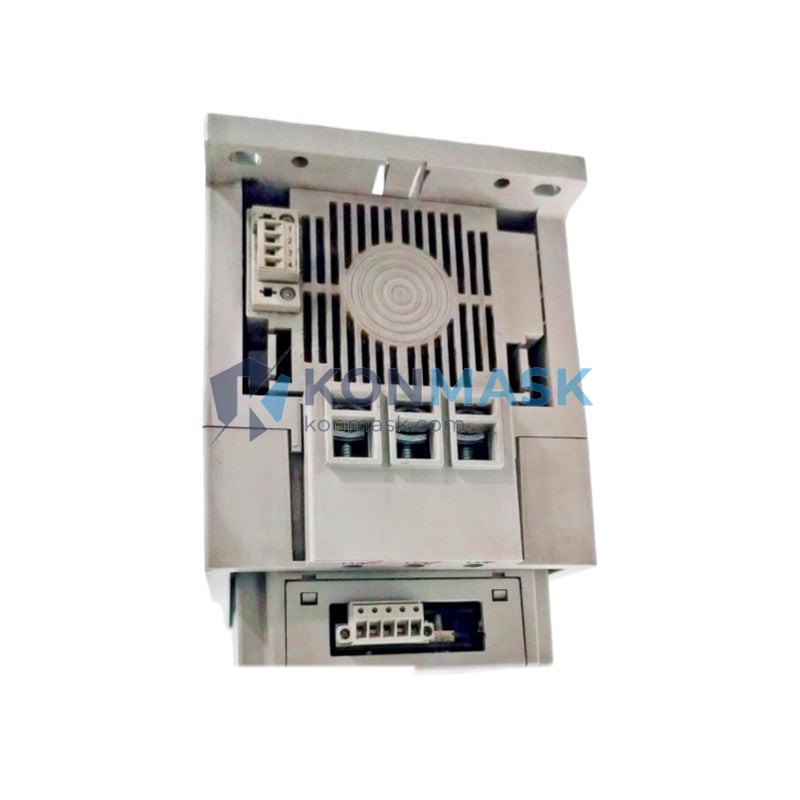

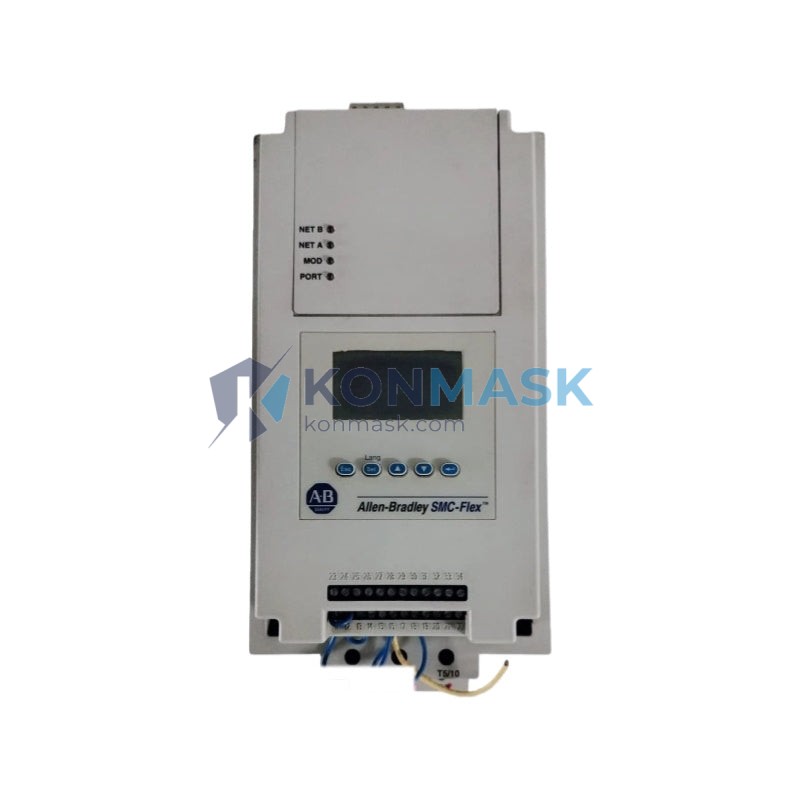

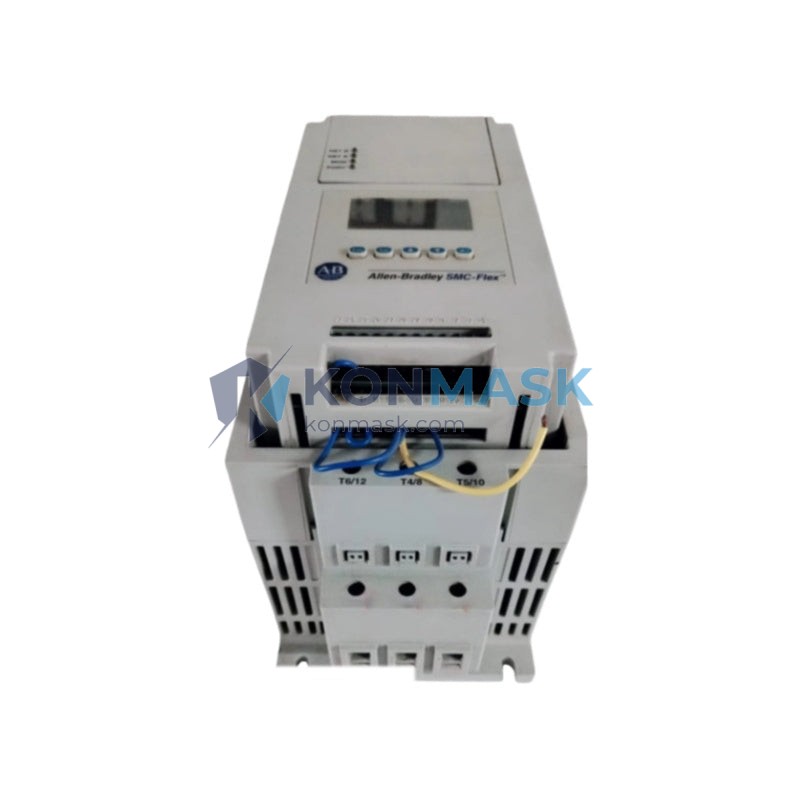

Genuine Allen-Bradley 150-F85NBD Smart Motor Controller | SMC Flex Series – Verified Source
Konmask.com supplies the Allen-Bradley 150-F85NBD SMC Flex Smart Motor Controller — a full-voltage, reduced-voltage soft starter engineered for demanding industrial motor control applications. Every unit we ship is sourced through verified channels, inspected against OEM specifications, and backed by our 12-month authenticity guarantee. When your process cannot afford counterfeit or substandard components, Konmask.com is the supplier engineers trust.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 150-F85NBD |
| Series | Allen-Bradley SMC Flex |
| Controller Type | Smart Motor Controller (Soft Starter) |
| Rated Current | 85 A |
| Supply Voltage | 200–600 V AC, 3-Phase |
| Control Voltage | 100–240 V AC |
| Communication | DeviceNet (N = DeviceNet option) |
| Bypass Contactor | Internal (B = Internal Bypass) |
| Enclosure | Open Type (IP00) |
| Starting Modes | Soft Start, Current Limit, Full Voltage, Preset Slow Speed |
| Protection Features | Overload, Phase Loss, Stall, Jam, Underload, Ground Fault |
| Stopping Modes | Soft Stop, Coast-to-Rest, Brake |
| Ambient Temperature | 0°C to +50°C (operating) |
| Weight | 5.7 kg (approx.) |
| HS Code | 8504.40.90 |
Our 4-Step Quality Verification Process
Every Allen-Bradley 150-F85NBD unit shipped by Konmask.com passes through a rigorous 4-step verification protocol before it reaches your facility:
- Step 1 — Source Authentication: Units are procured exclusively from traceable supply chains. Supplier documentation, including purchase records and chain-of-custody certificates, is retained for every lot.
- Step 2 — Physical Inspection: Housing, terminal blocks, label markings, date codes, and catalog number format are verified against Allen-Bradley OEM specifications. Any unit with inconsistencies is quarantined and rejected.
- Step 3 — Functional Verification: Key electrical parameters — including control voltage response, communication port integrity, and bypass contactor operation — are bench-tested prior to packaging.
- Step 4 — Secure Packaging & Documentation: Units are packed in anti-static, foam-lined boxes with desiccant. A certificate of conformance and full traceability record accompany every shipment. Available on request.
Key Features & Benefits
- 85 A Continuous Rating — Suitable for motors up to approximately 45 kW (60 HP) at 460 V, covering a wide range of industrial pump, fan, and compressor applications.
- Internal Bypass Contactor — Eliminates the need for an external bypass contactor, reducing panel footprint and wiring complexity.
- DeviceNet Communication — Native DeviceNet port enables seamless integration with Allen-Bradley PLC systems (ControlLogix, CompactLogix) and Rockwell Automation FactoryTalk environments.
- Advanced Motor Protection — Built-in overload, phase loss, stall, jam, underload, and ground fault protection reduces reliance on external protective relays.
- Multiple Starting & Stopping Modes — Configurable soft start, current limit, and soft stop modes extend motor and driven equipment service life.
- Compact Open-Type Design — Designed for panel mounting in MCC buckets and custom enclosures, compatible with standard Allen-Bradley MCC infrastructure.
Typical Applications
- Water & Wastewater — Soft starting of centrifugal pumps and blowers in municipal water treatment plants, reducing water hammer and mechanical stress on pipework.
- HVAC Systems — Controlled starting and stopping of large air handling unit fans and chiller compressors in commercial and industrial buildings.
- Oil & Gas — Motor control on pipeline booster pumps, injection pumps, and compressor auxiliaries where DeviceNet integration with existing Rockwell PLCs is required.
- Mining & Minerals — Conveyor belt drives, crusher motors, and slurry pump starters in harsh environments requiring robust motor protection.
- Food & Beverage — Hygienic process pump and mixer motor control in facilities running Rockwell Automation integrated architecture.
- Pulp & Paper — Soft starting of large fan and pump motors in paper machine wet-end and dryer-section drives.
Compatible System Components
The Allen-Bradley 150-F85NBD integrates directly with the following Rockwell Automation components. Konmask.com can source the complete system:
- DeviceNet Scanner: 1756-DNB (ControlLogix) or 1769-SDN (CompactLogix) for network integration
- Input Power Fusing: Allen-Bradley 140M Motor Protection Circuit Breaker (sized to 85 A)
- Control Power: 100–240 V AC control transformer (site-supplied or sourced on request)
- Parameter Configuration: Rockwell Automation Connected Components Workbench (CCW) software — free download
- MCC Bucket: Allen-Bradley 2100 Series MCC structure (consult factory for bucket sizing)
- Remote HIM: 20-HIM-A6 or 20-HIM-C6S for remote parameter access and diagnostics
Global Sourcing & Shipping Capabilities
- In-Stock Availability: Confirmed at time of order. Units ship within 1–3 business days from verified stock.
- Global Export: We ship to 80+ countries. Commercial invoice, packing list, certificate of origin, and HS code documentation (8504.40.90) provided for all international orders.
- Freight Options: DHL Express, FedEx International Priority, UPS Worldwide, and sea freight for volume orders. Typical transit: 3–7 business days (air).
- Volume Orders: Discounted pricing available for orders of 3+ units. Contact us for a formal quotation with lead time confirmation.
- Emergency Supply: Expedited sourcing available for urgent plant shutdowns. Contact our team via WhatsApp for fastest response: +0086 19859288691.
Certifications & Compliance Statement
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marking — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- CSA Certified — Canadian Standards Association approval for North American installations
- RoHS Compliant — Restriction of Hazardous Substances (EU Directive 2011/65/EU)
- DeviceNet Conformance Tested — ODVA conformance certification for DeviceNet communication
- NEC / CEC Compliant — Suitable for installation per National Electrical Code and Canadian Electrical Code requirements
How to Order
- Add to Cart — Click “Add to Cart” and proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards (Visa, Mastercard, Amex).
- Request a Formal Quote — For volume orders (3+ units), BOM sourcing, or project-based procurement, email [email protected] with your quantity, delivery address, and required lead time.
- Confirm Availability — Our team confirms stock and lead time within 4 business hours of receiving your inquiry.
- Export Documentation — All international shipments include commercial invoice, packing list, certificate of origin, and certificate of conformance. HS Code: 8504.40.90.
- Technical Pre-Sales Support — Engineering questions? Contact us via email or WhatsApp: +0086 19859288691. We respond within 1 business day.
Authenticity & Trust FAQ
Q: How do I know the 150-F85NBD I receive is genuine Allen-Bradley?
A: Every unit passes our 4-step verification process (see above). We provide a certificate of conformance and maintain full lot traceability. If you have any authenticity concern upon receipt, contact us within 7 days for a full investigation and replacement.
Q: Is Konmask.com an authorized Allen-Bradley distributor?
A: Konmask.com is an independent specialist supplier of industrial automation components. We source from verified supply chains and stand behind every unit with our 12-month authenticity and quality guarantee.
Q: Can you provide a certificate of conformance or test report?
A: Yes. A certificate of conformance is available for every shipment. Functional test records are available on request for critical applications.
Q: What is your warranty policy?
A: We provide a 12-month warranty against manufacturing defects and authenticity issues on all units. Warranty claims are processed within 5 business days of receipt of the returned unit.
Q: Can you source other SMC Flex variants or related Allen-Bradley parts?
A: Yes. Konmask.com stocks a broad range of SMC Flex, SMC-3, and SMC Dialog Plus controllers, as well as Allen-Bradley MCC components, drives, and PLCs. Contact us with your full BOM for a consolidated quote.
Q: Do you accept returns?
A: Yes. Unused units in original packaging may be returned within 30 days. Contact [email protected] to initiate a return authorization.
