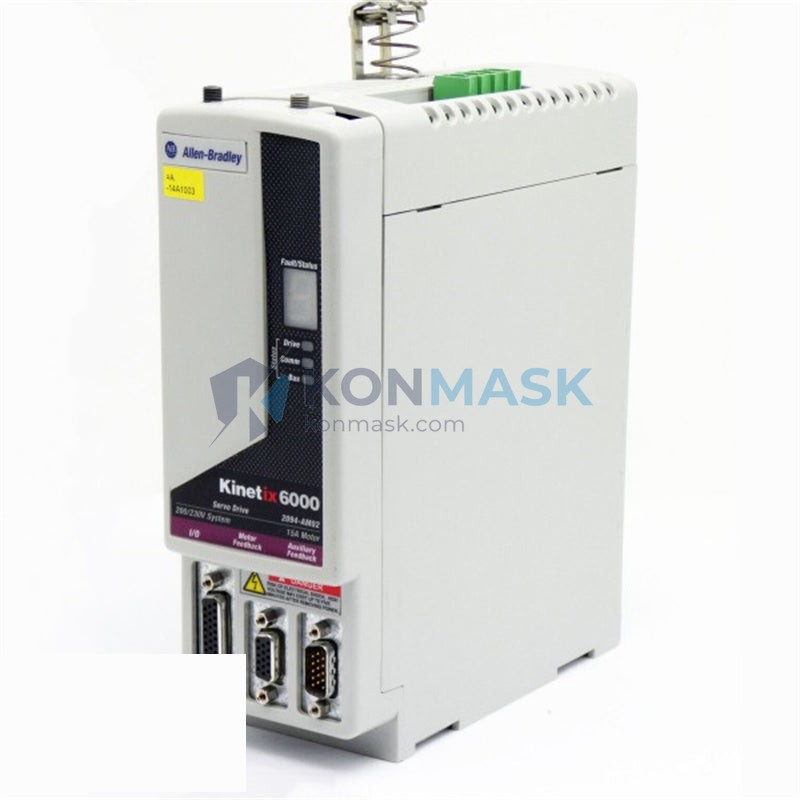

Allen-Bradley 2094-AM02 Axis Module – Kinetix 6000 Multi-Axis Servo Drive System
When a servo axis module fails on a high-speed packaging line or a precision CNC machining center, the entire production cell stops. Unplanned downtime in servo-driven systems can cost manufacturers thousands of dollars per hour — and sourcing a verified replacement quickly is the difference between a brief interruption and a catastrophic schedule overrun. The Allen-Bradley 2094-AM02 Axis Module is the critical link that keeps your Kinetix 6000 servo system running at full capacity.
The 2094-AM02 is a dedicated axis expansion module within Rockwell Automation’s Kinetix 6000 multi-axis servo drive platform — one of the most widely deployed servo architectures in North American and global discrete manufacturing. Designed to share a common DC bus with the 2094 Integrated Axis Module (IAM), the AM02 variant delivers a second controlled servo axis without requiring a separate power supply, making it the preferred choice for compact, high-density motion control cabinets in automotive, food & beverage, semiconductor, and material handling applications.
Technical Specifications
- Part Number: 2094-AM02
- Series: Kinetix 6000 Multi-Axis Servo Drive
- Module Type: Axis Module (AM) — shared DC bus expansion
- Compatible IAM: 2094-BC01-MP5, 2094-BC02-M02, 2094-BC04-M05, 2094-BC07-M15 (and other 2094 IAM variants)
- Communication: Integrated with SERCOS interface via IAM backplane connection
- Feedback Support: Incremental encoder, absolute encoder, Hiperface, EnDat (via IAM system)
- Mounting: DIN rail / panel mount, side-by-side with IAM on shared bus bar
- Weight: Approx. 1,600 g
- Manufacturer: Rockwell Automation / Allen-Bradley
- Country of Origin: USA
Note: Detailed electrical ratings (output current, bus voltage range) vary by system configuration. Please provide your IAM part number when requesting a quote for compatibility confirmation.
Key Features & Benefits
- Shared DC Bus Architecture: Eliminates redundant power conversion stages, reducing cabinet footprint and improving overall system efficiency.
- Plug-and-Play Axis Expansion: Mechanically and electrically mates directly to the Kinetix 6000 IAM — no additional wiring harnesses or power modules required.
- High-Performance Motion Control: Supports advanced motion profiles including electronic gearing, camming, and coordinated multi-axis moves via Logix motion instructions.
- Integrated Safety Ready: Compatible with Safe Torque Off (STO) safety functions when used with appropriate safety-rated IAM configurations.
- Rockwell Logix Native: Fully integrated with Studio 5000 Logix Designer for seamless axis configuration, tuning, and diagnostics.
- Compact Form Factor: Optimized for high-density servo cabinets where space is at a premium.
Industry & Equipment Applications
- Automotive Manufacturing: Robotic welding positioners, transfer lines, and assembly conveyors requiring synchronized multi-axis motion.
- Food & Beverage: High-speed pick-and-place systems, form-fill-seal machines, and rotary indexing tables.
- Semiconductor & Electronics: Precision wafer handling, PCB drilling, and SMT placement equipment.
- Material Handling: Automated storage and retrieval systems (AS/RS), palletizers, and sortation conveyors.
- Packaging Machinery: Cartoners, case packers, and labeling machines with coordinated servo axes.
- Machine Tool: CNC turning centers and machining centers requiring rigid tapping and contouring.
System Integration & Compatible Parts
The 2094-AM02 is designed to operate exclusively within the Kinetix 6000 ecosystem. Common system components ordered alongside this module include:
- 2094-BC01-MP5 / 2094-BC02-M02 / 2094-BC04-M05 — Kinetix 6000 Integrated Axis Modules (IAM)
- 2090-XXNFMF-Sxx — Kinetix servo motor power cables
- 2090-XXNFMF-Sxx — Feedback cables for servo motors
- 1756-M02AE / 1756-M08SE — ControlLogix motion modules (SERCOS)
- MPL / MPM / VPL series — Allen-Bradley servo motors compatible with Kinetix 6000
Not sure which IAM or cable is compatible with your existing system? Contact our technical team with your full drive configuration and we will confirm compatibility before shipment.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley module we supply goes through a structured verification process before it reaches your facility:
- Visual Inspection: Boards, connectors, and housing checked for physical damage, corrosion, or counterfeit indicators.
- Label & Traceability Verification: Part number, series letter, and firmware revision confirmed against Rockwell Automation documentation.
- Functional Test (where applicable): Power-on and communication handshake tests performed on select units.
- Secure Packaging: ESD-safe bags, foam inserts, and double-wall cartons used for all shipments.
- Documentation: Test reports and inspection records available upon request for critical applications.
How to Order
- Submit an inquiry via the Contact Us page or email support@konmask.com.
- Provide your full part number (including series letter if known), required quantity, and delivery timeline.
- Receive a formal quotation with lead time, pricing, and shipping options within 1 business day.
- Confirm the order — we handle export documentation, packaging, and logistics coordination.
We support T/T bank transfer, PayPal, and other B2B payment terms for qualified accounts. MOQ: 1 piece.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo, and motion control components — not a generalist distributor.
- Global Sourcing Network: Access to both new and tested-surplus Allen-Bradley inventory from verified supply channels worldwide.
- Technical Pre-Sales Support: Our engineers can assist with compatibility checks, system configuration questions, and cross-reference lookups.
- Fast Response: Quotations within 24 hours. Expedited shipping available for urgent production downtime situations.
- Export Experience: Serving industrial buyers across Asia, Europe, Middle East, and the Americas with compliant export documentation.
Frequently Asked Questions
Q: Is the 2094-AM02 compatible with all Kinetix 6000 IAM modules?
A: The 2094-AM02 is designed for the Kinetix 6000 shared DC bus system and is compatible with most 2094-series IAMs. Compatibility depends on the IAM’s power rating and firmware revision. Please share your IAM part number for confirmation.
Q: Do you supply new or refurbished units?
A: We supply both new (factory-sealed) and professionally tested surplus units. The condition is clearly stated in your quotation. All units pass our QA inspection before shipment.
Q: Can you provide a warranty?
A: Yes. We offer a standard 90-day warranty against defects in materials and workmanship. Extended warranty options are available — please inquire at the time of order.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For sourced units, lead time is typically 7–15 business days depending on origin. Expedited options are available.
Q: Can you help with Studio 5000 configuration or commissioning?
A: We provide pre-sales technical guidance on axis configuration parameters. For on-site commissioning, we can recommend qualified Rockwell Automation system integrators in your region.
