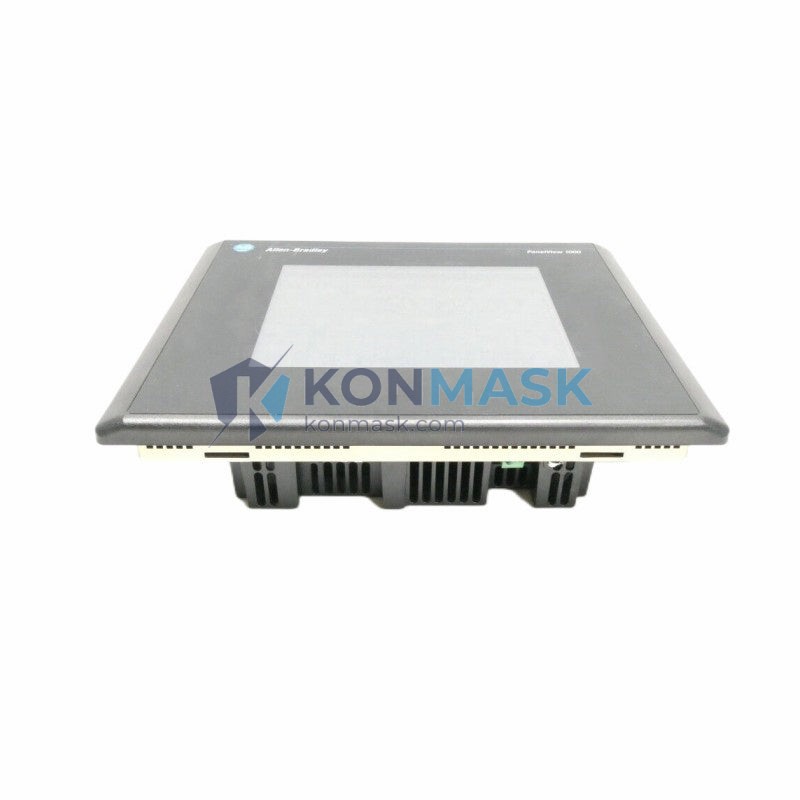

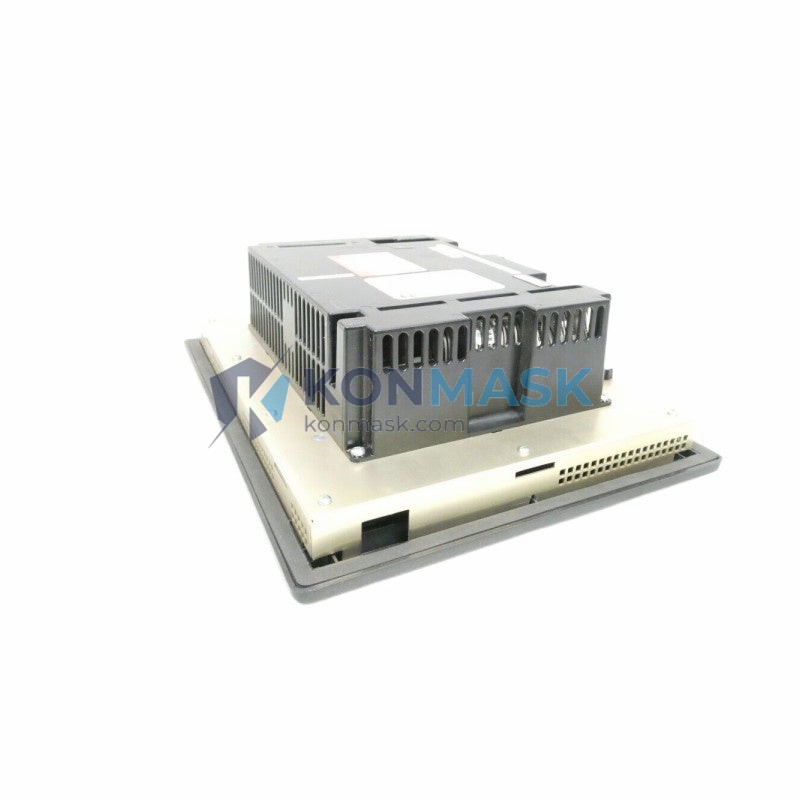

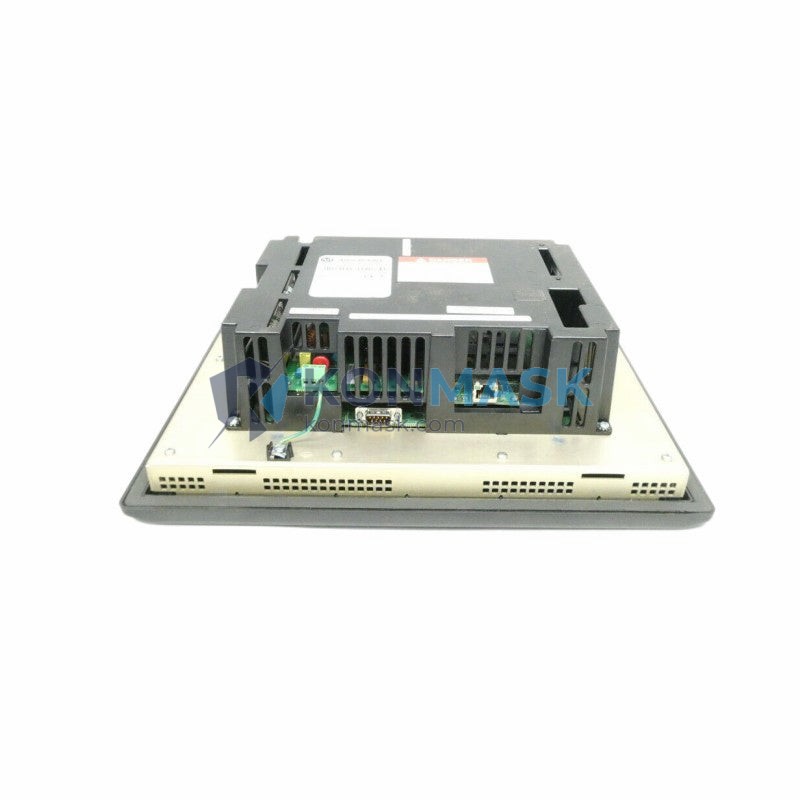

Allen-Bradley 2711-T10C20L1 Color Touch Screen Terminal – PanelView 1000 Series
Imagine a critical production line grinding to a halt because the operator interface goes dark — no alarms acknowledged, no process parameters visible, no way to command the PLC. In high-stakes industrial environments, the Human-Machine Interface is not a peripheral; it is the nerve center of machine control. The Allen-Bradley 2711-T10C20L1 PanelView 1000 Color Touch Screen Terminal is engineered precisely to prevent that scenario, delivering a robust, reliable operator interface that keeps your automation system communicating, visible, and in control around the clock.
Within the PanelView 1000 family — Rockwell Automation’s proven mid-range HMI platform — the 2711-T10C20L1 occupies a commanding position. Its 10.4-inch color TFT display and resistive touch interface make it the preferred choice for machine builders and system integrators who need a full-featured panel terminal without stepping up to the PanelView Plus platform. Globally, the PanelView 1000 series has been deployed across hundreds of thousands of installations in automotive, food & beverage, oil & gas, and discrete manufacturing, cementing its status as one of the most trusted HMI platforms in industrial automation history.
Technical Specifications
- Part Number: 2711-T10C20L1
- Series: Allen-Bradley PanelView 1000
- Display Type: 10.4″ Color TFT LCD
- Input Method: Resistive Touch Screen
- Communication: DH-485 / RS-232 (DF1)
- Power Supply: 24 VDC
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Enclosure Rating: NEMA 4/4X, 12, 13 (front panel)
- Weight: Approx. 2.9 kg
- Manufacturer: Rockwell Automation / Allen-Bradley
- SKU: 2711-T10C20L1
Note: Specifications are based on published Rockwell Automation documentation. Always verify against the official product datasheet for your application.
Key Features & Benefits
- 10.4″ Full-Color Display: High-contrast TFT panel ensures clear visibility of process graphics, alarms, and trend data even in bright industrial lighting conditions.
- Resistive Touch Interface: Operable with gloved hands — essential for operators in food processing, chemical, or heavy manufacturing environments.
- DH-485 & DF1 Communication: Native integration with Allen-Bradley SLC 500 and MicroLogix PLC families without additional gateways or protocol converters.
- NEMA 4/4X Front Panel Rating: Sealed against dust, oil mist, and washdown — suitable for demanding plant-floor conditions.
- PanelBuilder32 Compatible: Application development and migration using Rockwell’s established PanelBuilder32 software environment.
- Proven Reliability: Designed for continuous 24/7 industrial operation with a long field-proven track record across global installations.
Industry & Equipment Applications
- Automotive Manufacturing: Assembly line control panels, robotic cell operator stations, and conveyor management interfaces.
- Food & Beverage: Washdown-rated operator terminals for filling, packaging, and pasteurization lines.
- Oil & Gas: Pump station monitoring, compressor control, and pipeline SCADA local operator panels.
- Water & Wastewater: Lift station controls, filtration system interfaces, and chemical dosing panels.
- Discrete Manufacturing: CNC machine operator interfaces, press control panels, and material handling systems.
- Building Automation: HVAC control stations and energy management operator terminals.
System Integration & Compatible Parts
The 2711-T10C20L1 is designed to integrate seamlessly within the Allen-Bradley / Rockwell Automation ecosystem. Compatible and commonly paired components include:
- Allen-Bradley SLC 500 series PLCs (SLC 5/03, 5/04, 5/05)
- Allen-Bradley MicroLogix 1000, 1100, 1400 series
- 1747-AIC / 1761-NET-AIC DH-485 interface converters
- PanelBuilder32 programming software (Rockwell Automation)
- 1492-CABLE series programming and communication cables
For complex multi-panel or multi-network architectures, our technical team can advise on compatible gateway and communication modules.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 2711-T10C20L1 unit we supply undergoes a structured verification process before shipment:
- Source Verification: Units are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual & Physical Inspection: Each unit is inspected for physical integrity, connector condition, label authenticity, and absence of counterfeit indicators.
- Functional Testing: Where applicable, units are powered on and display/touch functionality is confirmed prior to dispatch.
- Secure Packaging: Anti-static packaging with foam cushioning ensures safe transit to your facility anywhere in the world.
- Documentation: Test records and sourcing documentation available upon request for regulated industries.
How to Order
- Submit an Inquiry: Contact us via the form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: Approve the proforma invoice and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Shipment & Tracking: Your order is dispatched with full tracking information and commercial documentation for customs clearance.
- After-Sales Support: Our technical team remains available post-delivery for integration questions or warranty claims.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, HMI, and automation components — not a generalist marketplace.
- Global B2B Supply: Serving system integrators, OEMs, and MRO procurement teams across Asia, Europe, the Middle East, and the Americas.
- Competitive Lead Times: Extensive supplier network enables fast sourcing of both current and legacy/obsolete part numbers.
- Technical Pre-Sales Support: Our engineers can confirm compatibility and advise on system integration before you commit to a purchase.
- Transparent Documentation: Full sourcing traceability, inspection records, and shipping documentation provided as standard.
Frequently Asked Questions
- Q: Is the 2711-T10C20L1 still in production?
- A: The PanelView 1000 series has reached end-of-life status with Rockwell Automation. However, Konmask.com maintains access to verified surplus and refurbished stock to support ongoing maintenance and replacement needs.
- Q: What PLCs is the 2711-T10C20L1 compatible with?
- A: It communicates natively via DH-485 and DF1 (RS-232) protocols, making it directly compatible with Allen-Bradley SLC 500 and MicroLogix PLC families. Third-party PLCs may require a protocol gateway.
- Q: What software is used to program this terminal?
- A: Applications are developed using Rockwell Automation’s PanelBuilder32 software. Existing application files (.pba) can typically be transferred and re-used on replacement units.
- Q: Can you supply a warranty with this unit?
- A: Yes. We offer a standard 90-day functional warranty on all units. Extended warranty options are available — please discuss with our sales team at the time of inquiry.
- Q: What is the minimum order quantity?
- A: We supply single units as well as bulk orders. There is no minimum order quantity for standard inquiries.
