Allen-Bradley 2711P-K4M5D PanelView Plus 400 Grayscale Keypad Terminal | Replacement, Equivalent & Selection Guide

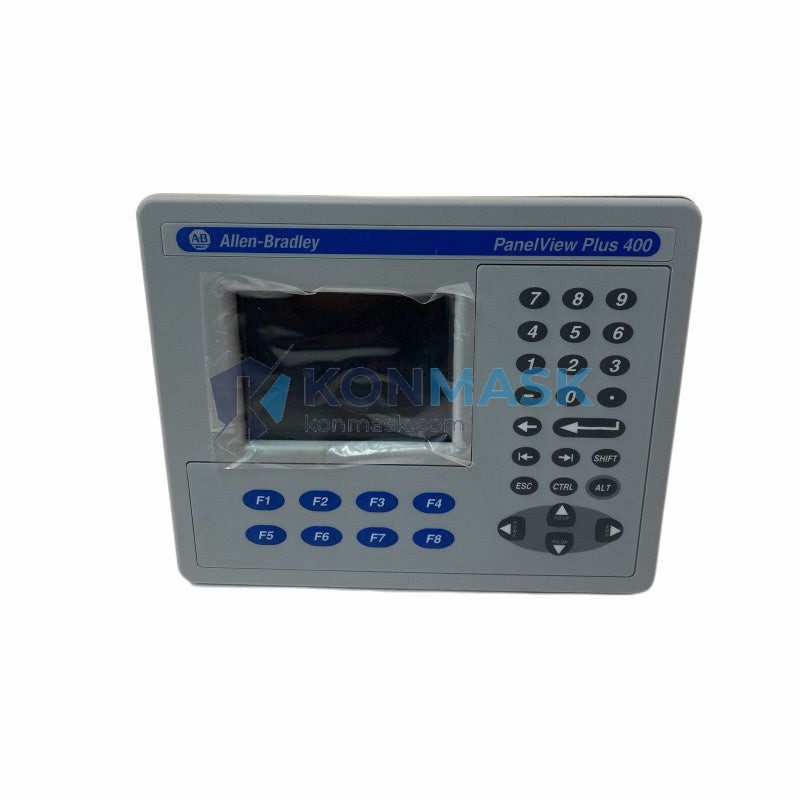

The Allen-Bradley 2711P-K4M5D is a compact 4-inch grayscale keypad HMI terminal from Rockwell Automation’s PanelView Plus 400 series. Designed for industrial machine-level control and monitoring, it delivers reliable operator interface functionality in space-constrained panel environments. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 2711P-K4M5D
- Series: PanelView Plus 400
- Manufacturer: Allen-Bradley / Rockwell Automation
- Display Type: Grayscale STN LCD
- Display Size: 4.0 inch diagonal
- Resolution: 320 × 240 (QVGA)
- Input Method: Keypad (no touchscreen)
- Communication: DH-485, DF1, DeviceNet, EtherNet/IP (via communication module)
- Processor: 400 MHz
- Memory: 64 MB RAM / 128 MB Flash
- Operating Voltage: 24 VDC
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 70°C
- Protection Rating: NEMA 4/4X, 12, 13; IP65 (front panel)
- Certifications: UL, CE, cUL
- Dimensions (H × W × D): Approx. 152 × 203 × 57 mm
- Weight: Approx. 1.0 kg
- Software: FactoryTalk View ME (Machine Edition)
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 2711P-K4M5D. Always verify communication protocol, display type, and panel cutout dimensions before substituting.
- 2711P-T4M5D — PanelView Plus 400, same series, touchscreen variant (drop-in replacement with panel cutout modification)
- 2711P-K4C5D — PanelView Plus 400, color display, keypad input (upgrade path)
- 2711P-T4C5D — PanelView Plus 400, color touchscreen (full upgrade)
- 2711-K4A2 — Legacy PanelView 550 Keypad (older generation, requires application migration)
- 2711P-K4M5A8 — PanelView Plus 400 with AC power input variant
- Siemens KTP400 Basic — Third-party equivalent for new installations; requires TIA Portal and protocol adaptation
- Weintek MT6050i — Cost-effective third-party alternative; supports EtherNet/IP with driver configuration
Note: Third-party replacements require engineering validation. Contact Konmask for compatibility assessment.
Why Choose the Original Model
- Seamless FactoryTalk View ME integration — No application re-engineering required when replacing like-for-like
- Proven NEMA 4X / IP65 sealing — Validated for wash-down and dusty industrial environments
- Rockwell ecosystem compatibility — Native integration with ControlLogix, CompactLogix, MicroLogix, and SLC 500 PLCs
- Long service life — Robust keypad design with high MTBF for 24/7 production environments
- Regulatory compliance — UL/CE certified for North American and European installations
Typical Applications
- Machine-level operator panels on packaging lines, conveyors, and assembly stations
- Pump and motor control stations in water treatment and utilities
- HVAC and building automation control panels
- Food & beverage processing equipment (wash-down rated)
- OEM machine builders requiring compact, cost-effective HMI solutions
- Retrofit and modernization of legacy PanelView 550/600 installations
System Compatibility
- Rockwell PLCs: ControlLogix (1756), CompactLogix (1769), MicroLogix (1100/1400), SLC 500, PLC-5
- Networks: EtherNet/IP, DH-485, DF1 (RS-232), DeviceNet (with communication module)
- Software: FactoryTalk View ME v5.0 and above; RSView ME (legacy)
- Panel Cutout: Compatible with standard PanelView Plus 400 cutout template (refer to Rockwell installation drawing)
Selection Guide
Use the following criteria to determine whether the 2711P-K4M5D is the right choice, or to select an appropriate alternative:
- Display preference: Choose K4M5D for keypad-only operation; choose T4M5D if touchscreen is preferred
- Color vs. grayscale: M = Grayscale; C = Color — upgrade to 2711P-K4C5D for color display
- Communication protocol: Confirm your PLC network (EtherNet/IP vs. DH-485) before ordering
- Power supply: Standard model is 24 VDC; confirm panel power availability
- Environment: IP65 front panel is suitable for most industrial environments; verify if higher ingress protection is required
- Budget vs. OEM: For new installations with no legacy constraints, third-party HMIs may reduce cost; for existing Rockwell systems, OEM replacement is recommended
Quality Assurance & Sourcing
- All units sourced through authorized distributors or verified surplus channels
- Each unit inspected for physical integrity, label authenticity, and functional condition prior to shipment
- Traceability documentation available upon request (COO, test reports)
- New, refurbished, and tested-used stock available — condition clearly stated at time of quotation
- Warranty: 12 months from date of shipment (new units); 90 days (refurbished/tested-used)
How to Order
- Step 1: Confirm part number: 2711P-K4M5D
- Step 2: Specify required quantity and preferred condition (new / refurbished / tested-used)
- Step 3: Submit inquiry via support@konmask.com or call +0086 19859288691
- Step 4: Receive quotation with lead time, shipping options, and payment terms within 1 business day
- Step 5: Confirm order and receive tracking information upon dispatch
Bulk orders and long-term supply agreements welcome. Contact us for volume pricing.
Replacement & Compatibility FAQ
Q: Can I replace 2711P-K4M5D with 2711P-T4M5D directly?
A: Yes, the application file is compatible. However, the panel cutout dimensions differ slightly for the touchscreen variant. Verify the cutout template before installation.
Q: Is the 2711P-K4M5D compatible with ControlLogix PLCs?
A: Yes, via EtherNet/IP or DF1 serial communication. Ensure the correct communication module is installed and the FactoryTalk View ME project is configured accordingly.
Q: Can I use a Siemens or Weintek HMI as a replacement?
A: Functionally possible for new installations, but requires full application re-development in the respective software (TIA Portal / EasyBuilder Pro). Not recommended for direct drop-in replacement in existing Rockwell systems.
Q: What software do I need to program the 2711P-K4M5D?
A: FactoryTalk View Machine Edition (ME). Legacy projects created in RSView ME are also compatible.
Q: Do you provide programming or technical support?
A: We provide hardware supply and basic technical guidance. For application programming support, we can refer you to qualified Rockwell system integrators.
Q: What is the lead time for the 2711P-K4M5D?
A: Stock availability varies. Contact us for real-time inventory status. Typical lead time for in-stock units is 3–7 business days internationally.
