Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 Standard 10″ Touch Screen | Replacement, Equivalent & Selection Guide

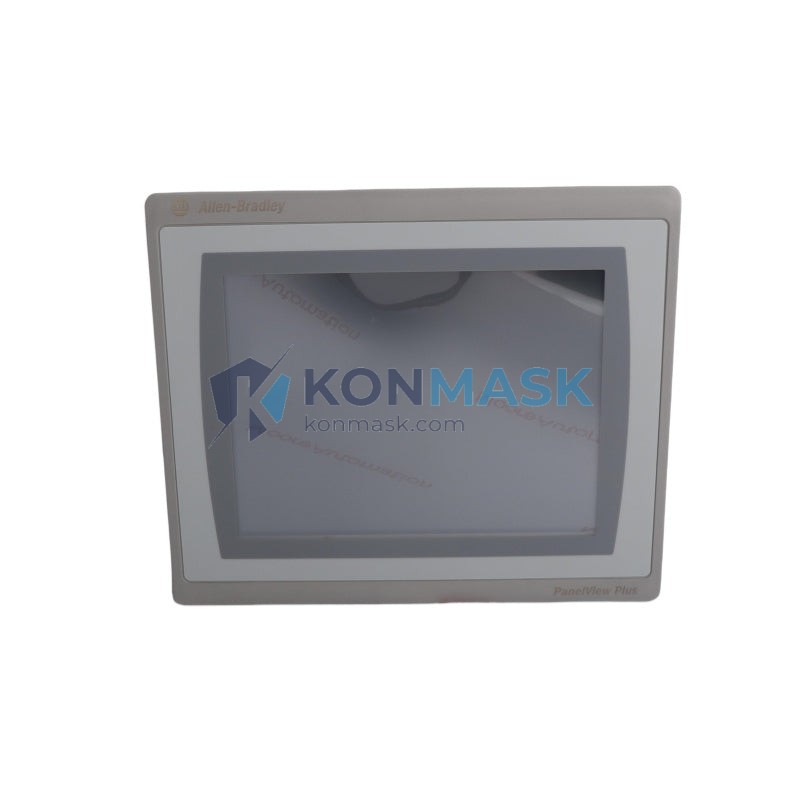

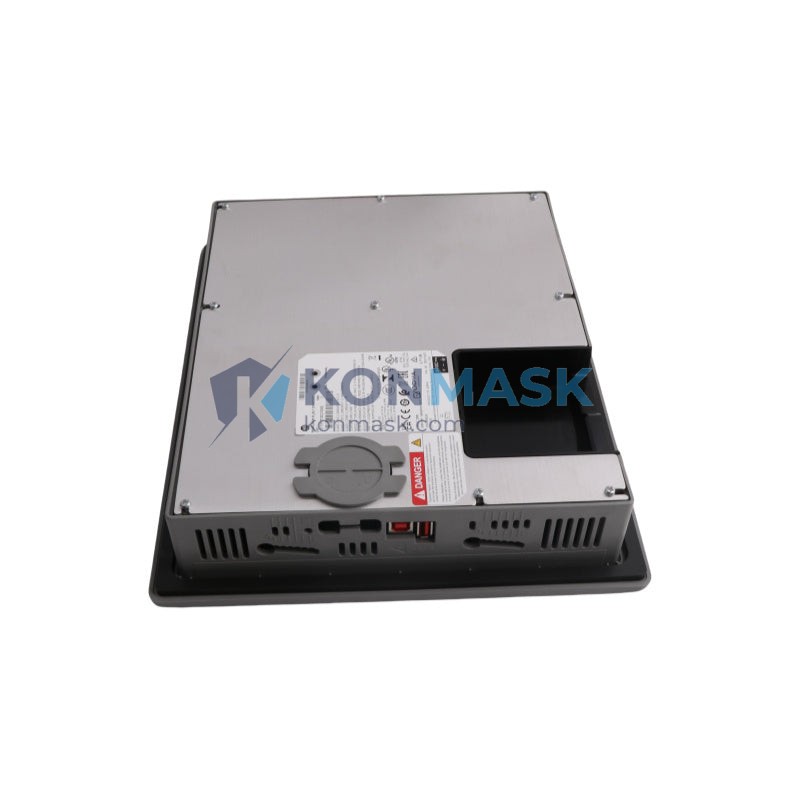

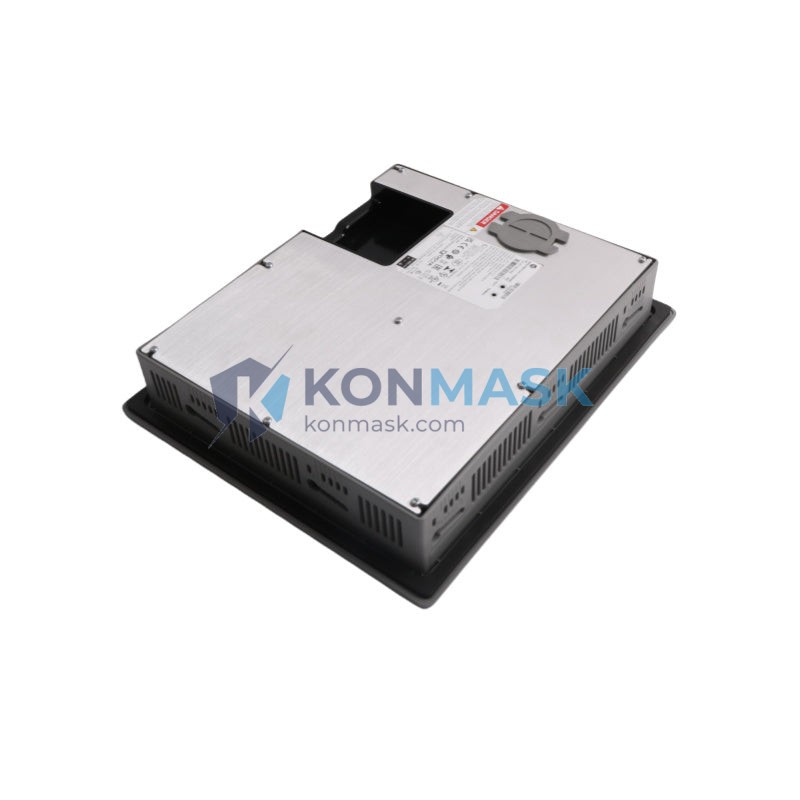

The Allen-Bradley 2711P-T10C21D8S is a 10.4″ color TFT touch screen HMI from Rockwell Automation’s PanelView Plus 7 Standard series. Designed for demanding industrial environments, it delivers reliable operator interface performance with seamless integration into Allen-Bradley control architectures. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 2711P-T10C21D8S
- Series: PanelView Plus 7 Standard
- Display Size: 10.4″ (diagonal)
- Display Type: Color TFT LCD with Resistive Touch
- Resolution: 640 × 480 (VGA)
- Input Voltage: 24V DC
- Communication: EtherNet/IP (dual-port)
- Operating Temperature: 0 °C to 55 °C
- Storage Temperature: −40 °C to 70 °C
- Protection Rating: NEMA 4/4X, 12, 13; IP65 (front panel)
- Memory: 512 MB RAM / 512 MB Flash
- OS: Windows CE 6.0
- Weight: Approx. 1.86 kg
- Certifications: UL, CE, cUL
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 2711P-T10C21D8S. Always verify firmware compatibility and communication protocol before substitution.
- 2711P-T10C4D8 — PanelView Plus 6, 10.4″, 24V DC, EtherNet/IP (prior generation, functionally similar)
- 2711P-T10C4D8K — PanelView Plus 6 with keypad, same display size
- 2711P-T10C21D8 — PanelView Plus 7 Standard, non-S variant (check suffix for regional differences)
- 2711R-T10T — PanelView 800, 10.4″, compact alternative for simpler applications
- 6AV2124-0QC02-0AX1 — Siemens SIMATIC HMI TP1000 Comfort (cross-brand equivalent, EtherNet/IP adapter required)
Note: Cross-brand replacements require additional configuration. Contact support@konmask.com for compatibility assessment.
Why Choose the Original Model
- Native FactoryTalk View ME integration — zero re-engineering of existing HMI projects
- Dual-port EtherNet/IP — supports Device Level Ring (DLR) topology for high-availability networks
- NEMA 4X / IP65 rated — suitable for washdown and harsh industrial environments
- Rockwell Automation ecosystem — seamless Studio 5000 / RSLogix 5000 compatibility
- Long product lifecycle support — firmware updates and spare parts availability from Rockwell
Typical Applications
- Discrete manufacturing: assembly lines, conveyor control, robotic cell HMI
- Process industries: water treatment, chemical dosing, HVAC control panels
- Food & beverage: washdown-rated operator stations
- Oil & gas: remote monitoring terminals
- Building automation: energy management and BMS operator interfaces
System Compatibility
- Software: FactoryTalk View Studio ME v8.0 and above
- PLCs: Allen-Bradley ControlLogix, CompactLogix, MicroLogix (via EtherNet/IP)
- Network: EtherNet/IP, DLR (Device Level Ring)
- Power Supply: 24V DC (external, not included)
- Panel Cutout: Refer to Rockwell Automation installation drawing 2711P-IN006
Selection Guide
Use the table below to select the correct PanelView Plus 7 Standard model for your application:
- Display size needed? — 6″: 2711P-T6C21D8S | 7″: 2711P-T7C21D8S | 10″: 2711P-T10C21D8S | 12″: 2711P-T12W21D8S | 15″: 2711P-T15C21D8S
- Touch only vs. keypad? — T = Touch only (this model) | K = Keypad + Touch
- Voltage? — D8 = 24V DC | A8 = 100–240V AC
- Communication? — All PV+ 7 Standard models include dual-port EtherNet/IP as standard
- Environment rating? — All standard models are NEMA 4/4X / IP65 front panel rated
Not sure which model fits your system? Email support@konmask.com with your PLC model and FactoryTalk version for a free selection recommendation.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional inspection and power-on test performed
- Original packaging preserved where available; anti-static packaging for all shipments
- Traceability documentation available upon request (COC, test reports)
- Warranty: 12 months from date of shipment
How to Order
- Add the 2711P-T10C21D8S to your cart and proceed to checkout
- For bulk orders (>3 units) or urgent requirements, contact us directly for lead time and pricing
- Provide your shipping address and preferred freight method at checkout
- Order confirmation and tracking number issued within 1 business day
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 2711P-T10C4D8 (PanelView Plus 6) with the 2711P-T10C21D8S (PanelView Plus 7)?
A: Yes, in most cases. The PV+ 7 is backward compatible with PV+ 6 applications when using FactoryTalk View ME v8.0+. Minor project migration may be required.
Q: Is the 2711P-T10C21D8S compatible with RSLogix 500 / MicroLogix PLCs?
A: Yes, via EtherNet/IP. DF1 serial is not supported on this model.
Q: What is the difference between 2711P-T10C21D8S and 2711P-T10C21D8?
A: The “S” suffix typically denotes a regional or sales variant. Functionally identical in most markets — confirm with your local Rockwell distributor for region-specific certifications.
Q: Do you offer exchange / repair services?
A: Yes. Contact us with your unit’s serial number for a repair or exchange quote.
