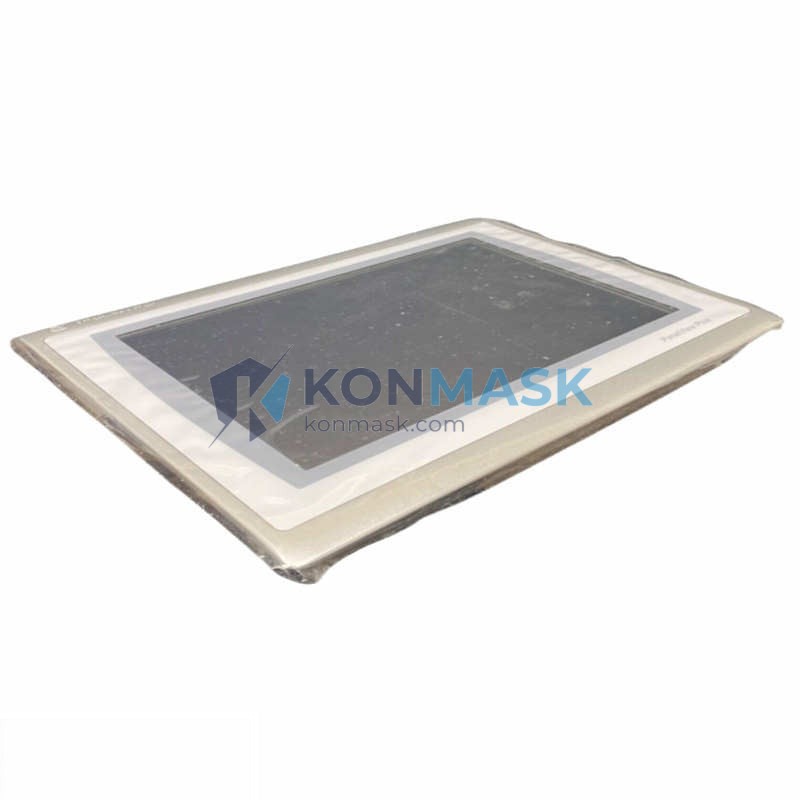

Allen-Bradley 2711P-T12W22D9P — 12.1″ Widescreen Touch HMI | PanelView Plus 7 Standard
Engineering Background
The PanelView Plus 7 Standard series represents Rockwell Automation’s mainstream HMI platform, engineered for demanding industrial environments where operator interface reliability is non-negotiable. The 2711P-T12W22D9P delivers a 12.1-inch widescreen touch display with dual-port EtherNet/IP connectivity, purpose-built for seamless integration into Allen-Bradley ControlLogix, CompactLogix, and MicroLogix control architectures.
Product Positioning
Designed for process visualization, machine control, and SCADA front-end applications, this terminal bridges the gap between operator ergonomics and industrial-grade durability. Its native FactoryTalk View ME runtime environment ensures deterministic screen rendering and alarm management without third-party middleware dependencies — a critical requirement for regulated manufacturing and utility environments.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2711P-T12W22D9P |
| Series | PanelView Plus 7 Standard |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 12.1 in (307 mm) Widescreen TFT LCD |
| Resolution | 1280 × 800 px (WXGA) |
| Touch Technology | Analog Resistive Touch Screen |
| Input Voltage | 24 VDC (18–32 VDC operating range) |
| Communication Ports | Dual EtherNet/IP (10/100 Mbps), USB Type-A × 2, USB Type-B × 1 |
| Processor | 800 MHz ARM Cortex |
| RAM | 512 MB |
| Non-Volatile Storage | 512 MB Flash |
| Operating System | Windows CE 6.0 |
| Runtime Software | FactoryTalk View ME (pre-installed) |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | NEMA 4/4X, 12, 13; IP65 (front panel) |
| Vibration Resistance | 2 g, 10–500 Hz (IEC 60068-2-6) |
| Shock Resistance | 15 g, 11 ms (IEC 60068-2-27) |
| Certifications | UL, CE, cUL, RCM, KC |
| Panel Cutout | 340 mm × 248 mm (W × H) |
| Weight | Approx. 2.5 kg (5.5 lb) |
| Power Consumption | ≤ 30 W typical |
Proven Application Environments
- Automotive Assembly Lines — Real-time torque monitoring, cycle count visualization, and fault annunciation on ControlLogix-driven stations.
- Water & Wastewater Treatment — SCADA front-end for pump control, flow metering, and alarm management in NEMA 4X-rated enclosures.
- Food & Beverage Processing — Washdown-compatible operator interface for batch recipe management and CIP cycle control.
- Oil & Gas Upstream/Midstream — Wellhead and compressor station HMI with EtherNet/IP integration to safety PLCs.
- Pharmaceutical Manufacturing — 21 CFR Part 11-compatible audit trail and electronic signature workflows via FactoryTalk View ME.
- Building Automation & HVAC — Energy management dashboards and equipment status visualization in BAS panels.
Engineering Advantages
- Dual EtherNet/IP Ports — Device-level ring (DLR) topology support eliminates single points of network failure without additional switches.
- Native FactoryTalk Integration — Direct tag browsing from RSLogix 5000 / Studio 5000 projects; no OPC server required.
- WXGA Widescreen Display — 1280 × 800 resolution enables split-screen trend/alarm views without operator scrolling.
- IP65 Front Panel Sealing — Suitable for direct washdown exposure and dusty environments without additional enclosure upgrades.
- USB Peripheral Support — Barcode scanners, printers, and USB drives supported natively for production data capture.
- Compact Depth Profile — Shallow panel depth reduces enclosure size requirements and simplifies retrofit installations.
System Architecture & Signal Flow
The 2711P-T12W22D9P communicates with Allen-Bradley PLCs exclusively over EtherNet/IP using CIP (Common Industrial Protocol). The terminal acts as an EtherNet/IP adapter, polling tag data from the controller’s data table at configurable update rates (typically 250 ms–1 s). Alarm detection is handled locally by the FactoryTalk View ME runtime, with alarm history logged to onboard Flash storage and optionally mirrored to a USB drive or network share via FTP.
For multi-terminal deployments, the dual-port switch enables daisy-chain or DLR ring wiring, reducing cable runs and switch port consumption. The USB Type-B port supports PC-based application download via FactoryTalk View Studio ME without requiring a separate programming cable.
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels and authorized distribution networks.
- Each unit undergoes visual inspection, power-on functional test, and firmware version verification prior to listing.
- Catalog number, date code, and country of origin are confirmed against Rockwell Automation product documentation.
- Units are shipped in anti-static packaging with foam cushioning to prevent transit damage.
- Counterfeit risk mitigation: serial numbers validated against known Allen-Bradley format standards; suspicious units are quarantined and not listed.
Procurement Process
- Confirm Compatibility — Verify your FactoryTalk View ME version and Studio 5000 project compatibility. Contact our engineering team if unsure.
- Request a Quote — Submit your catalog number and required quantity via support@konmask.com or +0086 19859288691.
- Order Confirmation — Purchase order accepted; lead time and shipping method confirmed within 1 business day.
- Quality Check & Dispatch — Unit tested, photographed, and dispatched with tracking information provided.
- Incoming Inspection — Recommended: power-on test and FactoryTalk View ME application load verification upon receipt.
- After-Sales Support — Technical assistance available for integration, firmware, and application questions post-delivery.
Technical FAQ
Q: Is the 2711P-T12W22D9P compatible with CompactLogix L3x/L4x/L5x controllers?
A: Yes. Any Allen-Bradley controller with an EtherNet/IP port running RSLogix 5000 or Studio 5000 is compatible. Tag browsing is supported natively.
Q: What version of FactoryTalk View ME is pre-installed?
A: Units typically ship with FTV ME v8.x or v9.x. Confirm the installed version upon receipt; upgrades are available via Rockwell Software licensing.
Q: Can this terminal connect to third-party PLCs (Siemens, Mitsubishi, etc.)?
A: The 2711P-T12W22D9P is optimized for Allen-Bradley EtherNet/IP ecosystems. Third-party connectivity requires a protocol gateway (e.g., ProSoft Technology MVI series) and is not natively supported.
Q: Is a replacement touch screen panel available separately?
A: Yes. Replacement digitizer assemblies are available. Contact support@konmask.com with your unit’s date code for compatibility confirmation.
Q: What is the warranty on surplus units?
A: Konmask provides a 90-day functional warranty on all tested surplus units. Extended warranty options are available upon request.
