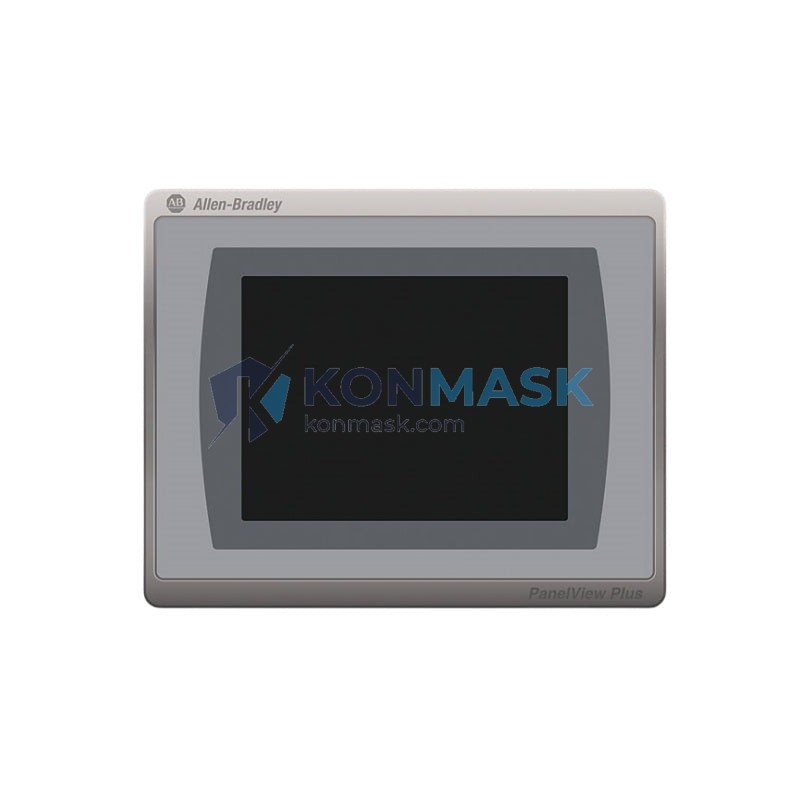

Allen-Bradley 2711P-T7C21D8S – 7″ Color Touch Operator Terminal | PanelView Plus 7 Standard
Engineering Background
The Allen-Bradley 2711P-T7C21D8S is a member of Rockwell Automation’s PanelView Plus 7 Standard family — the industry benchmark for human-machine interface (HMI) terminals in discrete and process manufacturing. Designed to replace aging PanelView Plus 6 installations while maintaining application compatibility, this terminal delivers a modern display, robust Windows CE runtime, and native integration with the Logix control platform. Procurement engineers specifying HMI upgrades or greenfield panel builds will find the 2711P-T7C21D8S a proven, low-risk selection backed by a global installed base.
Product Positioning
Konmask.com sources verified surplus and new-surplus Allen-Bradley PanelView Plus 7 terminals directly from controlled supply chains. Every unit undergoes functional inspection before dispatch. This listing is intended for MRO buyers, OEM panel builders, and system integrators requiring a reliable, specification-accurate replacement or new-build HMI component with documented provenance.
Complete Technical Specifications
| Catalog Number | 2711P-T7C21D8S |
| Series | PanelView Plus 7 Standard |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 7.0″ (177.8 mm) diagonal |
| Display Type | TFT Color LCD, 65,536 colors |
| Resolution | 800 × 480 pixels (WVGA) |
| Touch Technology | Analog resistive touchscreen |
| Operating System | Windows CE 6.0 |
| Processor | Freescale i.MX535, 1 GHz ARM Cortex-A8 |
| RAM | 512 MB DDR3 |
| Flash Storage | 512 MB internal NAND flash |
| SD Card Slot | 1 × SD/SDHC (up to 32 GB) |
| USB Ports | 2 × USB 2.0 Type-A (host) |
| Communication – Ethernet | 1 × 10/100 Mbps RJ-45 (EtherNet/IP) |
| Communication – Serial | 1 × RS-232 (DH-485 / DF1 via adapter) |
| Input Voltage | 24 VDC (±20%), Class 2 |
| Power Consumption | ≤ 18 W typical |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | NEMA 4/4X, 12, 13; IP65 (front face) |
| Panel Cutout | 212.9 mm × 158.8 mm (W × H) |
| Overall Dimensions | 236.5 mm × 182.4 mm × 57.2 mm (W × H × D) |
| Weight | Approx. 1.0 kg |
| Certifications | UL Listed, CE Marked, cUL, RCM |
| Software | FactoryTalk View Studio ME (v8.0+) |
| Catalog Suffix Decode | T = Touch; 7 = 7″; C = Color; 21 = 512 MB RAM/Flash; D8 = 24VDC; S = Standard |
Proven Application Environments
- Discrete Manufacturing: Machine tool control panels, conveyor line HMI stations, robotic cell operator interfaces
- Food & Beverage: Washdown-rated panel installations (NEMA 4X front face) for filling, packaging, and CIP systems
- Water & Wastewater: Pump station local control, SCADA node operator interface
- Oil & Gas: Wellhead and compressor station local HMI (non-hazardous areas)
- Automotive: Assembly line operator terminals, press and weld cell interfaces
- Building Automation: HVAC plant room local control panels
- MRO Replacement: Direct drop-in upgrade from PanelView Plus 6 700 (2711P-T7C6D8) with application migration via FactoryTalk View Studio
Engineering Advantages
- Logix-Native EtherNet/IP: Zero-configuration tag browsing with ControlLogix, CompactLogix, and Micro800 controllers — no manual address mapping required
- WVGA Resolution Upgrade: 800 × 480 vs. legacy 640 × 480 — more screen real estate for faceplates and trend displays without panel cutout changes
- Dual USB Host Ports: Simultaneous keyboard/mouse and USB drive support for runtime data logging and firmware updates
- SD Card Expansion: Up to 32 GB for alarm history, recipe files, and application backups
- NEMA 4/4X Front Rating: Suitable for washdown and outdoor-rated enclosures without additional sealing
- FactoryTalk View ME Compatibility: Full compatibility with existing PanelView Plus 6 application files — reduces migration engineering cost
- Long Product Lifecycle: Rockwell Automation active product status with documented spare parts availability through 2030+
System Architecture & Signal Flow
The 2711P-T7C21D8S operates as a FactoryTalk View Machine Edition (ME) runtime terminal. The typical signal flow in a Logix-based system is:
- Controller Layer: ControlLogix / CompactLogix PLC executes ladder/FBD logic and maintains tag database
- EtherNet/IP Network: 10/100 Mbps switched Ethernet backbone (star or linear topology via managed switch)
- HMI Runtime: 2711P-T7C21D8S polls controller tags at configurable update rates (default 500 ms); operator inputs write tag values back to controller
- Alarm & Data Logging: FactoryTalk Alarms & Events log to SD card or network share; trend data stored locally in CSV format
- Remote Access: Optional FactoryTalk View SE integration for supervisory visibility without additional hardware
For legacy DH-485 or DF1 serial networks, the 2711-NC13 or 2711P-CBL-EX04 serial cable adapter enables RS-232 connectivity to SLC 500 and MicroLogix controllers.
Sourcing & Quality Verification
- Source: Verified surplus from decommissioned OEM panels and authorized distributor overstock — not refurbished or repaired units unless explicitly stated
- Inspection: Each unit powered-on tested: display uniformity, touch calibration, USB enumeration, Ethernet link, and firmware version confirmed
- Firmware: Shipped with factory firmware; FactoryTalk View ME runtime version confirmed and documented on packing slip
- Packaging: Anti-static bag, foam-lined carton, humidity indicator card
- Documentation: Rockwell Automation publication 2711P-UM004 (User Manual) reference provided on request
- Warranty: 90-day Konmask operational warranty covering power-on functionality
Procurement Process
- Confirm Quantity & Lead Time: Contact [email protected] with required quantity — stock levels updated weekly
- Request Inspection Report: Pre-shipment inspection photos and firmware version sheet available on request for orders ≥ 2 units
- Place Order: Add to cart and complete checkout, or request a formal quotation for PO-based procurement
- Shipping: DHL Express / FedEx International Priority standard; EXW Xiamen available for freight forwarder arrangements
- Export Documentation: Commercial invoice, packing list, and HS Code 8537.10 declaration provided for all international shipments
Technical FAQ
Q: Is the 2711P-T7C21D8S a direct replacement for the 2711P-T7C6D8 (PanelView Plus 6)?
A: Yes. The panel cutout dimensions are identical. The FactoryTalk View ME application file can be migrated using the Conversion Wizard in FactoryTalk View Studio v8.0+. Verify firmware compatibility before migration.
Q: Can this terminal communicate with a SLC 500 or MicroLogix controller?
A: Yes, via RS-232 serial using DF1 Full-Duplex or DH-485 protocol with the appropriate cable adapter (2711-NC13). EtherNet/IP is not supported on SLC 500 natively.
Q: What FactoryTalk View ME version is required?
A: Minimum FactoryTalk View ME v8.0. Rockwell recommends v12.0 or later for full feature support and security patches.
Q: Is the unit CE marked for European installations?
A: Yes. The 2711P-T7C21D8S carries CE marking per EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
Q: Can I order a replacement backlight or touch panel?
A: Konmask does not supply sub-component spare parts for this model. For repair-level components, contact Rockwell Automation authorized service centers.
Q: What is the difference between the “S” (Standard) and “C” (Performance) suffix?
A: The Standard variant runs FactoryTalk View ME only. The Performance (C) variant supports both ME and SE client runtime. For standalone machine HMI, Standard is the correct and more cost-effective choice.
