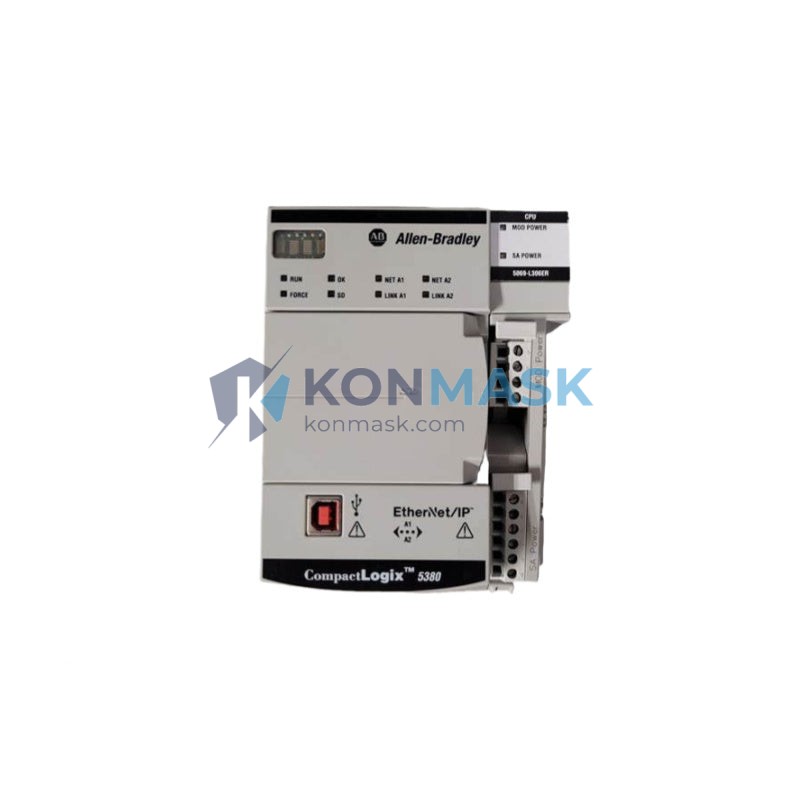

Discrete & Process Automation Solution – Allen-Bradley 5069-L306ER | CompactLogix 5380
Where This Product Is Used
The Allen-Bradley 5069-L306ER CompactLogix 5380 controller is engineered for mid-range industrial automation applications where high-speed I/O processing, deterministic EtherNet/IP communication, and compact panel footprint are critical. Typical deployment environments include:
- Discrete Manufacturing Lines – Automotive assembly, stamping, and robotic welding cells requiring fast scan times and coordinated motion.
- Batch & Process Control – Food & beverage, pharmaceutical, and chemical processing plants running ISA-88 batch sequences.
- Material Handling & Conveyor Systems – Distribution centers and warehouses with high-density I/O and variable-speed drive coordination.
- Water & Wastewater Treatment – SCADA-integrated pump stations and filtration systems requiring redundant EtherNet/IP paths.
- Oil & Gas Upstream/Midstream – Remote wellhead automation and pipeline monitoring with dual-port network isolation.
- Machine OEM Panels – Compact control cabinets where DIN-rail space is limited but processing power cannot be compromised.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 5069-L306ER |
| Series / Platform | CompactLogix 5380 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| User Memory | 6 MB |
| Max Local I/O Modules | 31 |
| EtherNet/IP Ports | 2 × Dual-port (embedded switch, DLR capable) |
| USB Port | 1 × USB Type-B (programming) |
| Motion Axes (CIP Motion) | Up to 8 axes |
| Task Support | Continuous, Periodic, Event (up to 100 tasks) |
| I/O Connections | Up to 256 CIP connections |
| Power Supply | External 5069-series power supply required |
| Operating Temperature | 0 °C to 60 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or panel mount via 5069 chassis |
| Weight | ~750 g |
| Firmware | Studio 5000 Logix Designer v32+ |
| Country of Origin | USA / Mexico |
Why Engineers Specify This Model
- Dual-Port EtherNet/IP with DLR – The embedded Device Level Ring topology eliminates single points of network failure without additional switches, reducing BOM cost and cabinet complexity.
- 6 MB User Memory – Sufficient for complex ladder, FBD, ST, and SFC programs with large tag databases, eliminating the need to step up to a ControlLogix platform.
- 31-Module Local I/O Expansion – Supports the full 5069 Compact I/O library including high-speed counter, analog, safety, and motion modules on a single backplane.
- CIP Motion Integration – Native coordination of up to 8 servo axes via EtherNet/IP without a dedicated motion controller, simplifying architecture.
- Studio 5000 Ecosystem – Seamless integration with Rockwell’s Add-On Instructions (AOIs), FactoryTalk View, and PlantPAx DCS library.
- Compact Form Factor – Significantly smaller than ControlLogix for equivalent mid-range tasks, reducing panel real estate by up to 40%.
Complete System Bill of Materials
A typical 5069-L306ER control panel includes the following Rockwell components:
- 5069-L306ER – CompactLogix 5380 Controller (this unit)
- 5069-PA4 – 4A 24VDC Power Supply
- 5069-IB16 – 16-Point 24VDC Sink/Source Digital Input Module
- 5069-OB16 – 16-Point 24VDC Source Digital Output Module
- 5069-IF8 – 8-Channel Analog Input Module
- 5069-OF4 – 4-Channel Analog Output Module
- 5069-ARM – Address Reserve Module (end cap)
- 1783-US5T – Stratix 2000 Unmanaged Switch (if DLR not used)
- 2198-H003-ERS3 – Kinetix 5500 Servo Drive (for CIP Motion axes)
Compliance & Industry Standards
- UL Listed (UL 508, UL 61010-2-201)
- CE Marked – EN 61131-2, EN 61000-6-2, EN 61000-6-4
- RoHS Compliant – Directive 2011/65/EU
- ODVA EtherNet/IP Conformance Tested
- IEC 61131-3 Programming Standard (LD, FBD, ST, SFC, IL)
- ATEX / IECEx: Not rated for Zone 0/1 – use appropriate barriers for hazardous areas
- ISA-88 Batch Control compatible via PlantPAx library
Quality Assurance & Sourcing
Konmask.com sources the 5069-L306ER exclusively through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and firmware seal
- Catalog number and date-code verification against Rockwell Automation records
- Functional power-on test with Studio 5000 connection confirmation
- Anti-static packaging with humidity indicator card
- Certificate of conformance (CoC) available upon request
We do not supply grey-market, refurbished, or counterfeit product. All units are traceable to authorized distribution.
How to Source This Part
To place an order or request a formal quotation for the Allen-Bradley 5069-L306ER:
- Online: Add to cart directly on this page for standard lead times.
- Email RFQ: support@konmask.com – include quantity, required delivery date, and project name.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Bulk / OEM Orders: Volume pricing available for orders of 5+ units. Contact us for a tiered quote.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock orders confirmed at time of inquiry.
Application-Specific FAQ
Q: Can the 5069-L306ER replace a 1769-L33ER CompactLogix 5370?
A: Yes. The 5380 platform is the direct successor to the 5370 series. Projects can be converted using the Studio 5000 migration utility, though I/O module catalog numbers differ between generations.
Q: Does this controller support Safety I/O?
A: The 5069-L306ER is a standard (non-safety) controller. For integrated safety, specify the 5069-L306ERS2 (SIL 2 / PLd rated). Safety I/O modules (5069-IB8S, etc.) require a safety controller variant.
Q: What is the maximum EtherNet/IP node count?
A: Up to 256 CIP connections are supported, accommodating large distributed I/O networks, HMI connections, and drive nodes simultaneously.
Q: Is firmware upgrade possible in the field?
A: Yes. Firmware updates are performed via ControlFLASH or ControlFLASH Plus utility through the USB or EtherNet/IP port. Always back up the project before updating.
Q: What Studio 5000 version is required?
A: Logix Designer v32.00 or later is required for full feature support. Earlier versions may not recognize 5380-series catalog numbers.
Q: Can I use this in a high-vibration environment?
A: The 5069-L306ER meets IEC 60068-2-6 vibration and IEC 60068-2-27 shock specifications. For extreme vibration (mining, heavy press), consult Rockwell’s environmental ratings and consider additional panel isolation mounts.
