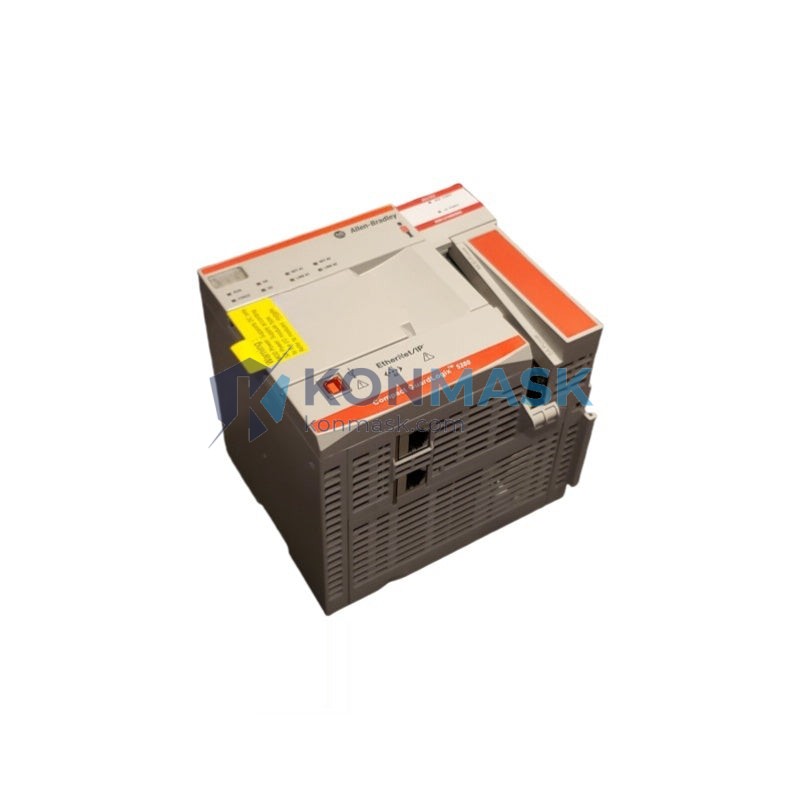

Allen-Bradley 5069-L3100ERMS3 – Integrated Safety Programmable Automation Controller | CompactLogix 5380 Platform
Engineering Background
The 5069-L3100ERMS3 is Rockwell Automation’s flagship integrated safety controller within the CompactLogix 5380 family. Designed to consolidate standard and safety control into a single chassis, it eliminates the need for a separate safety PLC, reducing panel footprint and wiring complexity. This controller is purpose-built for machine builders and system integrators operating in regulated industries where IEC 62061 / ISO 13849 compliance is mandatory.
Product Positioning
Targeting mid-to-large scale discrete and process applications, the 5069-L3100ERMS3 delivers 10MB of user memory with dual EtherNet/IP ports supporting Device Level Ring (DLR) topology. It is the preferred choice for OEMs requiring SIL 2 / PLe safety ratings without architectural compromise. Konmask.com supplies this module as new-in-box (NIB) and factory-refurbished stock with full traceability documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 5069-L3100ERMS3 |
| Brand / Manufacturer | Allen-Bradley / Rockwell Automation |
| Platform / Series | CompactLogix 5380 |
| Controller Type | Integrated Safety PAC (Standard + Safety) |
| User Memory | 10 MB |
| I/O Capacity | Up to 256 local I/O points; expandable via EtherNet/IP |
| Communication Ports | 2 × EtherNet/IP (dual-port, DLR capable) |
| Safety Rating | SIL 2 (IEC 62061), PLe Cat. 4 (ISO 13849-1) |
| Safety Protocol | CIP Safety over EtherNet/IP |
| Programming Software | Studio 5000 Logix Designer v32+ |
| Supported Languages | Ladder Diagram, Function Block, Structured Text, Sequential Function Chart |
| Operating Voltage | 24 VDC (via 5069-PA4 or compatible power supply) |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, cUL, TÜV, RCM, KC |
| Enclosure Rating | IP20 (panel mount) |
| Weight | 720 g (approx.) |
| Firmware | Series A, Rev 32.011 or later |
| HS Code | 8537.10 |
| Country of Origin | USA |
Proven Application Environments
- Automotive Assembly Lines — Robot cell safety interlocking, press guarding, and conveyor E-stop management via CIP Safety.
- Food & Beverage Processing — Hygienic machine control with integrated safety for washdown environments (paired with 5069 IP67 I/O modules).
- Pharmaceutical Manufacturing — 21 CFR Part 11 compatible audit trails; validated safety logic for filling and packaging lines.
- Oil & Gas / Chemical Plants — SIL 2 rated safety instrumented functions (SIF) for emergency shutdown (ESD) and fire & gas detection systems.
- Material Handling & Logistics — AGV fleet coordination, sorter safety zones, and light curtain integration over DLR EtherNet/IP ring.
- Semiconductor Fabrication — Cleanroom-compatible control with deterministic scan times for precision motion and safety interlock management.
Engineering Advantages
- Unified Standard + Safety Architecture — A single controller executes both standard and safety tasks, eliminating cross-controller communication latency and reducing BOM cost by up to 30% versus dual-controller designs.
- Dual EtherNet/IP with DLR — Device Level Ring topology provides media redundancy at the device level; a single cable break does not interrupt communication, achieving >99.99% network uptime.
- 10 MB User Memory — Sufficient for complex motion, safety, and process logic co-resident in one project file, with headroom for future expansion without hardware replacement.
- CIP Safety Protocol — Black-channel safety communication over standard EtherNet/IP infrastructure; no dedicated safety fieldbus wiring required.
- Studio 5000 Integration — Single development environment for standard and safety programming; safety task is password-protected and independently verified by TÜV.
- Compact Chassis Footprint — 5069 Compact I/O system supports up to 31 local I/O modules with high-density options, minimizing panel space.
System Architecture & Signal Flow
The 5069-L3100ERMS3 operates as the central node in a CompactLogix 5380 system. Power is supplied via a dedicated 5069 power supply (e.g., 5069-PA4). Local I/O modules connect directly to the chassis backplane via the Compact I/O bus. Remote I/O and safety devices (e.g., safety light curtains, safety relays, safety drives) connect over EtherNet/IP using CIP Safety. The dual EtherNet/IP ports support both a DLR ring for device-level redundancy and a linear topology for upstream SCADA/MES connectivity. The controller’s safety task runs at a configurable Requested Packet Interval (RPI) independent of the standard task, ensuring deterministic safety response times.
[SCADA / MES Layer]
|
[EtherNet/IP Switch]
|
5069-L3100ERMS3 (Port 1: Upstream / Port 2: DLR Ring)
| |
[Local 5069 I/O Modules] [Remote CIP Safety Devices]
(Standard + Safety I/O) (Light Curtains, E-Stops, Safety Drives)
Sourcing & Quality Verification
Konmask.com sources the 5069-L3100ERMS3 exclusively through authorized distribution channels and verified surplus markets. Every unit undergoes the following verification process before shipment:
- Visual inspection: label integrity, connector condition, no physical damage
- Firmware version verification against Rockwell Automation release notes
- Functional power-on test with Studio 5000 connectivity confirmation
- Anti-static packaging with humidity indicator card
- Certificate of conformance (CoC) available upon request
- Traceability documentation: lot code, date code, and origin records retained for 5 years
Procurement Process
- Submit RFQ — Contact [email protected] with your project BOM or required quantity. Lead time and pricing confirmed within 24 business hours.
- Order Confirmation — Pro-forma invoice issued with payment terms (T/T, PayPal, or trade credit for approved accounts).
- Quality Inspection & Packaging — Unit inspected, photographed, and packed in anti-static ESD bag + foam-lined carton.
- Shipment — DHL Express / FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales Support — 12-month warranty on new units; 90-day warranty on refurbished units. Technical support via email and WhatsApp.
Technical FAQ
Q: Can the 5069-L3100ERMS3 replace a separate safety PLC in an existing system?
A: Yes. The integrated safety task (RMS3 suffix) is TÜV-certified and can replace a standalone GuardLogix or third-party safety PLC, provided the safety application is re-validated per IEC 62061 / ISO 13849 requirements.
Q: What is the difference between 5069-L3100ERM and 5069-L3100ERMS3?
A: The “S3” suffix denotes the integrated safety controller variant. The base 5069-L3100ERM is a standard controller only; it cannot execute safety tasks or communicate via CIP Safety.
Q: Is Studio 5000 v32 required, or can earlier versions be used?
A: Rockwell Automation requires Studio 5000 Logix Designer v32.00 or later for full feature support of the CompactLogix 5380 platform. Earlier versions do not support the 5069 chassis.
Q: What power supply is required?
A: The 5069-L3100ERMS3 requires a 5069 series power supply. The 5069-PA4 (4A, 24VDC input) is the standard recommendation for systems with up to 8 I/O modules. Larger systems may require the 5069-PA8.
Q: Can this controller be used in ATEX / hazardous area applications?
A: The controller itself is rated IP20 and is not ATEX certified. It must be installed in a suitable enclosure rated for the hazardous zone. Remote I/O modules with appropriate ATEX ratings can be used for field-side connections.
