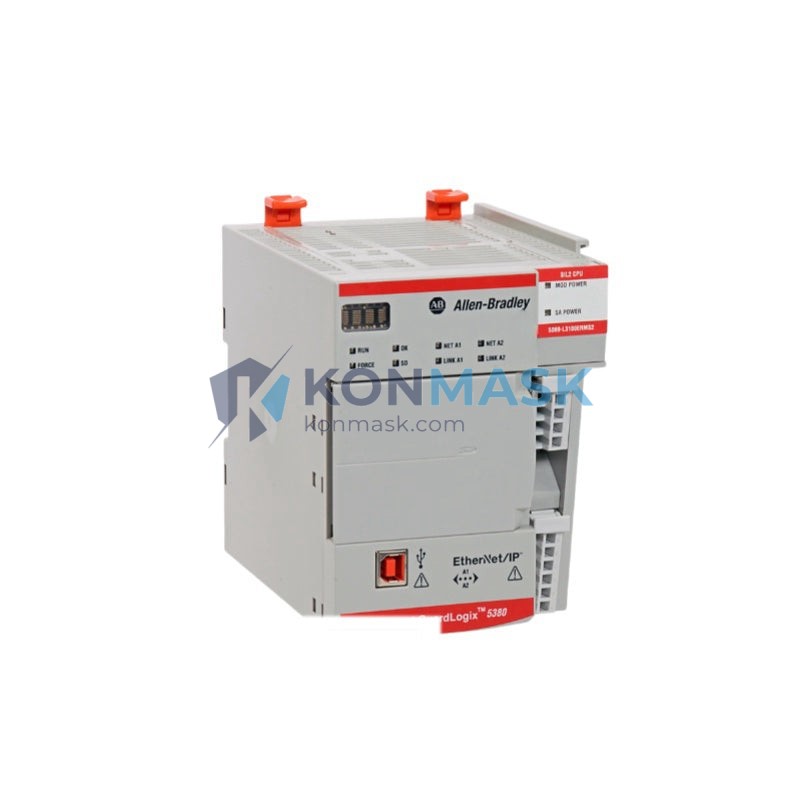

Allen-Bradley 5069-L3100ERMS2 Integrated Safety Controller – CompactLogix 5380 Series
When a safety-rated programmable controller fails on the plant floor, the consequences extend far beyond downtime. Uncontrolled machinery, unmonitored safety zones, and cascading process faults can endanger personnel and halt production lines for hours or days. The Allen-Bradley 5069-L3100ERMS2 exists precisely to prevent that scenario — delivering SIL 2 / PLe certified safety logic execution in a compact, high-performance package that keeps your most critical operations running safely and reliably.
Within the CompactLogix 5380 family, the 5069-L3100ERMS2 occupies the high-end tier, offering 10 MB of memory and dual EtherNet/IP ports with Device Level Ring (DLR) support. It is one of the few controllers in its class to natively integrate standard and safety tasks in a single CPU — eliminating the need for a separate safety PLC and reducing both cabinet footprint and engineering complexity. Globally, it is a preferred choice for machine builders and system integrators in automotive, food & beverage, life sciences, and material handling sectors.
Technical Specifications
- Catalog Number: 5069-L3100ERMS2
- Series: CompactLogix 5380
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Controller Type: Programmable Automation Controller (PAC) with Integrated Safety
- User Memory: 10 MB
- Safety Rating: SIL 2 (IEC 62061), PLe / Cat. 4 (ISO 13849-1)
- Communication Ports: 2 × EtherNet/IP (supports DLR topology)
- Local I/O Bus: Compact 5000 I/O (5069 series)
- Programming Software: Studio 5000 Logix Designer v31 or later
- Safety Programming: IEC 61131-3 compliant safety task
- Operating Temperature: 0 °C to 60 °C
- Power Supply: Requires 5069-PA or 5069-PB series power supply
- Certifications: CE, UL, cUL, TÜV Rheinland
Key Features & Benefits
- Integrated Safety Architecture: Standard and safety tasks run on a single controller, reducing hardware cost and simplifying safety validation.
- Dual EtherNet/IP with DLR: Provides network redundancy at the device level, ensuring communication continuity even if one network segment fails.
- High-Speed I/O Scanning: Compact 5000 I/O modules deliver fast, deterministic scan times for precise motion and process control.
- Studio 5000 Unified Environment: Single software platform for standard logic, safety logic, motion, and HMI configuration — reducing engineering time.
- Scalable Memory: 10 MB user memory supports large, complex safety programs without external memory expansion.
- Compact Form Factor: Slim DIN-rail mounting reduces panel space requirements compared to traditional rack-based safety PLCs.
- Global Safety Certifications: TÜV-certified for SIL 2 and PLe, accepted by safety authorities worldwide.
Industry & Equipment Applications
- Automotive Manufacturing: Robotic welding cells, press lines, and assembly conveyor safety zones.
- Food & Beverage: Hygienic packaging lines, filling stations, and CIP process control with safety interlocks.
- Life Sciences & Pharma: Cleanroom automation, batch processing, and FDA 21 CFR Part 11 compliant safety systems.
- Material Handling: Automated storage and retrieval systems (AS/RS), palletizers, and AGV safety management.
- Machine Building (OEM): Safety-rated machine controllers for CE-marked machinery exported to global markets.
- Oil & Gas: Safety instrumented systems (SIS) for process shutdown and emergency stop functions.
System Integration & Compatible Parts
The 5069-L3100ERMS2 is designed to work seamlessly within the Rockwell Automation ecosystem. Key compatible components include:
- Power Supplies: 5069-PA4, 5069-PB4 (24 VDC input)
- Safety I/O Modules: 5069-IB8S, 5069-OB8S, 5069-SAFETY series
- Standard I/O Modules: Full 5069 Compact 5000 I/O catalog
- Communication: 1783-ETAP (EtherNet/IP tap for DLR), Stratix managed switches
- HMI: PanelView Plus 7 / PanelView 5510 via EtherNet/IP
- Motion: Kinetix 5700 servo drives via integrated motion on EtherNet/IP (iMOE)
- Safety Devices: GuardMaster safety relays, 440C safety contactors, 440E safety switches
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley module we supply undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against Rockwell Automation authorized distributor records and factory serial number databases.
- Visual Inspection: Full physical inspection for label integrity, connector condition, and housing damage.
- Functional Testing: Where applicable, modules are powered on and communication verified prior to dispatch.
- Secure Packaging: Anti-static ESD packaging with moisture barrier bags and foam cushioning for international freight.
- Documentation: Certificate of conformity and test report available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will respond within 24 business hours with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange export documentation, freight, and tracking.
For urgent requirements, contact us directly: [email protected] | +0086 19859288691
Why Choose Konmask.com?
- ✔ Specialized in industrial automation components — Allen-Bradley, Siemens, ABB, Schneider, and more.
- ✔ Global B2B supply with export experience to 50+ countries.
- ✔ Technical pre-sales support from engineers with hands-on PLC/DCS experience.
- ✔ Competitive pricing with transparent quotation — no hidden fees.
- ✔ Flexible MOQ — single unit orders accepted for MRO and emergency replacement.
- ✔ Reliable logistics partners: DHL, FedEx, UPS, sea freight for bulk orders.
Frequently Asked Questions
- Q: Is the 5069-L3100ERMS2 a safety PLC or a standard PLC?
- A: It is an integrated safety PAC — it runs both standard and safety tasks on a single processor, certified to SIL 2 / PLe. No separate safety PLC is required.
- Q: What software is required to program the 5069-L3100ERMS2?
- A: Studio 5000 Logix Designer version 31.00 or later is required. Safety task programming requires the Safety Add-On Instructions (AOIs) library.
- Q: Can this controller be used as a replacement for older CompactLogix L3 series controllers?
- A: The 5069 series uses a different I/O bus (Compact 5000) than the older 1769 CompactLogix. A migration assessment is recommended before direct replacement.
- Q: Do you supply new or refurbished units?
- A: We supply both new (factory-sealed) and professionally refurbished units. Please specify your preference in your RFQ and we will confirm availability and pricing accordingly.
- Q: What is the typical lead time for the 5069-L3100ERMS2?
- A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. For out-of-stock items, lead time is 2–6 weeks depending on sourcing. Contact us for real-time availability.
