Semiconductor Thermal Control Solution – Applied Materials (AMAT) 0100-09032 / 0100-09033 | TC Filter Board Series
Where This Product Is Used

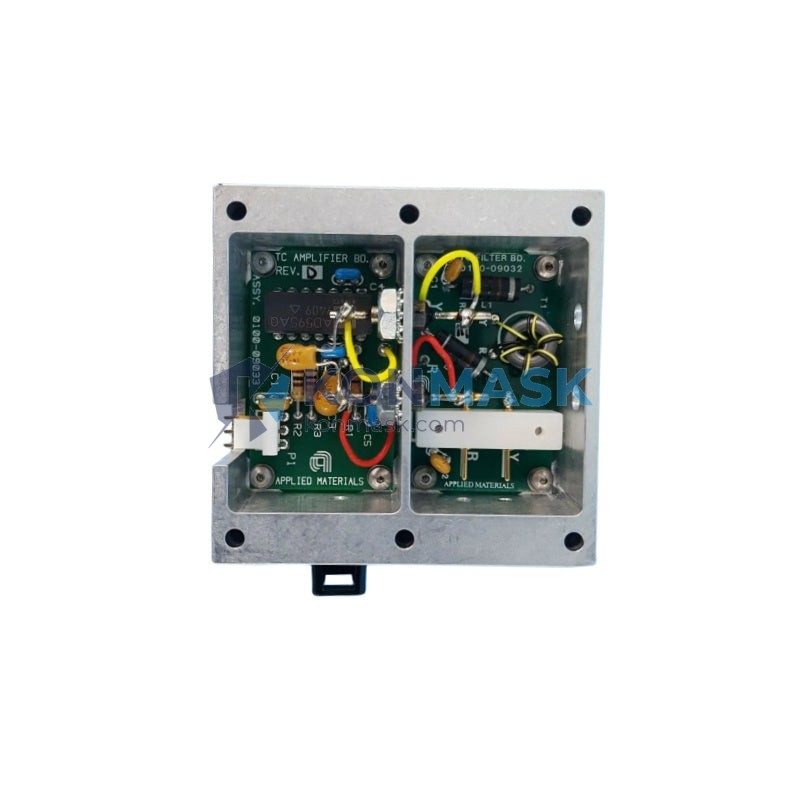

The AMAT 0100-09032 / 0100-09033 TC Filter Board is a precision printed circuit board assembly deployed in Applied Materials chemical vapor deposition (CVD) and etch process chambers. It serves as the signal conditioning and noise-filtering interface for thermocouple (TC) inputs, ensuring accurate temperature measurement in high-vacuum, high-temperature semiconductor fabrication environments.
- CVD Process Chambers – Centura, Endura, and Producer platform tools
- Etch Systems – MxP and DPS chamber configurations
- Thermal Management Subsystems – Heater zone control loops requiring clean TC signal acquisition
- 300 mm Wafer Fabs – High-volume production lines where temperature drift causes yield loss
- Legacy 200 mm Tool Refurbishment – Drop-in replacement for aging filter boards in refurb programs
Technical Specifications
| Attribute | Detail |
|---|---|
| Primary Part Number | 0100-09032 |
| Alternate Part Number | 0100-09033 |
| Cross-Reference / Equiv. | 0020-10758 · 030401-2 · NC-95-PP · S6ASS5310/292 · 19436 |
| Assembly Type | TC (Thermocouple) Filter Board – PCB Assembly |
| OEM | Applied Materials (AMAT) |
| Compatible Platforms | Centura, Endura, Producer, MxP, DPS |
| Board Function | Thermocouple signal filtering & noise suppression |
| Weight | 2,600 g (shipping weight) |
| Condition | Refurbished / Tested / New-Surplus (specify on inquiry) |
Why Engineers Specify This Model
- Multi-PN Interchangeability – A single board covers six cross-reference part numbers, simplifying BOM consolidation and reducing spare-parts SKU count.
- Critical Signal Integrity – Eliminates EMI-induced temperature read errors that cause false alarms, recipe aborts, and wafer scrap.
- Drop-In Replacement – Identical form, fit, and function to OEM spec; no firmware changes or mechanical modifications required.
- Proven in High-Volume Fabs – Widely deployed across Tier-1 IDMs and foundries running 24/7 production schedules.
- Reduces Unplanned Downtime – Stocking this board as a critical spare cuts mean-time-to-repair (MTTR) for TC-related chamber faults from hours to minutes.
Complete System Bill of Materials
This board is typically ordered alongside the following complementary components for a full thermal control subsystem repair or PM kit:
- AMAT Thermocouple Assembly (Type K / Type J – chamber-specific)
- AMAT Heater Power PCB / SSR Driver Board
- AMAT Temperature Controller Module
- Chamber Wiring Harness / TC Extension Cable
- Connector Pins & Locking Hardware (Molex / AMP series)
Contact support@konmask.com to request a complete PM kit quote for your specific tool configuration.
Compliance & Industry Standards
- RoHS – Compliant (confirm revision on order)
- SEMI S2 – Environmental, Health & Safety guidelines for semiconductor manufacturing equipment
- IPC-A-610 – Acceptability of Electronic Assemblies (Class 2 / Class 3 as applicable)
- ESD ANSI/ESD S20.20 – Handled and packaged under ESD-safe protocols
Quality Assurance & Sourcing
Every unit shipped by Konmask.com undergoes the following before dispatch:
- Visual inspection against OEM reference photographs
- Functional bench test (where applicable) with pass/fail documentation
- Anti-static packaging with desiccant and moisture indicator card
- Traceable lot documentation available on request
We source from verified OEM surplus channels, authorized distributors, and certified refurbishers. We do not list parts we cannot physically inspect or ship within the stated lead time.
How to Source This Part
- Add to Cart – For in-stock units, proceed directly to checkout.
- Request a Quote – For bulk orders (>3 units) or specific condition requirements, email support@konmask.com.
- Provide Your Tool Config – Share your chamber model and current part number to confirm compatibility before ordering.
- Lead Time – Typically 3–10 business days depending on stock status; expedite options available.
- Global Shipping – We ship worldwide with DHL Express, FedEx International, and UPS. Export documentation provided.
Application-Specific FAQ
Q: Is 0100-09032 the same as 0100-09033?
A: Yes. These are revision-level variants of the same TC Filter Board assembly. Both are functionally interchangeable in the field. Always confirm with your tool’s BOM revision if strict OEM traceability is required.
Q: What does a TC Filter Board failure look like?
A: Symptoms include erratic temperature readings, TC open-circuit alarms, heater zone faults, and recipe aborts during ramp or soak phases. Replacing this board is a standard first step in TC fault isolation.
Q: Can this board be used in non-AMAT equipment?
A: It is designed specifically for Applied Materials platforms. Cross-application to other OEM tools is not recommended without engineering review.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day functional warranty on tested/refurbished units. New-surplus units carry a 30-day DOA guarantee. Contact us for full warranty terms.
Q: Can I return a part if it doesn’t fit?
A: Yes, within 14 days of receipt, in original packaging and unused condition. See our Returns Policy for details.
