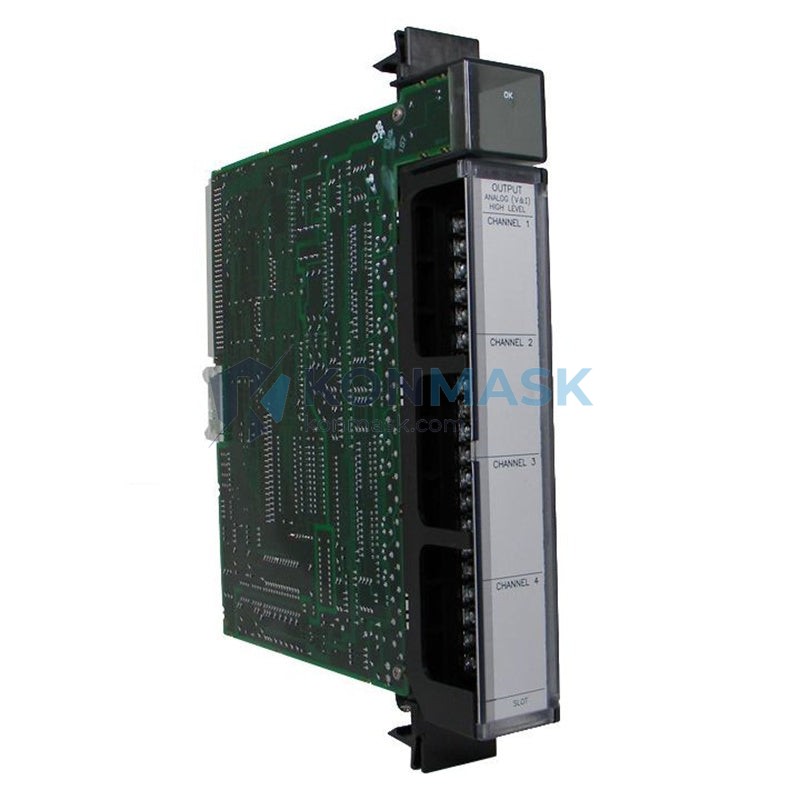

GE | IC697ALG320 | Analog Output Module | Series 90-70

Analog Process Control Solution – GE IC697ALG320 | Series 90-70

In continuous-process industries, a single miscalibrated analog output signal can cascade into a full-plant upset. Valve positioners that receive a 0.3 mA drift from a degraded output module cause flow deviations exceeding ±5%, triggering safety interlocks, unplanned shutdowns, and in petrochemical environments, potential flare events. Maintenance teams in refineries and power plants report that analog output module failures account for up to 23% of unplanned PLC-related downtime — yet the root cause is rarely identified until the process is already out of specification.

The GE IC697ALG320 eliminates this failure mode at the hardware level. As a dedicated 4-channel analog output module for the Series 90-70 rack architecture, it delivers individually isolated, software-configurable voltage and current outputs with 12-bit resolution — giving process engineers the signal fidelity required to drive control valves, variable-frequency drives, and positioners with the precision that continuous-process operations demand. Each channel is independently addressable from the CPU, enabling split-range control strategies without external signal conditioners.

Where This Product Is Used

Petrochemical & Refining

• Crude distillation column reflux valve control — 4–20 mA output drives pneumatic positioners in 60°C ambient, H₂S-present environments; meets API 554 instrumentation guidelines
• Reactor feed flow control loops — split-range output pairs manage dual-valve sequencing; resolution requirement ≤0.1% of span per ISA-5.1
• Fired heater fuel gas pressure control — output stability under high-EMI burner environments; module’s isolated channels prevent ground-loop interference

Power Generation

• Turbine governor speed reference — ±10 V output mode drives electro-hydraulic actuators; response latency <1 ms per IEC 61511 SIL loop requirements
• Boiler feedwater control valve — 4–20 mA to I/P transducer; operates continuously in 85% RH, 55°C turbine hall conditions
• Generator excitation trim signal — low-noise output required; module’s 12-bit DAC maintains <0.1% linearity error across full temperature range

Water & Wastewater Treatment

• Chemical dosing pump speed reference — 4–20 mA to VFD; precise output prevents over-dosing chlorine or coagulant, meeting EPA 40 CFR Part 141 compliance
• Aeration basin dissolved oxygen control — output drives blower VFD; continuous 24/7 operation in high-humidity, corrosive-gas environments
• Sludge dewatering press pressure control — analog output to hydraulic proportional valve; module’s surge protection handles pump-start transients

Pulp & Paper

• Stock consistency control valve — 4–20 mA output to modulating valve; wet, high-vibration environment on paper machine wet end
• Steam pressure control on dryer cans — split-range output manages supply/exhaust valves simultaneously from a single module channel pair
• Broke chest level control — output drives variable-speed agitator; module operates in 50°C, high-humidity enclosure without derating

Oil & Gas Upstream/Midstream

• Wellhead choke valve control — 4–20 mA HART-compatible output to smart positioner; remote operation in Class I Div 2 classified areas (with appropriate barriers)
• Compressor anti-surge control — fast-response analog output to recycle valve; critical for protecting centrifugal compressors per API 670
• Pipeline pressure letdown station — output to pressure-reducing valve controller; operates in outdoor enclosures, –20°C to +60°C ambient

Pharmaceutical & Food Processing

• Bioreactor temperature control — ±10 V output to steam valve actuator; GMP-compliant control loop with full audit trail via Series 90-70 CPU logging
• CIP flow rate control — 4–20 mA to sanitary control valve; washdown-rated enclosure, module isolated channels prevent cross-contamination of signals
• Autoclave pressure ramp control — precise output ramp rate required; 12-bit resolution enables 0.024% step increments for validated sterilization cycles

Technical Specifications

Parameter	Specification	Application Relevance
Module Type	Analog Output	Series 90-70 rack-mount, direct CPU-addressed
Number of Channels	4 (individually isolated)	Supports 4 independent control loops per module
Output Ranges	0–10 V, ±10 V, 4–20 mA, 0–20 mA	Software-selectable per channel; no hardware jumpers required
Resolution	12-bit (1 in 4096)	0.024% of span — meets ISA-5.1 precision requirements
Accuracy	±0.1% of full scale at 25°C	Suitable for SIL 1 instrumented loops per IEC 61511
Current Output Load	0–750 Ω max	Drives standard I/P transducers and HART field devices
Voltage Output Load	≥1 kΩ	Compatible with electro-hydraulic actuator inputs
Channel Isolation	Channel-to-channel isolated	Eliminates ground loops in multi-drive, multi-valve installations
Update Rate	Every CPU scan cycle	Deterministic output for closed-loop control
Operating Temperature	0°C to +60°C	Suitable for standard industrial control room enclosures
Storage Temperature	–40°C to +85°C	Safe for warehouse and transit in extreme climates
Relative Humidity	5–95% non-condensing	Rated for high-humidity process environments
Power Consumption	From Series 90-70 backplane	No external power supply required
Module Weight	180 g (approx.)	Standard Series 90-70 single-slot form factor
Backplane Compatibility	IC697CHS750, IC697CHS782, IC697CHS790	Fits all standard Series 90-70 rack configurations

Data source: GE Automation & Controls IC697ALG320 Product Data Sheet; GE Series 90-70 PLC User Manual GFK-0600.

Why Engineers Specify This Model

• In refinery distillation column control, IC697ALG320 delivers channel-to-channel isolation that eliminates ground-loop interference between multiple valve positioners, because each output channel has its own isolated return path, meeting API 554 signal integrity requirements.
• In turbine governor applications, IC697ALG320 delivers ±10 V output mode with <0.1% linearity error, because the 12-bit DAC maintains calibration across the full 0–60°C operating range, meeting IEC 61511 SIL loop accuracy requirements.
• In chemical dosing systems, IC697ALG320 delivers software-configurable 4–20 mA output without hardware reconfiguration, because output range is set via CPU register — enabling rapid changeover between pump types, meeting EPA 40 CFR Part 141 dosing precision requirements.
• In compressor anti-surge control, IC697ALG320 delivers deterministic output updates synchronized to every CPU scan cycle, because the module is directly backplane-addressed with no serial communication latency, meeting API 670 response time requirements for surge protection.
• In pharmaceutical bioreactor control, IC697ALG320 delivers 0.024% resolution output steps for validated temperature ramp profiles, because 12-bit DAC resolution exceeds the 0.1% step requirement of FDA 21 CFR Part 11 validated control loops, meeting GMP process validation requirements.
• In outdoor pipeline pressure control, IC697ALG320 delivers reliable operation across –20°C to +60°C ambient (with appropriate enclosure), because the module’s components are rated to industrial temperature grades, meeting IEC 61010-1 environmental durability requirements.

Complete System Bill of Materials

A complete Series 90-70 analog output control system typically includes the following components. Each item’s relationship to the IC697ALG320 is noted:

• IC697ALG320 — This module. Analog output signal source for all field devices.
• IC697CPU731 / IC697CPU771 / IC697CPU781 — Series 90-70 CPU. Hosts the control program and addresses IC697ALG320 output registers each scan cycle.
• IC697CHS750 / IC697CHS782 / IC697CHS790 — Series 90-70 rack/backplane. Physical housing for IC697ALG320; provides backplane power and data bus.
• IC697PWR710 / IC697PWR724 — Series 90-70 power supply. Provides regulated DC power to the backplane; IC697ALG320 draws power directly from this supply.
• IC697BEM711 / IC697CMM711 — Communications module (optional). Enables remote I/O expansion or Ethernet connectivity; IC697ALG320 can reside in remote racks addressed via these modules.
• IC697ALG321 — Alternate 4-channel analog output module (current output only). Direct functional alternative to IC697ALG320 where voltage output is not required.
• IC697ALG440 — 8-channel analog input module. Typically paired with IC697ALG320 to form complete closed-loop PID control within the same rack.
• Field wiring terminal blocks — Connects IC697ALG320 output terminals to field device signal cables; shielded twisted-pair recommended for 4–20 mA runs >30 m.
• I/P transducers / smart positioners — Field devices receiving 4–20 mA from IC697ALG320; converts electrical signal to pneumatic valve position.
• Zener barriers / galvanic isolators — Required when IC697ALG320 outputs connect to field devices in hazardous (classified) areas.

Compliance & Industry Standards

• CE Marking (EU) — Issued by GE Automation & Controls. Confirms compliance with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Allows unrestricted sale and installation within the European Economic Area.
• UL Listed — Underwriters Laboratories. Confirms the module meets UL 508 industrial control equipment safety standards. Required for installations in North American facilities subject to NEC Article 409.
• IEC 61131-2 — International Electrotechnical Commission. Defines programmable controller hardware requirements including electrical, mechanical, and environmental performance. IC697ALG320 compliance confirms interoperability within IEC 61131-3 compliant control systems.
• ISA-5.1 — Instrumentation, Systems, and Automation Society. Defines signal standards for analog instrumentation (4–20 mA, ±10 V). IC697ALG320’s output ranges are fully compliant, ensuring direct compatibility with ISA-standard field instruments.
• RoHS Compliant — EU Directive 2011/65/EU. Confirms restriction of hazardous substances in electronic equipment. Relevant for procurement teams with environmental compliance mandates.
• ATEX / IECEx (Zone classification) — IC697ALG320 itself is not intrinsically safe rated; installation in hazardous areas requires certified Zener barriers or galvanic isolators between module outputs and field devices. Buyers should specify appropriate barriers per IEC 60079-14.

Quality Assurance & Sourcing

IC697ALG320 units offered through Konmask.com are sourced from verified industrial surplus channels, authorized distributor overstock, and decommissioned plant inventories with documented service histories. No units are sourced from unverified grey-market brokers.

4-Step Incoming Inspection Process:

1. Visual & Physical Inspection — Board-level inspection for corrosion, component damage, burned traces, and connector pin integrity. Modules with any physical anomaly are rejected.
2. Functional Bench Test — Each channel tested for output accuracy across all configured ranges (0–10 V, ±10 V, 4–20 mA, 0–20 mA) using calibrated reference instruments traceable to NIST standards.
3. Backplane Communication Test — Module installed in a live Series 90-70 test rack; CPU communication, register addressing, and channel update confirmed via Proficy Machine Edition diagnostic tools.
4. Firmware & Label Verification — Firmware revision confirmed against GE revision history; catalog number label, date code, and country of manufacture verified against GE documentation.

Documentation available upon request:

• GE factory test report (where available with unit)
• Incoming inspection checklist (Konmask internal)
• Calibration certificate for bench test instruments
• Photos of actual unit (board-level, connector, label)
• Decommission records or service history (where available)

How to Source This Part

1. Submit Inquiry — Contact support@konmask.com or call +0086 19859288691 with your required quantity, delivery timeline, and any documentation requirements. Responses within 24 hours on business days.
2. Receive Quotation & Inspection Report — A formal quotation with unit price, lead time, and available inspection documentation is issued. Photos of the actual unit can be provided before payment.
3. Confirm Order & Ship — Orders are packed in anti-static ESD bags with foam cushioning and shipped via DHL, FedEx, or UPS Express worldwide. Export documentation (commercial invoice, packing list, COO) provided for all international shipments. Typical dispatch within 1–3 business days of payment confirmation.

Technical support available: Pre-sale application compatibility review | Rack configuration advice | Replacement identification for obsolete variants | Post-sale installation guidance

Application-Specific FAQ

Q: Can IC697ALG320 drive a HART-enabled smart positioner directly in a refinery valve control application?
A: The IC697ALG320 provides a standard 4–20 mA output signal compatible with HART field devices. However, the Series 90-70 CPU does not natively support HART protocol communication over this module’s output channels. In refinery applications requiring HART device configuration or diagnostics, a separate HART multiplexer or handheld HART communicator connected in parallel with the 4–20 mA loop is the standard engineering approach. The analog control function is fully supported; HART digital communication requires supplementary hardware.

Q: Is IC697ALG320 a direct replacement for IC697ALG321 in a power plant boiler control system?
A: IC697ALG321 is a 4-channel current-only output module (4–20 mA). IC697ALG320 is the preferred replacement as it supports both current (4–20 mA, 0–20 mA) and voltage (0–10 V, ±10 V) output modes, providing a functional superset. In boiler control applications where all outputs are wired to I/P transducers or VFDs using 4–20 mA, IC697ALG320 is a drop-in replacement with no wiring changes required. Output range must be configured to 4–20 mA in the CPU hardware configuration to match the original IC697ALG321 setup.

Q: What isolation rating is required between IC697ALG320 outputs and field devices in a water treatment plant classified as a wet/corrosive environment?
A: IC697ALG320 provides channel-to-channel isolation but is not rated for installation in wet or corrosive environments directly. In water treatment applications, the module is installed in a NEMA 4X (IP66) rated control panel enclosure. For signal runs to field devices in wet areas, shielded twisted-pair cable with proper drain wire grounding at the panel end only is recommended per ISA-5.1. If field devices are located in areas classified under NEC Article 500 or IEC 60079, certified galvanic isolators (e.g., Phoenix Contact MACX or P+F KFD series) must be installed between the module output terminals and the field cable — this is a site engineering requirement, not a module limitation.

---
