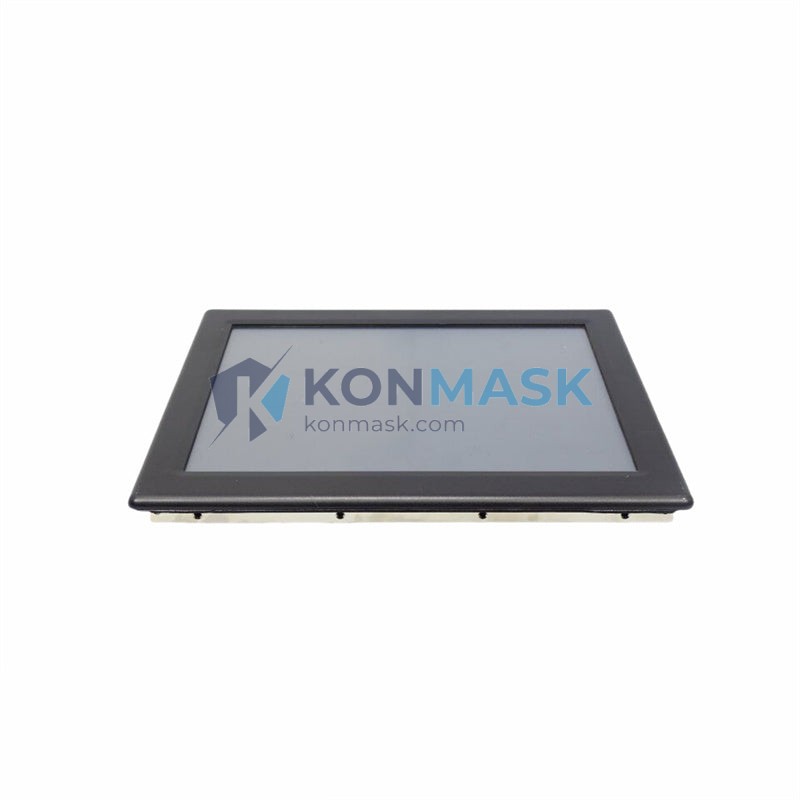

Industrial HMI Solution – ARISTA ADM-1815BP | ADM Series Touch Screen Operator Panel
Where This Product Is Used
The ARISTA ADM-1815BP is a 15-inch industrial touch screen HMI operator panel engineered for demanding automation environments. It is widely deployed across the following sectors:
- Manufacturing & Assembly Lines – Machine status visualization, recipe management, and operator input at the line level.
- Water & Wastewater Treatment – Real-time monitoring of pump stations, valve control, and flow data display.
- Oil & Gas Facilities – Panel-mount interface for upstream/downstream process control and alarm management.
- Power Generation & Distribution – Substation HMI for switchgear control and energy metering visualization.
- Food & Beverage Processing – Hygienic-environment operator interface for batch control and CIP cycle management.
- Building Automation (BAS/BMS) – Central touch interface for HVAC, lighting, and access control integration.
- SCADA Front-End Terminals – Local operator station paired with PLCs and DCS controllers.
Technical Specifications
- Model: ADM-1815BP
- Brand: ARISTA
- Series: ADM Series
- Display Size: 15 inches
- Display Type: TFT LCD with Touch Screen
- Touch Technology: Resistive / Capacitive (model-dependent)
- Panel Mount: Front-panel flush mount, VESA compatible
- Operating Temperature: 0°C to 55°C (typical industrial grade)
- Protection Rating: IP65 front panel (dust and water resistant)
- Weight: 790 g
- Communication Interfaces: RS-232/RS-485, Ethernet (application-dependent)
- Power Supply: DC 12V / 24V (refer to datasheet for exact input range)
- Certifications: CE, RoHS compliant
Why Engineers Specify This Model
- Proven ADM Series Platform – ARISTA’s ADM line is a trusted HMI family with broad PLC compatibility (Siemens, Mitsubishi, Allen-Bradley, Omron, and more).
- 15″ Optimal Viewing Area – Large enough for multi-parameter dashboards; compact enough for standard panel cutouts.
- IP65 Front Protection – Sealed against dust ingress and water jets, meeting IEC 60529 requirements for industrial enclosures.
- Wide Protocol Support – Native support for Modbus RTU/TCP, PROFIBUS, EtherNet/IP, and proprietary PLC protocols.
- Long Product Lifecycle – ARISTA maintains extended availability for industrial customers requiring multi-year supply continuity.
- Low Integration Risk – Drop-in replacement for legacy operator panels with standard cutout dimensions.
Complete System Bill of Materials
For a complete HMI workstation based on the ADM-1815BP, engineers typically specify:
- ARISTA ADM-1815BP – Touch Screen Operator Panel (this unit)
- 24VDC DIN-rail power supply (e.g., 60W–120W)
- PLC controller (Siemens S7-1200/1500, Mitsubishi FX5U, or equivalent)
- Ethernet switch (managed, industrial grade) for network integration
- Panel-mount enclosure (NEMA 4 / IP66 rated)
- RS-485 shielded cable or Cat6 Ethernet patch cable
- HMI configuration software license (ARISTA-compatible SCADA/HMI tool)
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive.
- RoHS – Restriction of Hazardous Substances compliant.
- IEC 60529 IP65 – Front panel ingress protection rating.
- UL/cUL – Listed for applicable North American markets (verify with datasheet).
- IEC 61131 – Compatible with IEC 61131-3 PLC programming environments.
Quality Assurance & Sourcing
At Konmask.com, every ARISTA ADM-1815BP unit is:
- Sourced directly from authorized ARISTA distributors or verified OEM channels.
- Inspected upon receipt for physical integrity, label authenticity, and firmware version.
- Stored in ESD-safe, climate-controlled warehousing.
- Shipped with original manufacturer packaging and documentation where available.
- Backed by our 90-day DOA (Dead on Arrival) guarantee and technical support.
How to Source This Part
- Add to Cart – Click the purchase button above to place your order directly.
- Request a Quote – For volume orders (5+ units), email support@konmask.com for tiered pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock items: 7–21 days depending on origin warehouse.
- Export & Customs – We handle export documentation for international shipments (CN origin, HS Code: 8537.10).
- Technical Pre-Sales – Call or WhatsApp +0086 19859288691 for compatibility verification before ordering.
Application-Specific FAQ
- Q: Is the ADM-1815BP compatible with Siemens S7-1200 PLCs?
- A: Yes. The ADM-1815BP supports Siemens S7 protocol via Ethernet. Confirm firmware version with our technical team for optimal compatibility.
- Q: Can this panel be used in outdoor enclosures?
- A: The front panel is IP65 rated. For outdoor use, install in a NEMA 4X or IP66 enclosure with UV-resistant glazing to protect the display.
- Q: What HMI software is compatible with the ADM-1815BP?
- A: ARISTA’s proprietary configuration software is recommended. Third-party SCADA tools (Wonderware, iFIX, Ignition) can interface via OPC-DA/UA or Modbus TCP.
- Q: Is a replacement touch screen digitizer available?
- A: Yes. Spare touch panels and backlights are available. Contact support@konmask.com with your serial number for spare parts pricing.
- Q: What is the typical MTBF for this unit?
- A: ARISTA ADM Series panels are rated for >50,000 hours MTBF under standard industrial operating conditions.
