SIEMENS 6AV3503-1DB10 Operator Interface Panel OP3 | Replacement, Equivalent & Selection Guide

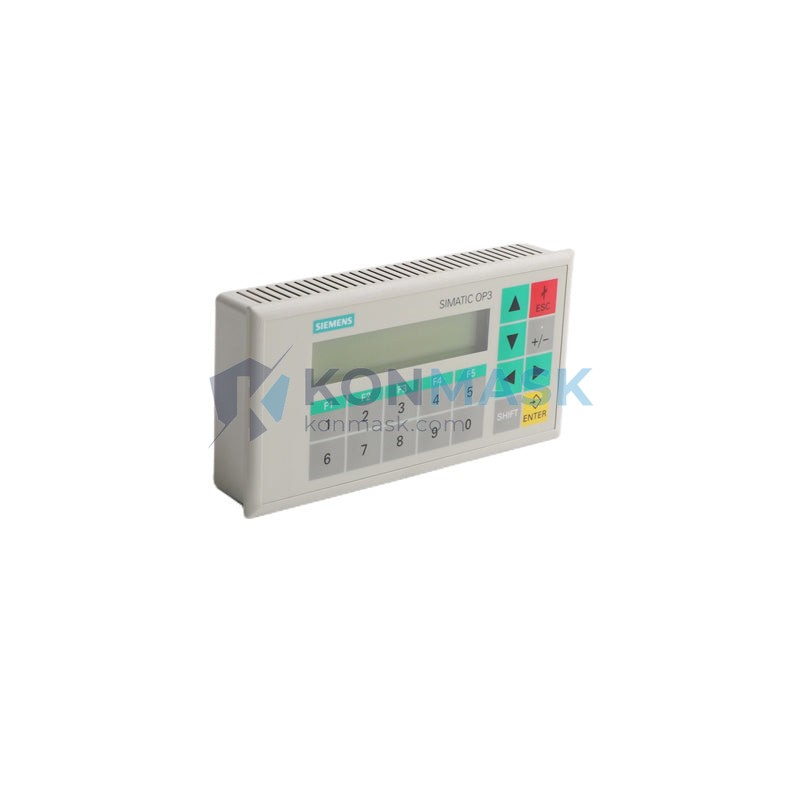

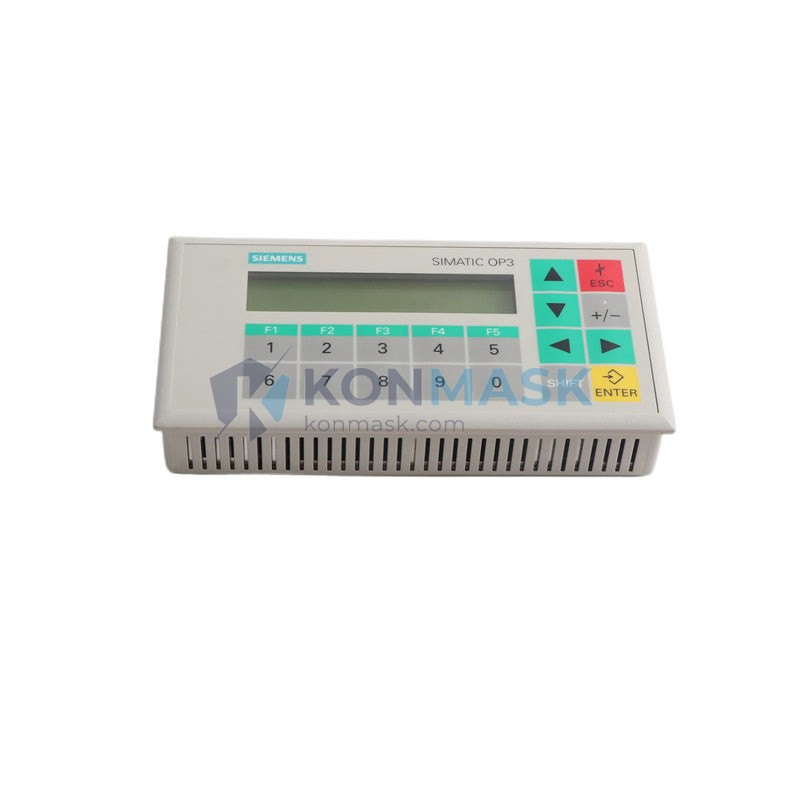

The SIEMENS 6AV3503-1DB10 is a compact operator interface panel (OP3) from the SIMATIC HMI family, designed for local machine-level operation in industrial automation systems. It provides text-based process visualization and operator control for PLCs and DCS environments, particularly within SIMATIC S5 and S7 ecosystems.
At Konmask.com, we specialize in sourcing, verifying, and supplying industrial automation components — including hard-to-find, discontinued, and legacy HMI panels like the 6AV3503-1DB10.
Selection Background
Many industrial buyers searching for the 6AV3503-1DB10 are evaluating it as a replacement for a failed unit, seeking a functional equivalent for a system upgrade, or comparing it against alternative operator panels. Because the OP3 series has reached end-of-life status with SIEMENS, understanding compatible substitute models and cross-brand equivalents is critical for uninterrupted production. This guide consolidates that selection intelligence in one place.

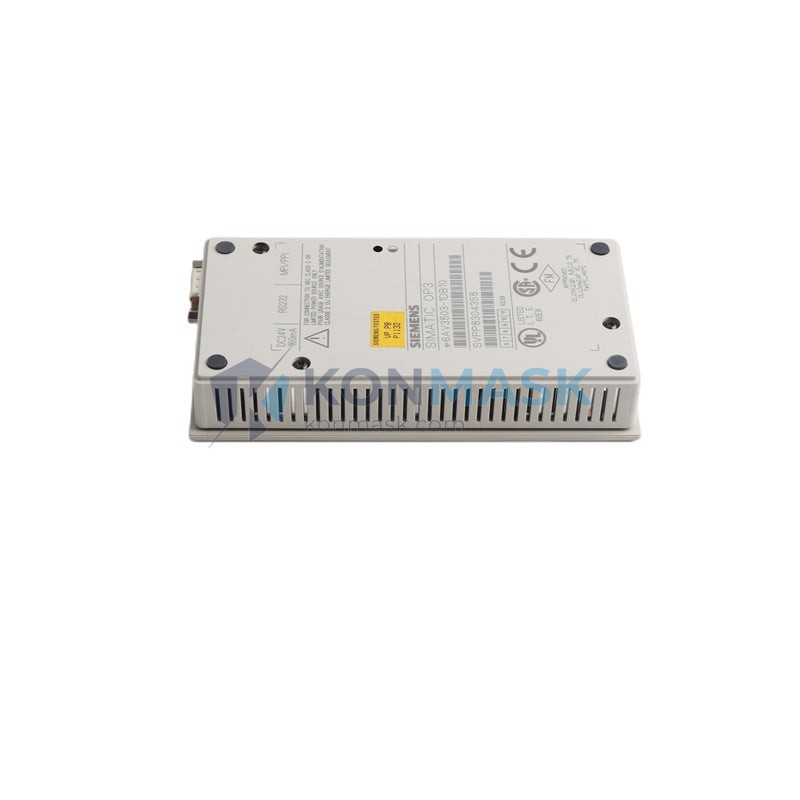

Technical Specifications
| Part Number | 6AV3503-1DB10 |
| Brand | SIEMENS |
| Series | SIMATIC OP3 |
| Display Type | LCD, 2-line × 20-character text display |
| Interface / Communication | MPI / PROFIBUS-DP (RS-485); Point-to-Point (PPI) |
| Compatible PLCs | SIMATIC S7-200, S7-300, S7-400; S5 via adapter |
| Power Supply | 24 V DC |
| Operating Temperature | 0 °C to +50 °C |
| Protection Rating | IP65 (front panel) |
| Keypad | 16 system keys + 8 function keys |
| Configuration Software | ProTool (legacy); STEP 7 Micro/WIN |
| Weight | Approx. 240 g |
| Mounting | Panel cut-out, front-mount |
| ⚠ Key Replacement Parameters | Communication protocol (MPI/PPI/DP), PLC compatibility, power supply voltage, panel cut-out dimensions |
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These units share identical form factor, communication interface, and PLC compatibility with the 6AV3503-1DB10:
- 6AV3503-1DB20 — Revised hardware revision of the same OP3 series; verify firmware compatibility with your ProTool project.
- 6AV3503-1DB00 — Earlier revision; functionally equivalent for most S7-200/300 applications.
Prerequisite: Same panel cut-out dimensions and 24 V DC supply. Confirm MPI/PPI protocol setting matches your PLC configuration.
2. Functional Equivalents (Same Brand, Upgraded Series)
These SIEMENS panels offer equivalent or superior functionality and may require minor project migration:
- SIEMENS KTP400 Basic (6AV2123-2DB03-0AX0) — 4″ touch panel; requires WinCC Basic migration from ProTool. Recommended for new installations.
- SIEMENS TD200 (6ES7272-0AA30-0YA1) — Text display for S7-200; direct functional substitute for simple text-based HMI tasks.
- SIEMENS OP7 (6AV3607-1JC20-0AX1) — Larger display, same MPI interface; suitable when additional display lines are needed.
Note: Project re-configuration in STEP 7 or WinCC may be required. Panel cut-out dimensions differ — verify before ordering.
3. Cross-Brand Alternatives
For applications where SIEMENS sourcing is constrained, these third-party panels offer compatible communication protocols:
- Weintek MT6050i — Supports MPI/PROFIBUS-DP; 5″ color touch HMI; requires EasyBuilder Pro configuration.
- Kinco MT4300C — MPI-compatible text/graphic panel; cost-effective substitute for basic operator control.
- Pro-face GP-4301TW — Supports SIMATIC S7 MPI protocol via driver; suitable for retrofit projects.
Important: Cross-brand substitutes require protocol driver validation and may not support all SIEMENS-specific function blocks. Always test in a non-production environment first. Contact Konmask for compatibility verification.
Why Choose the Original Model
- Precision Compatibility: The 6AV3503-1DB10 is factory-validated for SIMATIC S7-200/300/400 MPI/PPI communication — zero protocol ambiguity.
- Certified Hardware: CE-marked and compliant with IEC 61131-2 industrial environment standards.
- ProTool Project Continuity: Existing ProTool configurations load without modification — no re-engineering cost.
- Proven Field Reliability: Deployed in thousands of global installations; well-documented failure modes and maintenance procedures.
- OEM Technical Support: SIEMENS Industry Online Support provides archived documentation, firmware, and application notes.
- Warranty & Traceability: Konmask supplies units with full sourcing traceability and offers warranty coverage — critical for regulated industries.
Typical Applications
- Discrete Manufacturing: Machine-level operator control on CNC machining centers and assembly lines.
- Water & Wastewater: Pump station local HMI for SIMATIC S7-200-controlled systems.
- Food & Beverage: Conveyor and filling line operator panels requiring IP65 front protection.
- Building Automation: HVAC control panels with text-based setpoint entry and alarm display.
- Energy & Utilities: Substation local control interfaces integrated with PROFIBUS-DP networks.
- OEM Machine Builders: Retrofit and spare-part replacement for legacy machines still running OP3-based HMI.
System Compatibility
The 6AV3503-1DB10 is designed to operate within the following SIEMENS system ecosystem:
- SIMATIC S7-200 CPU 224 / 226 — Primary target PLC; PPI communication via RS-485 port.
- SIMATIC S7-300 / S7-400 — MPI communication; requires MPI network configuration in STEP 7.
- SIMATIC S5 (via CP 5430/5431) — Legacy integration with appropriate communication processor.
- PROFIBUS-DP Network — Slave node operation on DP segments up to 12 Mbit/s.
- ProTool V6.x Configuration Software — Required for project creation and download.
- SIMATIC PC Adapter (6ES7972-0CB20-0XA0) — USB-to-MPI adapter for programming and configuration download.
- 24 V DC Power Supply (e.g., SITOP PSU100S) — Recommended regulated supply for stable operation.
Selection Guide
Answer these three questions to confirm the 6AV3503-1DB10 — or its replacement — is the right fit for your application:
-
What PLC and communication protocol does your system use?
If your system uses SIMATIC S7-200 (PPI) or S7-300/400 (MPI), the 6AV3503-1DB10 or a direct equivalent is compatible. If you use PROFINET or Ethernet-based protocols, consider a KTP series panel instead. -
Do you have an existing ProTool project to reuse?
If yes, a direct drop-in replacement (same OP3 series) is strongly recommended to avoid re-engineering. If migrating to a new project, functional equivalents like the KTP400 Basic offer a modern upgrade path. -
What are your panel cut-out and environmental requirements?
Confirm the existing cut-out dimensions and IP rating requirement before ordering any replacement or equivalent model. Contact Konmask with your current panel drawing for a verified fit recommendation.
📩 Not sure which model fits your system? Send your PLC model, current HMI part number, and application description to [email protected] — our engineers will respond within 24 hours.
Quality Assurance & Sourcing
Konmask sources the 6AV3503-1DB10 through verified industrial distribution channels, including authorized regional distributors, certified refurbishers, and OEM surplus networks. Every unit undergoes a 4-step inspection process before shipment:
- Visual Inspection: Housing integrity, keypad condition, connector pin check, label verification.
- Power-On Functional Test: Display initialization, key response, communication port continuity.
- Communication Protocol Verification: MPI/PPI handshake test with reference PLC.
- Documentation Review: Serial number traceability, sourcing record, and test report generation.
Available documentation upon request: Test report, sourcing declaration, CE certificate copy, SIEMENS product datasheet.
How to Order
- Submit Your Inquiry: Email [email protected] or call +0086 19859288691 with your part number (6AV3503-1DB10), required quantity, and delivery timeline.
- Receive Quotation & Availability Confirmation: Our team will confirm stock status, pricing, lead time, and shipping options — typically within 24 hours.
- Place Order & Ship: Confirm the order, complete payment, and we dispatch with full tracking and documentation package.
⏱ 24-hour response guaranteed for all B2B inquiries. Express sourcing available for urgent production requirements.
Replacement & Compatibility FAQ
Q1: Can I directly replace a 6AV3503-1DB10 with a 6AV3503-1DB20?
A: In most cases, yes. The 6AV3503-1DB20 is a hardware revision of the same OP3 series and is functionally equivalent for standard S7-200/300 MPI/PPI applications. Verify that your existing ProTool project is compatible with the revised hardware revision before installation.
Q2: Is the SIEMENS TD200 a compatible substitute for the 6AV3503-1DB10?
A: The TD200 (6ES7272-0AA30-0YA1) is a compatible substitute for S7-200 PPI applications with basic text display requirements. It does not support MPI communication, so it is not a direct equivalent for S7-300/400 MPI-based systems. Confirm your PLC model before selecting this substitute.
Q3: Are cross-brand HMI panels truly equivalent to the 6AV3503-1DB10?
A: Cross-brand panels (e.g., Weintek, Kinco) can serve as functional replacements when they support SIMATIC MPI/PPI protocol drivers. However, they require new project configuration and cannot reuse existing ProTool files. They are best suited for new installations or full HMI replacement projects rather than direct drop-in substitution. Contact Konmask for a compatibility assessment before committing to a cross-brand equivalent.
