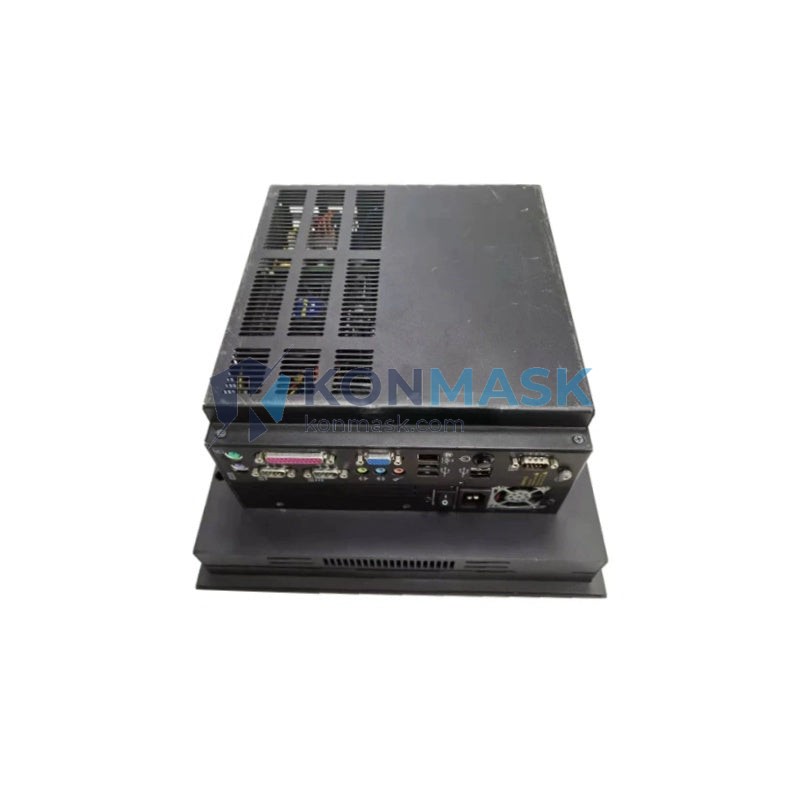

Parker HPX15T-XAAA-2 DT-03047-202 – 15″ CTC HMI Operator Panel | Parker Automation Platform
Engineering Background: The Parker HPX15T-XAAA-2 (Assembly P/N DT-03047-202) is a high-performance Human-Machine Interface (HMI) panel developed under Parker Hannifin’s CTC (Computer Technology Corporation) automation platform. Designed for demanding industrial environments, this operator panel integrates seamlessly with Parker motion control, drive, and process automation architectures, providing real-time visualization and operator control at the machine level.
Product Positioning: Targeted at OEM machine builders, system integrators, and MRO procurement engineers requiring a direct replacement or upgrade for Parker CTC-series HMI installations. The HPX15T-XAAA-2 delivers a ruggedized 15-inch touch interface with industrial-grade connectivity, making it the preferred choice for continuous-duty production environments in automotive, energy, food & beverage, and discrete manufacturing sectors.
Complete Technical Specifications
- Manufacturer: Parker Hannifin Corporation (CTC Division)
- Model Number: HPX15T-XAAA-2
- Assembly Part Number: DT-03047-202
- Display Size: 15-inch TFT LCD (nominal)
- Touch Technology: Resistive / Analog Touch Screen
- Resolution: XGA 1024 × 768 (typical for HPX15T series)
- Platform Series: Parker CTC HMI / HPX Series
- Operating System: Windows Embedded / CE (platform-dependent)
- Communication Interfaces: Ethernet (RJ-45), RS-232/RS-485 serial, USB
- Power Supply: 24 VDC nominal (verify with assembly drawing DT-03047-202)
- Operating Temperature: 0°C to +50°C (storage: -20°C to +70°C)
- Protection Rating: Front panel IP65 (NEMA 4/4X equivalent)
- Mounting: Panel-mount, rear-mount hardware included
- Weight: Approx. 3.5 kg (as shipped)
- Certifications: CE, UL/cUL (verify current listing with Parker documentation)
Proven Application Environments
- Parker motion control and servo drive systems (Compax3, ViX, ARIES series)
- Parker hydraulic and pneumatic control panels
- Discrete manufacturing: CNC machine tool operator stations
- Automotive assembly line HMI replacement and upgrade
- Energy sector: pump station and compressor control visualization
- Food & beverage: washdown-adjacent operator interface (front IP65)
- OEM retrofit and MRO replacement for legacy CTC HMI installations
Engineering Advantages
- Direct OEM Compatibility: Assembly P/N DT-03047-202 ensures drop-in mechanical and electrical fit for existing Parker CTC panel cutouts.
- Rugged Industrial Design: Aluminum front bezel with IP65 front-face sealing resists dust, coolant splash, and operator-environment contaminants.
- Multi-Protocol Connectivity: Supports Ethernet/IP, Modbus TCP/RTU, and Parker proprietary protocols for seamless PLC and drive integration.
- Extended Service Life: Parker CTC platform components are engineered for 24/7 continuous operation with MTBF ratings suitable for critical production lines.
- Software Ecosystem: Compatible with Parker InControl, Interact Xpress, and CTC HMI development tools for rapid application migration.
System Architecture & Signal Flow
The HPX15T-XAAA-2 operates as the visualization and operator input node within a Parker automation cell. Typical signal flow:
- Upstream: Ethernet or serial link to Parker PLC / motion controller (e.g., PAC, Compax3, or third-party Modbus master)
- HMI Layer: HPX15T-XAAA-2 runs the SCADA/HMI application, polling process variables and rendering real-time graphics at the operator station
- Operator Input: Touch events translated to control commands dispatched to the connected controller via configured communication driver
- I/O Extension: USB and serial ports support barcode scanners, printers, or auxiliary I/O modules as required by the application
Sourcing & Quality Verification
- Source: Konmask.com sources Parker CTC components from authorized distribution channels and verified industrial surplus with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification (model + assembly P/N match), and functional power-on check prior to dispatch.
- Condition: New surplus or factory-refurbished; condition confirmed in order confirmation. Refurbished units carry a 90-day operational warranty.
- Documentation: Parker datasheet and assembly drawing reference (DT-03047-202) available upon request for engineering validation.
- Counterfeit Prevention: All units verified against Parker Hannifin genuine part markings. Konmask does not source from unverified grey-market channels.
Procurement Process
- Confirm Compatibility: Cross-reference your existing HMI model number and assembly P/N against HPX15T-XAAA-2 / DT-03047-202. Contact our engineering team if verification is needed.
- Request Quote: Submit your RFQ via [email protected] or +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Order & Payment: Secure checkout via Konmask.com. T/T bank transfer and major credit cards accepted. Pro-forma invoice available for corporate procurement.
- Inspection & Dispatch: Unit inspected, packed in anti-static ESD packaging with foam cushioning. Ships within 1–3 business days of payment confirmation.
- Delivery & Support: Global shipping via DHL / FedEx / UPS with tracking. Post-delivery technical support available from our automation engineering team.
Technical FAQ
Q: Is the HPX15T-XAAA-2 compatible with Parker InControl HMI software?
A: Yes. The HPX15T series is designed to run Parker InControl and Interact Xpress HMI applications. Confirm OS version compatibility with your existing project file before deployment.
Q: What is the difference between HPX15T-XAAA-2 and HPX15T-XAAA-1?
A: The suffix revision (-1 vs -2) typically denotes a hardware revision with updated internal components (e.g., processor, memory, or backlight). Assembly P/N DT-03047-202 is specific to the -2 revision. Contact Parker or Konmask for a detailed revision change summary.
Q: Can this unit replace a legacy CTC Magelis or older Parker HMI?
A: Mechanical fit depends on the original panel cutout dimensions. The HPX15T-XAAA-2 follows standard Parker CTC mounting patterns. Application software migration may be required. Our team can advise on migration paths.
Q: What warranty is provided?
A: New surplus units carry a 90-day warranty against defects in materials and workmanship. Extended warranty options are available — contact [email protected].
Q: Do you provide export documentation for international shipments?
A: Yes. Commercial invoice, packing list, and certificate of origin are provided as standard. HS Code and EAR99 classification documentation available upon request.
