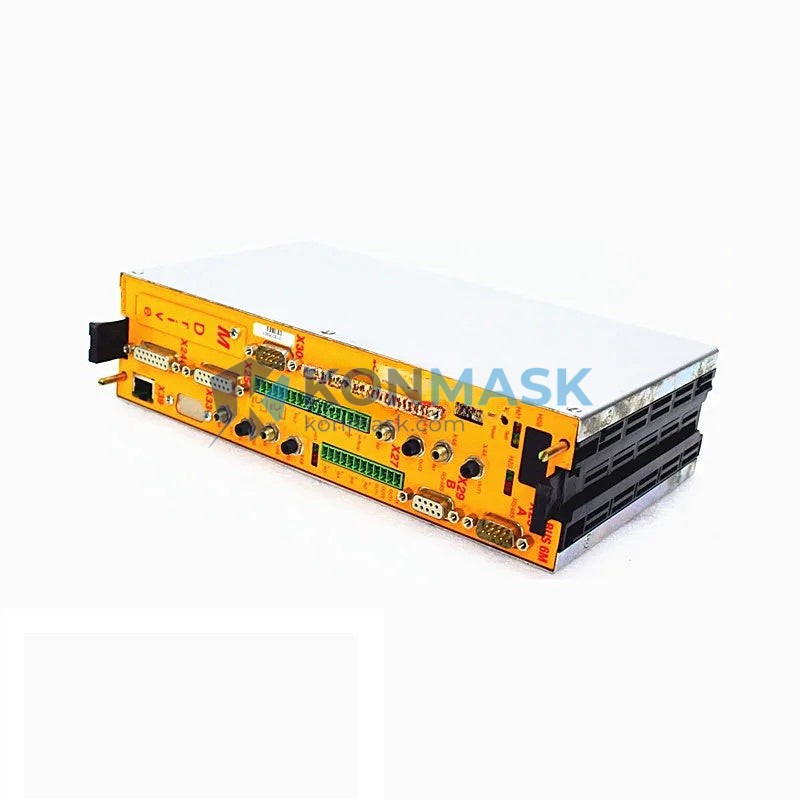

BAUMULLER 60S-04/08-54-B-001-VC-AE-00 – Compact AC Servo Drive | 60S Series Platform
Engineering Background
Baumuller (Baumüller) is a German industrial automation leader headquartered in Nuremberg, with over 75 years of engineering excellence in drive and control systems. The 60S series represents Baumuller’s compact, high-performance servo drive platform engineered for precision motion control in robotics, machine tools, and automated production lines.
Product Positioning
The 60S-04/08-54-B-001-VC-AE-00 is a dual-current-range (4A continuous / 8A peak) AC servo drive operating at 54V DC bus voltage. It integrates vector control (VC) firmware and analog/encoder (AE) interface, making it the preferred choice for procurement engineers sourcing compact servo axes for collaborative robots, pick-and-place systems, and multi-axis CNC platforms.
Complete Technical Specifications
| Part Number | 60S-04/08-54-B-001-VC-AE-00 |
| Manufacturer | Baumuller (Baumüller), Germany |
| Series / Platform | 60S Compact Servo Drive Series |
| Continuous Output Current | 4 A |
| Peak Output Current | 8 A |
| DC Bus Voltage | 54 V DC |
| Control Mode | Vector Control (VC) – Field-Oriented Control |
| Feedback / Interface | Analog + Encoder (AE) |
| Variant Code | B-001 (Standard firmware build) |
| Cooling | Natural convection (fanless) |
| Form Factor | Compact DIN-rail / panel-mount |
| Weight | 850 g (approx.) |
| Compliance | CE, RoHS |
| Country of Origin | Germany |
Proven Application Environments
- Collaborative & Industrial Robotics – Joint servo axes requiring compact footprint and high dynamic response
- CNC Machine Tools – Feed-axis and spindle servo control on multi-axis machining centers
- Pick-and-Place Automation – High-cycle-rate Cartesian and SCARA robot axes
- Semiconductor & Electronics Assembly – Ultra-precise positioning stages demanding low-ripple torque
- Packaging Machinery – Synchronous multi-axis motion with tight phase accuracy
- Medical & Laboratory Equipment – Low-noise, low-EMI servo axes in sensitive environments
Engineering Advantages
- Dual Current Rating (4A/8A) – Sustained continuous torque with 2× peak for acceleration bursts, reducing motor thermal stress
- 54V DC Bus Architecture – Optimized for 48V battery-backed and low-voltage robot power rails; inherently safer for collaborative robot cells
- Vector Control (FOC) – Field-oriented control delivers smooth torque at zero speed, critical for holding loads and precision positioning
- Analog + Encoder Interface – Broad compatibility with incremental encoders (TTL/HTL) and ±10V analog command signals; integrates with legacy and modern PLCs
- Fanless Convection Cooling – Zero moving parts in the drive; eliminates fan-failure maintenance and reduces acoustic noise in clean-room environments
- Compact 60S Form Factor – Enables high-density multi-axis panel layouts; reduces cabinet footprint by up to 30% vs. standard drives
System Architecture & Signal Flow
The 60S-04/08-54-B-001-VC-AE-00 operates within Baumuller’s modular drive architecture:
- Power Stage: 54V DC bus → IGBT inverter bridge → 3-phase AC output to servo motor
- Control Loop: Encoder feedback → DSP-based FOC current loop (≥10 kHz) → velocity loop → position loop (host controller)
- Command Interface: ±10V analog torque/velocity reference or step/direction pulse input via AE interface board
- Communication: Compatible with Baumuller ProMaster / b maXX controller ecosystem; fieldbus expansion via optional modules
- Safety: STO (Safe Torque Off) ready; over-current, over-voltage, under-voltage, and over-temperature hardware protection
Sourcing & Quality Verification
- ✅ Genuine OEM Part – Sourced through authorized Baumuller distribution channels
- ✅ Pre-shipment Functional Test – Each unit powered-on and verified for output stage integrity before dispatch
- ✅ Anti-counterfeit Inspection – Label, PCB markings, and firmware version cross-checked against Baumuller factory records
- ✅ Condition – New (surplus) or refurbished units clearly labeled; full condition disclosure provided on request
- ✅ Warranty – 12-month replacement warranty against manufacturing defects
Procurement Process
- Confirm Part Number – Verify 60S-04/08-54-B-001-VC-AE-00 matches your BOM or existing drive label
- Request Quote / Stock Check – Contact [email protected] for lead time and volume pricing
- Place Order – Secure checkout via Konmask.com; PO and wire transfer accepted for B2B orders
- Shipping – DHL / FedEx express worldwide; export documentation (commercial invoice, packing list, COO) included
- Incoming Inspection Support – Technical datasheet and test report available upon request
Technical FAQ
Q: Is this drive compatible with third-party servo motors?
A: Yes. The AE interface supports standard incremental encoders (1024–2500 PPR TTL) and ±10V analog command, enabling use with most 3-phase permanent-magnet servo motors rated for 54V bus operation.
Q: Can I replace a faulty 60S drive without re-commissioning the axis?
A: In most cases, yes. Parameter sets can be cloned via Baumuller’s ProDrive commissioning software. Contact us for parameter backup assistance.
Q: What is the difference between the 4A and 8A ratings?
A: 4A is the continuous (RMS) thermal rating; 8A is the peak current available for up to 5 seconds during acceleration. Motor selection should be based on the 4A continuous rating.
Q: Do you provide a certificate of conformity?
A: Yes. CE declaration and test report are available for OEM and system integrator customers upon request.
Q: What is the minimum order quantity?
A: Single-unit orders are accepted. Volume discounts apply for orders of 5+ units.
