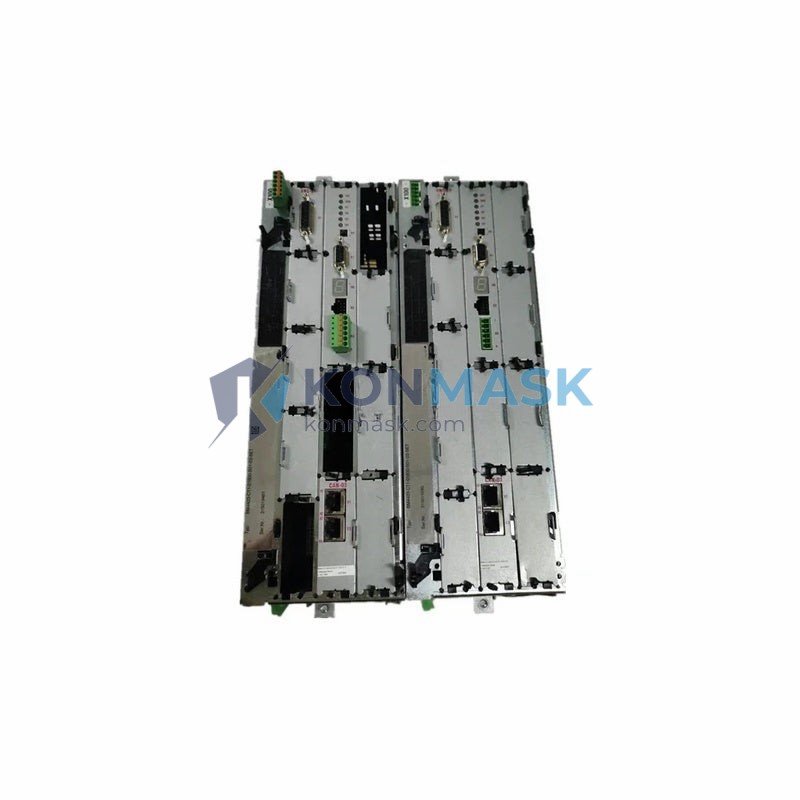

BAUMULLER BUM60-VC-AE-0036 | BUM60-12/24-54-B-001 Servo Drive | Replacement, Equivalent & Selection Guide
The BAUMULLER BUM60-VC-AE-0036 (BUM60-12/24-54-B-001) is a high-performance AC servo drive from Baumüller’s BUM60 series, engineered for precision motion control in demanding industrial automation environments. This guide covers technical specifications, compatible replacement models, application scenarios, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: BAUMULLER (Baumüller Nürnberg GmbH)
- Part Number: BUM60-VC-AE-0036
- Full Model Code: BUM60-12/24-54-B-001
- Series: BUM60
- Type: AC Servo Drive / Frequency Inverter
- Input Voltage: 3-phase, 400–480 V AC
- Output Current: 36 A (continuous)
- Power Range: ~18 kW (nominal)
- Control Mode: Vector control (VC), closed-loop servo
- Communication: PROFIBUS, CANopen (model-dependent)
- Cooling: Forced air cooling
- Protection Class: IP20
- Weight: 1.78 kg
- Compliance: CE, UL
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the BUM60-VC-AE-0036 in most application scenarios. Always verify electrical and mechanical compatibility before substitution.
- BAUMULLER BUM60-VC-AE-0024 – Lower current variant (24 A); suitable for lighter loads in the same BUM60 platform
- BAUMULLER BUM60-VC-AE-0054 – Higher current variant (54 A); for applications requiring more output capacity
- BAUMULLER BUM61 Series – Next-generation successor platform with enhanced communication options
- Siemens SINAMICS S120 – Industry-standard alternative for multi-axis servo systems; requires re-parameterization
- Lenze i700 Servo Inverter – Compatible in torque/speed control applications; different form factor
- SEW-EURODRIVE MOVIDRIVE B – Equivalent servo drive for retrofit projects; check bus protocol compatibility
Note: Third-party replacements may require firmware updates, parameter reconfiguration, or mechanical adapter brackets. Consult your system integrator before substitution.
Why Choose the Original Model
- Platform Consistency: Seamless integration with existing BAUMULLER BUM60 multi-axis systems without re-engineering
- Firmware Compatibility: Native support for BAUMULLER ProMaster / b maXX controller ecosystem
- Proven Reliability: Designed and validated for continuous industrial duty cycles
- OEM Warranty Compliance: Maintains machine builder warranty and CE/UL certification integrity
- Reduced Commissioning Time: Drop-in replacement with identical parameter sets
Typical Applications
- CNC machine tool spindle and axis drives
- Printing and packaging machinery
- Textile and winding equipment
- Plastics injection molding machines
- Robotics and multi-axis motion systems
- Material handling and conveyor automation
System Compatibility
- Controllers: BAUMULLER b maXX 4000/5000 series, Siemens SIMATIC S7 (via fieldbus)
- Motors: BAUMULLER DST2, DSC, and DSP series servo motors; third-party motors with encoder feedback
- Fieldbus: PROFIBUS DP, CANopen, EtherCAT (firmware-dependent)
- Software: BAUMULLER ProMaster, WinBASS II
Selection Guide
Use the following criteria to confirm the BUM60-VC-AE-0036 is the right choice for your application:
- Step 1 – Load Current: Confirm motor rated current ≤ 36 A continuous. If higher, select BUM60-VC-AE-0054.
- Step 2 – Supply Voltage: Verify 3-phase 400–480 V AC supply availability at the cabinet.
- Step 3 – Control Mode: Confirm vector control (VC) is required. For basic V/f control, a lower-cost variant may suffice.
- Step 4 – Communication Protocol: Match fieldbus type (PROFIBUS / CANopen) to your PLC or motion controller.
- Step 5 – Mounting & Cooling: Ensure adequate cabinet space and forced-air ventilation per BAUMULLER installation guidelines.
- Step 6 – Replacement vs. New Install: For retrofit, verify existing wiring harness and encoder connector pinout match BUM60-12/24-54-B-001 specifications.
Quality Assurance & Sourcing
- All units sourced through verified industrial distribution channels
- Pre-shipment functional inspection and packaging integrity check
- Original manufacturer labeling and serial number intact
- Available as: New, Refurbished (tested), and Exchange units
- Export documentation and customs HS code support available upon request
How to Order
- Confirm part number: BUM60-VC-AE-0036 / BUM60-12/24-54-B-001
- Specify quantity and required condition (New / Refurbished / Exchange)
- Contact us via email or phone for lead time and pricing
- Receive proforma invoice → confirm payment → shipment with tracking
- DHL / FedEx / sea freight options available for international orders
Replacement & Compatibility FAQ
Q: Can I replace BUM60-VC-AE-0036 with a BUM60-VC-AE-0024?
A: Only if your motor’s rated current is ≤ 24 A. Undersizing the drive will trigger overcurrent faults and damage the unit.
Q: Is the BUM60-12/24-54-B-001 the same as BUM60-VC-AE-0036?
A: Yes — BUM60-12/24-54-B-001 is the full model code; BUM60-VC-AE-0036 is the ordering part number for the same unit.
Q: Can I use a Siemens SINAMICS S120 as a drop-in replacement?
A: Not directly. While functionally equivalent in many applications, the S120 requires different wiring, parameterization, and may need a different motor encoder interface.
Q: Do you provide warranty on refurbished units?
A: Yes — refurbished units carry a 90-day functional warranty. New units follow manufacturer warranty terms.
Q: What is the lead time for BUM60-VC-AE-0036?
A: Typically 3–7 business days for in-stock units; 2–4 weeks for sourced/new units. Contact us for current availability.
