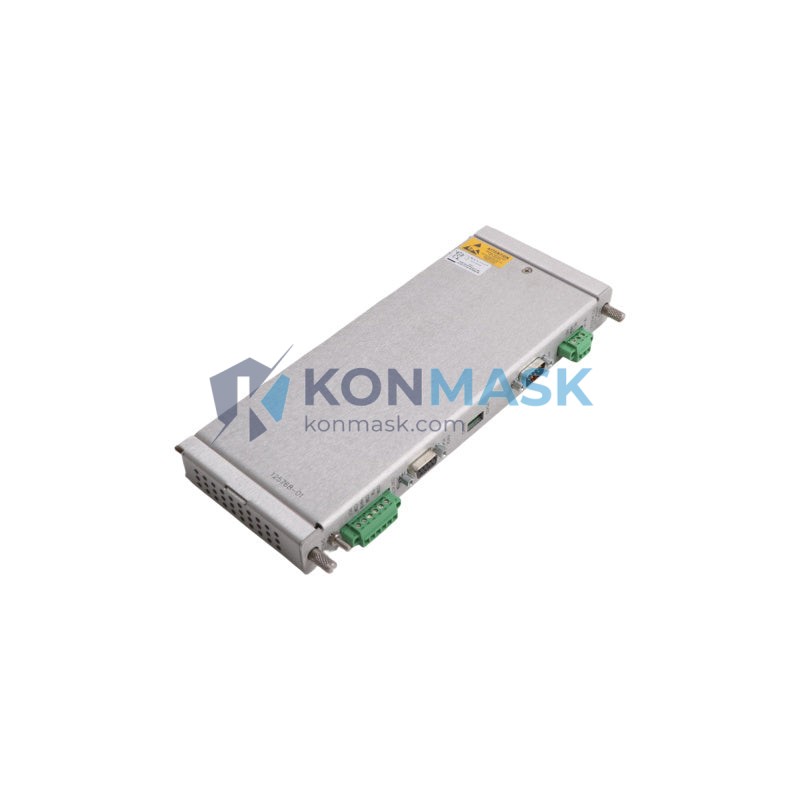

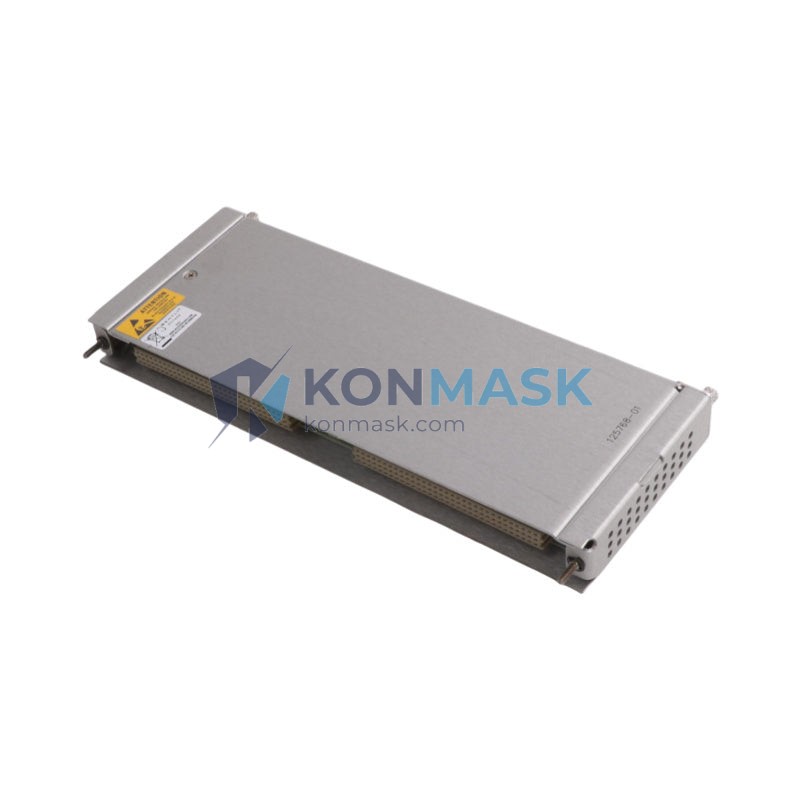

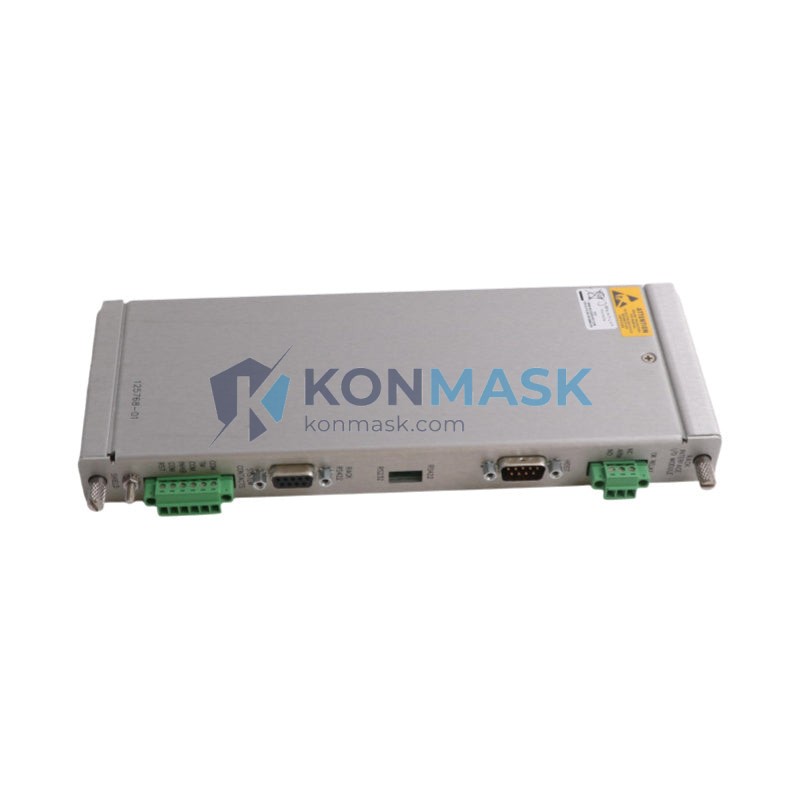

Bently Nevada 125768-01 RIM I/O Module | Replacement, Equivalent & Selection Guide
The Bently Nevada 125768-01 is a Remote I/O Module (RIM) designed for use within the Bently Nevada 3500 Series machinery protection and condition monitoring system. It provides distributed I/O expansion capability, enabling remote signal acquisition and transmission across large industrial installations. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: 125768-01
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3500 Machinery Protection System
- Module Type: RIM – Remote I/O Module
- Function: Remote I/O expansion for distributed signal acquisition
- Communication: Compatible with 3500 rack backplane and system bus
- Power Supply: Supplied via rack backplane
- Weight: 440 g (approx.)
- Form Factor: Single-slot 3500 rack module
- Operating Environment: Industrial — suitable for plant floor and control room installation
- Compliance: Designed to meet applicable IEC and API 670 standards for machinery protection
Compatible Replacement & Equivalent Models
When the 125768-01 is unavailable or end-of-life, the following models may serve as functional equivalents or replacements depending on system configuration. Always verify firmware and rack compatibility before substitution.
- 125768-02 — Revised revision of the same RIM I/O module; check firmware compatibility
- 125768-03 — Later hardware revision; functionally equivalent in most 3500 rack configurations
- 3500/92 — Communication Gateway Module; alternative for certain remote I/O architectures
- 3500/20 — Power Supply Module (not a direct replacement, but required in RIM-expanded racks)
- Third-party compatible modules from approved MPS integrators — consult Konmask for validated alternatives
Note: Bently Nevada modules are system-specific. Substitution must be validated by a qualified control systems engineer.
Why Choose the Original 125768-01
- OEM Guaranteed Compatibility: Designed and tested exclusively for the 3500 Series rack — zero integration risk
- API 670 Compliance: Meets the industry standard for machinery protection systems in rotating equipment
- Proven Reliability: Deployed in refineries, power plants, and compressor stations worldwide
- Full Diagnostic Support: Integrates with System 1 software for real-time health monitoring
- Manufacturer Warranty & Support: Backed by Baker Hughes / Bently Nevada global service network
Typical Applications
- Turbine and compressor vibration monitoring systems
- Rotating machinery protection in oil & gas upstream and downstream facilities
- Power generation — steam and gas turbine protection racks
- Petrochemical plant distributed control and monitoring architectures
- Marine and offshore platform machinery protection systems
- Pulp & paper and mining heavy equipment monitoring
System Compatibility
- Primary System: Bently Nevada 3500 Machinery Protection System
- Rack Compatibility: 3500 Series racks (3500/05, 3500/15, 3500/25)
- Software: System 1 Evolution, System 1 Classic
- Communication Protocols: Modbus, Ethernet (via gateway modules), 4–20 mA analog output
- Not Compatible With: 3300 Series, 1900 Series, or non-Bently Nevada third-party racks without adaptation
Selection Guide
Use the following criteria to confirm the 125768-01 is the correct module for your application:
- ✅ Your system uses a Bently Nevada 3500 Series rack
- ✅ You require remote I/O expansion beyond the primary rack capacity
- ✅ Your installation requires distributed signal acquisition across multiple monitoring points
- ✅ You need API 670-compliant machinery protection
- ⚠️ If your rack is a 3300 or 1900 Series — a different module family is required; contact us for guidance
- ⚠️ If you need Ethernet-native communication — consider pairing with the 3500/92 gateway module
Quality Assurance & Sourcing
- Source: Konmask.com sources modules from authorized distributors and verified surplus channels
- Inspection: All units undergo visual inspection and functional verification prior to shipment
- Authenticity: Original Bently Nevada / Baker Hughes labeling and serial numbers preserved
- Condition Options: New, Refurbished (tested), and Surplus (as-removed) — specify at inquiry
- Documentation: Datasheet, test report, and certificate of conformance available on request
- Warranty: 12-month warranty on new units; 90-day warranty on refurbished/surplus units
How to Order
- Add the Bently Nevada 125768-01 to your cart and proceed to checkout
- Or contact us directly for bulk orders, expedited shipping, or custom sourcing requests
- Provide your rack model and system configuration for compatibility pre-verification
- Request a formal quotation via support@konmask.com
Lead Time: In-stock units ship within 1–3 business days. Special-order units: 5–15 business days.
Replacement & Compatibility FAQ
Q: Can the 125768-01 replace the 125768-02?
A: In most cases yes, but firmware version compatibility must be verified. Contact us with your rack serial number for confirmation.
Q: Is this module compatible with the Bently Nevada 3300 Series?
A: No. The 125768-01 is designed exclusively for the 3500 Series rack architecture.
Q: Can I use a third-party RIM I/O module as a replacement?
A: Third-party alternatives exist but may not meet API 670 requirements. We recommend OEM modules for safety-critical applications.
Q: What is the difference between 125768-01 and 125768-03?
A: The -03 suffix indicates a later hardware revision. Functionally equivalent in standard configurations; confirm with your system integrator for critical installations.
Q: Do you offer exchange or repair services?
A: Yes. Konmask offers module exchange and third-party repair services. Contact us for pricing and turnaround time.
