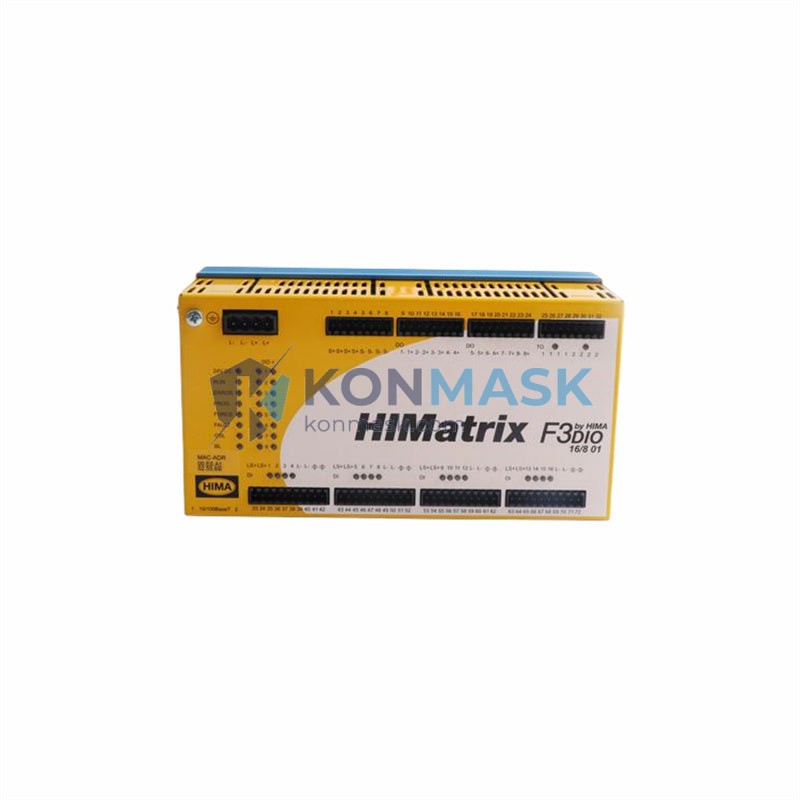

Process Safety I/O Solution – HIMA F3 DIO 16/801 | HIMax / HIMatrix Series
Where This Product Is Used
The HIMA F3 DIO 16/801 is a certified Safety Integrity Level 3 (SIL 3) remote digital I/O module engineered for deployment in the most demanding functional safety applications across heavy industry. Engineers specify this module in environments where a single I/O failure could trigger catastrophic consequences:
- Oil & Gas – Upstream & Midstream: Emergency Shutdown Systems (ESD), wellhead control panels, pipeline isolation valve control, and compressor protection logic.
- Petrochemical & Refining: Burner Management Systems (BMS), high-integrity pressure protection systems (HIPPS), and reactor interlock loops.
- Chemical Processing: Toxic gas detection interlock circuits, exothermic reaction shutdown logic, and pressure relief valve monitoring.
- Power Generation: Turbine trip systems, boiler safety interlocks, and generator protection panels.
- Offshore Platforms: Fire & Gas (F&G) detection systems, deluge valve control, and platform ESD architectures.
- LNG Terminals: Cryogenic valve control, loading arm interlock systems, and vapor detection shutdown loops.
In all of these environments, the F3 DIO 16/801 operates as a remote I/O node within HIMA’s HIMax or HIMatrix safety controller architectures, extending the safety logic solver’s reach to field devices while maintaining full SIL 3 integrity across the I/O boundary.
Technical Specifications
| Part Number / SKU | F3 DIO 16/801 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Series | HIMax / HIMatrix F3 Series |
| Module Type | Digital Input / Output (DIO) – Remote I/O |
| Channel Count | 16 Channels (configurable as DI or DO) |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Architecture | 1oo1D / 1oo2 / 2oo3 configurable |
| Communication Interface | HIMA SafeEthernet / F-Bus |
| Input Voltage Range | 24 V DC (nominal) |
| Output Type | Solid-state digital output |
| Diagnostic Coverage | >99% (DC High) |
| Operating Temperature | 0 °C to +60 °C |
| Protection Rating | IP20 |
| Weight | 4,460 g (module + packaging) |
| Mounting | HIMax / HIMatrix backplane slot |
| Certifications | TÜV Rheinland, IEC 61508, IEC 61511, ATEX (zone 2 barrier), cULus |
Why Engineers Specify This Model
- Proven SIL 3 Pedigree: TÜV Rheinland-certified to IEC 61508 Ed. 2, with documented PFDavg and PFH values for use directly in SIL verification calculations.
- High Diagnostic Coverage: Internal self-test routines achieve >99% DC, minimizing dangerous undetected failures and supporting low-demand and high-demand mode applications.
- Flexible I/O Configuration: Channels can be individually configured as digital inputs or outputs, reducing spare module inventory and simplifying BOM management.
- Seamless HIMax / HIMatrix Integration: Plug-and-play compatibility with HIMA’s safety controller backplane eliminates integration risk and reduces commissioning time.
- Hot-Swap Capability: Supports online module replacement without system shutdown, critical for continuous-process industries with zero-downtime requirements.
- Long Product Lifecycle: HIMA’s commitment to long-term spare parts availability makes this module suitable for 20+ year plant lifecycles.
Complete System Bill of Materials
The F3 DIO 16/801 is typically deployed alongside the following HIMA components in a complete safety instrumented system (SIS):
- HIMA HIMax Central Processing Unit (CPU) – e.g., F3 CPU 01 / F3 CPU 02
- HIMA HIMax Power Supply Module – e.g., F3 PS 01
- HIMA HIMax Backplane / Rack Assembly
- HIMA SafeEthernet Communication Module (for remote I/O coupling)
- HIMA F3 AI / AO Modules (for analog signal loops)
- HIMA SILworX Engineering Software (for configuration and SIL verification)
- Field barriers / isolators (Zener or galvanic, per hazardous area classification)
- Marshalling cabinet with terminal blocks and cable management
Contact support@konmask.com for complete system quotations and BOM assistance.
Compliance & Industry Standards
- IEC 61508 Ed. 2 – Functional Safety of E/E/PE Safety-Related Systems (SIL 3 certified)
- IEC 61511 – Functional Safety for the Process Industry Sector
- IEC 62061 – Safety of Machinery (applicable for machine safety deployments)
- ATEX Directive 2014/34/EU – Equipment for use in explosive atmospheres (Zone 2 with appropriate barriers)
- cULus / UL 508 – Industrial Control Equipment (North American market)
- TÜV Rheinland Certification – Independent third-party safety assessment
- NE 153 / NAMUR – Recommendations for functional safety in the process industry
Quality Assurance & Sourcing
Konmask.com specializes in the procurement of genuine, traceable industrial automation components for safety-critical applications. Every HIMA module we supply is:
- Sourced from authorized distribution channels or verified surplus with full traceability documentation.
- Inspected for physical integrity, label authenticity, and firmware version compatibility prior to dispatch.
- Shipped with original manufacturer packaging where available, or in ESD-safe anti-static packaging.
- Accompanied by a certificate of conformity and, where applicable, original HIMA test records.
We do not supply counterfeit, refurbished-without-disclosure, or unverified grey-market components. Our sourcing process is designed to meet the documentation requirements of IEC 61511 Clause 11 (hardware safety lifecycle) and customer FAT/SAT audit requirements.
How to Source This Part
The HIMA F3 DIO 16/801 is available for immediate inquiry. Lead times vary based on current stock and manufacturer availability.
- Request a Quote: Email support@konmask.com with your required quantity, delivery timeline, and any documentation requirements (CoC, test records, etc.).
- Phone / WhatsApp: Call or message +0086 19859288691 for urgent requirements or technical pre-sales questions.
- Bulk & Project Orders: We support EPC contractors and end-user procurement teams with project-based pricing, phased delivery schedules, and vendor qualification documentation.
- Expedite Service: For shutdown/turnaround (TAR) emergencies, contact us directly for expedited sourcing and same-day quotation.
Application-Specific FAQ
- Q: Can the F3 DIO 16/801 be used in a SIL 3 ESD application without additional redundancy?
- A: Yes. The F3 DIO 16/801 is certified to SIL 3 in 1oo1D architecture, meaning a single module can achieve SIL 3 in low-demand mode applications, subject to proof test interval and PFDavg verification in your SIL calculation tool (e.g., exSILentia, SISTEMA).
- Q: Is this module compatible with HIMatrix as well as HIMax controllers?
- A: The F3 series designation covers modules used across HIMA’s HIMax and HIMatrix platforms. Please confirm backplane compatibility with your specific controller model before ordering. Our technical team can assist with compatibility verification.
- Q: What is the typical proof test interval for this module?
- A: HIMA’s safety manual specifies proof test intervals typically ranging from 1 to 10 years depending on the target SIL and architecture. Refer to the HIMA F3 DIO 16/801 Safety Manual (available on request) for PFDavg tables.
- Q: Do you supply the HIMA SILworX software license alongside the hardware?
- A: We supply hardware components. SILworX software licenses are managed directly through HIMA’s official channels. We can facilitate introductions to HIMA’s regional support team if required.
- Q: Can this module be used in ATEX Zone 1 hazardous areas?
- A: The F3 DIO 16/801 itself is rated for installation in safe areas or Zone 2 (with appropriate enclosure). For Zone 1 applications, field-mounted Zener barriers or galvanic isolators must be used between the module and field devices. Contact us for barrier selection guidance.
