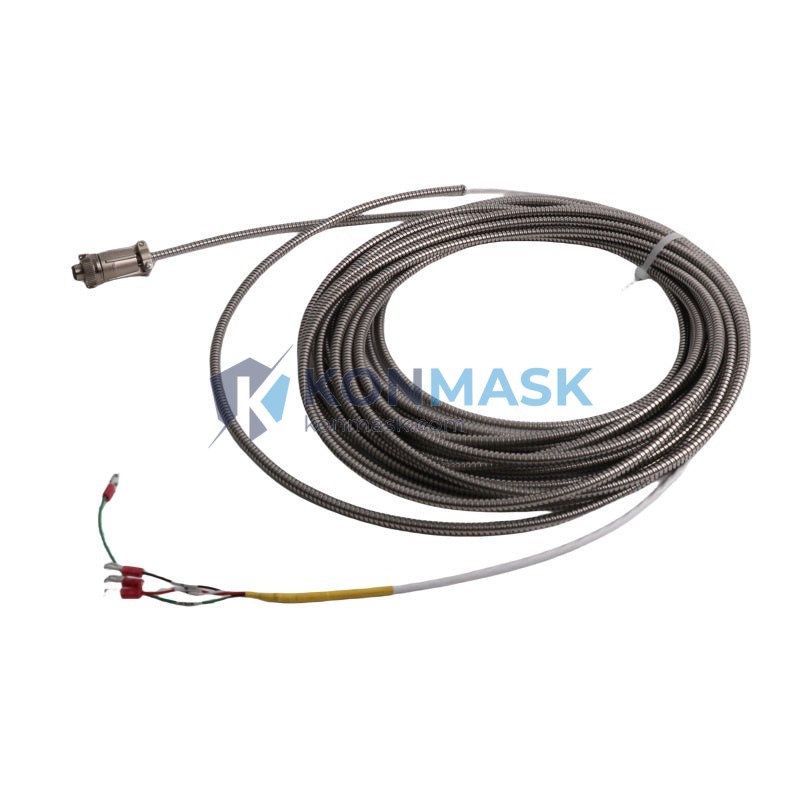

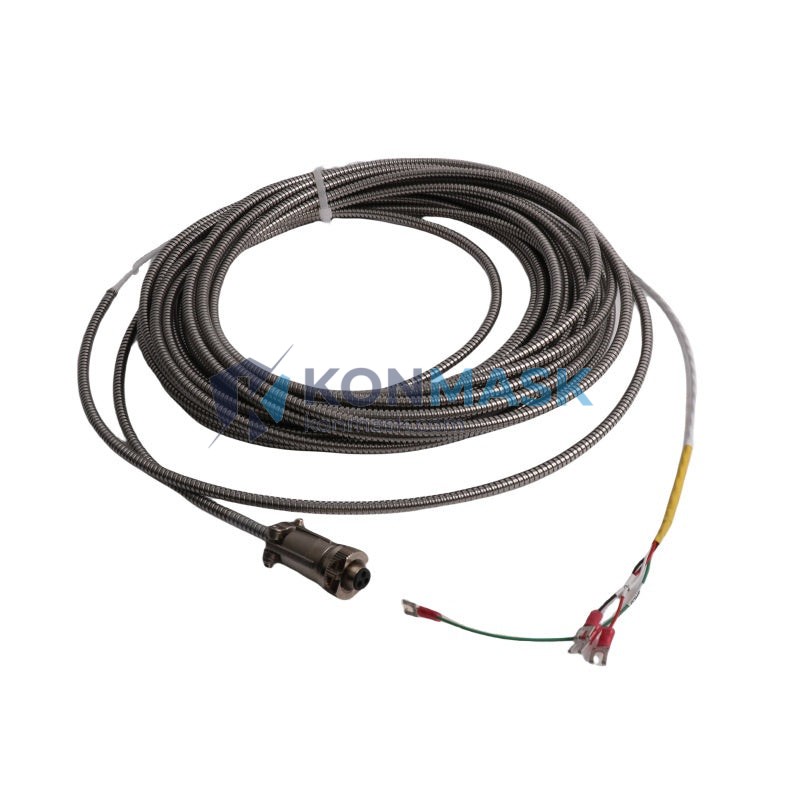

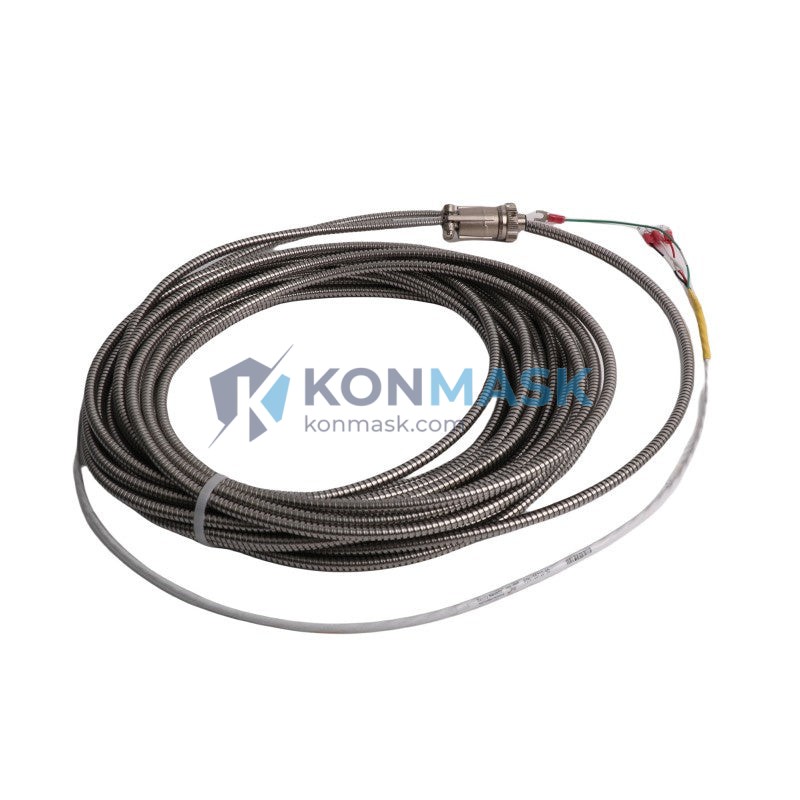

Bently Nevada 16710-50 Interconnect Cable – Proximity Transducer Signal Transmission | 3300 Series Platform
Engineering Background: The Bently Nevada 16710-50 is a factory-specified interconnect cable engineered for use within the Bently Nevada 3300 Series proximity transducer system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. This cable serves as the critical signal conduit between the proximitor/extension cable assembly and the monitoring system, ensuring low-noise, impedance-matched transmission of eddy-current proximity signals.
Product Positioning: Designed for procurement engineers and reliability teams sourcing certified replacement or spare cables for turbines, compressors, pumps, and other critical rotating assets. The 16710-50 is a direct OEM-specification component, ensuring full compatibility with existing 3300 Series installations without recalibration or system modification.
Complete Technical Specifications
- Part Number / SKU: 16710-50
- Manufacturer: Bently Nevada (a Baker Hughes company)
- Series / Platform: 3300 Series Proximity Transducer System
- Cable Type: Interconnect Cable (Proximitor to Monitor)
- Cable Length: 50 ft (15.24 m) — suffix “-50” denotes 50-foot configuration
- Connector Type: MIL-spec coaxial connectors, compatible with 3300 Series proximitor output
- Signal Type: Eddy-current proximity / vibration analog signal
- Impedance: Matched to 3300 Series system specifications
- Shielding: Double-shielded coaxial construction for EMI/RFI rejection
- Operating Temperature: –40°C to +85°C (typical industrial range)
- Weight: Approx. 1,250 g
- Country of Origin: USA
- HS Code: 8544.42 (Insulated electric conductors, fitted with connectors)
Proven Application Environments
- Steam and gas turbine vibration monitoring systems
- Centrifugal and reciprocating compressor shaft displacement measurement
- Pump and motor bearing condition monitoring
- Petrochemical, oil & gas, and power generation plant installations
- Any facility running Bently Nevada 3300 Series or compatible monitoring racks
Engineering Advantages
- OEM-Exact Specification: Direct replacement with no recalibration required — maintains system accuracy and API 670 compliance
- Signal Integrity: Double-shielded coaxial design minimizes ground loops and electromagnetic interference in high-noise industrial environments
- Plug-and-Play Compatibility: Mates directly with 3300 Series proximitor output connectors and standard monitoring rack inputs
- Proven Field Reliability: Thousands of installations across global critical asset fleets
- Reduced Downtime Risk: Stocking a spare 16710-50 eliminates extended lead times during unplanned outages
System Architecture & Signal Flow
The 3300 Series proximity transducer system consists of three core components: Probe → Extension Cable → Proximitor/Seismic Transducer → Interconnect Cable (16710-50) → Monitoring Rack. The 16710-50 occupies the final signal transmission leg, carrying the conditioned DC voltage output from the proximitor to the Bently Nevada monitoring system (e.g., 3500 Series rack or equivalent). Signal fidelity at this stage is critical — any impedance mismatch or shielding failure will introduce noise into vibration and position readings, potentially triggering false alarms or masking real machinery faults.
Sourcing & Quality Verification
- Stock Status: Verified surplus / new-surplus inventory available at Konmask.com
- Inspection: Each unit visually inspected for connector integrity, cable jacket condition, and labeling authenticity prior to shipment
- Documentation: Original manufacturer labeling retained; test reports and certificates of conformance available upon request
- Traceability: Lot and batch traceability maintained for quality-critical procurement requirements
- Counterfeit Mitigation: Sourced exclusively from verified industrial surplus channels — not gray-market or remanufactured
Procurement Process
- Submit your RFQ via Konmask.com/pages/contact or email support@konmask.com
- Receive stock confirmation, lead time, and formal quotation within 1 business day
- Issue PO — we accept T/T wire transfer, PayPal, and major credit cards
- Shipment via DHL / FedEx / UPS with full tracking; export documentation provided for international orders
- Post-delivery technical support available for installation verification
Technical FAQ
Q: Is the 16710-50 compatible with the Bently Nevada 3500 Series monitoring rack?
A: Yes. The 16710-50 interconnect cable is compatible with 3500 Series rack inputs when used with the appropriate proximitor output configuration. Verify connector pinout against your specific rack module.
Q: Can I use a shorter or longer cable in place of the 16710-50?
A: Cable length affects the total system scale factor. Substituting a different length requires recalibration of the proximitor gap voltage and system sensitivity. Always use the OEM-specified length for drop-in replacement.
Q: What is the lead time for the 16710-50?
A: Subject to current stock levels. In-stock units ship within 2–3 business days. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. We offer a 90-day functional warranty on all surplus components. Extended warranty options available for volume orders.
