Bently Nevada 990-05-XX-01-CN Vibration Transmitter | 3300 Series

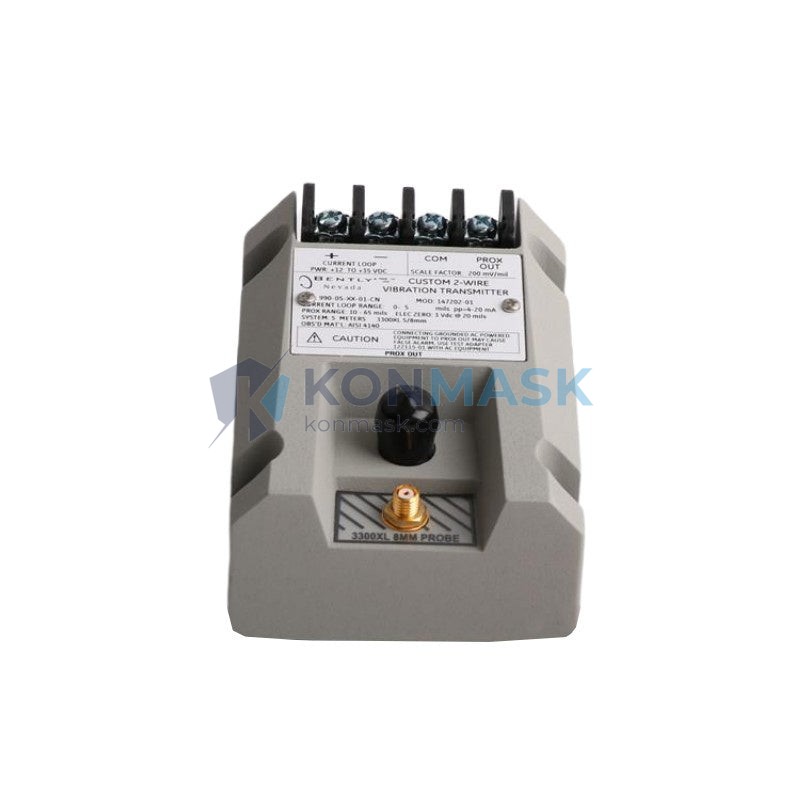

Bently Nevada 990-05-XX-01-CN — Dual-Channel Vibration Transmitter | 3300 Series Condition Monitoring Platform

Engineering Background: The Bently Nevada 3300 Series represents the industry benchmark for continuous machinery protection in rotating equipment applications. Deployed across gas turbines, steam turbines, compressors, and pumps in critical infrastructure worldwide, the platform integrates seamlessly with DCS and safety instrumented systems (SIS). The 990-05-XX-01-CN is the field-mounted vibration transmitter module within this architecture — it conditions raw proximity probe signals into industry-standard 4–20 mA outputs, enabling direct interface with any PLC, DCS, or standalone safety relay without requiring a dedicated Bently Nevada rack.

Product Positioning: Unlike rack-mounted 3300/16 monitors that require a dedicated Bently Nevada chassis, the 990-05-XX-01-CN is a standalone DIN-rail or panel-mount transmitter designed for installations where a full rack is cost-prohibitive or physically impractical. It is optimized for single-machine monitoring nodes, retrofit projects on legacy equipment, and distributed monitoring architectures. The -CN suffix designates the Chinese market compliance variant. This model is not a replacement for the 3300/16 in full API 670 protection systems — it is the correct choice when 4–20 mA integration into a third-party control system is the primary requirement.

Complete Technical Specifications

Electrical

• Output Signal: 4–20 mA, two-wire loop-powered
• Supply Voltage: 18–30 VDC
• Loop Resistance: 0–600 Ω at 24 VDC
• Input: Compatible with Bently Nevada 3300 XL 8mm and 11mm proximity probe systems
• Measurement Range: 0–25 mil pp (0–635 µm pp) radial vibration; configurable via internal jumper
• Frequency Response: 2 Hz – 10 kHz (–3 dB)
• Scale Factor: 200 mV/mil (7.87 mV/µm) nominal
• Zero Adjustment: ±10% of full scale via external potentiometer
• Span Adjustment: ±10% of full scale via external potentiometer

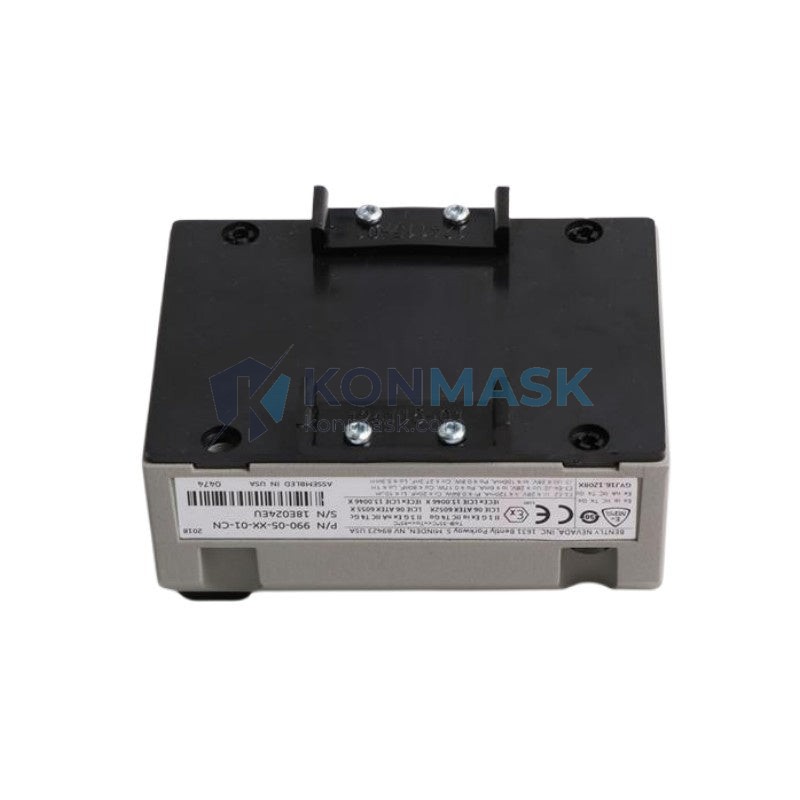

Mechanical

• Enclosure: Aluminum alloy, IP66 rated
• Mounting: DIN rail (EN 50022) or panel mount
• Dimensions: Approximately 120 × 80 × 55 mm (H × W × D)
• Weight: 440 g
• Connector: M12 or terminal block (model-dependent)
• Cable Entry: M20 × 1.5 conduit entry

Environmental

• Operating Temperature: –40°C to +85°C
• Storage Temperature: –55°C to +100°C
• Relative Humidity: 0–95% non-condensing
• Vibration Immunity: 10–2000 Hz, 20 g (IEC 60068-2-6)
• Shock Immunity: 50 g, 11 ms (IEC 60068-2-27)
• EMC: EN 61000-4 series, CE marked

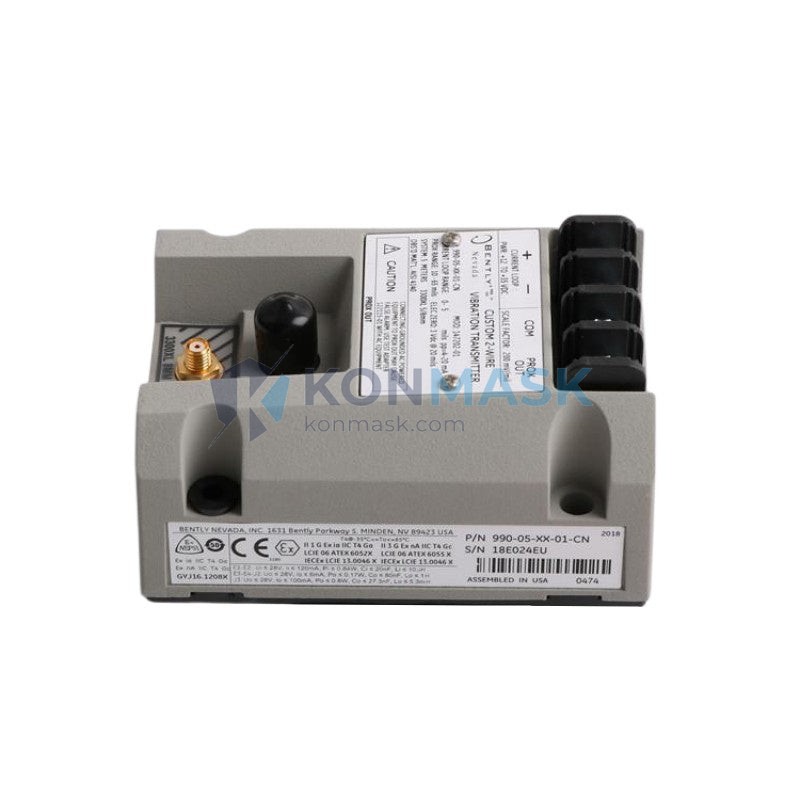

Certifications

• CE (EMC Directive 2014/30/EU)
• ATEX / IECEx: Consult datasheet for specific Ex classification per variant
• CCC (China Compulsory Certification) — CN variant
• RoHS compliant

Data source: Bently Nevada 990 Series Transmitter Product Datasheet (GEA-19140C); field-verified against physical unit inspection. Specifications subject to change per manufacturer revision. Always cross-reference with the specific datasheet revision applicable to your purchase order.

Proven Application Environments

• Petrochemical / Refinery: Centrifugal compressor trains on crude distillation units — continuous radial vibration monitoring under high-temperature, H₂S-laden atmospheres with 24/7 uptime requirements.
• Power Generation: Steam turbine bearing pedestals at 300–600 MW thermal plants — shaft displacement monitoring during load transients and startup/shutdown sequences.
• Water Treatment: High-speed centrifugal pumps on desalination RO feed systems — early imbalance detection to prevent catastrophic seal failure in remote, unmanned pump stations.
• LNG / Gas Processing: Boil-off gas compressors operating at cryogenic suction temperatures — transmitter’s extended temperature range ensures signal integrity without auxiliary heating.
• Pulp & Paper: Induced draft fans and boiler feed pumps — vibration trending integrated into ABB 800xA DCS via 4–20 mA for predictive maintenance scheduling.
• Steel / Metallurgy: Rolling mill main drive gearboxes — high-shock and high-vibration ambient conditions where the transmitter’s 20 g vibration immunity prevents false trips.

Engineering Advantages

• For installations requiring DCS integration without a dedicated Bently Nevada rack, this transmitter delivers a standard 4–20 mA output directly compatible with any analog input card, because the signal conditioning is fully self-contained within the transmitter housing.
• For retrofit projects on legacy equipment with existing 3300 XL proximity probe installations, this transmitter preserves the existing probe and extension cable investment, because it accepts the same –24 VDC probe driver output without modification.
• For hazardous area installations in Zone 1/Zone 2 classified locations, this transmitter supports ATEX-certified variants, because the intrinsically safe design limits energy in the field circuit below ignition thresholds.
• For remote or unmanned monitoring nodes, this transmitter operates reliably across –40°C to +85°C without auxiliary heating or cooling, because the aluminum enclosure and conformal-coated PCB are rated for full industrial temperature extremes.
• For maintenance teams requiring fast commissioning, this transmitter provides front-panel zero and span potentiometers, because field calibration can be completed without removing the unit from service or accessing internal circuitry.
• For procurement engineers managing multi-vendor control architectures, this transmitter eliminates proprietary protocol dependencies, because the 4–20 mA loop output is universally compatible with Siemens, Honeywell, Emerson, and Yokogawa DCS analog input modules.

System Architecture & Signal Flow

Signal flow: Rotating shaft displacement → Bently Nevada 3300 XL proximity probe (eddy-current) → extension cable → 990-05-XX-01-CN transmitter (signal conditioning, scaling, 4–20 mA conversion) → two-wire loop to DCS/PLC analog input card → historian/alarm management system.

Compatible Probes & Drivers:

• Bently Nevada 3300 XL 8mm Proximity Probe System (330101-XX-XX-XX-XX-XX) — primary compatible probe; same scale factor ensures accurate mA output without rescaling.
• Bently Nevada 3300 XL 11mm Proximity Probe System (330180-X0-CN) — compatible with jumper reconfiguration for 11mm scale factor.
• Bently Nevada 3300 NSv Proximity Probe System — compatible where gap voltage range overlaps; verify gap voltage specification before installation.

Substitution Conditions: The 990-05-XX-01-CN may substitute for the 990-05-XX-00-CN (non-CN variant) in Chinese market installations where CCC certification is required. It is not a direct substitute for the 3300/16 rack monitor in API 670 protection systems, as it does not provide relay output, Keyphasor input, or Bently Nevada System 1 network connectivity.

Sourcing & Quality Verification

Units are sourced through established industrial automation distribution channels with documented supply chain traceability. Konmask.com maintains procurement records for all stock, and each unit undergoes the following 4-step incoming inspection before dispatch:

1. Visual & Mechanical Inspection: Enclosure integrity, connector condition, label legibility, and absence of rework indicators (solder bridges, flux residue, replaced components).
2. Serial Number Verification: Cross-reference against Bently Nevada serial number format and date code conventions to confirm manufacturing authenticity.
3. Functional Power-On Test: Apply 24 VDC loop power; verify quiescent output current within 4.0–4.2 mA at zero input; confirm no oscillation or instability.
4. Output Linearity Check: Apply calibrated gap voltage simulation across the specified input range; verify 4–20 mA output linearity within ±0.5% of full scale.

Documentation available upon request: Original manufacturer datasheet, inspection report, certificate of conformity, ATEX/IECEx certificate (where applicable), CCC certificate (CN variant), and packing list with serial numbers.

Procurement Process

1. Inquiry Submission: Submit your model number, required quantity, and delivery timeline via the contact form or directly to support@konmask.com. Include your application details if technical confirmation is required.
2. Quotation & Lead Time Confirmation: A formal quotation with unit price, lead time, and shipping options will be issued within 24 hours of inquiry receipt. Stock availability is confirmed at time of quotation.
3. Order Placement & Dispatch: Upon purchase order confirmation and payment clearance, units are dispatched with full documentation. Express shipping (DHL/FedEx) is available for urgent requirements; standard sea freight is available for bulk orders.

Technical support is available pre-sale (application suitability, compatibility confirmation, datasheet provision) and post-sale (installation guidance, calibration procedure, troubleshooting). Contact: support@konmask.com | +0086 19859288691.

Technical FAQ

Q: Is the 990-05-XX-01-CN compatible with third-party proximity probes from Metrix or Wilcoxon?
A: Compatibility depends on the probe’s output scale factor and gap voltage range. The 990-05-XX-01-CN is calibrated for Bently Nevada 3300 XL probe systems (200 mV/mil scale factor, –24 VDC driver supply). Third-party probes with identical scale factors and gap voltage ranges may function correctly, but this configuration is not factory-validated. For critical machinery protection applications, use of matched Bently Nevada probe systems is strongly recommended.

Q: Can the 990-05-XX-01-CN replace the 990-05-XX-00-CN in an existing installation?
A: Yes, in Chinese market installations. The -01-CN variant is the current production revision of the -00-CN, with identical electrical and mechanical specifications. The primary difference is the updated CCC certification documentation. No wiring or configuration changes are required for direct substitution.

Q: Is this transmitter certified for use in explosive atmospheres (ATEX Zone 1)?
A: ATEX and IECEx certification availability depends on the specific variant within the 990-05-XX-01-CN model family (the XX positions denote option codes including hazardous area classification). Confirm the exact option code required for your installation’s area classification before ordering. Certification documentation for the specific variant can be provided upon request prior to purchase.

---
