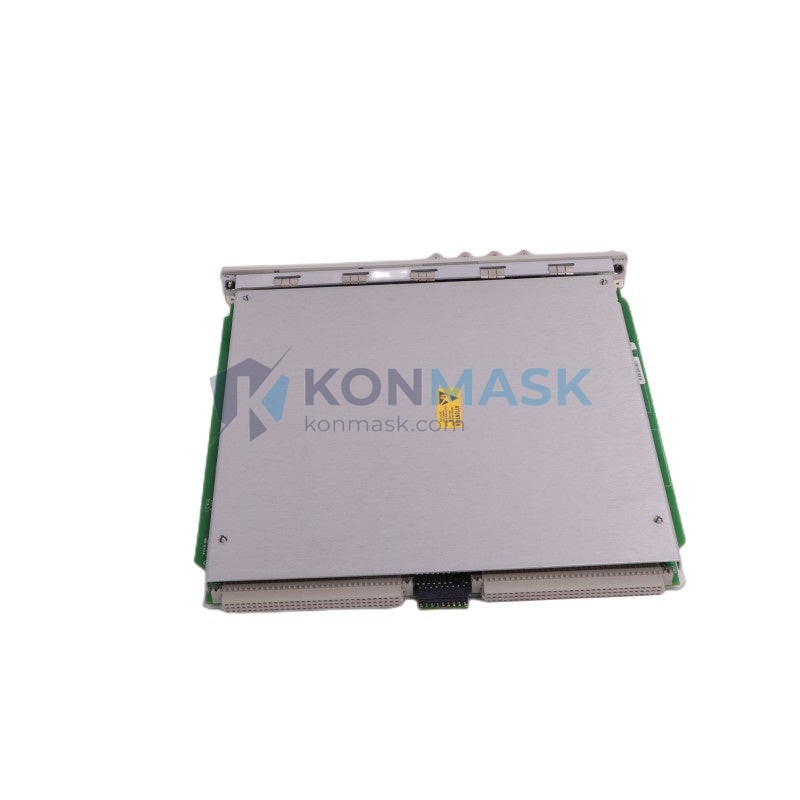

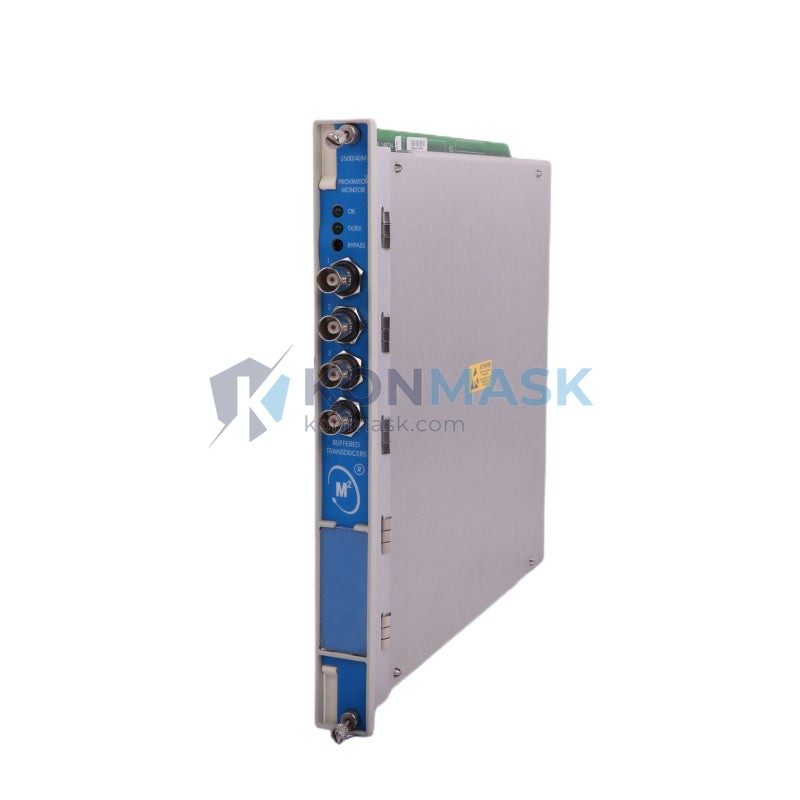

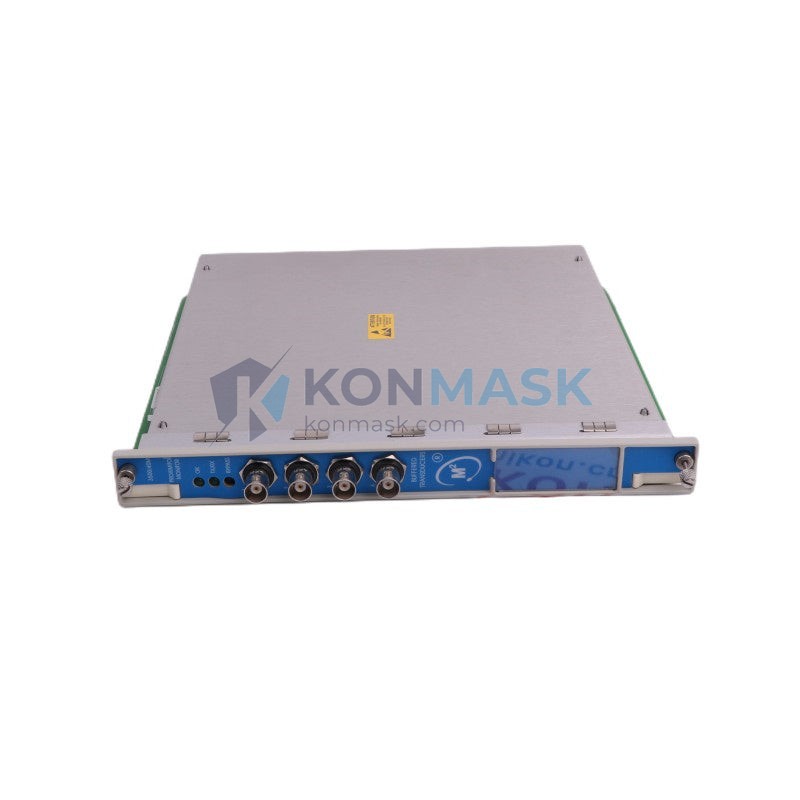

Bently Nevada 3500/40M – Proximitor / Seismic Monitor | 3500 Series Machinery Protection System
Engineering Background: The Bently Nevada 3500 Series is the industry-standard rack-based machinery protection platform deployed across critical rotating equipment worldwide. Within this architecture, the 3500/40M Proximitor / Seismic Monitor occupies a dual-function role: it simultaneously processes eddy-current proximity probe signals (shaft relative vibration, eccentricity, thrust position) and seismic velocity/acceleration inputs. This makes it the preferred single-slot solution for turbomachinery trains where both shaft and casing measurements are required under API 670 compliance.
Product Positioning: The 3500/40M differs from the standard 3500/40 by its expanded input channel configuration and enhanced seismic input compatibility, making it suitable for high-speed compressors, steam turbines, and gas turbines where casing vibration monitoring is mandatory. It is not a replacement for dedicated thrust position monitors (3500/60) or temperature monitors (3500/42M); its boundary condition is dual-measurement applications where rack slot economy is critical.
Complete Technical Specifications
Electrical
- Input Channels: 2 × Proximitor (eddy-current) + 2 × Seismic (velocity/acceleration)
- Proximitor Input Range: –2 VDC to –24 VDC (compatible with 3300 XL 8mm, 11mm, 25mm probe systems)
- Seismic Input: Velocity transducer (ICP® or passive) or accelerometer
- Output: 4–20 mA (proportional to measured variable), relay outputs via I/O module
- Power Supply: Supplied via 3500 rack backplane (24 VDC nominal)
- Relay Contacts: Configurable Alert / Danger via System 1 or rack configuration software
Mechanical
- Form Factor: Single-slot 3500 Series rack module
- Dimensions: Per 3500 Series standard card dimensions
- Weight: ~800 g (module only)
- Connector: Front-panel I/O terminal block; rear backplane interface
- Mounting: 3500 Series 19″ rack chassis (3500/05, 3500/15, 3500/20, 3500/25)
Environmental
- Operating Temperature: 0°C to +65°C
- Storage Temperature: –40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration (Operating): Per IEC 60068-2-6
- EMC: CE marked; meets IEC 61000 series
Certifications
- API 670 (Machinery Protection Systems) compliant
- CE / ATEX (zone classification per specific part number suffix)
- SIL 2 capable (with appropriate system configuration)
- FM / CSA (North American hazardous area, suffix-dependent)
Data source: Bently Nevada 3500/40M Product Datasheet (GEA-19140), 3500 Series System Manual (GEH-6421). Specifications subject to revision; verify against current OEM documentation for safety-critical applications.
Proven Application Environments
- Petrochemical / Ethylene Plant: Centrifugal compressor trains — continuous shaft radial vibration + casing seismic monitoring during high-load cracking cycles where bearing clearance changes are critical alarm triggers.
- Power Generation / Combined Cycle: Gas turbine generator sets — simultaneous rotor eccentricity and casing acceleration measurement during start-up transients and load-following operations.
- LNG Liquefaction: Main refrigerant compressors — API 670-mandated dual-channel monitoring in hazardous area (Zone 1) installations with ATEX-certified module variants.
- Water / Wastewater Treatment: High-speed centrifugal pumps and blowers — seismic channel used for structural resonance detection during variable-frequency drive speed sweeps.
- Offshore Oil & Gas: Topside gas compression modules — compact single-slot footprint critical where rack space is constrained in skid-mounted control panels.
- Steel / Metals Processing: Rolling mill drive compressors — eccentricity channel used to detect rotor bow after thermal cycling, preventing catastrophic rub events during restart.
Engineering Advantages
- For dual-measurement applications, this monitor consolidates Proximitor and seismic inputs into a single rack slot, because the 3500/40M integrates both signal conditioning chains on one PWA, reducing rack slot consumption by 50% versus separate dedicated modules.
- For API 670 compliance projects, this monitor satisfies mandatory shaft relative vibration and casing vibration requirements simultaneously, because both measurement types are processed with independent alarm setpoints and relay outputs per API 670 Table 1.
- For hazardous area installations, this monitor supports ATEX/IECEx Zone 1 certification (suffix-dependent), because the intrinsically safe barrier interface is integrated into the I/O module pairing, eliminating external Zener barrier panels.
- For SIL-rated safety loops, this monitor achieves SIL 2 capability in a properly configured 3500 rack, because the module’s diagnostic coverage and proof-test interval meet IEC 61511 functional safety requirements when validated with System 1 software.
- For legacy system upgrades, this monitor is backward-compatible with existing 3300 Series probe cabling and gap voltage settings, because the input conditioning accepts the same –2 to –24 VDC Proximitor output range without rewiring.
- For remote operations, this monitor provides continuous 4–20 mA analog outputs to DCS/SCADA, because the buffered outputs are galvanically isolated and maintain signal integrity over long cable runs to control room marshalling panels.
System Architecture & Signal Flow
Signal Flow: Proximity probe → coaxial cable → Proximitor sensor (field-mounted) → –VDC signal → 3500/40M front-panel input → internal A/D conversion → DSP (RMS, peak-peak, gap calculation) → backplane communication → 3500/01 Rack Interface Module → System 1 software / DCS via Modbus or OPC. Seismic path: transducer → signal conditioner (if passive) → 3500/40M seismic input → integration (velocity→displacement if required) → same backplane path.
Compatible Modules & Reason:
- 3500/05 Rack Power Supply — provides regulated 24 VDC backplane power required by the 3500/40M.
- 3500/01 Rack Interface Module — mandatory for Modbus/OPC communication; the 3500/40M has no standalone communication port.
- 3500/22M Transient Data Interface — extends the 3500/40M’s steady-state monitoring with full waveform capture for orbit and spectrum analysis.
- 3300 XL 8mm / 11mm / 25mm Proximitor Systems — direct probe compatibility; gap voltage and sensitivity curves are pre-matched.
Substitution Conditions: The 3500/40 (non-M variant) may substitute in applications requiring only Proximitor inputs with no seismic channel. The 3500/42M substitutes when temperature monitoring channels are required in place of seismic. Substitution must be validated against the rack configuration file and System 1 database before deployment.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized distribution channels and verified surplus inventory with documented chain of custody. All modules undergo a 4-step incoming inspection before listing:
- Visual Inspection: PWA examined for component damage, corrosion, solder joint integrity, and connector pin condition under magnification.
- Label & Firmware Verification: Part number, revision level, and firmware version confirmed against Bently Nevada product matrix to ensure compatibility with current 3500 rack configurations.
- Functional Bench Test: Module powered in a 3500 test rack; input channels exercised with calibrated signal source; alarm relay outputs verified.
- Packaging & ESD Protection: Modules re-packaged in anti-static bags with desiccant; outer carton labeled with part number, serial number, and inspection date.
Documentation available upon request: Original OEM datasheet, inspection report, functional test record, photos of physical unit (label and board), and certificate of conformance.
Procurement Process
- Inquiry Submission: Submit part number, required quantity, target delivery date, and any firmware or certification requirements via the contact form or email below. A technical confirmation of compatibility is provided at no charge.
- Quotation & Lead Time: A formal quotation with unit price, shipping options, and estimated lead time is issued within 24 hours of inquiry receipt. Expedited processing available for shutdown/turnaround situations.
- Order Confirmation & Shipment: Upon purchase order receipt, the unit is re-inspected, documented, and shipped with full tracking. Export documentation (commercial invoice, packing list, COO) provided for international orders.
Technical Support: Pre-sale compatibility consultation, rack configuration guidance, and post-sale installation support are available via email and phone. Support covers module integration into existing 3500 racks, System 1 software configuration, and probe system compatibility verification.
Technical FAQ
Q: Is the 3500/40M compatible with 3300 Series Proximitor probes already installed in the field?
A: Yes. The 3500/40M accepts the standard –2 VDC to –24 VDC Proximitor output, which is identical to the 3300 XL probe system output. No signal conditioning changes are required; only the rack configuration file must be updated to reflect the new module’s channel assignments and alarm setpoints.
Q: Can the 3500/40M replace a 3500/40 (standard, non-M) in an existing rack?
A: In most cases, yes — the 3500/40M occupies the same single rack slot and uses the same I/O module pairing. However, the rack configuration file must be re-flashed to recognize the 3500/40M part number, and the seismic input channels must be configured (or left unused). Confirm firmware compatibility of the 3500/01 Rack Interface Module before substitution.
Q: Does the 3500/40M carry ATEX certification for Zone 1 hazardous area use, and what is required for compliance?
A: ATEX certification is part-number-suffix dependent. The ATEX-rated variant requires pairing with the corresponding ATEX-certified I/O module and installation per the Bently Nevada ATEX control drawing. The standard (non-ATEX) variant is not suitable for Zone 1 installation. Confirm the full part number including suffix before ordering for hazardous area applications.
