Vibration Monitoring Solution – Bently Nevada 330101-00-28-10-12-CN | 3300 XL NSv Series

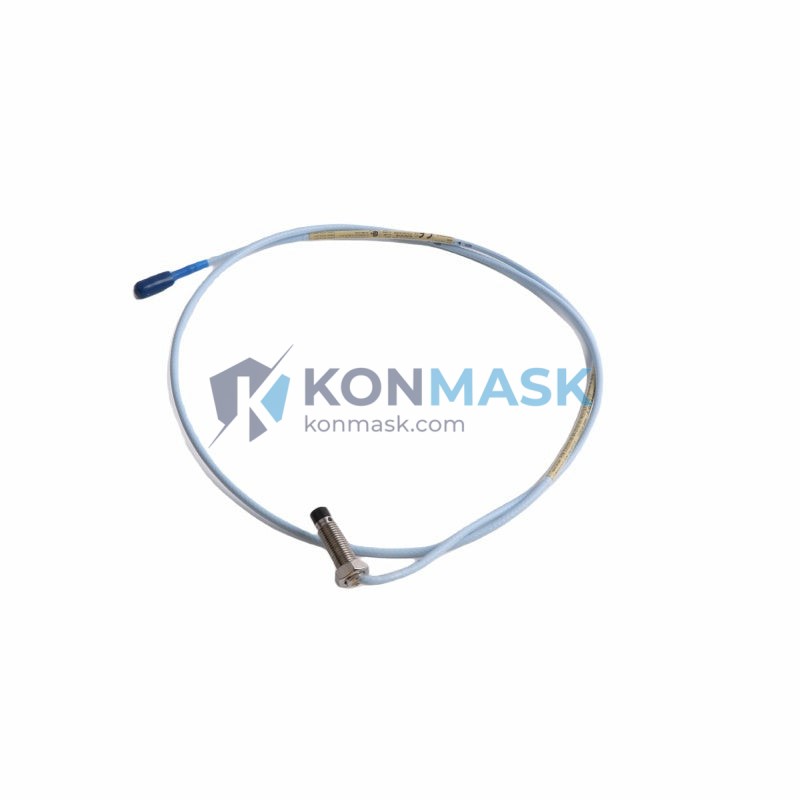

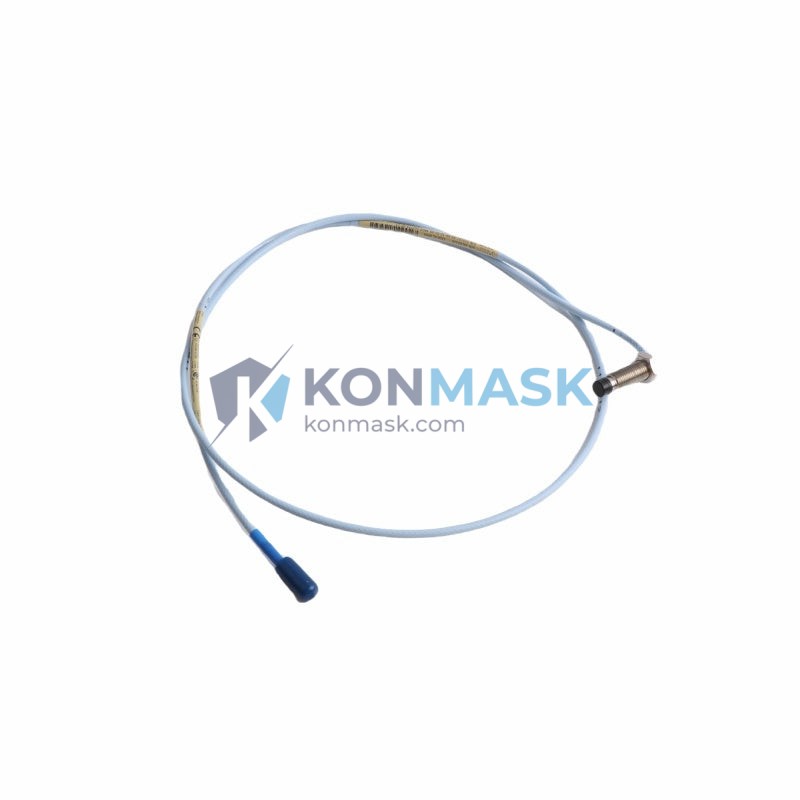

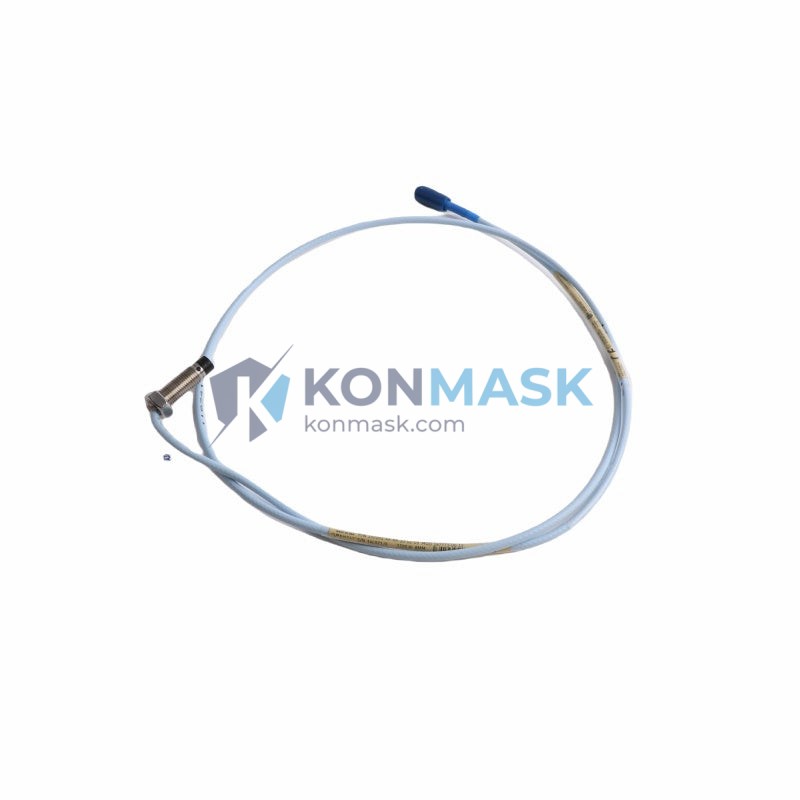

The Bently Nevada 330101-00-28-10-12-CN is a high-precision eddy-current proximity transducer from the 3300 XL NSv (Non-contacting Vibration) Series, engineered for continuous shaft vibration, axial position, and differential expansion measurement on rotating machinery. Trusted by reliability engineers and OEM integrators worldwide, this transducer delivers sub-micron resolution in the harshest industrial environments.
Where This Product Is Used
- Steam & Gas Turbines – Shaft radial vibration and thrust position monitoring on power generation units (50 MW–1 GW class).
- Centrifugal Compressors – Real-time rotor orbit tracking in petrochemical and LNG compression trains.
- Pumps & Fans – Continuous bearing-clearance surveillance in critical process pumps (API 670 installations).
- Gearboxes – Gear mesh frequency analysis and shaft eccentricity detection.
- Marine Propulsion Systems – Shaft alignment verification and vibration trending on vessel drive trains.
- Nuclear & Fossil Power Plants – Safety-class vibration monitoring where SIL-rated instrumentation is mandated.
Technical Specifications
- Part Number: 330101-00-28-10-12-CN
- Series: 3300 XL NSv Proximity Transducer System
- Probe Length: 28 in (711 mm) armored cable
- Probe Tip Diameter: 10 mm
- Linear Range: 12 mm (0–12 mm gap)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC – 10,000 Hz
- Operating Temperature: −35 °C to +177 °C (probe); −35 °C to +66 °C (driver)
- Supply Voltage: −24 VDC (nominal)
- Output: −2 VDC to −22 VDC (linear)
- Target Material: AISI 4140 steel (standard); consult factory for non-ferrous
- Ingress Protection: IP67 (probe assembly)
- Approvals: CE, ATEX, IECEx (consult datasheet for zone classification)
- Weight: ~550 g (probe + cable assembly)
Why Engineers Specify This Model
- API 670 Compliant – Drop-in replacement for existing 3300 XL installations without recalibration.
- Extended Cable Length (28 in) – Reaches remote bearing housings without signal-degrading extension cables.
- 10 mm Probe Tip – Optimal sensitivity-to-gap ratio for shafts 50–300 mm in diameter.
- 12 mm Linear Range – Accommodates large shaft excursions during startup/shutdown transients.
- NSv Technology – Noise-suppressed output reduces false trips in high-EMI environments (VFD-driven machinery).
- Direct Bently Nevada 3500/3300 Rack Compatibility – No signal conditioning adapters required.
Complete System Bill of Materials
A fully functional proximity measurement loop requires the following components:
- Probe: 330101-00-28-10-12-CN (this item)
- Extension Cable: 330130-045-00-CN or 330130-080-00-CN (field-selectable length)
- Proximitor® Driver: 330180-X1-05 (3300 XL NSv, 5 m system) or 330180-X1-08 (8 m system)
- Monitor Rack: Bently Nevada 3500/42M or 3500/40M Proximitor® Monitor
- Mounting Hardware: Armored conduit fittings, probe holder (customer-supplied per shaft geometry)
Contact Konmask.com for complete loop pricing and compatibility verification.
Compliance & Industry Standards
- API 670 (5th Edition) – Machinery Protection Systems
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation
- IEC 61511 – Functional safety (SIL-capable installations)
- ATEX Directive 2014/34/EU / IECEx – Hazardous area certification
- CE Marking – EU electromagnetic compatibility
Quality Assurance & Sourcing
Every 330101-00-28-10-12-CN unit shipped by Konmask.com undergoes the following verification process:
- Visual inspection against Bently Nevada OEM packaging standards
- Sensitivity and linearity bench-check (7.87 V/mm ± 2%)
- Traceability documentation: lot number, manufacture date, calibration certificate
- ESD-safe packaging with humidity indicator card
We source exclusively from authorized distributors and verified surplus channels with full chain-of-custody records. Counterfeit-risk screening is applied to every batch.
How to Source This Part
- In-Stock Orders: Add to cart and check out — same-day dispatch for orders placed before 15:00 CST.
- Bulk / Project Quotes: Email support@konmask.com with your BOM and required delivery date.
- Urgent Shutdown Support: Call +0086 19859288691 for expedited sourcing within 24 hours.
- Export & Cross-Border: We handle EXW, FOB Xiamen, and DDP Incoterms. HS Code 9031.80 applies.
Application-Specific FAQ
Q: Is the 330101-00-28-10-12-CN compatible with the Bently Nevada 3500 rack?
A: Yes. It is fully compatible with the 3500/42M and 3500/40M Proximitor® Monitor cards when paired with the correct NSv Proximitor® driver.
Q: What is the difference between the -10-12-CN and -10-02-CN suffix?
A: The third numeric group (12) denotes the 12 mm linear measurement range. The -02 suffix indicates a 2 mm range, suited for tighter gap applications. The -CN suffix designates the China-market configuration.
Q: Can this probe be used on stainless steel shafts?
A: Standard calibration targets AISI 4140 steel. For 316 SS or other non-ferrous targets, a target-material correction factor or field recalibration is required. Contact our engineering team for guidance.
Q: What is the maximum shaft speed this transducer can monitor?
A: The 10 kHz frequency response supports shaft speeds up to approximately 600,000 RPM for single-event detection, well beyond the 3,600–25,000 RPM range of most industrial turbomachinery.
Q: Do you provide calibration certificates?
A: Yes. Factory calibration documentation is included with every unit. NIST-traceable recalibration services are available on request.
