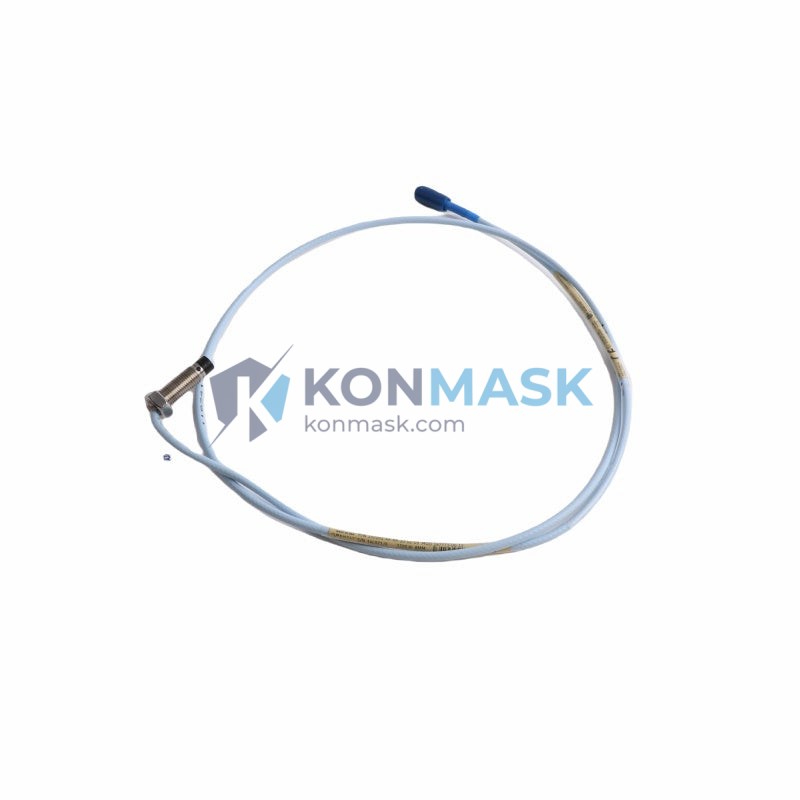

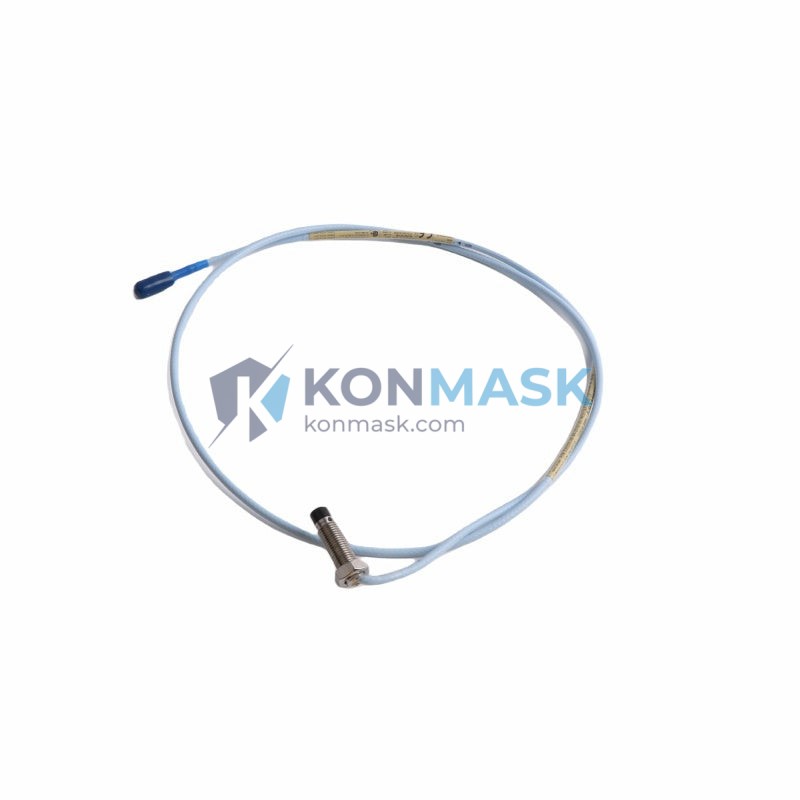

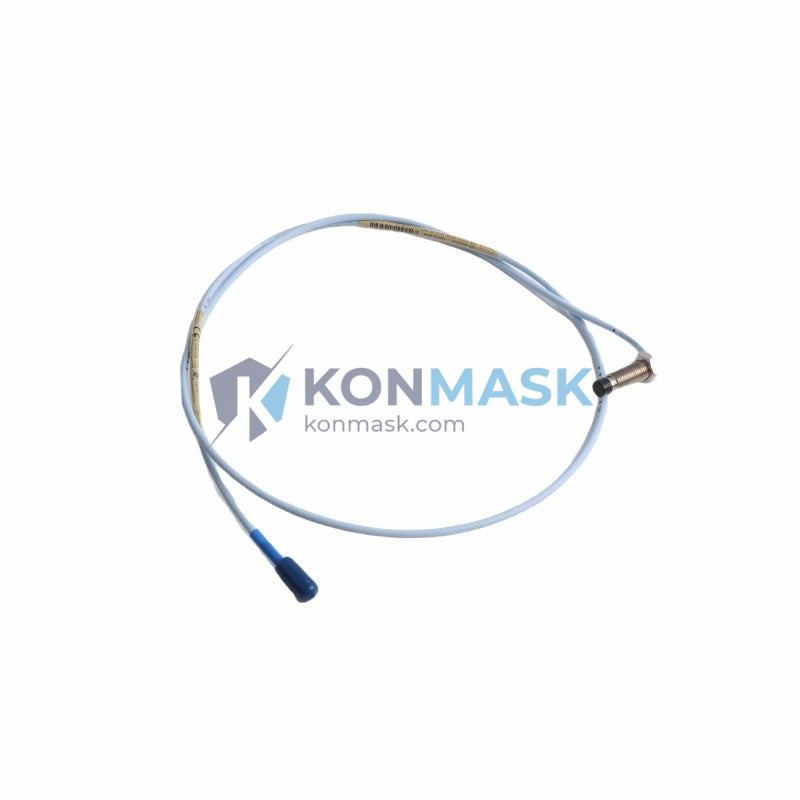

Genuine Bently Nevada 330101-00-24-10-12-CN 3300 XL NSv Proximity Transducer System | 3300 XL Series – Verified Source
The Bently Nevada 330101-00-24-10-12-CN is a high-precision eddy-current proximity transducer from the industry-leading 3300 XL NSv Series, engineered for continuous shaft vibration and position monitoring in critical rotating machinery. Sourced through verified supply channels, every unit sold by Konmask.com undergoes a rigorous 4-step quality verification process before dispatch.
Technical Specifications
- Part Number / SKU: 330101-00-24-10-12-CN
- Series: 3300 XL NSv (Non-Standard Voltage)
- Manufacturer: Bently Nevada (Baker Hughes)
- Probe Cable Length: 24 inches (≈ 610 mm)
- Extension Cable Length: 10 ft (≈ 3.05 m)
- Driver / Oscillator: 3300 XL NSv compatible
- Tip Diameter: 8 mm standard eddy-current tip
- Measurement Range: 0–90 mil (0–2.29 mm) linear range
- Output Sensitivity: 200 mV/mil (7.87 V/mm)
- Supply Voltage: –24 VDC (NSv configuration)
- Operating Temperature: –35°C to +177°C (probe); –35°C to +85°C (driver)
- Target Material: AISI 4140 steel (standard); other alloys available
- Connector Type: CN (Metric connector, China-standard)
- Approvals: CE, ATEX, IECEx (refer to datasheet for zone ratings)
- Weight: Approx. 550 g (complete system)
Our 4-Step Quality Verification Process
Every 330101-00-24-10-12-CN unit shipped from Konmask.com passes through the following verification steps:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or factory-direct channels. Supplier credentials are verified against Bently Nevada’s official partner registry.
- Step 2 — Physical Inspection: Label integrity, serial number format, connector finish, and cable markings are cross-checked against OEM reference samples.
- Step 3 — Functional Bench Test: Each transducer system is bench-tested for output linearity and sensitivity within ±1% of the published 200 mV/mil specification.
- Step 4 — Packaging & Documentation Review: Original OEM packaging, datasheet, and calibration certificate (where available) are confirmed before shipment.
Key Features & Benefits
- ✅ Genuine OEM Part — not a clone or compatible substitute
- ✅ NSv (Non-Standard Voltage) Design — optimized for –24 VDC systems without additional signal conditioning
- ✅ High-Temperature Probe — rated to +177°C for turbine and compressor environments
- ✅ CN Metric Connector — plug-and-play compatibility with China-standard junction boxes and terminal blocks
- ✅ Drop-in Replacement — direct replacement for existing 3300 XL NSv installations; no recalibration required when replacing like-for-like
- ✅ Long-Term Availability — Konmask maintains buffer stock for MRO and emergency replacement orders
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing displacement sensing
- Gearbox and expander shaft orbit analysis
- Critical machinery protection systems in petrochemical, power generation, and LNG plants
Compatible System Components
- Extension Cable: Bently Nevada 330130 Series (matched 10 ft / 3 m)
- Driver / Oscillator: Bently Nevada 3300 XL NSv Driver (e.g., 330180-X1-05)
- Monitoring Rack: Bently Nevada 3500 Series Machinery Protection System
- Barrier / Isolator: Compatible Zener barriers for ATEX Zone 1 installations
- Junction Box: CN-type metric terminal junction boxes (standard in China-spec plants)
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China (primary warehouse)
- Lead Time: In-stock orders ship within 1–3 business days; sourced orders within 7–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight (LCL/FCL) for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and HS code documentation provided
- Regions Served: Asia-Pacific, Middle East, Europe, North America, South America, Africa
- Minimum Order: 1 unit (no MOQ for standard stock items)
Certifications & Compliance Statement
The Bently Nevada 330101-00-24-10-12-CN is manufactured in compliance with the following standards:
- CE Marking (EU Machinery Directive 2006/42/EC)
- ATEX Directive 2014/34/EU (Zone 1 & Zone 2 rated configurations)
- IECEx Scheme (international hazardous area certification)
- API 670 — Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 — Mechanical vibration measurement guidelines
Konmask.com supplies only genuine OEM parts. We do not manufacture, rebrand, or modify any Bently Nevada products. All trademarks remain the property of Baker Hughes / Bently Nevada.
How to Order
- Online: Add to cart and complete checkout — we accept T/T (wire transfer), PayPal, and major credit cards
- RFQ / Bulk Orders: Email support@konmask.com with your quantity, delivery address, and required lead time
- Phone / WhatsApp: +0086 19859288691 (Monday–Saturday, 09:00–18:00 CST)
- Urgent Requirements: Mark your email subject line “URGENT — 330101-00-24-10-12-CN” for priority handling within 2 business hours
Authenticity & Trust FAQ
Q: How do I know this is a genuine Bently Nevada part?
A: Every unit passes our 4-step verification process (see above). We provide supplier documentation upon request for orders above 3 units.
Q: Can you provide a certificate of conformance?
A: Yes. A certificate of conformance (CoC) is available for all in-stock units. Please request it at the time of order.
Q: What is your return policy if the part is defective?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Contact support@konmask.com within 30 days of receipt with photos and a description of the fault.
Q: Do you offer long-term supply agreements?
A: Yes. We support MRO contracts and blanket purchase orders for industrial clients. Contact us to discuss pricing and stocking arrangements.
Q: Is this part compatible with my existing 3300 XL system?
A: The 330101-00-24-10-12-CN is designed for 3300 XL NSv systems. Please confirm your driver model number before ordering. Our technical team can assist with compatibility checks.
