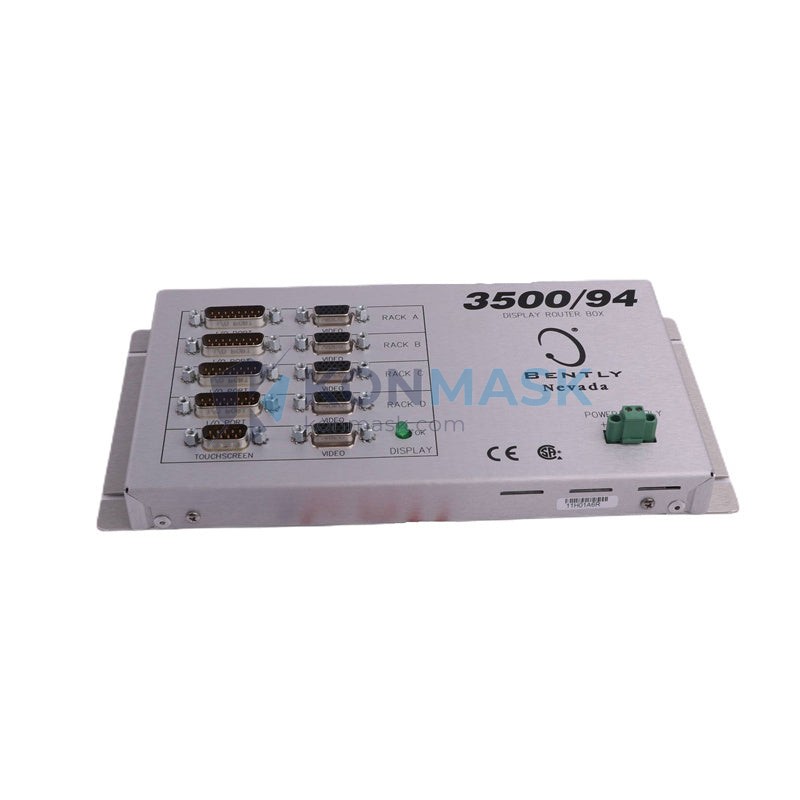

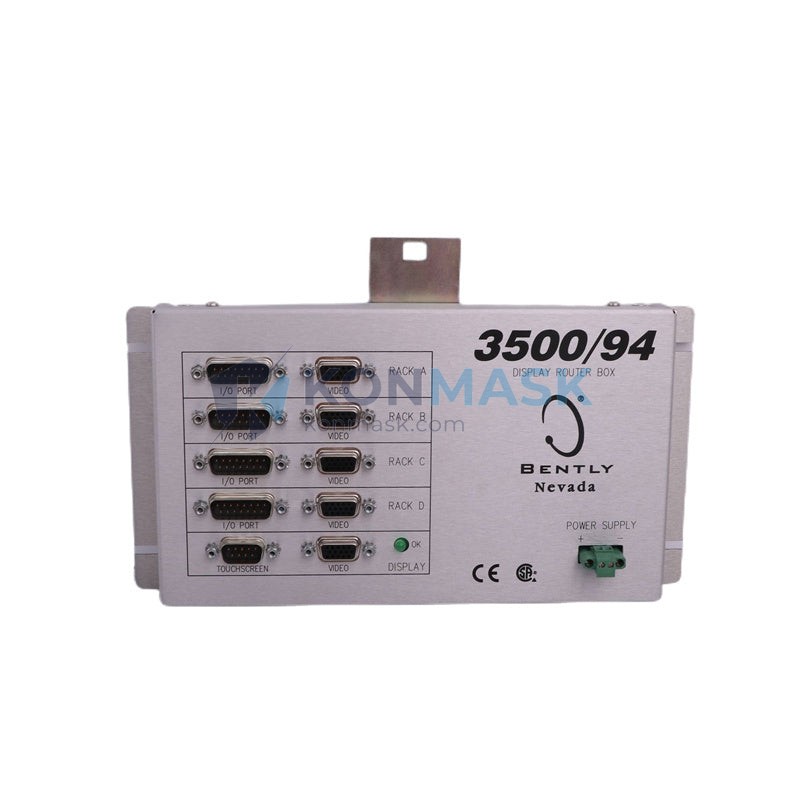

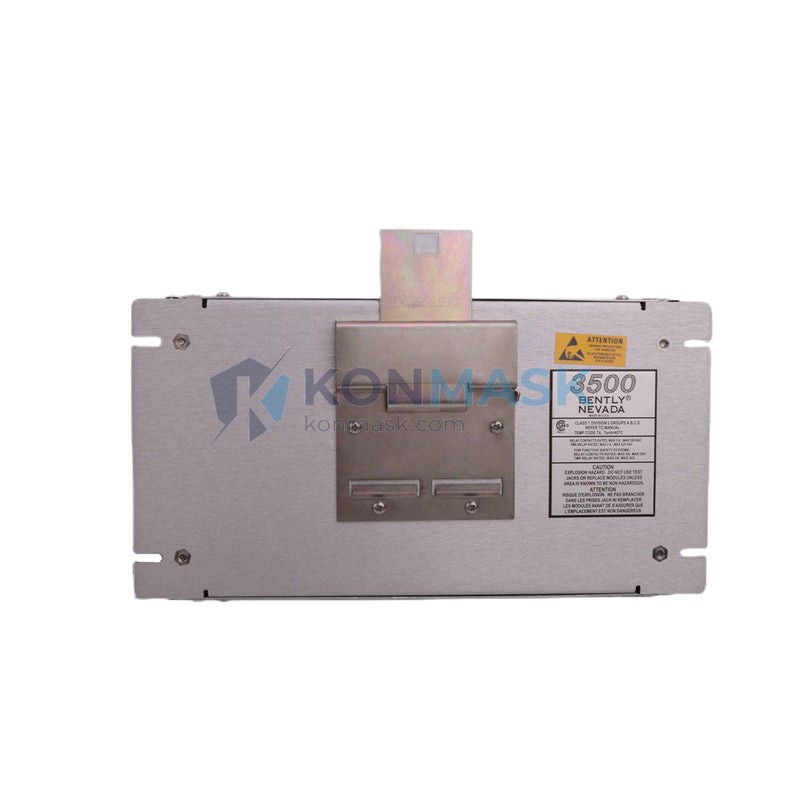

Bently Nevada 3500/94 (145988-01) — Display Router Module | 3500 Series Machinery Protection System
Engineering Background: The Bently Nevada 3500 Series is the industry-standard continuous online machinery protection platform deployed across rotating equipment in petrochemical, power generation, and water/wastewater facilities worldwide. Within the 3500 rack architecture, the 3500/94 Display Router serves as the dedicated communication bridge between the rack’s internal monitoring modules and external operator interface devices — including the 3500/05 Rack Interface Module and plant-level DCS/SCADA systems. Without a properly functioning display router, real-time vibration, position, and process variable data cannot be routed to operator displays or historian systems, making this module mission-critical for continuous protection visibility.
Product Positioning: The 145988-01 is the standard revision of the 3500/94 Display Router, distinguished from earlier revisions by enhanced firmware compatibility with Rack Interface Module firmware v5.x and above. It is the correct replacement for installations running Bently Nevada System 1 software or TDXnet communication. This module is not interchangeable with the 3500/92 Communication Gateway (which handles Modbus/TCP and OPC output) — the 3500/94 is specifically for local display routing within the rack backplane. Suitable for any 3500 rack with a populated display slot requiring operator interface connectivity.
Complete Technical Specifications
Electrical
- Power Supply Input: Derived from 3500 rack backplane (no external power required)
- Power Consumption: ≤ 3 W (typical rack slot allocation)
- Communication Interface: Proprietary Bently Nevada backplane bus; RS-232/RS-422 front-panel display port
- Signal Routing: Bidirectional data routing between monitor modules and display/interface devices
- Isolation: Electrically isolated display port from backplane logic
Mechanical
- Form Factor: Single-slot 3500 Series rack module
- Dimensions: Standard 3500 module (approx. 241 mm H × 25 mm W × 280 mm D)
- Weight: ~550 g
- Connector: Front-panel DB-9 display port; rear backplane edge connector
- Mounting: 3500 rack chassis (3500/05 or 3500/15 rack required)
Environmental
- Operating Temperature: 0°C to +65°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration (Operating): 0.152 mm DA, 5–57 Hz; 1.0 g, 57–500 Hz
- Shock: 15 g, 11 ms half-sine
- Altitude: Up to 2000 m (operating)
Certifications
- CE Marking: EMC Directive 2014/30/EU
- UL/cUL Listed: Industrial Control Equipment
- SIL 2 Capable: When used within a certified 3500 rack configuration per IEC 61508
- RoHS Compliant: Directive 2011/65/EU
Data source: Bently Nevada 3500 Series Product Specifications, GE Measurement & Control Solutions documentation. Specifications subject to revision — confirm with datasheet for safety-critical applications.
Proven Application Environments
- Petrochemical / Refinery: Centrifugal compressor trains (API 670 compliant installations) — continuous shaft vibration and axial position display routing to DCS operator stations during unattended night-shift operation.
- Power Generation / Gas Turbine: Frame 7/9 gas turbine protection racks — routing turbine bearing vibration data to plant historian and operator HMI during load-following transients.
- Power Generation / Steam Turbine: HP/LP turbine shaft monitoring systems — display routing for eccentricity and differential expansion channels during cold-start and warm-start sequences.
- Water & Wastewater / Pumping Station: Large vertical turbine pump protection racks — routing thrust position and radial vibration to SCADA displays in unmanned remote pump stations.
- LNG / Offshore: Refrigerant compressor protection systems on FPSO and LNG liquefaction trains — display routing in Class 1 Div 2 / Zone 2 rated control rooms.
- Pulp & Paper / Heavy Industry: Induced draft fan and boiler feed pump protection racks — routing multiple channel data to local operator panels in high-EMI mill environments.
Engineering Advantages
- For installations requiring uninterrupted operator visibility, this display router maintains continuous data routing even during individual monitor module configuration changes, because the routing function is architecturally independent of monitor module processing.
- For racks running System 1 software integration, this module provides native backplane communication compatibility, because the 145988-01 revision supports the full System 1 data object model without firmware bridging.
- For maintenance teams performing hot-swap replacements, this module supports live rack insertion without requiring a full rack power cycle, because the 3500 backplane architecture isolates slot power sequencing.
- For high-EMI environments such as motor control centers and switchgear rooms, this display router maintains signal integrity on the display port, because the front-panel RS-422 interface provides differential signaling with common-mode noise rejection.
- For multi-rack installations, this module enables display data aggregation from up to the full complement of 3500 monitor modules within a single rack, because the routing architecture is not limited by channel count at the display interface level.
- For SIL 2 certified protection loops, this module is qualified as a non-safety-function component within the certified rack assembly, because its failure mode does not affect the protective trip output path of the monitor modules.
System Architecture & Signal Flow
Signal Flow: Monitor modules (3500/40M, 3500/42M, 3500/44M, 3500/45, 3500/46M, 3500/50, 3500/60, 3500/61, 3500/72M) → 3500 rack backplane bus → 3500/94 Display Router (145988-01) → Front-panel display port (DB-9) → 3500/05 Rack Interface Module or direct operator display device → System 1 / TDXnet / plant DCS.
Compatible Modules:
- 3500/05 Rack Interface Module — primary upstream interface; the 3500/94 routes display data specifically for RIM communication.
- 3500/15 Power Supply — rack power source; no direct signal interface but required for rack operation.
- All 3500 Series monitor modules (3500/40M through 3500/72M) — data originates from these modules and is routed by the 3500/94.
- System 1 Software (v5.x and above) — confirmed compatible with 145988-01 revision firmware.
Substitution Conditions: The 3500/94 145988-01 may replace earlier 3500/94 revisions (e.g., 145988-02 if downward compatible per Bently Nevada revision history). It does not substitute for the 3500/92 Communication Gateway, which serves a different architectural function (external protocol conversion vs. internal display routing). Confirm rack firmware version compatibility before substitution in SIL-rated installations.
Sourcing & Quality Verification
Source: Units are sourced from decommissioned plant upgrades, authorized distributor overstock, and verified industrial surplus channels. Each unit undergoes condition assessment prior to listing. Konmask.com specializes in legacy and current-production Bently Nevada 3500 Series components for MRO and capital project procurement.
4-Step Verification Process:
- Visual Inspection: Board-level inspection for physical damage, corrosion, bent pins, and component integrity. Front-panel label and part number verification against 145988-01 marking.
- Firmware Revision Check: Internal firmware revision confirmed and documented against Bently Nevada revision history.
- Functional Bench Test: Module powered in a 3500 rack test fixture; display port communication verified with a 3500/05 RIM and System 1 test environment.
- Final Documentation: Test record generated with serial number, firmware revision, test date, and technician sign-off prior to shipment.
Available Documentation:
- Inspection and functional test report (per unit)
- Bently Nevada original datasheet and installation manual (PDF)
- Firmware revision record
- Certificate of conformance (on request)
- Export compliance documentation (HS code, country of origin)
Procurement Process
- Submit Inquiry: Send part number (3500/94, 145988-01), required quantity, and delivery timeline to support@konmask.com or via the product page inquiry form. Include rack firmware version and System 1 version if known.
- Receive Quotation & Stock Confirmation: A technical quotation with unit price, lead time, and available stock confirmation will be returned within 24 hours on business days. Urgent requirements are flagged for same-day response.
- Order Confirmation & Shipment: Upon order confirmation, units are prepared with full documentation package and shipped via DHL/FedEx with tracking. Export documentation provided for international shipments.
Technical Support Available:
- Pre-sale: Compatibility verification against existing rack configuration and firmware version
- Pre-sale: Substitution guidance for obsolete or discontinued revision codes
- Post-sale: Installation reference documentation and Bently Nevada technical manual provision
- Post-sale: Coordination support for warranty claims or DOA resolution
Technical FAQ
Q: Is the 3500/94 145988-01 compatible with both the 3500/05 and 3500/15 rack configurations?
A: The 3500/94 is compatible with any standard 3500 rack chassis. The 3500/05 Rack Interface Module is the primary device that communicates with the display router’s front-panel port. The 3500/15 is a power supply module and does not directly interface with the 3500/94. Compatibility is confirmed for racks running RIM firmware v5.x and above with System 1 software.
Q: Can the 3500/94 145988-01 replace a 3500/94 with a different revision suffix (e.g., 145988-02)?
A: Revision interchangeability depends on Bently Nevada’s revision history for this part number. In most cases, the 145988-01 is the base revision and later suffixes represent minor ECO changes. Substitution should be confirmed against the specific rack’s firmware version and the Bently Nevada revision compatibility matrix. Technical confirmation is available prior to purchase — contact support@konmask.com with your rack serial number and current firmware version.
Q: Is the 3500/94 required for SIL 2 certified rack installations, and does its replacement affect the SIL certification?
A: The 3500/94 Display Router is classified as a non-safety-function module within the 3500 rack SIL 2 architecture — it does not participate in the protective trip output path. Replacement of this module does not inherently invalidate the SIL 2 certification of the rack’s monitor modules. However, any modification to a SIL-certified installation should be reviewed by the site’s functional safety engineer and documented per IEC 61511 management of change procedures. Bently Nevada’s SIL certification documentation for the 3500 Series should be consulted for the specific rack configuration.
