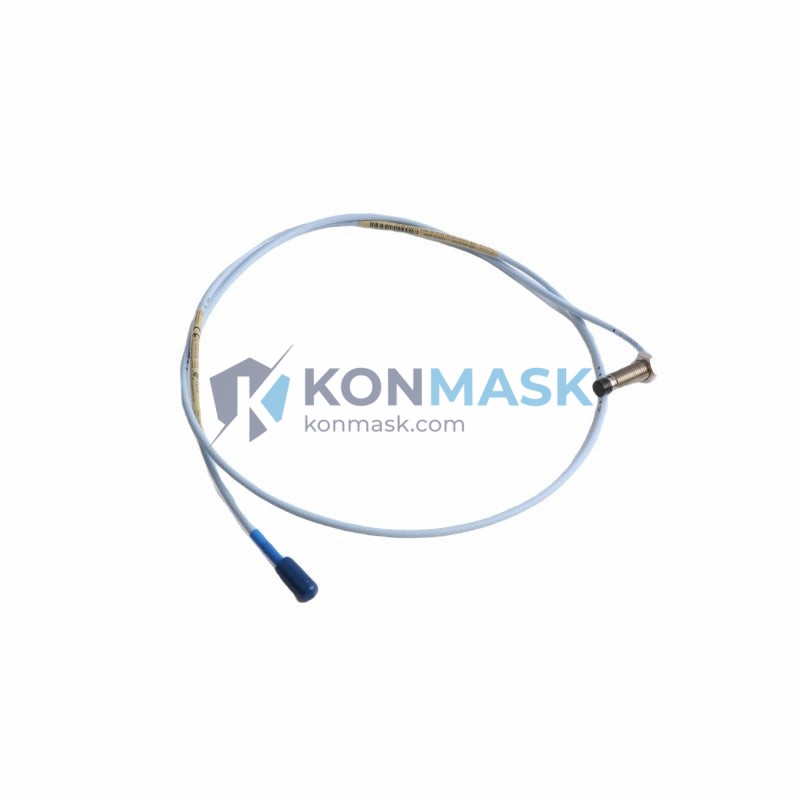

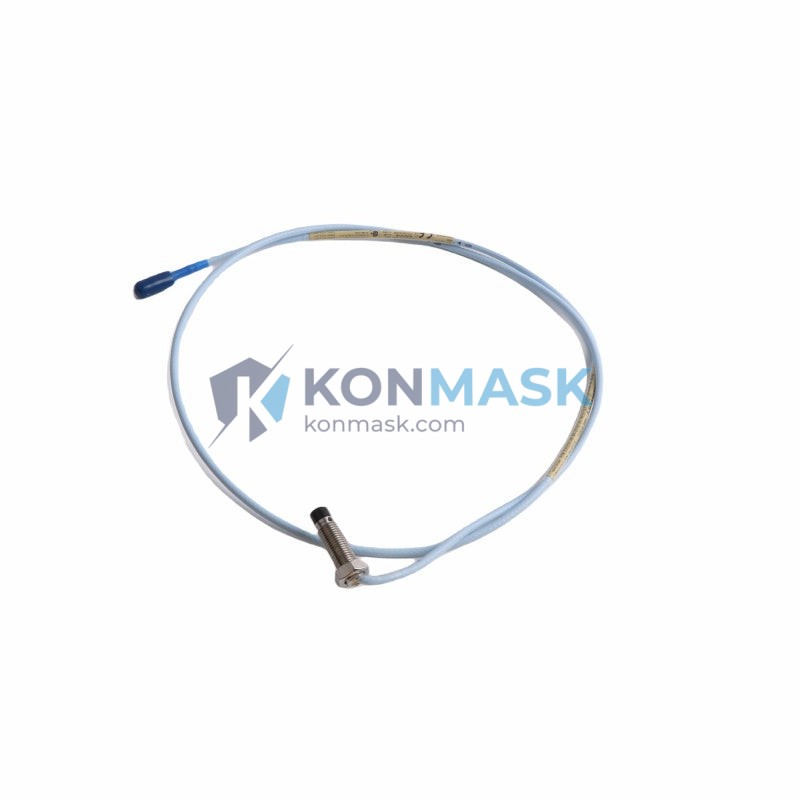

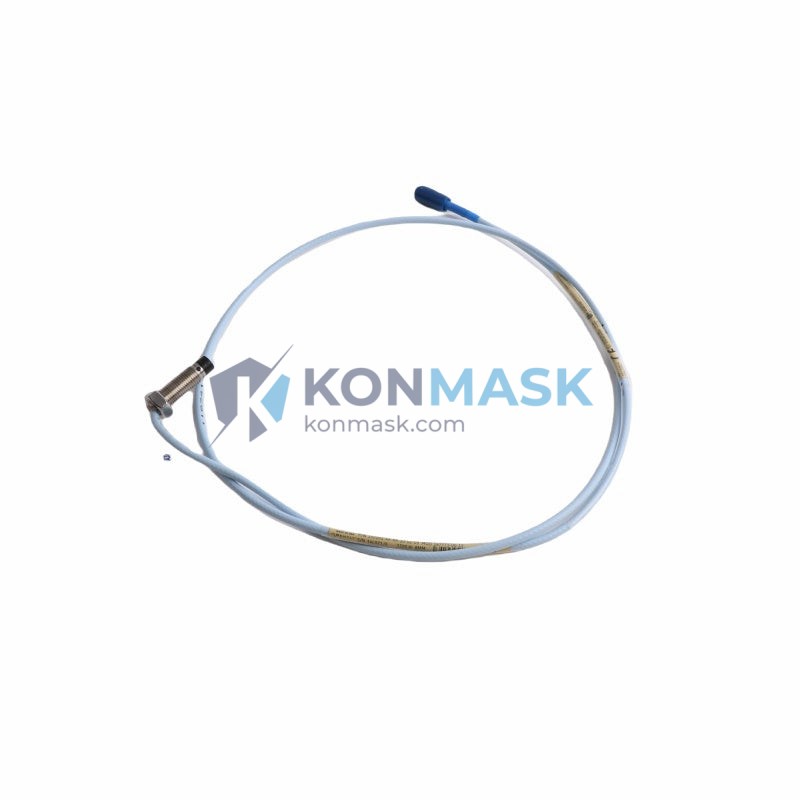

Bently Nevada 330101-00-76-20-02-05 – 8mm Eddy Current Proximity Transducer | 3300 XL Platform
Engineering Background: The Bently Nevada 3300 XL Series is the global industry benchmark for non-contacting eddy current measurement in rotating machinery protection. Engineered for continuous real-time shaft vibration and axial position monitoring, this platform is deployed in power generation, petrochemical, LNG, and heavy industrial facilities worldwide — where unplanned downtime carries catastrophic operational and financial consequences.
Product Positioning: The 330101-00-76-20-02-05 is an 8mm diameter proximity probe engineered for the 3300 XL Transducer System. It delivers high-resolution, non-contact displacement measurement with exceptional linearity and thermal stability — the preferred specification for procurement engineers designing API 670-compliant machinery protection systems. Konmask.com supplies verified, traceable units with full documentation support.
Complete Technical Specifications
- Part Number: 330101-00-76-20-02-05
- Series / Platform: Bently Nevada 3300 XL
- Probe Diameter: 8 mm
- Measurement Type: Eddy Current (Non-contacting)
- Cable Length: 5 m (standard; encoded in part number suffix)
- Extension Cable Compatibility: 330130 Series
- Driver / Oscillator: 3300 XL Proximitor® Sensor
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: –35°C to +177°C (–31°F to +350°F)
- Target Material: AISI 4140 steel (standard); other alloys available
- Connector Type: Integral coaxial, armored cable
- Compliance: API 670 (5th Edition), CE
- Country of Origin: United States
- Weight: ~120 g
Proven Application Environments
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and thrust measurement
- Pump and motor bearing displacement in API 670 protection systems
- Gearbox and expander differential expansion monitoring
- Petrochemical and refinery rotating equipment protection panels
- Power generation (nuclear, thermal, hydro) turbine protection racks
- LNG plant and offshore platform machinery monitoring
Engineering Advantages
- API 670 Compliant: Meets the 5th Edition standard for machinery protection systems — no re-qualification required for most plant installations.
- Eddy Current Technology: Immune to oil, steam, and process contamination; zero physical contact with the rotating shaft eliminates wear and maintenance intervals.
- High Thermal Stability: Calibrated scale factor maintained across the full –35°C to +177°C operating range without drift compensation.
- System Interoperability: Direct drop-in replacement within existing 3300 XL infrastructure — probe, extension cable, and Proximitor® Sensor remain fully compatible.
- Armored Cable Construction: Stainless steel armor protects signal integrity against mechanical damage in harsh plant environments.
- Long-Term Availability: Konmask.com maintains verified surplus and authorized distribution stock to support legacy plant installations.
System Architecture & Signal Flow
The 3300 XL Transducer System operates as a three-component signal chain:
- Proximity Probe (330101-00-76-20-02-05): Generates the eddy current field at the shaft surface and converts gap displacement to a raw electrical signal.
- Extension Cable (330130 Series): Transmits the signal from the probe tip to the Proximitor® Sensor, maintaining impedance integrity over distance.
- Proximitor® Sensor (3300 XL): Conditions and scales the signal to a –24 VDC output proportional to gap distance, feeding the monitoring system (e.g., 3500 rack or DCS).
This architecture ensures the scale factor (7.87 V/mm) is maintained system-wide, enabling direct integration with Bently Nevada 3500 Series monitors and third-party DCS/SIS platforms via standard 4–20 mA or voltage outputs.
Sourcing & Quality Verification
- Source: Konmask.com supplies 330101-00-76-20-02-05 units from authorized distribution channels and verified surplus with full traceability documentation.
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment checks prior to dispatch.
- Documentation: Certificate of conformance, original packaging, and part number verification available upon request.
- Lead Time: In-stock units ship within 2–5 business days; contact us for volume and long-term supply availability.
Procurement Process
- Submit your RFQ via support@konmask.com or use the on-site inquiry form.
- Receive a formal quotation with unit price, lead time, and shipping options within 24 hours.
- Confirm purchase order — we accept T/T, L/C, and major credit cards.
- Shipment with full tracking; DHL / FedEx / UPS international express available.
- Post-delivery technical support available from our engineering team.
Technical FAQ
Q: Is 330101-00-76-20-02-05 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. When paired with the correct 3300 XL Proximitor® Sensor and 330130 extension cable, the output signal is fully compatible with 3500 Series monitor input cards.
Q: Can this probe be used with non-Bently Nevada drivers?
A: The 3300 XL probe is calibrated specifically for the 3300 XL Proximitor® Sensor. Use with third-party drivers may alter the scale factor and is not recommended for API 670 applications without re-calibration.
Q: What do the part number suffixes encode (e.g., -02-05 vs -02-CN)?
A: Suffixes encode connector type, cable length, and regional certification variants. The -02-05 suffix denotes a standard 5m armored cable with international connector. Contact us to confirm the correct variant for your installation.
Q: Do you provide calibration certificates?
A: Calibration documentation from the original manufacturer is available for select stock. Please specify your requirement at the time of inquiry.
Q: What is the minimum order quantity?
A: We supply single units through to volume orders. Contact us for volume pricing and blanket order arrangements.
