Genuine Bently Nevada 330103-13-20-10-02-00 Proximity Transducer | 3300 XL Series – Verified Source
The Bently Nevada 330103-13-20-10-02-00 is a precision 8mm eddy-current proximity transducer from the industry-leading 3300 XL Proximity Transducer System series. Designed for continuous shaft vibration, position, and speed monitoring on critical rotating machinery, this unit is sourced directly through verified industrial supply channels and undergoes our rigorous 4-step authentication process before shipment.
Technical Specifications
- Part Number: 330103-13-20-10-02-00
- Series: 3300 XL Proximity Transducer System
- Probe Tip Diameter: 8 mm
- Probe Length: 13 mm (active sensing length)
- Cable Length (Probe): 2.0 m integral cable
- Extension Cable: 5.0 m (included in system)
- Frequency Range: 0 – 10,000 Hz
- Output Sensitivity: 7.87 V/mm (200 mV/mil)
- Supply Voltage: -24 VDC (nominal)
- Operating Temperature: -35°C to +121°C
- Connector Type: MIL-C-5015 style
- Weight: Approx. 230 g
- Compliance: CE, RoHS, API 670
Our 4-Step Quality Verification Process
- Source Authentication — Every unit is traced to authorized distributors or OEM-certified supply chains. No grey-market or refurbished stock.
- Physical Inspection — Label integrity, connector condition, housing markings, and serial number cross-referencing are verified by our technical team.
- Functional Bench Test — Output sensitivity and linearity are spot-checked against Bently Nevada factory specifications using calibrated test equipment.
- Secure Packaging & Documentation — Units ship with original packaging (where available), a certificate of conformance, and full traceability documentation.
Key Features & Benefits
- Industry-standard eddy-current sensing technology — proven in power generation, oil & gas, and petrochemical plants worldwide
- High-resolution, non-contact measurement — no mechanical wear, no signal drift from friction
- Wide operating temperature range — suitable for harsh industrial environments
- Direct drop-in replacement for existing 3300 XL installations — zero reconfiguration required
- API 670 compliant — meets the most stringent machinery protection standards
- Backed by Konmask.com’s authenticity guarantee and post-sale technical support
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing displacement monitoring
- Gearbox speed and phase reference detection
- Critical rotating machinery protection systems (API 670 installations)
Compatible System Components
- Extension Cable: Bently Nevada 330130-045-00-00 (5m), 330130-080-00-00 (8m)

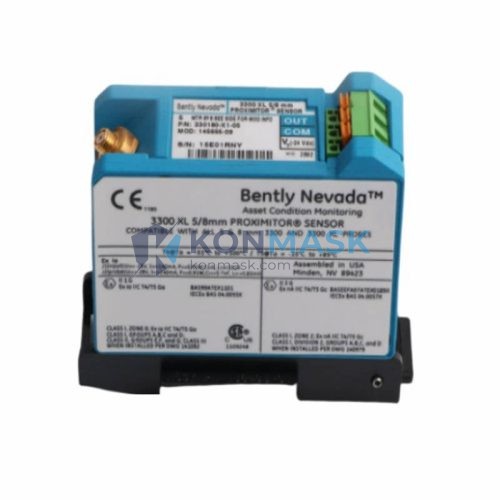

- Proximitor Sensor: Bently Nevada 3300 XL 8mm Proximitor (330180-X1-05)
- Monitor Rack: Bently Nevada 3500 Series Machinery Protection System
- Junction Box: Bently Nevada 3300 XL Field Wiring Enclosure
Global Sourcing & Shipping Capabilities
Konmask.com maintains established procurement networks across Asia, Europe, and North America, enabling reliable access to genuine Bently Nevada components even for discontinued or long-lead-time part numbers. We ship to over 50 countries with full export documentation, commercial invoices, and packing lists compliant with international customs requirements.
- Lead Time: Typically 3–7 business days (in-stock); 2–4 weeks (sourced-to-order)
- Shipping Methods: DHL Express, FedEx International Priority, sea freight (bulk orders)
- Export Documentation: CO, packing list, commercial invoice, MSDS (if required)
- Minimum Order: 1 unit
Certifications & Compliance Statement
The Bently Nevada 330103-13-20-10-02-00 is manufactured to comply with the following standards:
- API 670 — Machinery Protection Systems (5th Edition)
- CE Marking — European conformity for electromagnetic compatibility
- RoHS Directive — Restriction of Hazardous Substances compliant
- ISO 9001 — Quality management system certified supply chain
All units supplied by Konmask.com are accompanied by a Certificate of Conformance upon request. We do not supply counterfeit, refurbished-as-new, or specification-deviated components.
How to Order
- Click “Add to Cart” or “Buy Now” on this page.
- For bulk orders (>5 units) or custom lead-time requirements, contact us directly at [email protected] for a dedicated quotation.
- Provide your shipping destination and required delivery date — we will confirm availability and logistics within 1 business day.
- Payment accepted via T/T (bank transfer), PayPal, and major credit cards.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Bently Nevada part?
A: Every unit passes our 4-step verification process. We provide full traceability documentation and a certificate of conformance. If you have any doubts after receipt, we offer a no-questions-asked return policy within 30 days.
Q: Can you supply discontinued or hard-to-find Bently Nevada part numbers?
A: Yes. Our global sourcing network specializes in legacy and long-lead-time industrial automation components. Contact us with your part number and we will advise on availability.
Q: Do you offer technical support after purchase?
A: Absolutely. Our engineering team is available via email and phone to assist with installation, calibration, and system integration questions.
Q: What is your warranty policy?
A: We offer a 12-month warranty against manufacturing defects on all genuine components supplied. Warranty claims are handled directly by Konmask.com.
