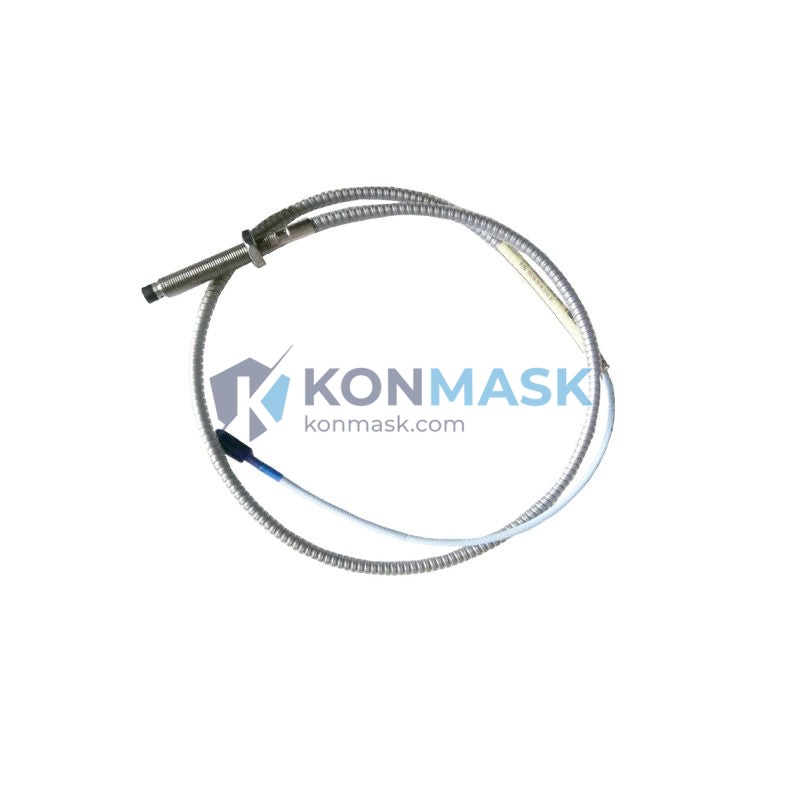

Bently Nevada 330104-00-10-05-01-05 – Eddy Current Proximity Probe | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for non-contacting eddy current measurement systems, engineered specifically for continuous machinery protection and condition monitoring in critical rotating equipment. The 330104-00-10-05-01-05 is an 8 mm diameter proximity probe designed to deliver sub-micron resolution displacement measurements in the harshest industrial environments.
Product Positioning
This probe is the primary sensing element in a complete 3300 XL transducer system (probe + extension cable + proximitor). It is specified by OEM turbine builders, compressor OEMs, and reliability engineers worldwide as the standard for API 670-compliant machinery protection systems. Konmask.com supplies this part as a verified OEM component with full traceability documentation available upon request.
Complete Technical Specifications
- Part Number: 330104-00-10-05-01-05
- Series / Platform: Bently Nevada 3300 XL
- Probe Diameter: 8 mm
- Probe Type: Eddy Current / Non-contacting Proximity
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil) nominal
- Operating Temperature: –35°C to +177°C (probe body)
- Probe Cable Length: 1.0 m (as per -10- designation)
- Connector: Integral coaxial, armored cable
- Target Material: AISI 4140 steel (standard); other alloys require recalibration
- Supply Voltage: –24 VDC (via Proximitor/Seismic Monitor)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Sensitivity Tolerance: ±0.5% of full scale
- Weight: Approx. 800 g (probe + cable assembly)
- Compliance: API 670, CE, RoHS
- Country of Origin: USA
Proven Application Environments
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position (thrust) measurement
- Pump and motor bearing journal orbit analysis
- Gearbox differential expansion and eccentricity monitoring
- Petrochemical, LNG, power generation, and offshore platforms
- API 670 machinery protection systems (MPS) integration
Engineering Advantages
- Non-contacting measurement: Zero mechanical wear; suitable for continuous 24/7 operation
- High bandwidth: DC to 10 kHz response captures sub-synchronous, synchronous, and super-synchronous vibration components
- Temperature stability: Thermally compensated design maintains calibration across wide operating range
- Armored cable construction: Resistant to oil, coolant, and mechanical abrasion in turbine enclosures
- Direct system compatibility: Plug-and-play with all 3300 XL Proximitor monitors and 3500 Series rack systems
- API 670 compliant: Meets international standard for machinery protection instrumentation
System Architecture & Signal Flow
The 330104-00-10-05-01-05 probe operates as part of a three-component transducer chain:
- Proximity Probe (this unit) – Generates an oscillating electromagnetic field; eddy currents induced in the target shaft modulate the field proportional to gap distance.
- Extension Cable – Transmits the high-frequency carrier signal from probe tip to Proximitor with minimal loss (matched impedance, 3300 XL series cables required).
- Proximitor / Seismic Monitor – Demodulates the carrier, outputs a DC-proportional voltage (–24 VDC supply, –24 VDC to 0 VDC output range) to the monitoring rack or DCS/PLC input card.
Output signal is directly compatible with Bently Nevada 3500 Series rack monitors, 1900/65 machinery protection monitors, and third-party 4–20 mA converters.
Sourcing & Quality Verification
- OEM Origin: Sourced from authorized Bently Nevada / Baker Hughes distribution channels
- Inspection: Each unit undergoes incoming inspection including visual, dimensional, and functional verification against OEM datasheet
- Documentation: Certificate of Conformance (CoC) and material traceability available upon request
- Packaging: Original OEM packaging preserved where available; anti-static and moisture-barrier packaging for all shipments
- Warranty: 12-month Konmask quality guarantee against manufacturing defects
Procurement Process
- Submit your inquiry or purchase order via Konmask.com product page or email support@konmask.com
- Receive stock confirmation and lead time within 24 business hours
- Pro-forma invoice issued; payment via T/T, L/C, or agreed terms
- Shipment via DHL / FedEx / sea freight with full tracking; export documentation (commercial invoice, packing list, CoC) included
- Post-delivery technical support available from Konmask engineering team
Technical FAQ
Q: Is this probe compatible with the Bently Nevada 3500 Series monitoring rack?
A: Yes. The 3300 XL probe system (probe + extension cable + Proximitor) outputs a standard –24 VDC proportional signal fully compatible with 3500 Series input modules.
Q: Can this probe be used with non-steel target materials?
A: The standard calibration is optimized for AISI 4140 steel. Use with other alloys (titanium, Inconel, aluminum) requires a material-specific calibration curve. Contact Konmask for recalibration support.
Q: What extension cable is required?
A: The -05- suffix in the part number designates a 5-meter extension cable requirement. Compatible cables include the Bently Nevada 330130 series (3300 XL, 5 m).
Q: What is the lead time for this part?
A: In-stock units ship within 3–5 business days. Out-of-stock lead time is typically 4–8 weeks. Contact us for real-time availability.
Q: Do you provide installation and commissioning support?
A: Konmask provides remote technical guidance for installation, gap setting, and system commissioning. On-site support can be arranged for large projects.
