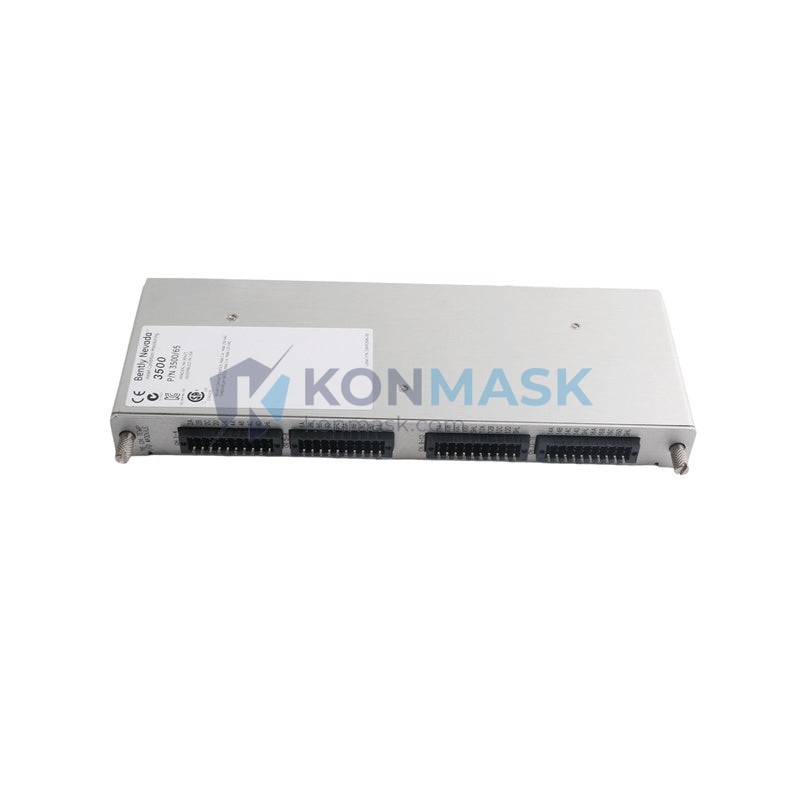

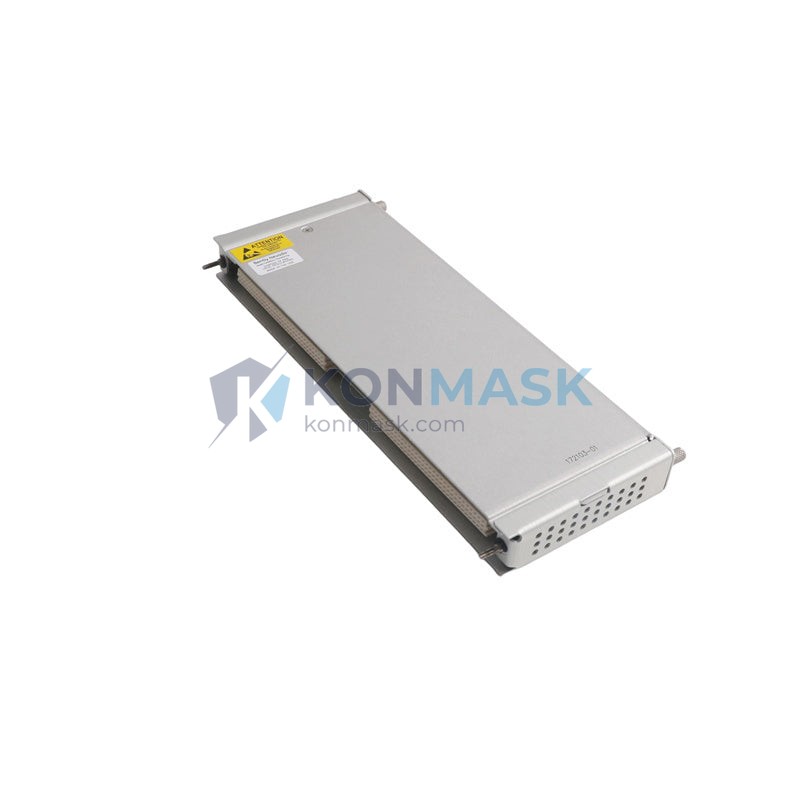

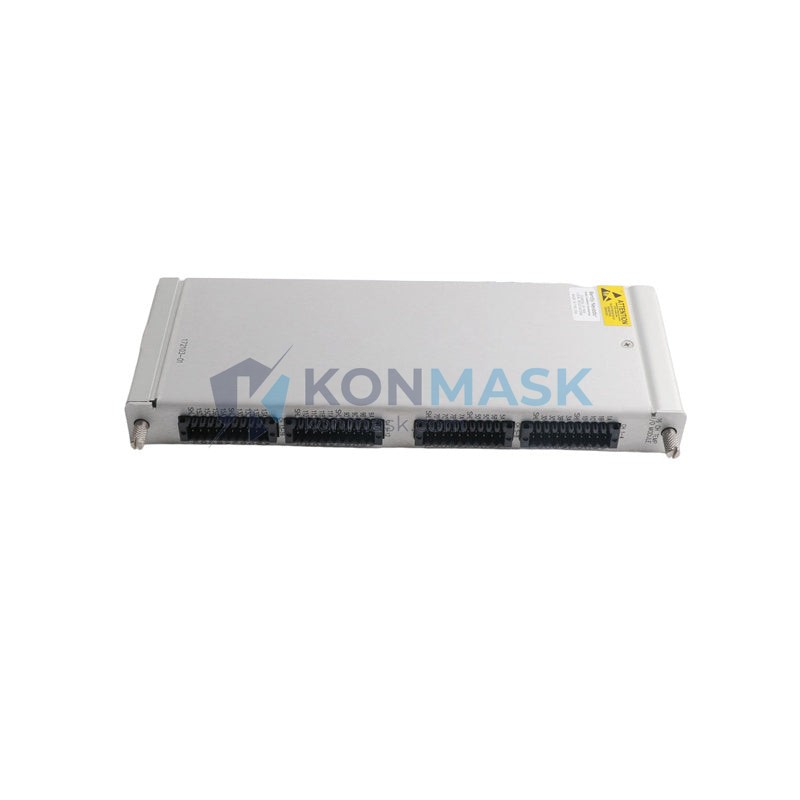

Bently Nevada 172103-01 RTD / Isolated Tip TC I/O Module | 3500 Series

Bently Nevada 172103-01 – RTD / Isolated Tip Thermocouple I/O Module | 3500 Machinery Protection System

Engineering Background: The Bently Nevada 3500 Series is the industry-standard machinery protection platform deployed across rotating equipment in petrochemical, power generation, and water/wastewater facilities worldwide. Within a 3500 rack, the I/O module layer is the signal conditioning backbone — it determines measurement accuracy, channel isolation integrity, and compatibility with the monitor cards that drive trip logic. The 172103-01 occupies this critical role for temperature-based measurements, accepting both RTD (Resistance Temperature Detector) and isolated-tip thermocouple inputs on a single module, eliminating the need for separate signal conditioners in mixed-sensor installations.

Product Positioning: The 172103-01 is distinguished from standard TC-only or RTD-only I/O modules by its dual-input architecture with isolated-tip thermocouple support — a requirement in applications where ground loops or common-mode noise from high-voltage equipment (turbine casings, motor frames) would corrupt single-ended TC readings. It is the correct selection when the process requires simultaneous RTD and TC monitoring within one rack slot, and where sensor tip isolation is mandated by site electrical safety standards. It is not a vibration or dynamic pressure module; its application boundary is steady-state temperature monitoring of bearings, windings, exhaust streams, and process fluid interfaces.

Complete Technical Specifications

Electrical

• Input Types: RTD (2-wire / 3-wire) and Isolated-Tip Thermocouple (J, K, T, E, R, S, B types)
• RTD Excitation Current: ≤1 mA (self-heating minimized)
• TC Input Impedance: >1 MΩ
• Channel Isolation: Isolated-tip design; channel-to-channel and channel-to-chassis isolation per IEC 61010-1
• Cold Junction Compensation: Internal, automatic
• A/D Resolution: 16-bit
• Supply Voltage: Derived from 3500 rack backplane (18–32 VDC)
• Power Consumption: ≤3 W per module

Mechanical

• Form Factor: Single-width 3500 rack I/O module
• Connector: 25-pin D-sub (field wiring side)
• Weight: 380 g (verified)
• Mounting: Rack-guided, tool-free insertion with locking latch
• Dimensions: Per 3500 Series mechanical envelope standard

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: −40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Vibration Resistance: IEC 60068-2-6 (operational)
• EMC: CE marked; meets EN 61326-1 for industrial environments

Certifications

• CE (European Conformity)
• CSA / UL (North American safety listing)
• Compatible with SIL-rated 3500 monitor configurations (refer to system SIL assessment documentation)

Data source: Bently Nevada 3500 Series product documentation, GE Measurement & Control Solutions technical reference. Specifications subject to revision; confirm against current datasheet for safety-critical applications.

Proven Application Environments

• Petrochemical / Refinery: Centrifugal compressor trains — bearing temperature monitoring under continuous high-load operation with ground-loop risk from cathodic protection systems; isolated-tip TC input eliminates interference.
• Power Generation / Gas Turbine: Heavy-duty gas turbine exhaust and combustion liner temperature measurement — high common-mode voltage environment requires isolated-tip TC to maintain measurement integrity across turbine frame potential.
• Power Generation / Steam Turbine: HP/LP turbine bearing RTD monitoring — 3-wire RTD input compensates for lead resistance in long cable runs from bearing pedestals to control room racks.
• Water & Wastewater Treatment: Large vertical pump motor winding temperature protection — RTD inputs monitor stator winding temperature during variable-load pumping cycles to prevent insulation degradation.
• LNG / Gas Processing: Cryogenic pump bearing temperature surveillance — module operates reliably across the full 0–60 °C rack ambient range while measuring sub-zero process temperatures via calibrated TC inputs.
• Offshore / Marine: Platform compressor and generator sets — module’s vibration resistance per IEC 60068-2-6 ensures stable operation in high-vibration deck environments without signal dropout.

Engineering Advantages

• For installations with mixed RTD and TC sensors on the same machine train, this I/O module consolidates both input types into a single rack slot, because its dual-input architecture eliminates the need for separate signal conditioners and reduces rack space consumption by up to 50%.
• For sites with cathodic protection or high-voltage equipment in proximity to TC wiring, this module’s isolated-tip thermocouple input breaks the ground loop path, because the isolation barrier prevents common-mode currents from corrupting the millivolt-level TC signal.
• For long cable runs from remote bearing pedestals, this module’s 3-wire RTD input topology compensates for lead resistance automatically, because the third wire allows the measurement circuit to cancel cable resistance errors that would otherwise introduce systematic temperature offset.
• For facilities requiring rapid spare-part standardization, this module’s compatibility across the full 3500 rack family reduces the number of distinct spare SKUs that must be held in the maintenance store, because one part number covers multiple monitor card pairings.
• For SIL-assessed machinery protection loops, this module supports integration into certified 3500 system configurations, because it is designed and tested to the same quality and environmental standards as the broader 3500 safety-rated product family.
• For maintenance teams performing hot-swap during planned outages, this module’s tool-free rack insertion and locking latch mechanism reduces re-commissioning time, because the guided connector alignment prevents pin damage and ensures repeatable electrical contact on reinsertion.

System Architecture & Signal Flow

Signal Flow: Field sensor (RTD or isolated-tip TC) → field wiring terminal → 25-pin D-sub connector on 172103-01 → internal signal conditioning (cold junction compensation / RTD excitation) → 16-bit A/D conversion → 3500 rack backplane data bus → paired temperature monitor card → trip relay output / Modbus/FOUNDATION Fieldbus communication to DCS.

Compatible Monitor Cards: The 172103-01 is designed for use with Bently Nevada 3500/62 Temperature Monitor and 3500/63 Temperature Monitor (16-channel) cards. Compatibility is determined by the monitor card’s I/O module slot assignment and firmware revision; confirm pairing against the 3500 system configuration record before installation.

Substitution Conditions: Direct replacement for any 172103-01 revision in service. Cross-reference to alternative Bently Nevada temperature I/O part numbers (e.g., 172103-02 or later revisions) requires verification of connector pinout and firmware compatibility with the installed monitor card version. Do not substitute vibration or dynamic I/O modules — input impedance and signal conditioning circuits are not interchangeable.

Sourcing & Quality Verification

Units offered through Konmask.com are sourced from decommissioned plant upgrades, authorized distributor overstock, and verified secondary market channels. Each unit undergoes the following 4-step inspection process before dispatch:

1. Visual Inspection: Connector pin condition, PCB surface, label legibility, and latch mechanism integrity checked against OEM reference images.
2. Part Number & Revision Verification: Silk-screen and label part number confirmed against Bently Nevada 3500 Series bill of materials; revision level recorded.
3. Functional Bench Test: Module powered via 3500 rack test fixture; RTD and TC input channels verified for correct A/D response and backplane communication handshake.
4. Packaging & ESD Protection: Module bagged in anti-static shielding, placed in foam-lined carton with desiccant; shipping label includes part number and revision for receiving inspection.

Documentation available upon request: Inspection report, functional test record, high-resolution photographs of label and connector, certificate of conformance (CoC), and Bently Nevada original datasheet.

Procurement Process

1. Submit Inquiry: Send part number (172103-01), required quantity, and delivery timeline to support@konmask.com or via the on-page contact form. Include your rack configuration and monitor card revision if technical pre-sales verification is needed.
2. Receive Quotation & Stock Confirmation: A response with confirmed stock availability, unit price, lead time, and shipping options will be provided within 24 hours on business days. Expedited response available for urgent plant shutdown requirements.
3. Order Confirmation & Dispatch: Upon purchase order or payment confirmation, the unit is prepared, inspected, and dispatched with full documentation package. Tracking number provided same day or next business day.

Technical Support: Pre-sales compatibility verification, installation guidance, and cross-reference assistance are available via email. Support is provided by personnel with hands-on 3500 system configuration experience.

Technical FAQ

Q: Is the 172103-01 compatible with both the 3500/62 and 3500/63 temperature monitor cards?
A: Yes, the 172103-01 is designed for use with both the 3500/62 (8-channel) and 3500/63 (16-channel) temperature monitor cards. Confirm the I/O module slot assignment in the rack configuration software matches the installed monitor card before powering the system.

Q: Can the 172103-01 replace a 172103-02 or a later revision in an existing installation?
A: Revision substitution requires verification. While the base part number indicates the same functional design intent, connector pinout changes or firmware dependency updates between revisions may affect compatibility with specific monitor card firmware versions. Provide the installed monitor card part number and firmware revision for a definitive cross-reference assessment before ordering.

Q: Is this module suitable for use in a SIL 2 certified machinery protection loop?
A: The 172103-01 is part of the Bently Nevada 3500 product family, which supports SIL-rated system configurations. However, SIL suitability is determined at the system level — the complete loop (sensor, I/O module, monitor card, trip relay, and final element) must be assessed together against the target SIL. Consult the 3500 Series Safety Manual and the site’s functional safety assessment documentation to confirm the module’s role in the certified loop architecture.

---
