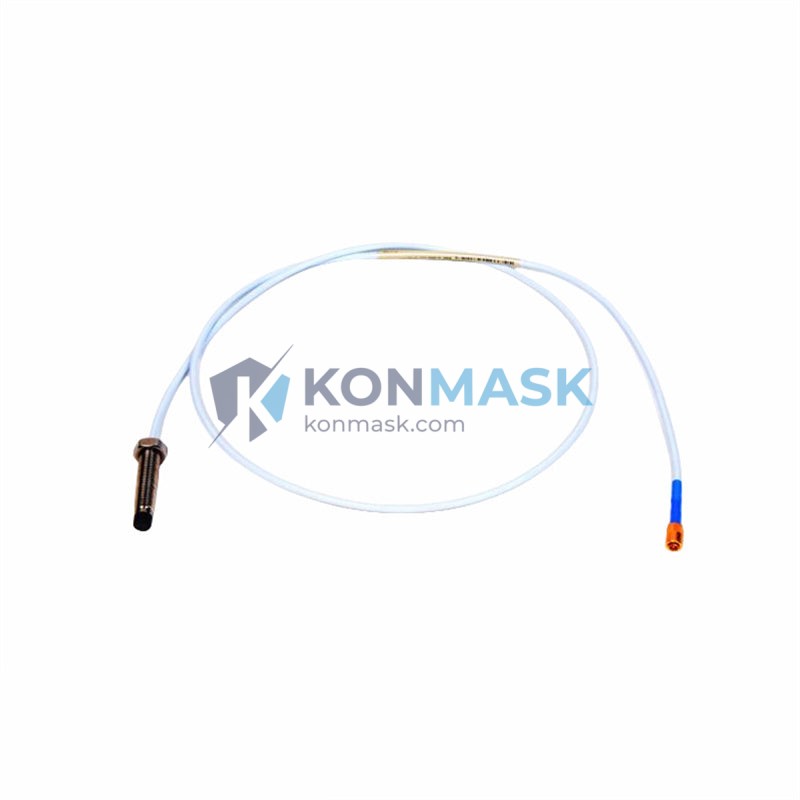

Bently Nevada 330104-02-18-10-01-00 – 8mm Proximity Transducer System | 3300 XL Platform
Engineering Background
The Bently Nevada 3300 XL Proximity Transducer System is the industry benchmark for non-contact vibration and position measurement in rotating machinery protection. Engineered to API 670 standards, this system delivers sub-micron resolution across demanding industrial environments — from petrochemical turbines to power generation assets.
Product Positioning
Part number 330104-02-18-10-01-00 is an 8mm probe configuration within the 3300 XL series, designed for radial vibration, axial position, and differential expansion measurement. It integrates directly with Bently Nevada 3500 Series rack monitors and is the preferred choice for OEM-specified machinery protection systems worldwide.
Complete Technical Specifications
- Part Number: 330104-02-18-10-01-00
- Series: Bently Nevada 3300 XL
- Probe Diameter: 8 mm
- Cable Length: 18 inches (457 mm) integral cable
- Extension Cable: 10 ft (3.0 m)
- Driver: 3300 XL 8mm Proximitor® Sensor
- Measurement Type: Radial Vibration / Axial Position / Differential Expansion
- Linear Range: 0.25 mm to 2.26 mm (10 to 89 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: -35°C to +177°C (probe); -35°C to +85°C (driver)
- Supply Voltage: -24 VDC (nominal)
- Output Voltage Range: -1 VDC to -21 VDC
- Target Material: AISI 4140 steel (standard)
- Ingress Protection: IP67 (probe assembly)
- Approvals: FM, CSA, ATEX, IECEx
- Connector: Integral coaxial, armored cable
- Weight: Approx. 320 g (complete system)
- Compliance: API 670, CE, RoHS
Proven Application Environments
- Steam and gas turbines (power generation & oil/gas)
- Centrifugal and axial compressors
- Pumps, fans, and blowers in critical service
- Gearboxes and expanders
- Hydro turbines and motor-driven equipment
- Petrochemical and refinery rotating machinery
- LNG plant compressor trains
- Marine propulsion systems
Engineering Advantages
- Non-contact measurement — zero mechanical wear, continuous operation without maintenance intervals
- Sub-micron resolution — detects early-stage rotor instability before catastrophic failure
- Wide temperature range — qualified for hot-section turbine bearing housings
- API 670 compliant — drop-in replacement for existing 3300 XL installations
- Armored integral cable — resists oil, steam, and chemical exposure in harsh plant environments
- Direct 3500 rack compatibility — no signal conditioning adapters required
- Hazardous area certified — FM/CSA/ATEX/IECEx for Zone 0/1/2 installations
System Architecture & Signal Flow
The 330104-02-18-10-01-00 operates as a three-component eddy-current system:
- Probe (330104-02-18-10-01-00) → generates oscillating electromagnetic field at target surface
- Extension Cable (330130-xx) → transmits RF signal with controlled impedance to driver
- Proximitor® Driver (330180-xx / 330190-xx) → demodulates signal, outputs DC voltage proportional to gap distance
- Monitor Input (3500/40M or 3500/42M) → processes voltage, applies alarm/danger setpoints per API 670
System sensitivity is factory-calibrated as a matched set. Substituting individual components from different serial batches may affect scale factor accuracy — always specify complete system replacement.
Sourcing & Quality Verification
Konmask.com sources Bently Nevada 330104-02-18-10-01-00 through authorized industrial distribution channels with full traceability documentation. Every unit undergoes our 4-step verification protocol:
- Step 1 — Documentation Review: Factory certificate of conformance, date code, and serial number cross-referenced against Bently Nevada production records
- Step 2 — Physical Inspection: Connector integrity, cable armor condition, probe tip geometry, and label authenticity verified against OEM specifications
- Step 3 — Functional Test: Gap voltage output and scale factor verified on calibrated test bench using AISI 4140 target at controlled temperature
- Step 4 — Packaging & Traceability: Anti-static packaging, tamper-evident seal, and full documentation package included with every shipment
Procurement Process
- Submit RFQ — Email support@konmask.com with part number, quantity, and required delivery date
- Receive Quote — Pricing, lead time, and availability confirmed within 24 business hours
- Order Confirmation — Purchase order accepted; proforma invoice issued for payment processing
- Quality Hold — Unit reserved and inspection completed before dispatch
- Shipment & Documentation — DHL/FedEx express with full export documentation, CoC, and tracking
- Post-Delivery Support — Technical assistance available for installation and commissioning queries
Technical FAQ
Q: Is 330104-02-18-10-01-00 a direct replacement for 330104-02-18-05-01-00?
A: The suffix difference indicates connector/termination configuration. Verify your existing driver and extension cable compatibility before substitution. Contact our engineers for a compatibility matrix.
Q: Can this probe be used with non-Bently Nevada monitors?
A: The 3300 XL probe is optimized for Bently Nevada Proximitor® drivers. Use with third-party monitors requires scale factor verification and may void API 670 compliance.
Q: What is the typical lead time?
A: Ex-stock units ship within 3–5 business days. Non-stock items typically 2–4 weeks depending on factory availability.
Q: Do you provide calibration certificates?
A: Yes. Factory CoC is included as standard. Third-party NIST-traceable calibration certificates are available on request.
Q: What warranty applies?
A: 12-month warranty against manufacturing defects, consistent with Bently Nevada OEM terms for authorized distribution.
