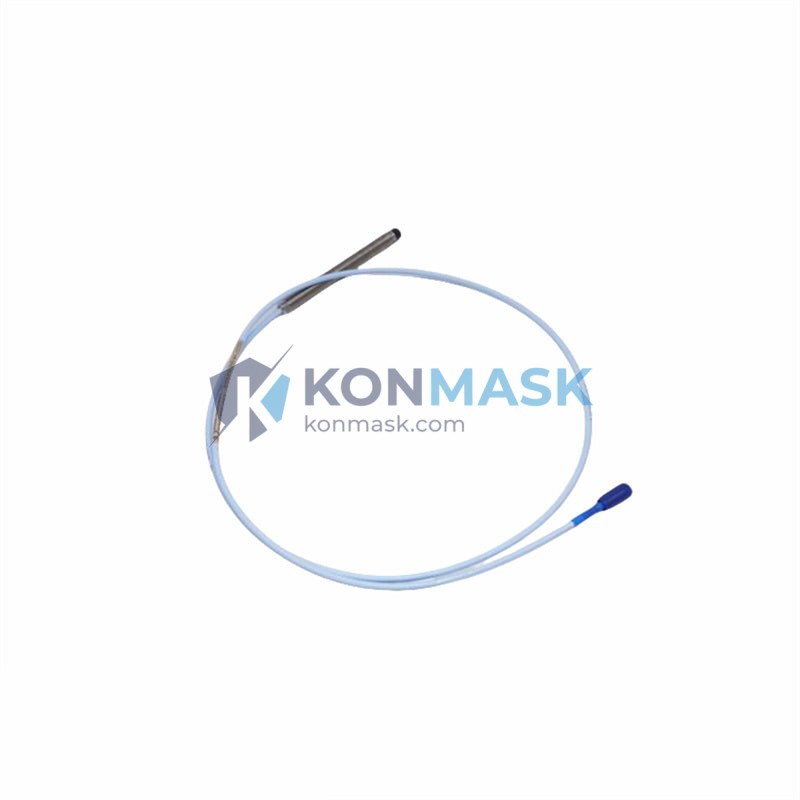

Bently Nevada 330171-00-12-10-02-00 Eddy-Current Proximity Probe – 3300 XL 8mm Transducer System
When a critical rotating machine — a steam turbine, centrifugal compressor, or large induction motor — loses its shaft vibration monitoring capability, the consequences are immediate and severe. Without a functioning proximity probe, operators are blind to radial shaft displacement, oil-whirl instability, and rub events that can escalate from a minor anomaly to a catastrophic bearing failure within seconds. Unplanned downtime in heavy industry routinely costs tens of thousands of dollars per hour, and the loss of a single proximity probe in a redundant monitoring loop can trigger a mandatory plant shutdown under API 670 safety protocols.
The Bently Nevada 330171-00-12-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed machinery protection platforms in the global oil & gas, power generation, and petrochemical industries. Within the 3300 XL family, this specific configuration (12-inch armored cable, 10-32 UNF tip thread, 2-meter extension cable, standard driver) occupies the core position: it delivers the precision and environmental robustness demanded by API 670 fourth-edition installations while maintaining backward compatibility with legacy 3300 series monitor racks. Its global installed base spans refineries in the Middle East, LNG terminals in Southeast Asia, and power plants across Europe and North America.
Technical Specifications
- Part Number: 330171-00-12-10-02-00
- Probe Tip Diameter: 8 mm
- Cable Length (Armored): 12 inches (305 mm)
- Tip Thread: 10-32 UNF
- Extension Cable Length: 2 meters
- Driver Configuration: Standard (compatible with 3300 XL Proximitor® Sensor)
- Transducer System: Bently Nevada 3300 XL 8mm Proximity Transducer System
- Measurement Principle: Eddy-current (non-contact)
- Linear Range: Typically 0.25 mm – 2.25 mm (per 3300 XL system calibration)
- Scale Factor: 7.87 V/mm (200 mV/mil) nominal
- Temperature Range: –35°C to +177°C (probe tip)
- Target Material: AISI 4140 steel or equivalent (per calibration standard)
- Connector: Integral coaxial, armored cable
- Compliance: API 670, CE
- Weight: Approx. 230 g (with cable)
Key Features & Benefits
- Non-Contact Measurement: Eddy-current technology eliminates mechanical wear, ensuring continuous operation without sensor degradation over multi-year service intervals.
- API 670 Compliant: Meets the machinery protection standard mandated by refineries, LNG plants, and power utilities worldwide — simplifying compliance audits.
- 3300 XL System Compatibility: Plug-and-play replacement within existing 3300 XL monitor racks; no recalibration of the Proximitor® driver required when replacing like-for-like.
- Armored Cable Construction: Stainless-steel armor protects the coaxial cable from mechanical damage, vibration fatigue, and chemical exposure in harsh plant environments.
- Wide Temperature Tolerance: Rated to +177°C at the probe tip, suitable for hot-section installations near bearing housings on gas turbines and steam turbines.
- High Sensitivity & Linearity: 7.87 V/mm scale factor provides excellent resolution for detecting sub-mil shaft displacements critical to early fault detection.
- Long-Term Supply Availability: Konmask.com maintains sourcing channels for both new and reconditioned units, supporting MRO and capital-project procurement timelines.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbine-driven pumps, pipeline booster stations
- Power Generation: Steam turbines, gas turbines, hydro generators, large synchronous motors
- Petrochemical & Refining: Cracked-gas compressors, reactor circulation pumps, expander-compressor trains
- LNG & Offshore: FPSO machinery trains, LNG liquefaction compressors
- Pulp & Paper / Mining: Large induced-draft fans, ball mills, kiln drives
System Integration & Compatible Parts
The 330171-00-12-10-02-00 probe is designed to operate as part of a complete 3300 XL transducer system. Typical compatible components include:
- Proximitor® Sensor / Driver: Bently Nevada 330180 series (3300 XL 8mm standard driver)
- Extension Cables: Bently Nevada 330130 series (matched to probe cable length)
- Monitor Racks: Bently Nevada 3500 series (3500/40M, 3500/42M, 3500/45) and 3300 series
- Barrier / Zener Barriers: For ATEX/IECEx Zone 1 installations
- Mounting Hardware: 10-32 UNF lock nuts and probe holders per API 670 Annex D
Always verify the complete system part numbers (probe + extension cable + driver) to ensure calibrated scale factor consistency before installation.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized distributors or directly from certified MRO channels with full traceability documentation.
- Visual & Dimensional Inspection: Probe tip, cable armor, and connector are inspected against OEM specifications before dispatch.
- Functional Check: Where applicable, units undergo bench-level continuity and impedance checks to confirm electrical integrity.
- Packaging: Anti-static, moisture-barrier packaging with individual part-number labeling to prevent mix-ups during receiving inspection.
- Documentation: Certificate of conformance and packing list provided with every shipment.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical team will confirm part availability, lead time, and provide a formal quotation within 1 business day.
- Upon PO receipt, we arrange export documentation, packaging, and your preferred freight method (DHL Express, FedEx, sea freight, etc.).
- Tracking information and commercial invoice are provided upon shipment.
Minimum order quantity: 1 unit. Volume pricing available for orders of 5+ units.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not a generalist marketplace.
- ✅ Global Export Experience: Serving buyers in 40+ countries with compliant export documentation and reliable international logistics.
- ✅ Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility verification, and system-level questions before you commit to a purchase.
- ✅ Competitive Lead Times: Established supplier relationships allow us to source hard-to-find or obsolete part numbers faster than general distributors.
- ✅ Transparent Communication: No hidden fees. Clear quotations, honest lead times, and proactive shipment updates.
Frequently Asked Questions
Q: Is the 330171-00-12-10-02-00 a direct replacement for older 3300 series probes?
A: The 3300 XL system is designed with backward compatibility in mind. However, mixing XL-series probes with non-XL drivers can affect scale factor accuracy. Always replace the complete matched set (probe + extension + driver) or verify calibration data with your instrumentation team.
Q: Can this probe be used in ATEX Zone 1 hazardous areas?
A: The probe itself is rated for use in hazardous areas when installed with appropriate Zener barriers or galvanic isolators. Consult the Bently Nevada 3300 XL system installation manual and your site’s area classification drawings for the correct barrier selection.
Q: What is the typical lead time for this part number?
A: Lead time varies by current stock levels. Submit an RFQ and we will confirm availability within 24 hours. Expedited sourcing is available for urgent plant maintenance situations.
Q: Do you provide a warranty on this product?
A: Yes. We offer a standard 90-day warranty against defects in materials and workmanship. Extended warranty options are available — please inquire at the time of quotation.
Q: Can you supply the matching Proximitor® driver and extension cable as a complete set?
A: Yes. We can source and supply the complete 3300 XL transducer system set. Please specify your required cable lengths and driver model when submitting your RFQ.
