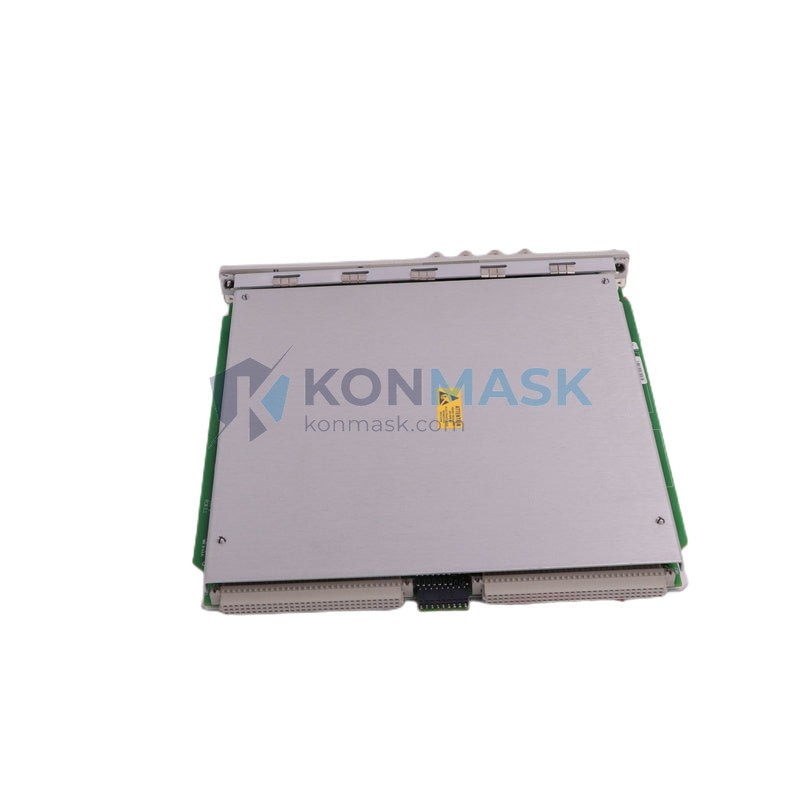

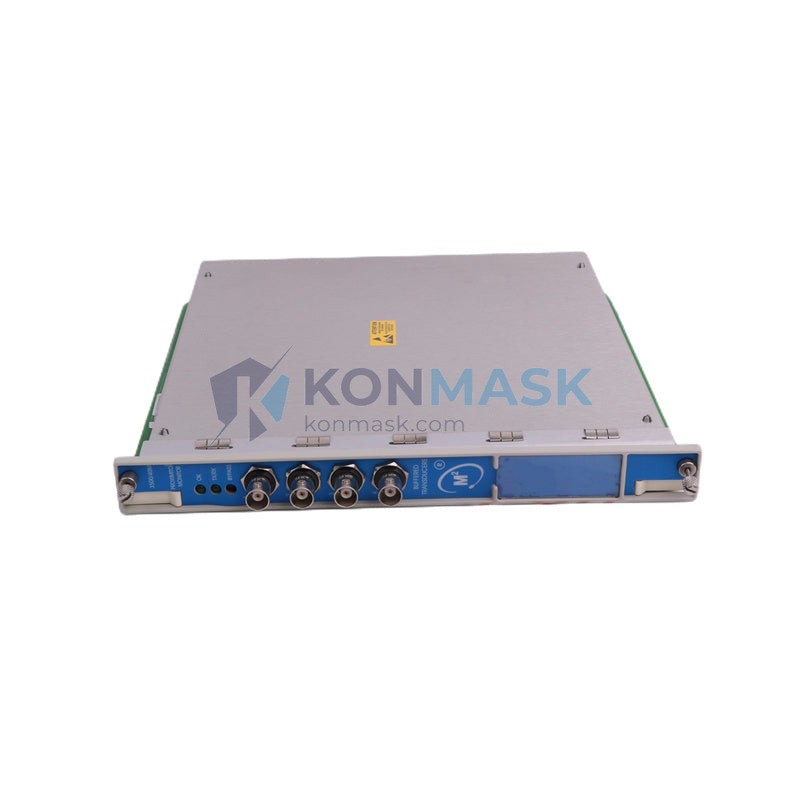

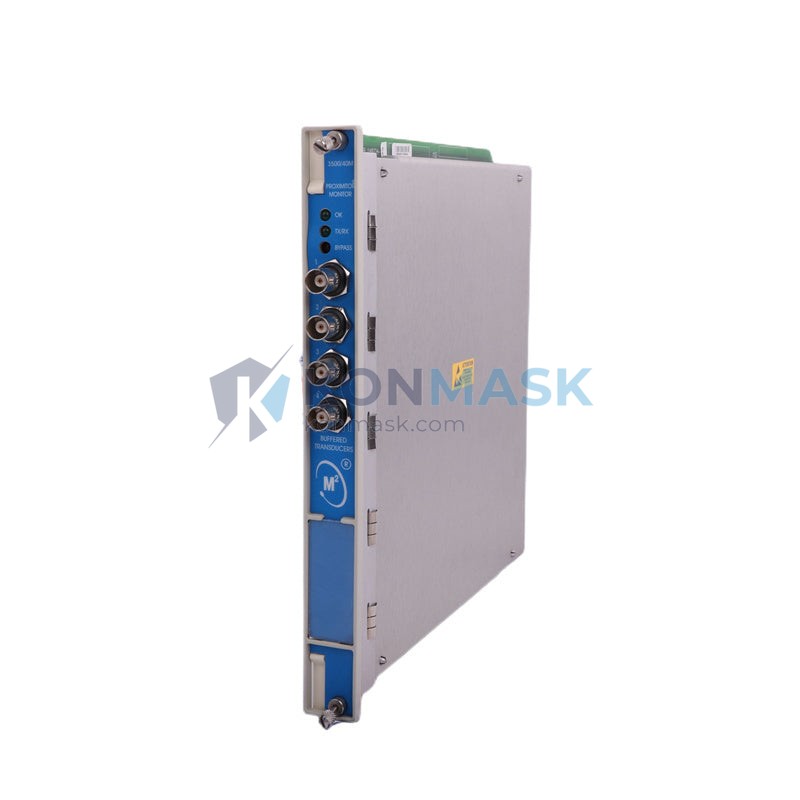

Bently Nevada 3500/40M 140734-01 – Proximitor / Velomitor Monitor | 3500 Series Machinery Protection System
Engineering Background: The Bently Nevada 3500 Series is the industry-standard rack-based machinery protection platform deployed across rotating equipment in oil & gas, power generation, petrochemical, and water treatment facilities worldwide. Designed to meet API 670 requirements, the 3500 system provides continuous, real-time monitoring of shaft vibration, position, and dynamic motion — forming the last line of automated defense before a trip event. The 3500/40M module occupies a dedicated slot within the 3500 rack and serves as the signal conditioning and monitoring interface between Proximitor/Velomitor sensors and the system’s protection logic.
Product Positioning: The 3500/40M (part number 140734-01) is a dual-channel Proximitor/Velomitor input monitor supporting both eddy-current proximity probes and Velomitor piezo-velocity sensors on the same card — a key differentiator from the single-technology 3500/42M or 3500/45. This makes it the preferred choice for installations requiring mixed sensor types within a single rack slot, such as combined radial vibration and casing velocity monitoring on steam turbines or compressor trains. It is not a replacement for the 3500/46M (Hydro) or 3500/50 (tachometer) modules, which serve distinct measurement functions.
Complete Technical Specifications
Electrical
- Input Channels: 2 (Proximitor or Velomitor, configurable per channel)
- Proximitor Input Range: –2 VDC to –18 VDC (standard Bently Nevada gap voltage)
- Velomitor Input: Piezo-velocity, 100 mV/in/s (4 mV/mm/s)
- Full-Scale Range (Proximitor): 0–10 mil pp, 0–20 mil pp, 0–30 mil pp, 0–50 mil pp, 0–80 mil pp (software selectable)
- Full-Scale Range (Velomitor): 0–1 in/s pk, 0–2 in/s pk (software selectable)
- OK Relay Output: Form C, 3 A @ 30 VDC / 1 A @ 125 VAC
- Alert/Danger Relay: Configurable, latching or non-latching
- Buffered Output: ±5 V full scale into ≥ 1 kΩ load
- Power Supply: Supplied via 3500 rack backplane (18–32 VDC)
- Transducer Power: –24 VDC supplied to Proximitor sensors via backplane
Mechanical
- Form Factor: Single-slot 3500 Series PWA (Printed Wiring Assembly)
- Dimensions: Per 3500 rack slot standard (approx. 233 mm × 160 mm)
- Weight: ~800 g (module only)
- Connector: Rear I/O via 3500 rack terminal block (field wiring)
- Part Number: 140734-01
- Compatible Rack: 3500/05, 3500/05-01, 3500/15 (with appropriate I/O module)
Environmental
- Operating Temperature: 0°C to +65°C
- Storage Temperature: –40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration (Operating): 0.152 mm DA, 5–57 Hz; 1.0 g, 57–500 Hz
- Shock: 15 g, 11 ms half-sine
- Enclosure: Installed within 3500 rack enclosure (IP rating per rack selection)
Certifications
- API 670 4th Edition compliant (machinery protection system standard)
- CE Marked (EMC Directive 2014/30/EU)
- FM / CSA approved configurations available (consult rack assembly documentation)
- SIL 1 capable (per system-level SIL assessment; consult Bently Nevada SIL documentation)
Data source: Bently Nevada 3500/40M Product Datasheet (GEA-19019A), 3500 Series Rack Installation & Operation Manual (GEA-19000), and API 670 4th Edition standard.
Proven Application Environments
- Petrochemical / Ethylene Cracker: Centrifugal compressor trains (cracked gas, propylene refrigeration) — continuous radial vibration monitoring under high-speed, variable-load conditions with frequent process upsets.
- Power Generation / Steam Turbine: HP/LP turbine shaft monitoring — dual-channel configuration covers both X-Y radial probes on a single bearing plane, reducing rack slot consumption.
- LNG Liquefaction / BOG Compressors: Cryogenic service compressors — Velomitor input channel used for casing velocity where proximity probe installation is impractical due to shaft material.
- Water Treatment / Large Pump Stations: Vertical turbine pumps and booster pump trains — monitors shaft orbit and radial displacement to detect cavitation-induced vibration signatures.
- Offshore Platform / Gas Lift Compressors: Hazardous area installations (Zone 1/2) — module operates within certified 3500 rack enclosure meeting offshore EMC and vibration requirements.
- Steel / Rolling Mill / Blower Trains: High-temperature environment blowers and ID/FD fans — Velomitor channel selected for casing velocity monitoring where bearing housing temperatures exceed proximity probe cable ratings.
Engineering Advantages
- For installations requiring both eddy-current and piezo-velocity sensing on the same machine train, this Proximitor/Velomitor monitor supports mixed sensor types per channel, because the 140734-01 firmware allows independent transducer type selection per channel without requiring two separate module types.
- For API 670-governed machinery protection systems, this monitor provides compliant alert/danger setpoint architecture, because the dual-relay output with configurable latching logic meets the voting and bypass requirements defined in API 670 Section 5.
- For control room integration via DCS or safety system, this monitor delivers isolated 4–20 mA outputs and buffered voltage outputs simultaneously, because the backplane architecture separates protection logic from analog retransmission without signal loading.
- For sites with aging 3500 rack infrastructure, this PWA module is a direct slot-compatible replacement for earlier 3500/40 revisions, because the 140734-01 maintains backward-compatible I/O pinout and rack communication protocol.
- For high-vibration plant environments (compressor halls, turbine decks), this monitor maintains measurement accuracy within specification, because the onboard signal conditioning filters are hardware-implemented and immune to rack power supply noise.
- For procurement teams managing spare parts inventory, this module carries a discrete Bently Nevada part number (140734-01) traceable through Baker Hughes documentation, because each PWA is serialized and verifiable against factory calibration records.
System Architecture & Signal Flow
Signal Flow: Field sensor (Proximitor probe or Velomitor) → field wiring terminal block (rear I/O) → 3500/40M PWA input conditioning → DSP-based measurement engine → backplane communication to 3500/20 rack controller → relay output (Alert/Danger/OK) + 4–20 mA retransmission + buffered BNC output for portable analyzer connection.
Compatible Models & Reason:
- 3500/05 Rack: Primary host rack; 3500/40M occupies any standard monitor slot (slots 2–16).
- 3500/20 Rack Interface Module: Required for backplane communication and system power; must be present in the same rack.
- 3300 XL 8mm / 11mm Proximitor Systems: Compatible as field sensors; gap voltage and sensitivity (7.87 V/mm) within 3500/40M input specification.
- Velomitor XA (330525): Compatible piezo-velocity sensor; 100 mV/in/s sensitivity matches Velomitor input channel configuration.
- 3500/42M (140734-02): Functionally similar but configured for Proximitor-only input; use 3500/40M (140734-01) when Velomitor input is required on either channel.
Substitution Conditions: The 3500/40M 140734-01 can substitute for 3500/40 (earlier revision) in existing racks without rack modification. It cannot substitute for 3500/46M (Hydro monitor) or 3500/50 (tachometer) as those modules serve fundamentally different measurement functions. Firmware version compatibility with the 3500/20 rack controller should be verified prior to installation in racks running firmware below v5.0.
Sourcing & Quality Verification
Source: Units offered through Konmask.com are sourced from decommissioned plant spares, authorized distributor overstock, and controlled secondary market channels. Each unit undergoes condition assessment prior to listing.
4-Step Verification Process:
- Visual Inspection: PCB examined for corrosion, component damage, burn marks, and connector pin integrity. Front panel label and part number (140734-01) verified against physical markings.
- Serial Number Traceability: Serial number recorded and cross-referenced against available Baker Hughes / Bently Nevada documentation where applicable.
- Functional Bench Test: Module powered via compatible 3500 rack; input channels verified for correct OK relay state, buffered output voltage, and communication with rack controller.
- Packaging & ESD Protection: Unit packed in anti-static bag with foam cushioning; humidity indicator card included for transit monitoring.
Documentation Available Upon Request:
- High-resolution photos of physical unit (all sides, label, connectors)
- Bench test report (functional verification results)
- Bently Nevada original datasheet (GEA-19019A)
- Certificate of conformance (where available)
- Export compliance documentation (HS code, country of origin)
Procurement Process
- Submit Inquiry: Contact via email (support@konmask.com) or phone (+0086 19859288691) with part number (3500/40M 140734-01), required quantity, and delivery timeline. Attach rack configuration details if compatibility verification is needed.
- Receive Quote & Availability Confirmation: A detailed quotation including unit price (HKD/USD), lead time, shipping options, and available documentation will be issued within 24 hours of inquiry receipt on business days.
- Order Confirmation & Shipment: Upon purchase order acceptance, the unit is prepared, re-inspected, and dispatched with tracking. Express international shipping (DHL/FedEx) available for urgent plant requirements.
Technical Support Available: Pre-sale compatibility consultation (rack firmware, sensor type, I/O module matching); post-sale installation guidance (wiring, configuration reference); cross-reference assistance for obsolete or superseded part numbers.
Technical FAQ
Q1: Is the 3500/40M 140734-01 compatible with both 3300 XL Proximitor probes and Velomitor XA sensors simultaneously on the same module?
A: Yes. Each of the two input channels can be independently configured for either Proximitor (eddy-current, –24 VDC powered) or Velomitor (piezo-velocity, externally powered) input. Channel 1 and Channel 2 do not need to use the same sensor type. Configuration is performed via the 3500 Rack Configuration Software (RCS).
Q2: Can the 3500/40M 140734-01 replace a 3500/42M or 3500/40 (earlier revision) without rack modification?
A: The 3500/40M 140734-01 is backward-compatible with earlier 3500/40 revisions and occupies the same rack slot with the same rear I/O pinout — no rack modification required. It is not a direct replacement for the 3500/42M, which uses a different firmware configuration profile; however, it can perform the same measurement function if reconfigured via RCS. Confirm rack controller firmware version (≥ v5.0 recommended) before substitution.
Q3: Does this module carry SIL certification, and is it suitable for use in a Safety Instrumented System (SIS)?
A: The 3500/40M is SIL 1 capable at the system level when integrated within a compliant 3500 rack assembly and assessed per IEC 61511. It is not independently SIL-certified as a standalone device. For SIS applications in petrochemical or power generation facilities, a full system-level SIL assessment (FMEDA) referencing the Bently Nevada SIL documentation package is required. Konmask.com can provide the relevant Bently Nevada SIL reference documents upon request.
