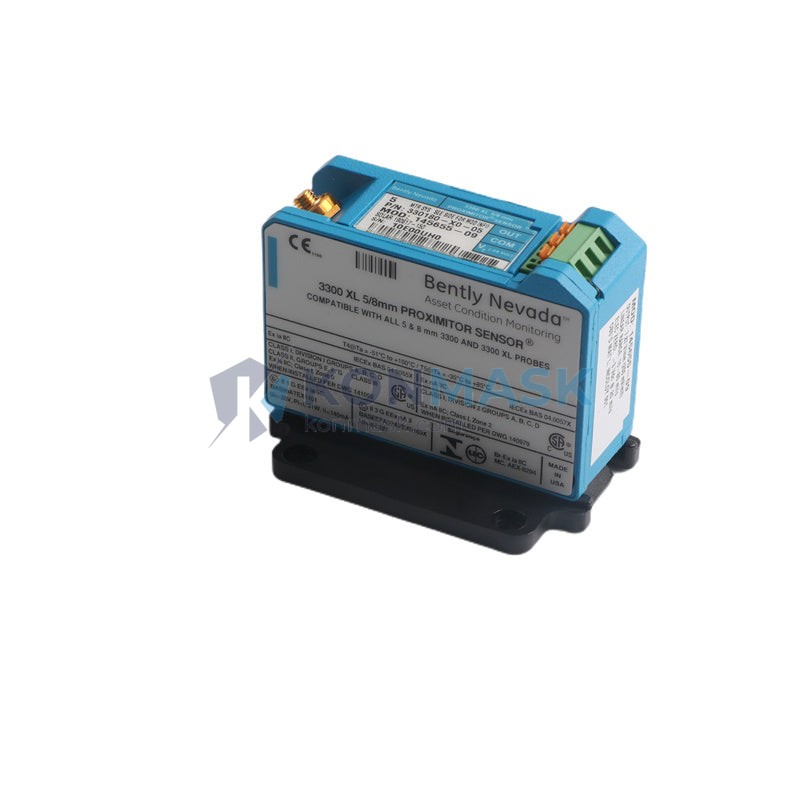

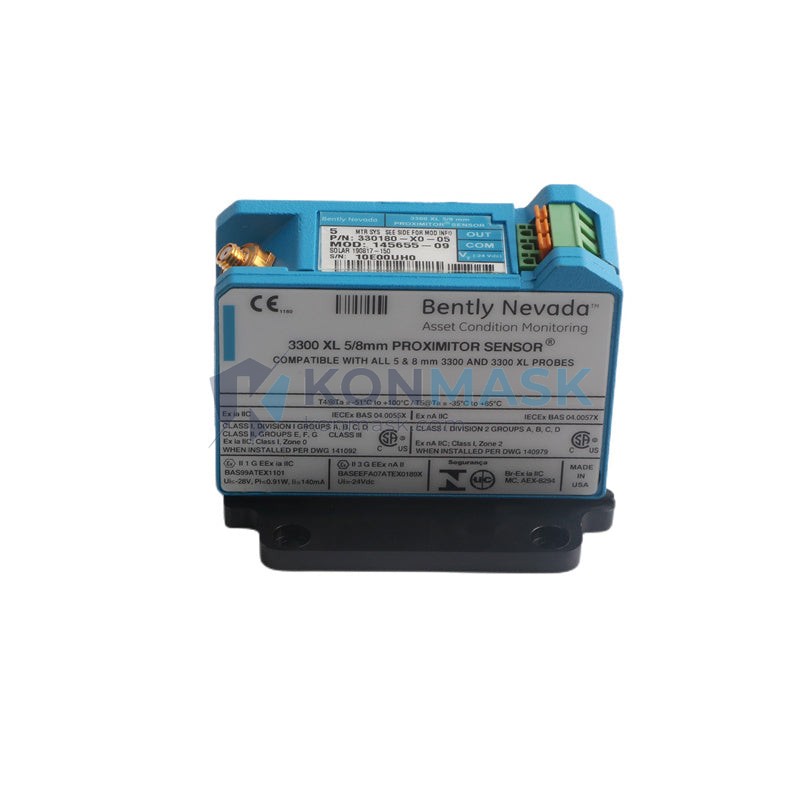

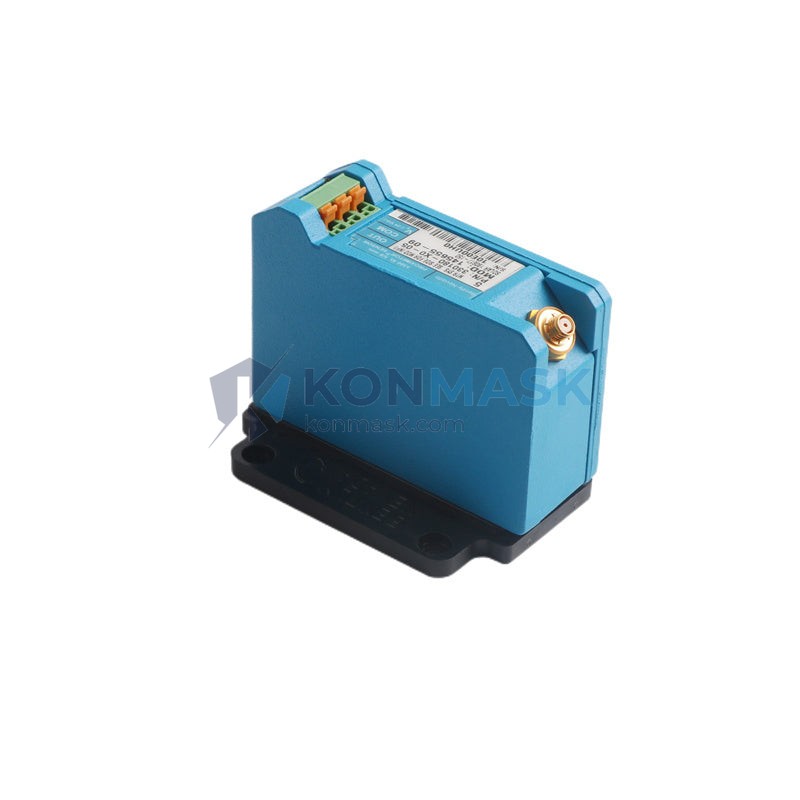

Genuine Bently Nevada 330180-X0-05 5/8 mm Proximitor Sensor | 3300 XL Series – Verified Source
The Bently Nevada 330180-X0-05 is a mission-critical 5/8 mm Proximitor® Sensor within the industry-standard 3300 XL Series — the backbone of rotating machinery protection systems in power generation, oil & gas, petrochemical, and heavy industrial plants worldwide. Due to its widespread deployment in safety-critical applications, this model is one of the most counterfeited and misrepresented components on the secondary market. Buyers sourcing from unverified channels routinely encounter cloned units, refurbished-as-new stock, and non-OEM assemblies that fail under operational conditions — with potentially catastrophic consequences for plant uptime and personnel safety.
At Konmask, every Bently Nevada unit we supply is sourced exclusively through verified, traceable supply chains. We apply a rigorous multi-step authentication process before any unit ships, and we stand behind every sale with full documentation. When you see the words genuine, verified, and authentic on our listings, they are backed by physical evidence — not marketing copy. Our commitment is simple: you receive exactly what the label says, or we make it right.
Technical Specifications
| Part Number | 330180-X0-05 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL Proximitor® System |
| Sensor Type | Eddy-Current Proximity Sensor |
| Probe Diameter | 5/8 inch (15.875 mm) |
| Measurement Range | 0 – 90 mil (0 – 2.286 mm) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | DC to 10,000 Hz |
| Supply Voltage | -24 VDC (nominal) |
| Operating Temperature | -35°C to +85°C |
| Connector Type | MIL-C-5015 style |
| Cable Length | 5 meters (standard) |
| Ingress Protection | IP67 |
| Compliance | CE, RoHS, API 670 |
Specifications verified against Bently Nevada official documentation and 3300 XL Series product datasheet.
Our 4-Step Quality Verification Process
Every Bently Nevada 330180-X0-05 unit sold by Konmask passes through the following authentication and quality control workflow before dispatch:
- Step 1 — Visual & Markings Inspection: Serial number, date code, OEM label typography, housing finish, and connector pin configuration are cross-referenced against Bently Nevada factory specifications. Any unit with inconsistent markings, reground surfaces, or non-OEM labels is immediately rejected.
- Step 2 — Functional Bench Test: Each sensor is powered at -24 VDC and tested for output linearity, sensitivity (200 mV/mil ±1%), and frequency response across the rated bandwidth. Results are logged and retained on file.
- Step 3 — Documentation Verification: We confirm traceability through supply chain records. Available documentation includes: Certificate of Conformance (COC), Test Report, Packing List, Country of Origin (COO) Declaration, and photographic evidence of the unit as received and as shipped.
- Step 4 — Packaging & Seal Integrity Check: Units are inspected for original OEM packaging integrity where applicable. All Konmask shipments are repackaged in anti-static, moisture-barrier materials with tamper-evident sealing for transit protection.
Key Features & Benefits
- API 670-Compliant Design: Engineered to meet API Standard 670 (Machinery Protection Systems), the globally recognized benchmark for rotating equipment monitoring in the oil & gas and petrochemical industries.
- Non-Contact Eddy-Current Technology: Provides continuous, wear-free shaft displacement measurement with no mechanical contact — eliminating sensor degradation from friction or vibration fatigue.
- Wide Frequency Bandwidth (DC–10 kHz): Captures both slow-roll runout and high-frequency vibration events, enabling detection of imbalance, misalignment, rubs, and oil whirl per ISO 7919 and ISO 10816 monitoring guidelines.
- High-Temperature Stability: Maintains calibrated output accuracy across -35°C to +85°C, suitable for turbine bearing housings, compressor pedestals, and other thermally demanding environments.
- Direct 3300 XL System Compatibility: Plug-and-play integration with Bently Nevada 3300 XL monitors, drivers, and junction boxes — no recalibration required when replacing like-for-like units.
- IP67 Environmental Sealing: Fully protected against dust ingress and temporary immersion, ensuring reliable operation in wash-down, humid, or splash-prone industrial environments.
Typical Applications
- Power Generation: Steam turbine shaft radial vibration and axial position monitoring at utility and industrial power plants.
- Oil & Gas Upstream: Centrifugal compressor and gas turbine protection on offshore platforms and onshore processing facilities.
- Petrochemical & Refining: Reactor feed pump and cracked gas compressor shaft monitoring in continuous-process refinery trains.
- LNG & Pipeline: Main refrigerant compressor and booster pump vibration surveillance in liquefaction and transmission stations.
- Pulp & Paper / Heavy Industry: Large induced-draft fan and kiln drive shaft displacement measurement in high-dust environments.
- Marine & Offshore: Propulsion turbine and auxiliary machinery monitoring on FPSO vessels and LNG carriers requiring API 670-grade instrumentation.
Compatible System Components
- Bently Nevada 3300 XL 8mm Extension Cable (330130 series)
- Bently Nevada 3300 XL Proximitor® Driver / Signal Conditioner (3300/16 series)
- Bently Nevada 3500/42M Proximitor® / Seismic Monitor Module
- Bently Nevada 3500/22M Transient Data Interface (TDI)
- Bently Nevada System 1 Condition Monitoring Software
- Standard MIL-C-5015 field wiring connectors and junction boxes
Global Sourcing & Shipping Capabilities
Konmask supplies industrial automation components to customers across Asia-Pacific, the Middle East, Europe, and the Americas. Our standard export packaging for the 330180-X0-05 includes anti-static foam insert, moisture-barrier poly bag, rigid outer carton, and a printed packing list with part number, serial number, and quantity confirmation. Shipments are dispatched via DHL Express, FedEx International Priority, or sea freight consolidation depending on order volume and destination. Export documentation — including commercial invoice, packing list, and COO declaration — is prepared for all international shipments. Lead time for in-stock units is typically 3–7 business days to most destinations.
Certifications & Compliance Statement
- CE Marking (EMC Directive 2014/30/EU)
- RoHS Compliant (Directive 2011/65/EU)
- API Standard 670 — Machinery Protection Systems
- ISO 9001:2015 Supply Chain Quality Management
Konmask Quality Commitment: We do not knowingly source, stock, or sell counterfeit, cloned, or non-OEM components. All units are subject to our 4-step verification process. If any unit supplied by Konmask is determined to be non-genuine upon independent inspection, we will provide a full replacement or refund — no questions asked.
How to Order
- Submit Your Inquiry: Contact us via the product page, email [email protected], or WhatsApp +0086 19859288691 with your required part number, quantity, and destination country.
- Receive Quotation & Documentation Preview: We respond within 24 hours with pricing, availability, lead time, and available documentation (COC, test report, photos). Sample units available for qualified buyers upon request.
- Confirm & Ship: Upon order confirmation and payment, your unit is re-inspected, packaged, and dispatched with full export documentation. Tracking information is provided within 24 hours of shipment.
Authenticity & Trust FAQ
Q: How can I verify that the unit I receive is a genuine Bently Nevada product?
A: Every unit ships with a Certificate of Conformance (COC) and photographic documentation taken during our inspection process. The serial number on the unit can be cross-referenced with Bently Nevada’s authorized service network. We also provide a test report showing measured output sensitivity and linearity results for your specific unit upon request.
Q: What is your warranty policy on the 330180-X0-05?
A: Konmask provides a 12-month warranty against defects in materials and workmanship from the date of shipment. If a unit fails under normal operating conditions within the warranty period, we will replace it or issue a full refund. Our warranty does not cover damage caused by incorrect installation, overvoltage, or physical impact.
Q: Can you provide a test report or inspection photos before I place an order?
A: Yes. For qualified buyers and larger orders, we can provide pre-shipment inspection photos, bench test data, and COC documentation prior to payment confirmation. Please contact us to discuss your specific documentation requirements.
