Vibration Monitoring Solution – Bently Nevada 330854-040-25-CN | 3300 XL Series
Where This Product Is Used

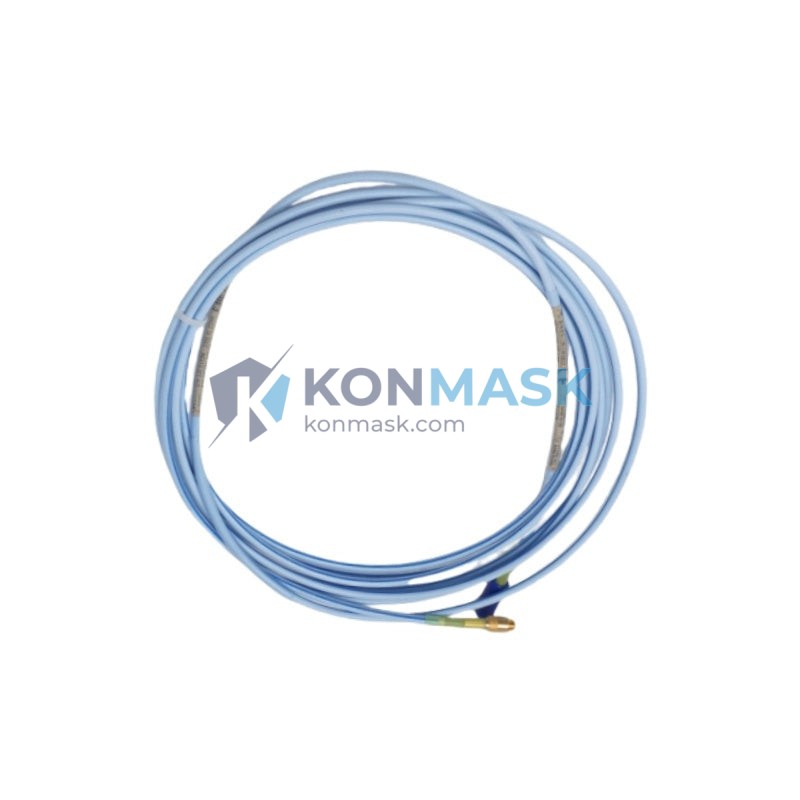

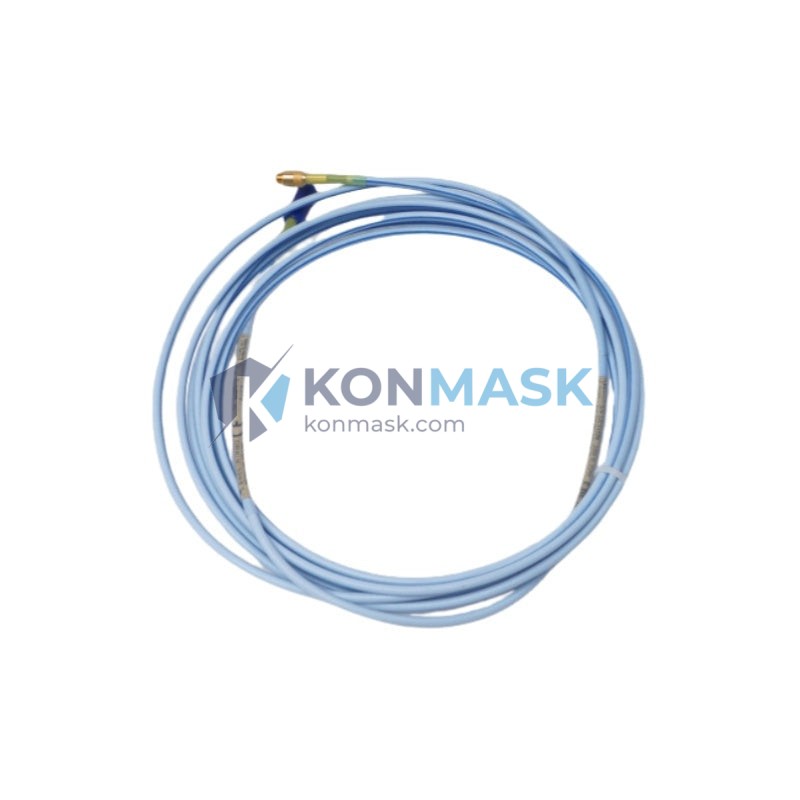

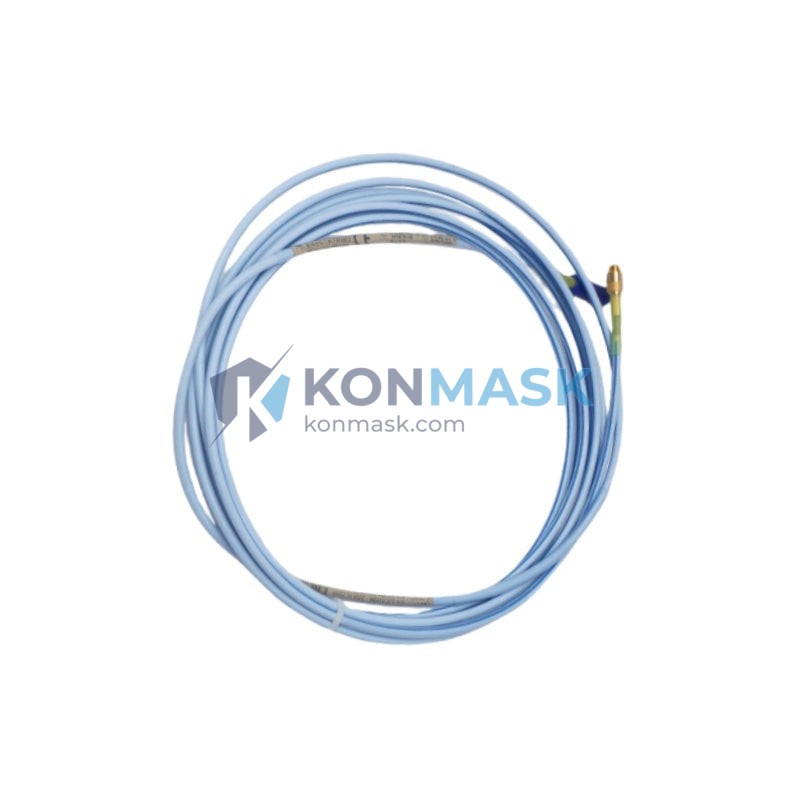

The Bently Nevada 330854-040-25-CN is a 25-foot (7.62 m) extension cable engineered for the 3300 XL Proximity Transducer System. It bridges the gap between the proximity probe and the Proximitor® sensor in high-vibration, high-temperature industrial environments. Typical deployment sites include:
- Steam & Gas Turbines – shaft radial vibration and axial position monitoring on power generation units
- Centrifugal Compressors – continuous rotor orbit and eccentricity measurement in petrochemical plants
- Pumps & Fans – bearing health surveillance in water treatment and HVAC systems
- Gearboxes & Expanders – torsional and lateral vibration detection in refinery and LNG facilities
- Marine Propulsion Systems – shaft monitoring in confined machinery spaces requiring precise cable routing
Wherever rotating machinery demands API 670-compliant vibration protection, the 330854-040-25-CN delivers the signal integrity required for reliable trip and alarm functions.
Technical Specifications
- Part Number: 330854-040-25-CN
- Series: 3300 XL Proximity Transducer System
- Cable Length: 25 ft (7.62 m)
- Connector Type: Standard BNC / coaxial, compatible with 3300 XL probes and Proximitor® sensors
- Operating Temperature: –40 °C to +85 °C (cable); probe tip rated to +177 °C
- Jacket Material: Stainless steel armored / PTFE-insulated inner conductor
- Characteristic Impedance: 50 Ω nominal
- Scale Factor: Compatible with –7.87 V/mm (–200 mV/mil) system scale
- Weight: 280 g (approx.)
- Country of Origin: USA (Bently Nevada / Baker Hughes)
Why Engineers Specify This Model
- Exact Length Matching: The 25 ft (040 = 40 cm probe + 25 ft cable) configuration minimizes signal loss and eliminates field splicing, preserving system accuracy to ±0.5%.
- Drop-in Compatibility: Designed exclusively for the 3300 XL ecosystem — no re-calibration required when replacing a like-for-like cable.
- EMI/RFI Shielding: Double-shielded coaxial construction rejects electrical noise in VFD-dense and high-voltage switchgear environments.
- Chemical Resistance: PTFE jacket withstands hydrocarbon vapors, lubricating oils, and cleaning solvents common in refinery service.
- Reduced Downtime: Pre-terminated, factory-tested connectors allow hot-swap replacement during planned outages without re-termination labor.
Complete System Bill of Materials
For a fully functional 3300 XL proximity measurement loop, pair this extension cable with:
- Proximity Probe: 330104-00-20-10-02-00 (8 mm, 20 ft integral cable) or equivalent 3300 XL probe
- Proximitor® Sensor: 3300 XL 8 mm Proximitor® (e.g., 330180-X1-05)
- Power Supply: –24 VDC regulated (typically from Bently Nevada 3500 rack or equivalent)
- Signal Conditioner / Monitor: Bently Nevada 3500/40M or 3500/42M Proximitor® Monitor
- Mounting Hardware: Probe holder, lock nut, and armored conduit fittings per site specification
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition) compliant
- IEC 61511 – Functional Safety for SIS applications
- ATEX / IECEx – Suitable for use in hazardous area installations when paired with certified Proximitor® sensors
- ISO 10816 / ISO 20816 – Mechanical vibration measurement on non-rotating parts
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Every 330854-040-25-CN unit offered through Konmask.com is:
- Sourced from authorized distributors or verified surplus channels with full traceability documentation
- Inspected for connector integrity, jacket continuity, and shield resistance prior to dispatch
- Shipped with original manufacturer labeling and, where available, factory test certificates
- Backed by Konmask’s 90-day quality guarantee against manufacturing defects
How to Source This Part
Stock availability for legacy and active Bently Nevada components fluctuates. To confirm lead time and pricing for the 330854-040-25-CN:
- 📧 Email: support@konmask.com
- 📞 Phone / WhatsApp: +0086 198 5928 8691
- 🌐 Online: https://konmask.com
Bulk orders, urgent AOG (Aircraft on Ground) / ESD (Emergency Shutdown) requirements, and long-term supply agreements are welcome. Typical dispatch within 3–7 business days for in-stock units.
Application-Specific FAQ
Q: Can I use the 330854-040-25-CN with an older 3300 (non-XL) probe?
A: The cable connector is physically compatible, but system performance and scale factor accuracy are only guaranteed within the 3300 XL matched-system configuration. Mixing generations may introduce calibration offsets.
Q: What is the maximum total cable length for a 3300 XL system?
A: Bently Nevada specifies a maximum combined probe + extension cable length. For 8 mm probes, the typical maximum is 9 m (≈30 ft) total. The 25 ft extension is designed for use with short integral-cable probes to stay within this limit.
Q: Is this cable suitable for cryogenic service?
A: The standard 330854-040-25-CN is rated to –40 °C. For cryogenic applications below –40 °C, consult Bently Nevada / Baker Hughes for low-temperature variants.
Q: Do you supply calibration certificates?
A: Factory calibration data is available for new units. For surplus stock, we provide inspection reports. Contact us to discuss documentation requirements before ordering.
Q: Can Konmask supply the complete 3300 XL system (probe + cable + Proximitor®)?
A: Yes. We can source and supply complete matched sets. Contact our team with your system tag number and we will configure the correct BOM.
