Vibration Monitoring Solution — Bently Nevada 330881-16-04-189-06-02 | 3300 XL Series

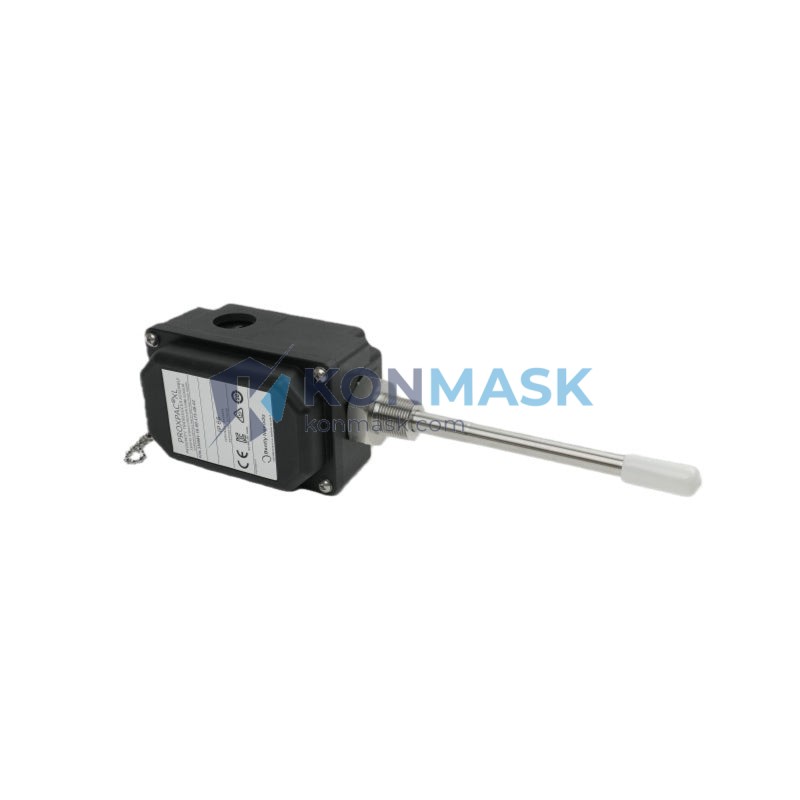

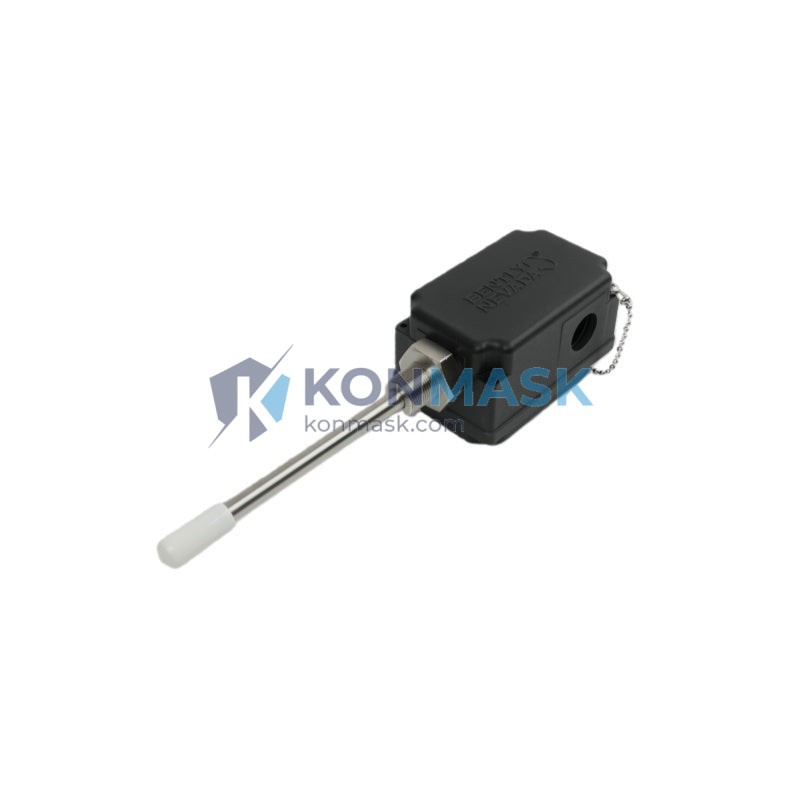

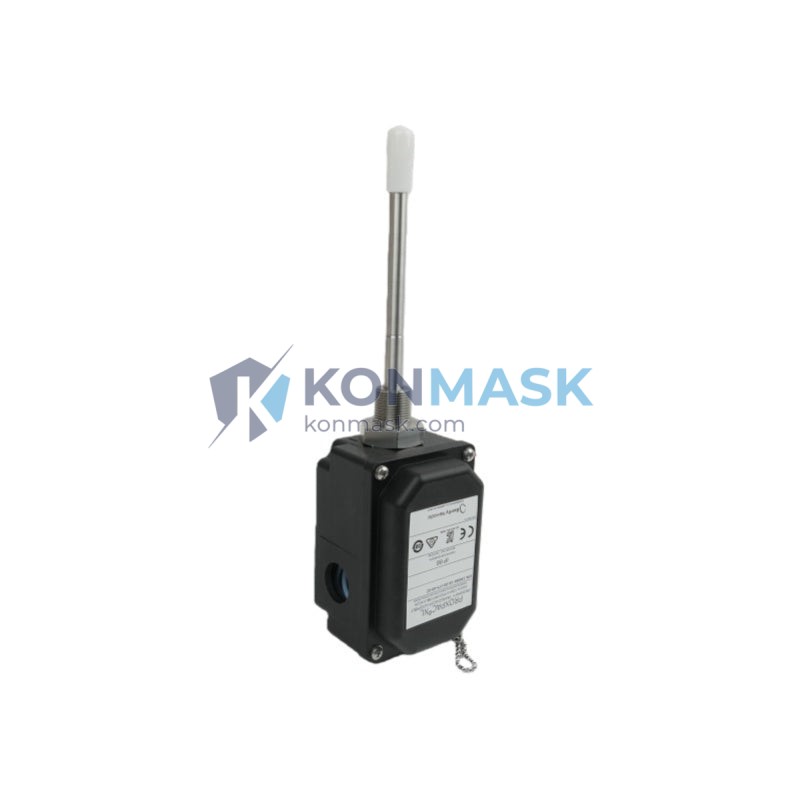

The Bently Nevada 330881-16-04-189-06-02 is a high-precision metric proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery. Part of the industry-standard 3300 XL Series, this eddy-current sensor delivers reliable, real-time displacement measurements in the most demanding industrial environments.
Where This Product Is Used
This proximity transducer is specified by rotating machinery engineers and reliability teams across critical industries:
- Oil & Gas: Centrifugal compressors, gas turbines, and pipeline booster stations where shaft displacement monitoring is mandatory per API 670.
- Power Generation: Steam turbines and generator sets requiring continuous radial vibration surveillance to prevent catastrophic failure.
- Petrochemical & Refining: High-speed process compressors and pumps in hazardous-area installations.
- Marine Propulsion: Shaft monitoring on large diesel engines and reduction gearboxes.
- Pulp & Paper / Heavy Industry: Fan, blower, and large motor bearing monitoring for predictive maintenance programs.
Technical Specifications
- Part Number: 330881-16-04-189-06-02
- Series: Bently Nevada 3300 XL
- Measurement Type: Eddy-Current Proximity / Displacement
- Thread (Metric): M8 × 1.0
- Probe Length: 16 mm (active tip to body)
- Cable Length: 4 m (integral cable)
- Extension Cable Length: 189 mm
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 – 2.54 mm (10 – 100 mil)
- Frequency Response: 0 – 10,000 Hz
- Operating Temperature: −35 °C to +177 °C
- Target Material: AISI 4140 steel (standard); other alloys available
- Output: –24 VDC nominal bias
- Connector: 02-pin metric connector
- Weight: 1,350 g (complete assembly)
- Compliance: API 670, CE, RoHS
Why Engineers Specify This Model
- Metric Thread Standard: Direct drop-in replacement for metric-threaded probe bosses — no adapter required, reducing installation time and potential leak paths.
- Extended Temperature Range: Rated to 177 °C, suitable for hot-section turbine bearing pedestals without derating.
- API 670 Compliance: Meets the Machinery Protection Systems standard required by most EPC contractors and plant operators globally.
- Proven 3300 XL Ecosystem: Fully compatible with Bently Nevada 3300 XL proximitor/seismics, 3500 Series rack monitors, and System 1 software — no recalibration of the monitoring system required.
- Long Integral Cable: 4 m cable minimises field splices in hazardous areas, reducing potential failure points.
Complete System Bill of Materials
For a fully functional proximity measurement loop, the following components are typically required:
- Proximity Probe: 330881-16-04-189-06-02 (this item)
- Extension Cable: Bently Nevada 330130-080-00-00 (or equivalent 3300 XL extension)
- Proximitor / Signal Conditioner: Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180-X1-05)
- Monitor Rack: Bently Nevada 3500/40M Proximitor / Seismic Monitor
- Mounting Hardware: M8 locknut and probe holder (customer-supplied per API 670 §5.3)
Contact Konmask for complete loop pricing and availability.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 60079 — Equipment for Explosive Atmospheres (verify ATEX/IECEx certificate for hazardous-area use)
- CE Marking — European conformity
- RoHS Compliant — Restriction of Hazardous Substances
- ISO 10816 / ISO 20816 — Mechanical vibration measurement guidelines
Quality Assurance & Sourcing
Konmask sources the 330881-16-04-189-06-02 exclusively from authorised distribution channels and verified surplus inventories. Every unit undergoes:
- Visual and dimensional inspection against OEM drawings
- Bias voltage and sensitivity verification prior to dispatch
- Anti-static packaging with individual serialisation records
- Certificate of Conformance (CoC) available upon request
We do not sell counterfeit, refurbished-as-new, or unverified grey-market parts.
How to Source This Part
- In-Stock Orders: Add to cart and check out — ships within 1–3 business days from our warehouse.
- Urgent / Shutdown Requirements: Email support@konmask.com or call +0086 19859288691 for expedited quotation and same-day dispatch options.
- Bulk / Project Procurement: Request a formal quotation for volume pricing, lead-time commitment, and consolidated shipping.
- Cross-Reference / Interchange: If you are unsure whether this part number matches your existing installation, share your current tag number or proximitor model and our engineers will confirm compatibility.
Application-Specific FAQ
Q: Is the 330881-16-04-189-06-02 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. The 3300 XL probe series is fully compatible with the 3500 Series rack when used with the correct 3300 XL proximitor. No sensitivity rescaling is required.
Q: What is the difference between the 330880 and 330881 series?
A: The 330880 uses imperial (UNF) threads; the 330881 uses metric (M8 × 1.0) threads. Electrically and functionally they are equivalent. Specify 330881 for metric probe bosses.
Q: Can this probe be used on non-steel targets?
A: The standard calibration is for AISI 4140 steel. For stainless steel, titanium, or other alloys, a target material correction factor must be applied. Contact us for application-specific calibration data.
Q: Do you provide a warranty?
A: All units are covered by Konmask’s 12-month warranty against manufacturing defects. Warranty claims are processed within 5 business days.
Q: Can you supply the full 3300 XL loop (probe + extension + proximitor)?
A: Yes. Contact our team for a complete loop quotation including all matched components.
