Turbine Temperature Monitoring Solution — Bently Nevada 3500/60 163179-01 | 3500 Series
In power generation and petrochemical facilities, undetected bearing overtemperature is the leading cause of catastrophic turbine failure. Industry data shows that over 60% of rotating machinery failures are preceded by abnormal temperature excursions lasting less than 90 seconds — a window too narrow for manual inspection. A single unplanned turbine outage costs operators between $500,000 and $2,000,000 USD per day in lost generation capacity, emergency maintenance, and regulatory penalties. Plants running legacy thermocouple readouts without dedicated monitoring modules face MTTR (Mean Time to Repair) figures 3× higher than facilities with integrated condition monitoring.

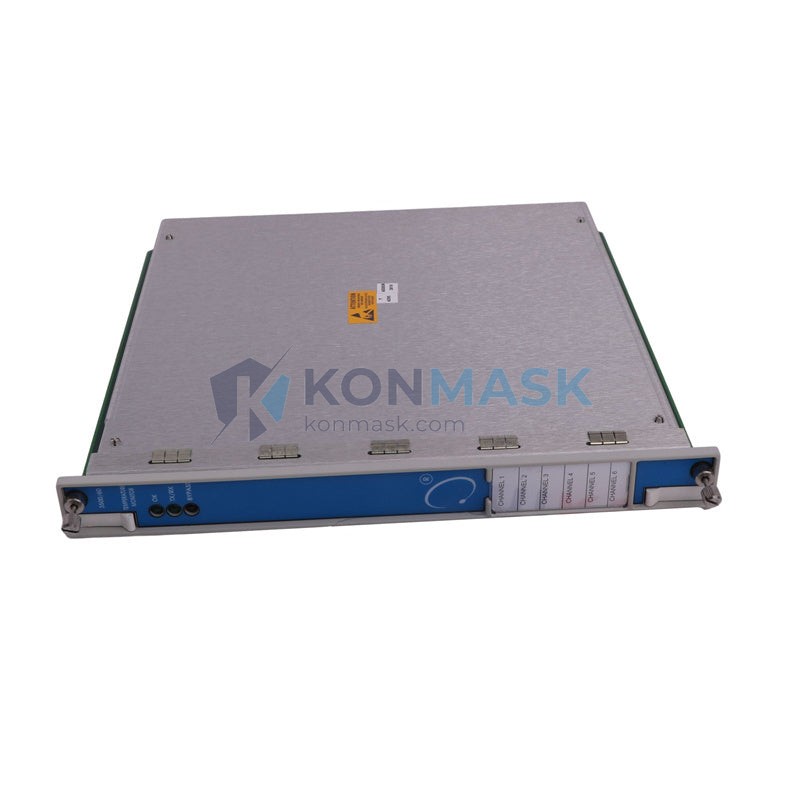

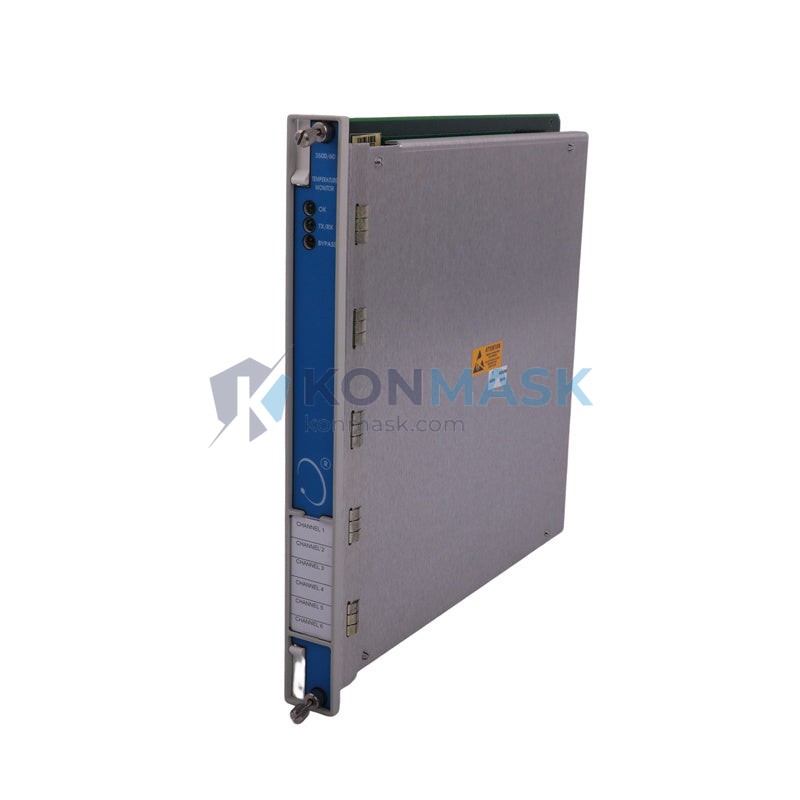

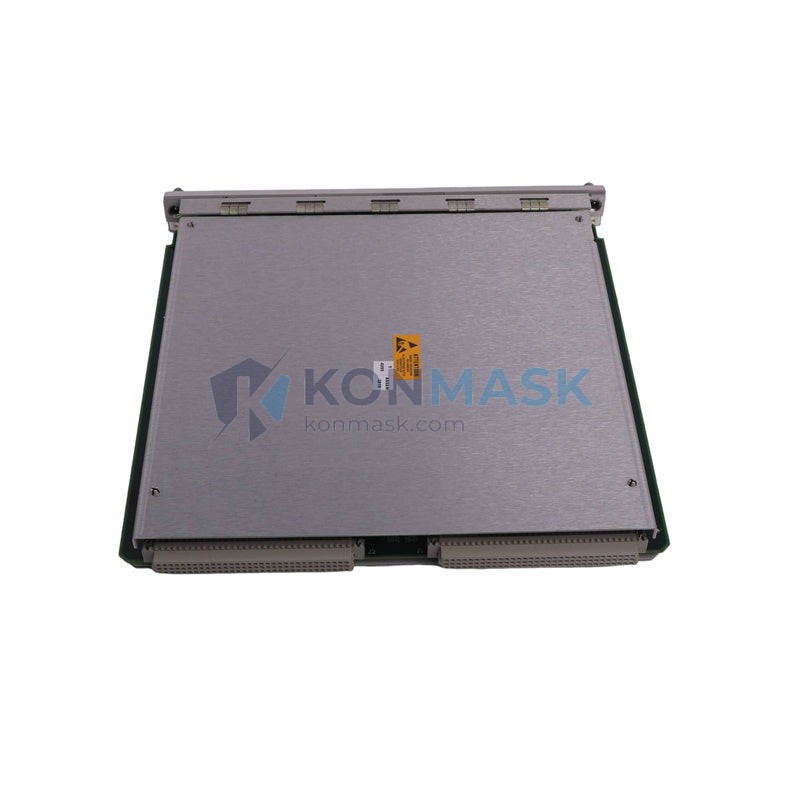

The Bently Nevada 3500/60 163179-01 Temperature Monitor is purpose-engineered to close this gap. As a native module within the 3500 Series machinery protection rack, it acquires, conditions, and processes thermocouple and RTD signals in real time — triggering alarm and trip outputs within milliseconds of a threshold breach. By integrating directly with the 3500 rack backplane, it eliminates signal conversion latency and provides a single, auditable data path from sensor to DCS/SCADA, enabling engineers to act before damage propagates.
Where This Product Is Used
Power Generation — Steam & Gas Turbines
Monitors bearing metal temperature (BMT) and exhaust gas temperature (EGT) on GE Frame 7/9, Siemens SGT, and Mitsubishi M501 turbines. Typical operating range: −40 °C to +125 °C ambient rack environment; sensor inputs up to 1,372 °C (Type K TC). Complies with NFPA 85 and IEC 61511 SIL 2 requirements for burner management integration.
Oil & Gas — Compressor Trains
Deployed on centrifugal and reciprocating compressor packages (Dresser-Rand, MAN, Ariel) for interstage cooler outlet temperature and lube oil temperature monitoring. Hazardous area installations use IS barriers per IEC 60079-11; module supports HART-transparent signal paths for remote calibration without process interruption.
Petrochemical — Reactor & Pump Systems
Used in ethylene cracker hot-gas expanders and boiler feed pump trains where process fluid temperatures exceed 300 °C. Integrates with Emerson DeltaV and Honeywell Experion PKS via Modbus RTU or 4–20 mA hardwired outputs. Meets API 670 5th Edition mandatory instrumentation requirements for critical machinery.
Marine & Offshore — Propulsion Machinery
Installed in diesel-electric propulsion systems and LNG carrier boil-off compressors. Rack-mount form factor survives IEC 60068-2-6 vibration (10–500 Hz, 2 g) and IEC 60068-2-14 thermal shock. DNV GL type approval applicable for offshore platform installations.
Steel & Metals — Rolling Mill Drives
Monitors motor winding temperature and gearbox oil temperature on 10–50 MW rolling mill drive trains. Continuous duty cycle at 100% load; module self-diagnostics detect open-circuit and short-circuit sensor faults within one scan cycle (<100 ms), preventing nuisance trips during mill acceleration transients.
Pulp & Paper — Dryer Section Drives
Applied to Yankee dryer cylinder bearing temperature monitoring where steam-side temperatures reach 180 °C and ambient humidity exceeds 90% RH. Conformal-coated PCB (per IPC-CC-830) resists condensation; module operates within TAPPI TIP 0402-14 predictive maintenance frameworks.
Technical Specifications
| Part Number | 163179-01 |
| Series | Bently Nevada 3500 |
| Module Type | Temperature Monitor |
| Input Types | Thermocouple (J, K, T, E, R, S, B) / RTD (Pt100, Pt1000) — critical for multi-sensor turbine applications |
| Measurement Range | −200 °C to +1,372 °C (TC-dependent) |
| Accuracy | ±0.5 °C (RTD); ±1.5 °C (TC) — meets API 670 accuracy class |
| Alarm Outputs | Alert / Danger relay outputs, configurable setpoints |
| Analog Output | 4–20 mA isolated, 500 Ω max load |
| Communication | 3500 rack backplane (System 1 / Orbit software compatible) |
| Power Supply | Via 3500 rack backplane (24 VDC nominal) |
| Operating Temperature | −40 °C to +70 °C |
| Humidity | 5–95% RH non-condensing |
| Dimensions | Standard 3500 single-slot module |
| Weight | ~800 g (module only) |
| Certifications | CE, CSA, FM, ATEX (Zone 2), IECEx |
| Compliance | API 670 5th Ed., IEC 61511, ISO 13709 |
Why Engineers Specify This Model
- In steam turbine bearing protection, the 3500/60 163179-01 delivers sub-100 ms alarm response because its dedicated signal processor bypasses DCS scan-cycle latency, meeting API 670 response time requirements for critical machinery.
- In offshore compressor packages, the 3500/60 163179-01 delivers intrinsically safe signal acquisition because its IS-rated input circuit limits energy to sensor loops per IEC 60079-11, meeting ATEX Zone 1 installation requirements.
- In ethylene cracker expanders, the 3500/60 163179-01 delivers continuous self-diagnostics because its on-board watchdog detects open-circuit TC faults within one scan cycle, meeting IEC 61511 SIL 2 diagnostic coverage requirements.
- In rolling mill drive monitoring, the 3500/60 163179-01 delivers multi-input flexibility because it accepts J, K, T, E, R, S, B thermocouples and Pt100/Pt1000 RTDs on the same module, meeting the mixed-sensor wiring conventions of legacy steel plant installations.
- In marine propulsion systems, the 3500/60 163179-01 delivers vibration-immune operation because its rack-mount PCB assembly passes IEC 60068-2-6 at 2 g across 10–500 Hz, meeting DNV GL type approval for shipboard machinery monitoring.
- In pulp & paper dryer sections, the 3500/60 163179-01 delivers corrosion-resistant reliability because its conformal-coated PCB per IPC-CC-830 resists high-humidity condensation, meeting the continuous-duty requirements of paper machine environments operating above 85% RH.
Complete System Bill of Materials
The following components form a complete Bently Nevada 3500 temperature monitoring system. The 3500/60 163179-01 is the core measurement module; all other items are required for a functional installation:
- 3500/60 163179-01 — Temperature Monitor Module (this item). Acquires and processes thermocouple/RTD signals; generates alarm/trip relay outputs and 4–20 mA analog output.
- 3500/05 Power Supply (e.g., 133388-01) — Provides regulated 24 VDC backplane power to all rack modules including the 3500/60.
- 3500/20 Rack Interface Module (RIM) — Manages communication between the 3500 rack and host DCS/SCADA via Modbus, Ethernet, or System 1 software.
- 3500/22M Transient Data Interface (TDI) — Optional; captures high-speed transient temperature data for post-event analysis in System 1 / Orbit software.
- 3500 Rack Chassis (4-slot, 8-slot, or 16-slot) — Houses all modules; provides backplane power distribution and inter-module communication bus.
- I/O Terminal Block (specific to 3500/60) — Field-wiring termination point for thermocouple/RTD sensor cables; mounts to rack front panel.
- Type K / Pt100 Sensors — Field-mounted bearing temperature sensors; must match module input configuration (TC type or RTD class).
- IS Barriers / Galvanic Isolators — Required for hazardous area (ATEX/IECEx Zone 1) installations to limit sensor loop energy.
Compliance & Industry Standards
- API 670 5th Edition (American Petroleum Institute) — Mandatory standard for machinery protection systems in oil & gas. Specifies response time, accuracy, and redundancy requirements that the 3500/60 is designed to meet. Buyers: required for all refinery and upstream compressor installations.
- IEC 61511 SIL 2 (International Electrotechnical Commission) — Functional safety standard for process industry safety instrumented systems. The 3500/60 supports SIL 2 loop architectures. Buyers: required for safety-critical shutdown applications.
- ATEX Directive 2014/34/EU / IECEx — European and international certification for equipment used in explosive atmospheres. Zone 2 rated. Buyers: required for offshore platforms and onshore hazardous area installations in EU and IECEx-adopting countries.
- CE Marking (European Commission) — Confirms conformity with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Buyers: required for import and installation in EU member states.
- CSA / FM (Canadian Standards Association / Factory Mutual) — North American hazardous location certification. Buyers: required for installations in Canada and USA under NEC Article 505 / CEC Section 18.
- ISO 13709 / API 610 — Applicable to pump train monitoring applications where the 3500/60 monitors motor winding and bearing temperatures per pump API standard requirements.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the Bently Nevada 3500/60 163179-01 exclusively through authorized industrial surplus channels, OEM-certified distributors, and decommissioned plant asset liquidations with full chain-of-custody documentation. We do not source from unverified secondary markets.
4-Step Inspection Process:
- Visual & Physical Inspection — PCB examined for burn marks, corrosion, cracked solder joints, and damaged connectors. Module housing checked for impact damage and label integrity.
- Functional Power-On Test — Module installed in a 3500 test rack; self-diagnostic LEDs and backplane communication verified. Alarm relay outputs tested at configured setpoints.
- Input Accuracy Verification — Calibrated TC/RTD simulator applied to all input channels; measured values compared against Bently Nevada factory specification (±0.5 °C RTD / ±1.5 °C TC).
- Documentation Review — Serial number cross-referenced against Bently Nevada production records where available; firmware revision logged.
Available Documentation: Test report, inspection checklist, serial number record, firmware version log, and Certificate of Conformance (CoC) available upon request. Export compliance documentation (EAR99 / ECCN classification) provided for international shipments.
How to Source This Part
- Submit Your Inquiry — Contact us via the product page quote form, email support@konmask.com, or WhatsApp +0086 19859288691 with your required quantity, delivery timeline, and destination country.
- Receive Confirmation & Quote — Our team responds within 24 hours with stock confirmation, lead time, unit price (HKD/USD), and shipping options (DHL Express, FedEx International Priority, sea freight for bulk orders).
- Order & Ship — Payment confirmed; module inspected, packed in anti-static ESD packaging with foam cushioning, and dispatched globally. Tracking number provided within 24 hours of shipment. Typical transit: 3–7 business days (air); 15–25 days (sea).
Application-Specific FAQ
Q: Can the 3500/60 163179-01 be used for gas turbine exhaust temperature monitoring in a combined-cycle power plant?
A: Yes. The module accepts Type K and Type R thermocouples rated to 1,372 °C and 1,600 °C respectively, covering typical gas turbine EGT ranges of 500–650 °C. It integrates with the 3500 rack to provide alarm and trip outputs to the turbine control system (TCS) within API 670-compliant response times. Ensure the rack RIM is configured for your DCS communication protocol (Modbus RTU or Ethernet).
Q: Is this module suitable for ATEX Zone 1 compressor bearing temperature monitoring on an offshore platform?
A: The 3500/60 163179-01 carries ATEX Zone 2 certification for the module itself. For Zone 1 sensor installations, IS barriers or galvanic isolators (e.g., MTL 787+, P+F KFD2-series) must be installed between the field sensor and the module input terminals. This configuration is standard practice for offshore API 670 installations and does not affect module measurement accuracy.
Q: What is the replacement and cross-reference path if the 163179-01 is discontinued or unavailable?
A: Baker Hughes (Bently Nevada) has introduced the 3500/60 with updated firmware revisions under the same base part number family. Functionally equivalent replacements include the 163179-02 (revised firmware) and the 3500/60M for applications requiring Modbus-native output. Konmask.com maintains stock of multiple revisions; specify your rack firmware version when inquiring to ensure backplane compatibility.
