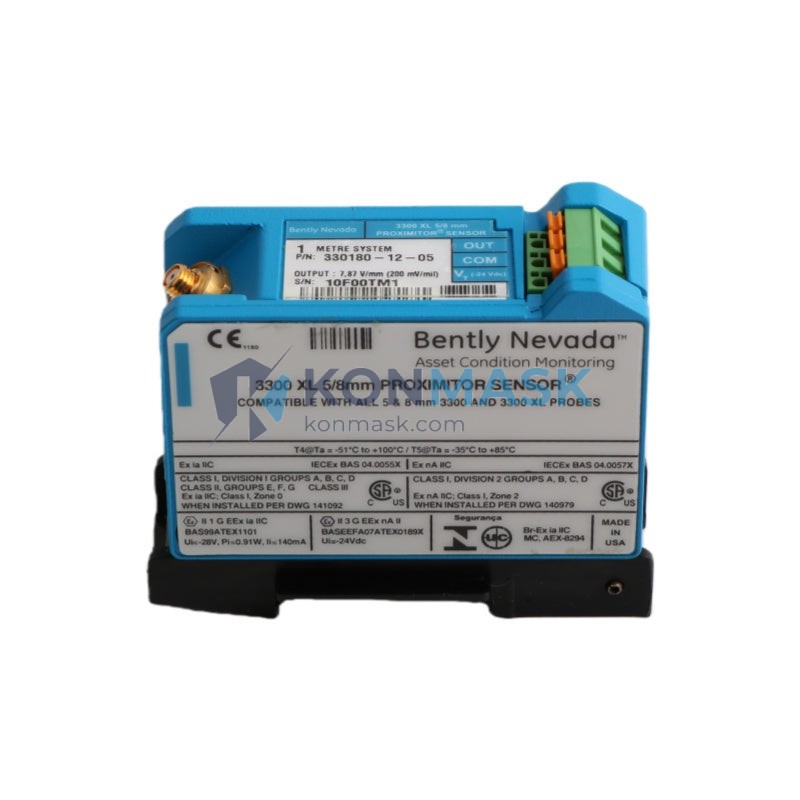

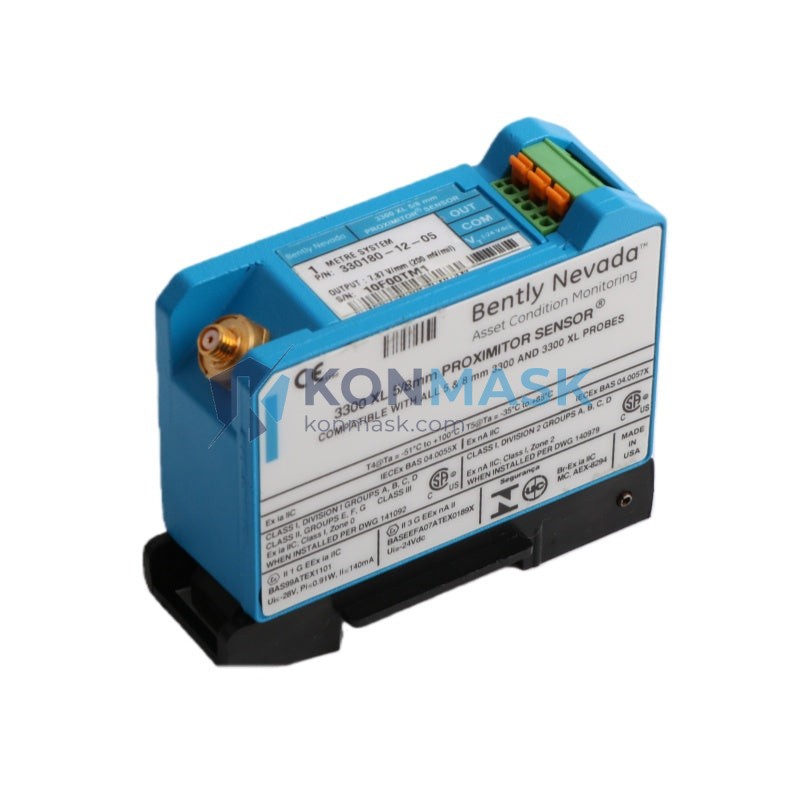

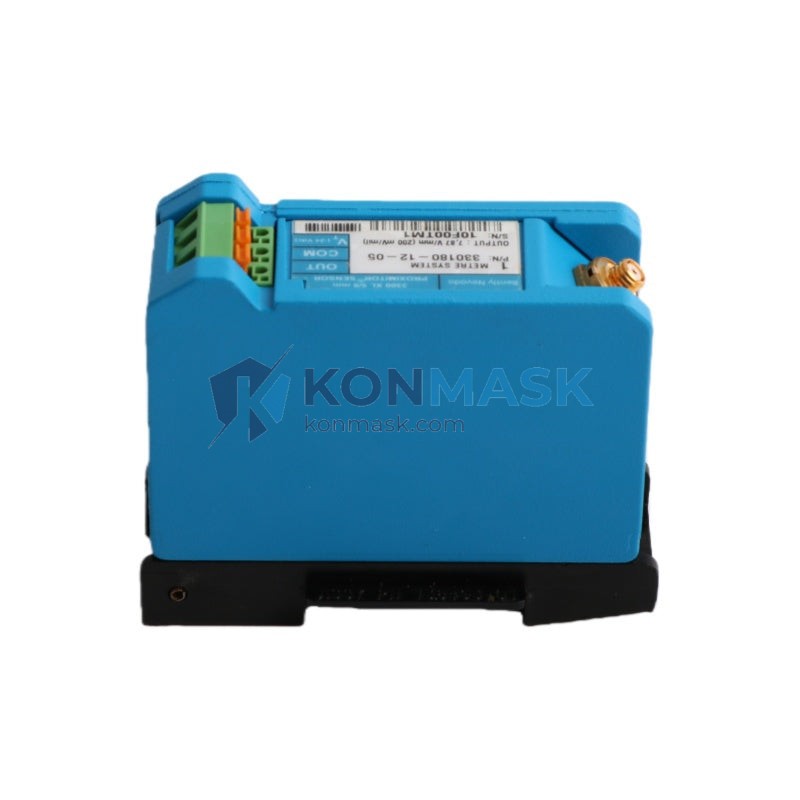

Bently Nevada 330180-12-BR Proximitor Sensor — High-Precision Eddy-Current Proximity Transducer | 3300 XL Series Platform
The Bently Nevada 330180-12-BR is an 8 mm eddy-current Proximitor® Sensor engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. As a core component of the Bently Nevada 3300 XL Series transducer system, it delivers the micron-level resolution and long-term signal stability demanded by power generation, petrochemical, and heavy industrial applications operating under API 670 machinery protection standards.
At Konmask.com, every unit is sourced through verified industrial supply channels, inspected against OEM datasheets, and dispatched with full traceability documentation — giving procurement engineers the confidence to specify with certainty.
Complete Technical Specifications
- Part Number: 330180-12-BR
- Series / Platform: Bently Nevada 3300 XL
- Sensor Type: Eddy-Current Proximitor® (non-contact)
- Probe Tip Diameter: 8 mm
- Cable Length: 12 inches (305 mm) integral armored cable
- Connector: BR (Bayonet-style, reverse-polarity keyed)
- Linear Range: 0.25 mm – 2.26 mm (10 mil – 89 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil) nominal
- Frequency Response: DC – 10,000 Hz (–3 dB)
- Supply Voltage: –24 VDC (from compatible Proximitor® driver)
- Operating Temperature: –35 °C to +177 °C (–31 °F to +351 °F)
- Target Material: AISI 4140 steel (standard); other ferrous/non-ferrous targets require scale factor correction
- Ingress Protection: IP67 (probe body)
- Approvals / Standards: API 670 compliant; CE marked; ATEX / IECEx available on request
- Weight: Approx. 200 g (probe + cable assembly)
- Compatible Drivers: Bently Nevada 3300 XL NSv Proximitor®, 3500/42M, 3500/45, 3500/46M
Proven Application Environments
- Power Generation: Steam turbine shaft radial vibration monitoring (HP/IP/LP stages)
- Oil & Gas: Centrifugal compressor rotor position and vibration per API 670
- Petrochemical: Reactor agitator and pump shaft displacement measurement
- Marine Propulsion: Propeller shaft axial thrust monitoring
- Pulp & Paper: High-speed roll bearing clearance measurement
- Steel & Metals: Rolling mill spindle runout detection
Engineering Advantages
- Non-Contact Measurement: Zero mechanical wear; suitable for continuous 24/7 operation without maintenance intervals
- Broad Thermal Tolerance: Stable output from cryogenic to high-temperature process environments without recalibration
- High EMI Immunity: Shielded coaxial cable construction rejects electrical noise in VFD-dense environments
- Direct API 670 Compliance: Drop-in replacement for existing 3300 XL installations; no system reconfiguration required
- Micron-Level Resolution: Detects sub-micron shaft displacement changes critical for early fault detection
- Long Service Life: Hermetically sealed probe body resists oil mist, process gases, and washdown fluids
System Architecture & Signal Flow
The 330180-12-BR operates as the sensing element within a three-component Bently Nevada transducer system:
- Probe (330180-12-BR): Generates an oscillating electromagnetic field; eddy currents induced in the target shaft modulate the field proportionally to gap distance.
- Extension Cable (330130-XX-CN): Transmits the modulated RF signal from probe to driver with minimal loss; total system cable length must match driver calibration.
- Proximitor® Driver (3300 XL NSv / 3500 series): Demodulates the RF signal and outputs a DC voltage proportional to gap (–24 VDC supply; 0 V to –18 V output range).
The DC output feeds directly into Bently Nevada 3500 Series monitor cards or any 4–20 mA / voltage-input DCS/PLC system via appropriate signal conditioning.
Sourcing & Quality Verification
- Units sourced from authorized industrial distributors and verified OEM surplus channels
- Each unit inspected: connector integrity, cable continuity, probe body seal, and part number label authenticity
- Batch traceability records retained; available upon request for regulated industries
- Packaging: anti-static foam insert, moisture-barrier bag, individual carton with part number label
- Shelf life: indefinite when stored per Bently Nevada storage guidelines (15–35 °C, <75% RH, non-condensing)
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; ETA confirmed at order placement
- MOQ: 1 unit; volume pricing available for orders of 5+ units
- Documentation: Commercial invoice, packing list, and certificate of conformance included; MSDS / material certs on request
- Export: Ships worldwide via DHL Express, FedEx International Priority, or sea freight for bulk orders
- Payment: T/T bank transfer, PayPal, credit card; LC accepted for orders >USD 5,000
- RFQ / Technical Inquiry: support@konmask.com | +0086 19859288691
Technical FAQ
Q: Is the 330180-12-BR interchangeable with the 330180-12-CN?
A: The probe body and sensing performance are identical. The suffix denotes connector type: BR = Bayonet Reverse; CN = Cannon (MIL-spec). Verify your extension cable and driver connector before ordering.
Q: Can this probe measure non-ferrous targets (aluminum, titanium)?
A: Yes, but the scale factor will deviate from the nominal 7.87 V/mm. Bently Nevada provides target material correction tables; contact our engineering team for application-specific calibration guidance.
Q: What is the maximum shaft speed this sensor can monitor?
A: The 10 kHz frequency response supports shaft speeds up to approximately 600,000 RPM for once-per-revolution events, well beyond the range of any practical rotating machinery.
Q: Do you supply the matching extension cable and Proximitor® driver?
A: Yes. We stock the complete 3300 XL transducer system. Contact us with your total cable length requirement and driver model for a matched-system quotation.
Q: Is ATEX certification available?
A: ATEX/IECEx variants exist within the 330180 family. Confirm your hazardous area classification (Zone/Group/Temperature Class) and we will identify the correct certified part number.
