Bently Nevada 330901-00-10-02-00-02 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

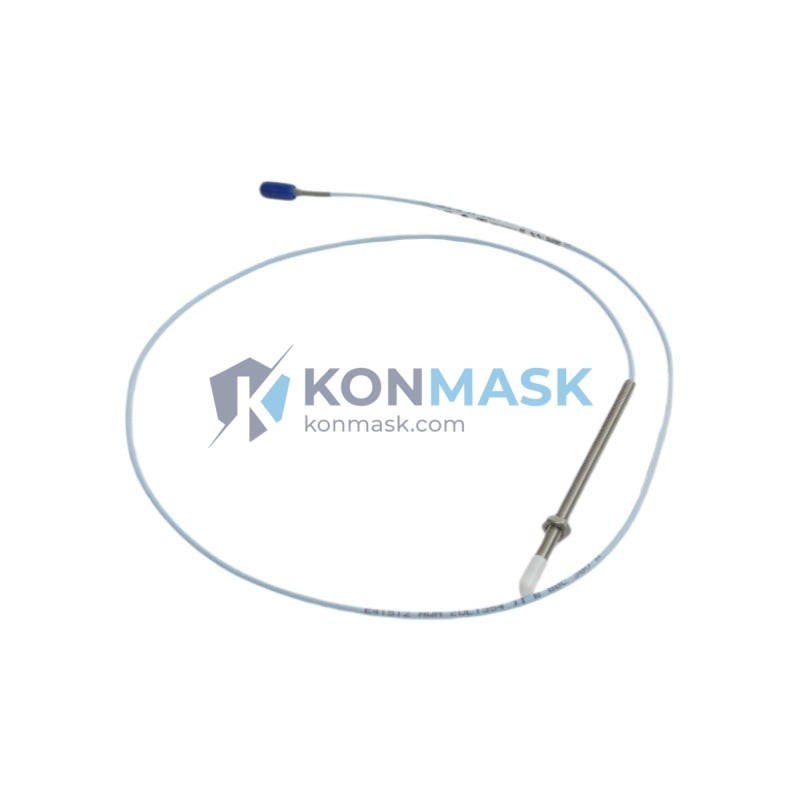

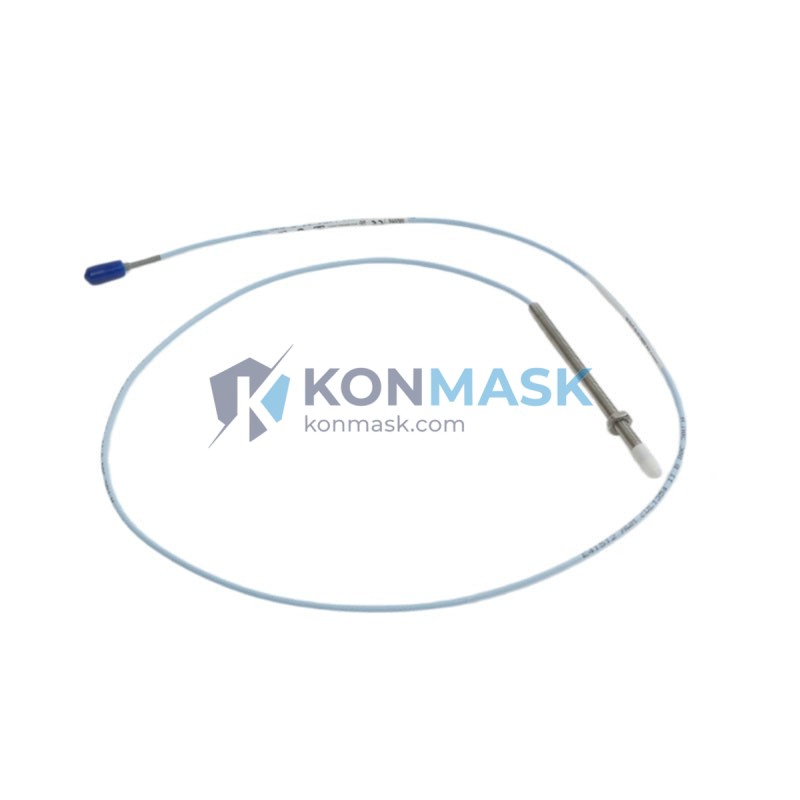

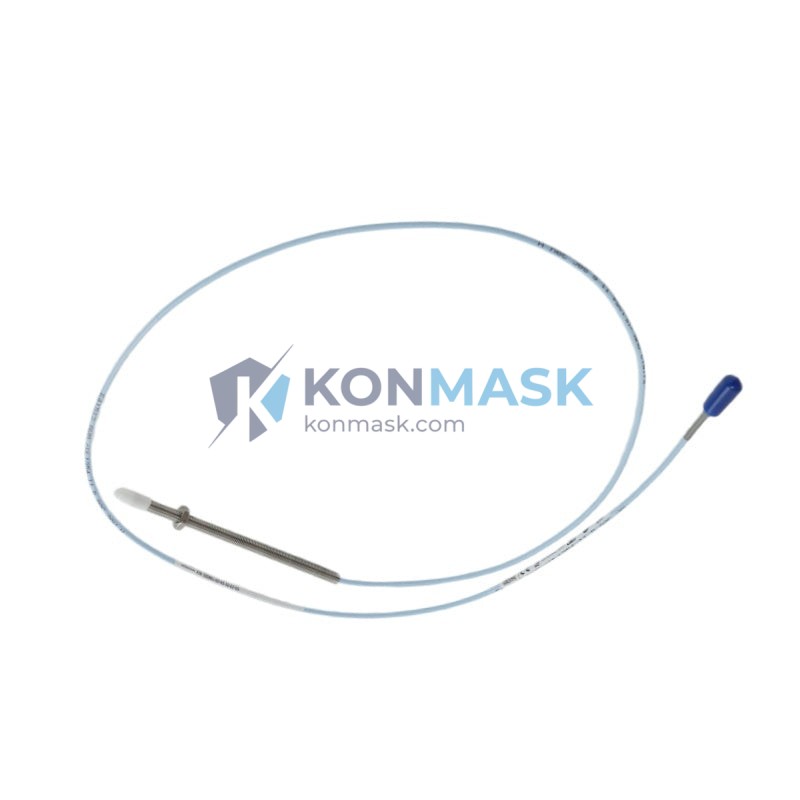

The Bently Nevada 330901-00-10-02-00-02 is a high-precision eddy-current proximity probe from the 3300 NSv Series, engineered for continuous non-contact vibration and position measurement in critical rotating machinery. As an authorized sourcing partner, Konmask.com supplies genuine, tested, and compatible units with full traceability.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number / SKU: 330901-00-10-02-00-02
- Series: 3300 NSv (Non-Standard voltage)
- Probe Type: Eddy-Current Proximity Probe
- Cable Length: 1.0 m (100 cm) integral cable
- Thread Size: M10 × 1.0
- Tip Diameter: 8 mm
- Measurement Range: 0–2.0 mm (linear range)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Operating Temperature: −35 °C to +121 °C
- Target Material: AISI 4140 steel (or equivalent)
- Connector: 2-pin MIL-C-5015 style
- Agency Approvals: CE, ATEX (consult datasheet for zone ratings)
Compatible Replacement & Equivalent Models
The table below lists direct and near-equivalent replacements for the 330901-00-10-02-00-02. Always verify cable length, thread, and driver compatibility before substitution.
| Part Number | Brand | Cable Length | Thread | Notes |
|---|---|---|---|---|
| 330901-00-10-02-00-02 | Bently Nevada | 1.0 m | M10×1.0 | OEM Original |
| 330901-00-20-02-00-02 | Bently Nevada | 2.0 m | M10×1.0 | Longer cable variant |
| 330901-00-10-05-00-02 | Bently Nevada | 1.0 m | M10×1.0 | Different connector option |
| 3300 XL 8mm Probe | Bently Nevada | Various | M10×1.0 | Upgraded XL series |
| PR6423/010-100 | Epro / GE | 1.0 m | M10×1.0 | Cross-brand equivalent |
| CON021/916-000 | Epro / GE | — | — | Matching driver for Epro probe |
⚠ Note: Third-party probes must be validated against your specific driver/monitor system. Contact [email protected] for compatibility confirmation.
Why Choose the Original Model
- Factory-calibrated: Each probe ships with a calibration certificate traceable to NIST standards.
- System-matched: Designed to work seamlessly with Bently Nevada 3300 series drivers (e.g., 330180, 330130) and monitors (e.g., 3300/16, 3500/42).
- Long-term reliability: Proven in power generation, oil & gas, and petrochemical environments for 20+ years.
- Warranty & support: Backed by Baker Hughes global service network.
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial position (thrust) measurement on compressors
- Differential expansion monitoring on large rotating machinery
- Speed and phase reference (Keyphasor) sensing
- Eccentricity measurement on slow-roll shafts
System Compatibility
- Drivers: Bently Nevada 330180-91-00, 330130-080-01-00, 330130-040-01-CN
- Monitors: Bently Nevada 3300/16, 3500/42M, 3500/40M, 1900/65
- DCS Integration: Compatible with 4–20 mA output modules via signal conditioners
- Cable Extensions: Use matched extension cables (e.g., 330130 series) to maintain system accuracy
Selection Guide
Use the following parameters to select the correct 330901 variant for your application:
- Cable Length: 00-10 = 1.0 m | 00-20 = 2.0 m | 00-30 = 3.0 m | 00-50 = 5.0 m
- Connector Type: 02 = Standard 2-pin | 05 = Alternate connector
- Target Gap: Set initial gap to 1.0 mm (midpoint of linear range) for optimal sensitivity
- Driver Matching: Always pair with a 3300 NSv-compatible driver; do not mix with 3300 XL drivers without recalibration
- Environment: For high-temperature zones (>100 °C), specify high-temp variant or use thermal isolation mount
Quality Assurance & Sourcing
- ✅ Genuine OEM units sourced from authorized Bently Nevada / Baker Hughes distribution channels
- ✅ Functional testing performed on every unit prior to shipment
- ✅ Anti-counterfeit verification: serial numbers cross-checked against manufacturer records
- ✅ Packaging: Original anti-static packaging with calibration documentation
- ✅ Export compliance: EAR/ECCN classification reviewed; export licenses obtained where required
How to Order
- Online: Add to cart directly on this page — stock availability shown in real time
- Email RFQ: [email protected] — include quantity, delivery address, and required lead time
- Phone / WhatsApp: +0086 19859288691
- Bulk / Project orders: Request a formal quotation for orders of 5+ units
- Lead Time: In-stock units ship within 1–3 business days; special orders 2–4 weeks
Replacement & Compatibility FAQ
Q: Can I replace 330901-00-10-02-00-02 with a 3300 XL probe?
A: Not directly. The 3300 XL series uses a different sensitivity scale (8 V/mm vs 7.87 V/mm) and requires driver reconfiguration. Consult your system integrator before substituting.
Q: Is the Epro PR6423 a drop-in replacement?
A: Mechanically compatible (M10×1.0 thread, 8 mm tip), but requires a matching Epro driver. It cannot be used with Bently Nevada 330180 drivers without signal conditioning.
Q: How do I verify probe health without a monitor?
A: Use a handheld oscillator/driver (e.g., Bently Nevada 330180 bench kit) and measure DC output voltage at the nominal 1.0 mm gap. Expected output: approximately −10.5 VDC ± 0.5 V.
Q: What is the shelf life of an unused probe?
A: Bently Nevada recommends installation within 5 years of manufacture date when stored in original packaging at 15–25 °C.
Q: Do you provide calibration certificates?
A: Yes. All units shipped from Konmask.com include the original factory calibration certificate. Custom recalibration services are available on request.
