Bently Nevada 3500/72M 176449-08 Recip Rod Position Monitor | Replacement, Equivalent & Selection Guide

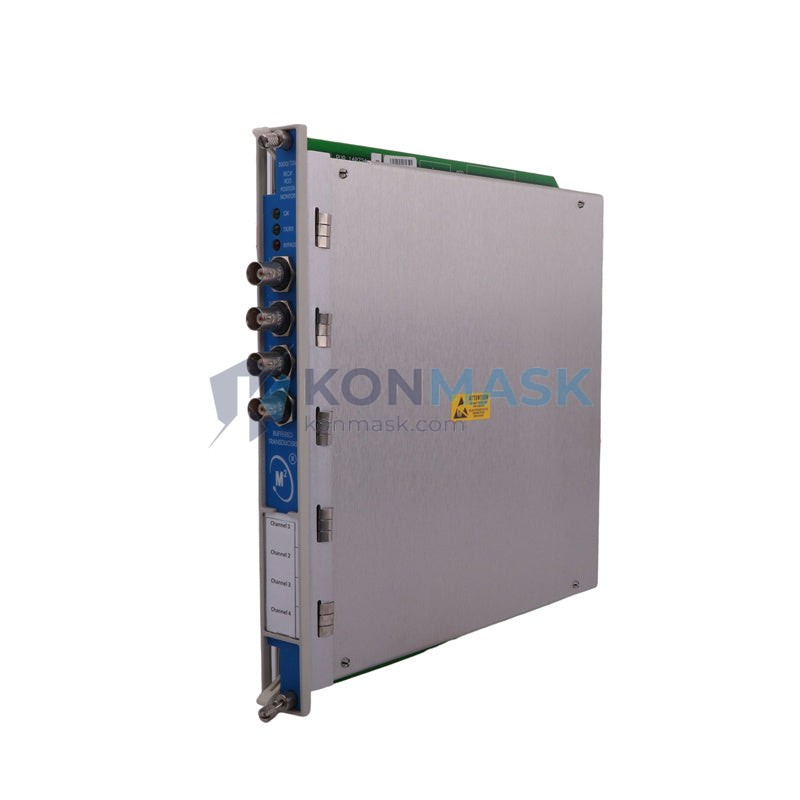

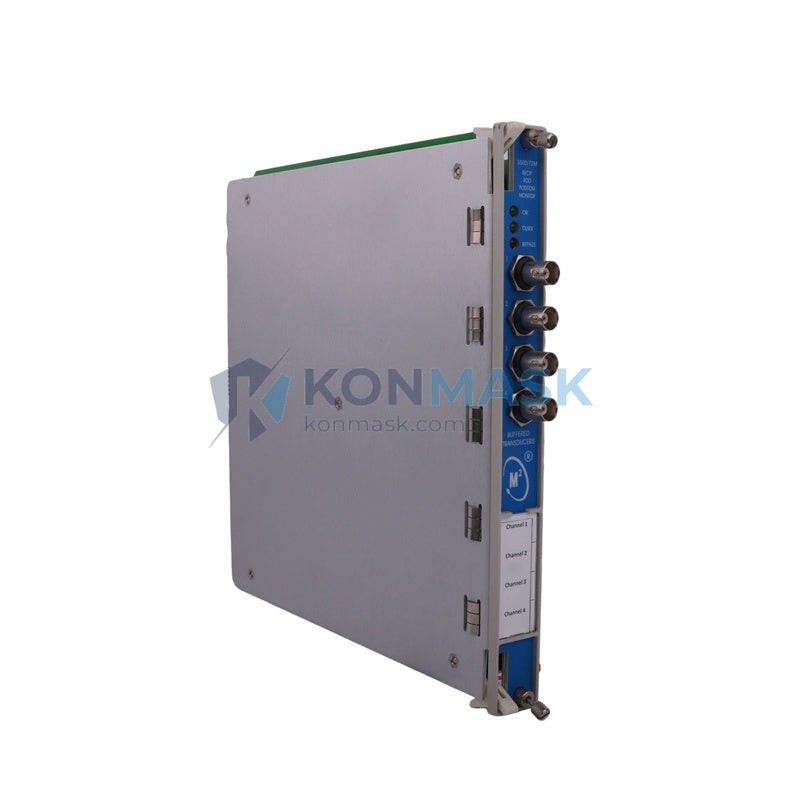

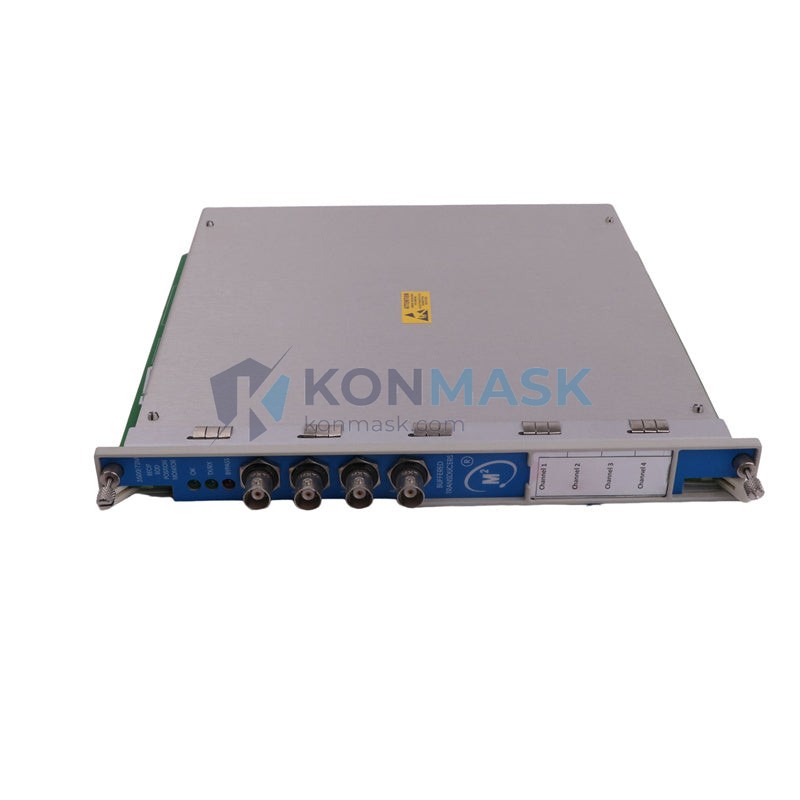

The Bently Nevada 3500/72M (Part No. 176449-08) is a dedicated Reciprocating Rod Position Monitor module within the Bently Nevada 3500 Series Machinery Protection System. It continuously measures piston rod drop and rod runout in reciprocating compressors, providing critical early-warning protection against bearing wear, rider band degradation, and mechanical misalignment. This module is a core component of any 3500-series rack configured for reciprocating machinery monitoring.
Buyers searching for a 3500/72M replacement, a 176449-08 equivalent, or a substitute recip rod monitor for their existing 3500 rack will find this guide covers direct drop-in options, functional equivalents, and cross-brand alternatives — along with the key parameters that determine compatibility.
Technical Specifications
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model / Part No. | 3500/72M / 176449-08 |
| Function | Reciprocating Rod Position Monitor |
| Measurement Parameters | Rod Drop (DC gap), Rod Runout (AC component) |
| Input Channels | 4 channels (2 pairs) |
| Transducer Compatibility | Bently Nevada 3300 XL / 7200 Series proximity probes |
| Output | 4–20 mA analog, relay outputs, Keyphasor input |
| Communication | 3500 Rack backplane (TDI bus) |
| Power Supply | Via 3500 rack (24 VDC internal bus) |
| Alert / Danger Setpoints | Configurable via System 1 / Rack Configuration Software |
| Operating Temperature | 0 °C to +65 °C |
| Certifications | CE, SIL 2 capable (system-level), FM/CSA (system-dependent) |
| Form Factor | Single-slot 3500 rack module |
| Weight | ~850 g |
⚑ Key parameters affecting replacement decisions: channel count, transducer series compatibility, rack slot type, and firmware revision.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These are Bently Nevada OEM variants that install into the same rack slot with no hardware or wiring changes:
- 176449-01 / -02 / -04 — Earlier suffix revisions of the same 3500/72M module; verify firmware compatibility with your rack configuration software version before swapping.
- 3500/72M (no suffix) — Base model; confirm part number suffix matches your rack’s I/O module configuration.
Prerequisite: Same 3500-series rack, same backplane revision. No re-wiring required. Recommend re-running rack configuration after swap.
2. Functional Equivalents
Modules that perform the same rod position monitoring function but may require configuration changes or minor wiring adaptation:
- Bently Nevada 3500/72 (176449-01) — Predecessor model; same measurement function, older firmware baseline. May lack some diagnostic features of the -08 revision.
- Bently Nevada 3701/72 — Standalone (non-rack) recip rod monitor; equivalent measurement capability but requires separate power supply and signal conditioning. Suitable when replacing a full rack subsystem.
Note: Functional equivalents require re-validation of alarm setpoints and output scaling after installation.
3. Cross-Brand Alternatives
Third-party or alternative-platform monitors offering comparable rod position measurement:
- Emerson CSI 6500 ATG — Supports recip rod drop monitoring; requires different transducer wiring and software platform (AMS Machinery Manager).
- Metrix MX2033 — Standalone rod drop monitor; compatible with standard eddy-current probes; suitable for non-3500-rack installations.
- Pruftechnik / Fluke (custom integration) — Possible via analog signal conditioning; engineering assessment required.
⚠ Cross-brand alternatives are not plug-and-play. Full system re-engineering, probe re-calibration, and software reconfiguration are required. Konmask recommends consulting our engineers before selecting a cross-brand substitute.
Why Choose the Original Model
- Measurement Precision: Factory-calibrated rod drop resolution to ±0.001 in (25 µm), ensuring accurate early-warning detection of rider band wear.
- OEM Certification: Fully certified for use within the Bently Nevada 3500 Machinery Protection System; maintains SIL 2 system-level integrity.
- Seamless Rack Compatibility: Plug-and-play replacement within any 3500-series rack — no re-wiring, no signal conditioning adapters required.
- Software Integration: Native support for System 1 and Rack Configuration Software; alarm setpoints, trends, and diagnostics transfer without re-engineering.
- Technical Support: Backed by Bently Nevada / Baker Hughes global support network; Konmask provides pre-sales and post-sales technical assistance.
- Warranty & Traceability: Konmask supplies modules with full documentation, test reports, and traceable sourcing — critical for regulated industries and insurance compliance.
Typical Applications
- Oil & Gas — Reciprocating Compressors: Pipeline booster stations, gas injection compressors; monitors piston rod drop to prevent catastrophic bearing failure.
- Petrochemical Plants: Process gas compressors in ethylene, ammonia, and refinery service; continuous rod runout monitoring for predictive maintenance.
- LNG Terminals: High-pressure recip compressors in liquefaction trains; SIL-rated protection for safety-critical machinery.
- Power Generation: Gas engine-driven compressors and reciprocating pumps in combined-cycle plants.
- Chemical & Fertilizer: Synthesis gas and hydrogen compressors requiring continuous rod position trending.
- Offshore Platforms: Topside and subsea compression systems where compact, rack-based monitoring is required.
System Compatibility
The 3500/72M 176449-08 is designed for use within the following Bently Nevada 3500 system components:
- 3500/20 Rack Interface Module (RIM) — Rack communication and power distribution backbone
- 3500/15 Power Supply — 115/230 VAC input, 24 VDC rack bus output
- 3500/22M Transient Data Interface (TDI) — High-speed waveform capture for rod position signals
- 3300 XL 8mm / 11mm Proximity Probes — Primary transducers for rod gap measurement
- 3300 XL Extension Cables — Signal transmission from probe tip to proximitor
- 3300 XL Proximitor Sensors — Signal conditioning for eddy-current probe output
- 3500/32 4-Channel Relay Module — Alarm and danger relay outputs for DCS/PLC integration
- System 1 Software (v6.x / v7.x) — Configuration, trending, and alarm management platform
Selection Guide
Before ordering a replacement or equivalent, confirm the following three points — or contact Konmask and we will verify for you:
- Rack Slot & Backplane Revision: Is your 3500 rack a standard or enhanced backplane? The 176449-08 suffix is optimized for enhanced backplane racks. Confirm your rack’s RIM firmware version.
- Transducer Series: Are your existing proximity probes 3300 XL Series or older 7200 Series? The 3500/72M supports both, but probe gap and sensitivity settings differ — verify before configuring setpoints.
- Channel Count & Wiring: Do you need 2-channel or 4-channel rod position monitoring? The 176449-08 provides 4 channels (2 pairs). If your application uses fewer channels, confirm unused channels are properly terminated.
📩 Not sure which model fits your system? Send your rack configuration file or existing module part number to support@konmask.com and our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
Konmask sources the Bently Nevada 3500/72M 176449-08 through authorized distribution channels and verified surplus markets, with full traceability. Every unit undergoes a 4-step inspection process before shipment:
- Visual & Physical Inspection: PCB condition, connector integrity, label verification, and part number confirmation against OEM documentation.
- Functional Power-On Test: Module powered in a 3500 test rack; self-diagnostics verified; no fault codes confirmed.
- Channel Signal Verification: Each input channel tested with a simulated proximity probe signal; output scaling and alarm relay operation confirmed.
- Documentation Package: Test report issued; serial number recorded; sourcing traceability documented.
Available documentation upon request: Test report, calibration certificate (where applicable), material certificate, export compliance documentation (EAR/ECCN), and OEM datasheet.
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (3500/72M / 176449-08) and required quantity. Attach your rack configuration file if available.
- Receive Quote & Compatibility Confirmation: Konmask will confirm stock availability, pricing, lead time, and technical compatibility — typically within 24 hours.
- Order & Ship: Upon order confirmation, units are inspected, documented, and dispatched with full test reports. Express shipping available worldwide.
Replacement & Compatibility FAQ
Q1: Can the Bently Nevada 3500/72M 176449-08 directly replace a 176449-01 or 176449-04?
A: In most cases, yes — the -08 suffix is a later hardware revision of the same 3500/72M module and is a functional replacement for earlier suffixes in the same rack slot. However, we recommend re-running the rack configuration software after swapping to ensure firmware compatibility and to re-validate alarm setpoints. Contact Konmask to confirm your specific rack revision before ordering.
Q2: Is the 3500/72M compatible with both 3300 XL and older 7200 Series proximity probes?
A: The 3500/72M supports both probe series, but sensitivity and gap settings differ between the two. If you are substituting probes as part of a system upgrade, the probe gap and proximitor output voltage must be re-calibrated to match the monitor’s input range. Konmask can provide probe-to-monitor compatibility tables on request.
Q3: What is the best equivalent or substitute if the 3500/72M is discontinued or unavailable?
A: The closest functional equivalent within the Bently Nevada ecosystem is the 3701/72 standalone recip rod monitor, which provides the same measurement capability outside of a 3500 rack. For cross-brand substitutes, the Metrix MX2033 is a widely used alternative, though it requires independent signal conditioning and software integration. Konmask recommends contacting our engineering team to assess the best substitute for your specific application before committing to a cross-brand replacement.
