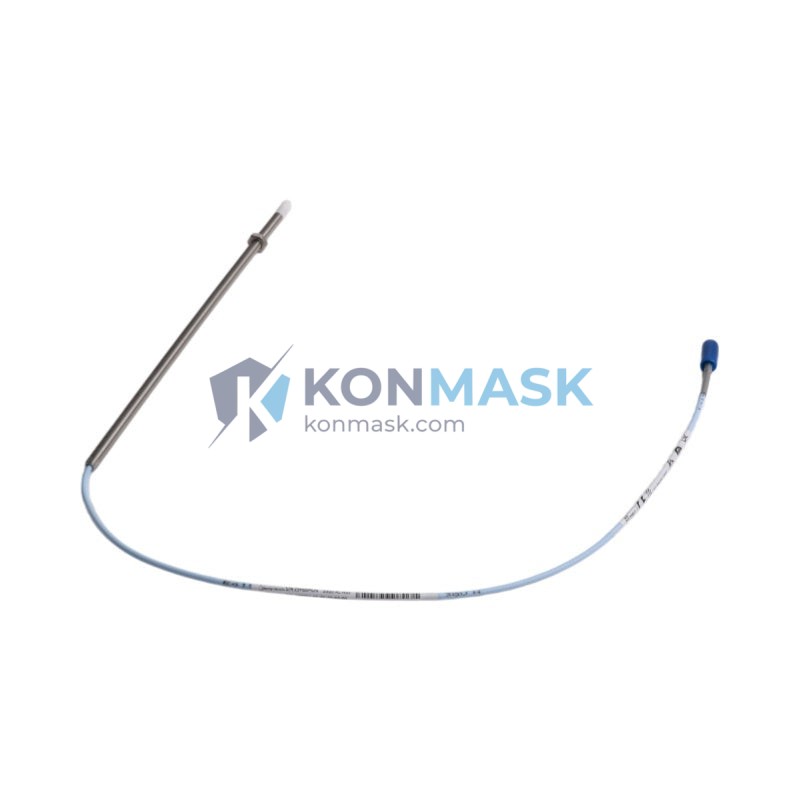

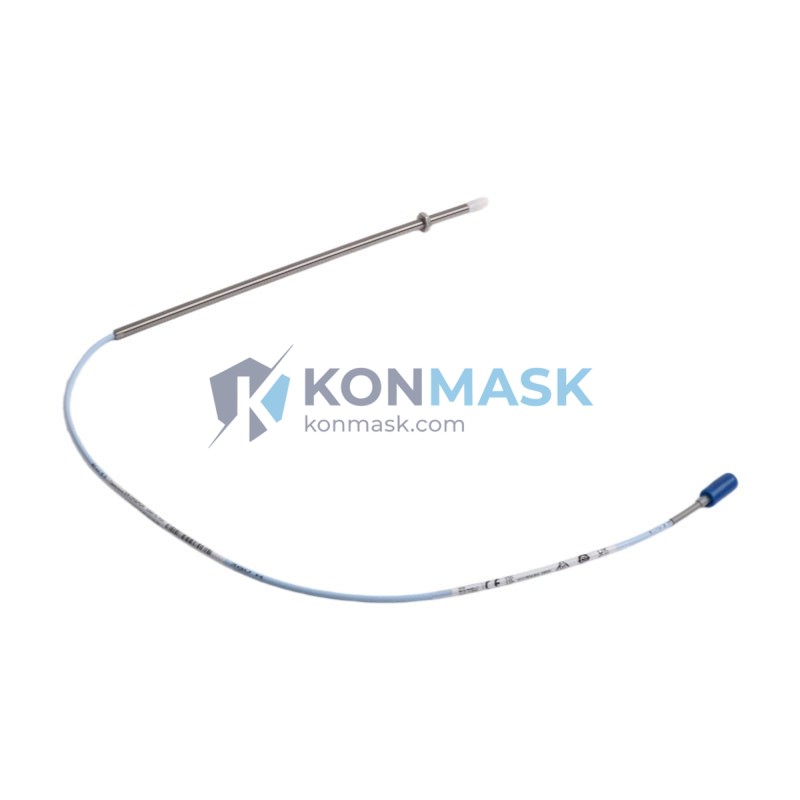

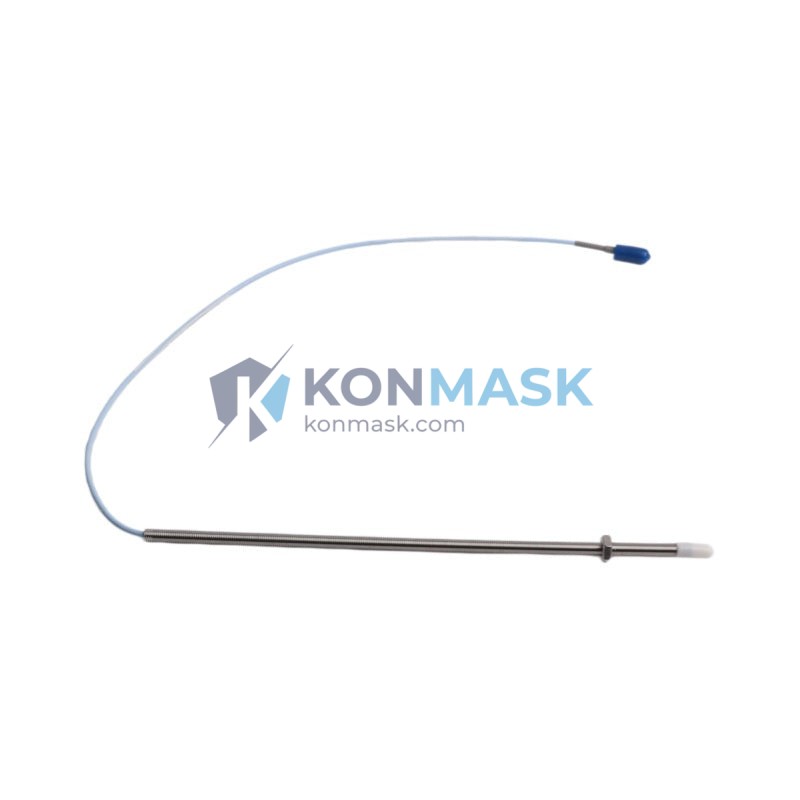

Bently Nevada 330901-00-24-05-02-05 NSv Proximity Probe | Replacement, Equivalent & Selection Guide
The Bently Nevada 330901-00-24-05-02-05 is a high-performance NSv (Non-Standard voltage) Proximity Probe from the industry-leading 3300 XL Series. Designed for continuous, non-contact vibration and position measurement on rotating machinery, this probe delivers exceptional signal accuracy in demanding industrial environments. At Konmask.com, we specialize in sourcing genuine and compatible alternatives for this model to keep your machinery monitoring systems running without interruption.
Technical Specifications
- Part Number: 330901-00-24-05-02-05
- Series: Bently Nevada 3300 XL
- Type: NSv Proximity Probe (Non-Standard Voltage Output)
- Probe Length: 24 inches (cable length)
- Tip Diameter: 5 mm
- Sensing Range: 0.25 mm – 2.25 mm (linear range)
- Output Voltage: -18 VDC nominal (NSv configuration)
- Supply Voltage: -24 VDC
- Frequency Response: DC to 10,000 Hz
- Temperature Range: -35°C to +177°C (probe tip)
- Connector: 5-pin MIL-C-5015 style
- Housing Material: Stainless Steel
- Approvals: CE, ATEX, FM (intrinsically safe configurations available)
- Weight: ~400 g (with cable)
Compatible Replacement & Equivalent Models
If the 330901-00-24-05-02-05 is unavailable or you are evaluating alternatives, the following models offer compatible or equivalent functionality:
- Bently Nevada 330901-00-24-10-02-05 – Same series, 10 mm tip diameter variant
- Bently Nevada 330905-00-24-05-02-05 – Standard voltage (Sv) equivalent, same cable length
- Bently Nevada 330780-50-00 – 3300 XL 8mm proximity probe system (system-level replacement)
- Epro PR6423/010-040 – Third-party compatible eddy-current probe, widely used as a drop-in replacement
- Metrix ST5484E – Compatible proximity transducer for 3300-series driver systems
- Emerson 330901 Series – Post-acquisition Emerson-branded equivalents with identical specifications
Note: Always verify driver/conditioner compatibility (e.g., 3300 XL driver) before substituting probes. Contact support@konmask.com for a verified compatibility check.
Why Choose the Original Model
- Factory-Calibrated NSv Output: The NSv configuration provides a non-standard voltage output specifically tuned for certain 3300 XL driver/conditioner pairs — critical for accurate gap and vibration readings.
- Proven Reliability: Bently Nevada probes are the global standard for turbomachinery protection systems (API 670 compliant).
- Long Service Life: Stainless steel construction and hermetic sealing ensure performance in high-temperature, high-vibration, and chemically aggressive environments.
- System Integrity: Using the original part number ensures full compatibility with existing Bently Nevada 3500/3300 monitoring racks without recalibration.
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing vibration surveillance
- Gearbox and expander rotor dynamic analysis
- API 670 machinery protection systems
- Petrochemical, power generation, and LNG plant rotating equipment
System Compatibility
The 330901-00-24-05-02-05 is designed to operate within the Bently Nevada 3300 XL Proximity Transducer System. Verified compatible components include:
- Driver/Conditioner: Bently Nevada 3300 XL 8mm Extension Cable Driver (e.g., 330130-045-00-00)
- Extension Cable: 3300 XL Series extension cables (330130 series)
- Monitoring Rack: Bently Nevada 3500 Series Machinery Protection System
- Software: System 1 Condition Monitoring Software (Emerson)
This probe is NOT directly compatible with standard voltage (Sv) drivers without reconfiguration. Confirm your driver part number before ordering.
Selection Guide
Use the table below to decode the 330901-XX-XX-XX-XX-XX part number structure and select the correct variant for your application:
- 330901 – Base model: 3300 XL NSv Proximity Probe
- -00 – Standard configuration
- -24 – Cable length: 24 inches
- -05 – Tip diameter: 5 mm
- -02 – Connector type: 2-pin armored
- -05 – Output scale factor / voltage configuration
Key selection criteria:
- Match cable length to your installation gap (24″, 36″, 48″ options available)
- Confirm tip diameter (5 mm vs. 8 mm vs. 10 mm) matches your target material and gap range
- Verify NSv vs. Sv output requirement with your driver datasheet
- Check operating temperature against your process environment
Quality Assurance & Sourcing
- All units sourced through verified industrial automation distributors and OEM channels
- Each probe inspected for physical integrity, connector condition, and cable continuity prior to shipment
- Traceability documentation available upon request (batch records, COC)
- Surplus, refurbished, and new-in-box (NIB) stock clearly labeled and priced accordingly
- Export compliance verified for international shipments (ECCN, HS Code)
How to Order
- Confirm your part number: 330901-00-24-05-02-05
- Specify quantity and required delivery timeline
- Request a quote via support@konmask.com or WhatsApp: +0086 19859288691
- Receive proforma invoice with lead time and shipping options (DHL, FedEx, sea freight)
- Payment: T/T, PayPal, or Shopify secure checkout
Replacement & Compatibility FAQ
Q: Can I replace the 330901-00-24-05-02-05 with a standard voltage (Sv) probe?
A: Not directly. NSv and Sv probes have different output scale factors. Substituting without reconfiguring the driver will result in incorrect vibration readings and may trigger false alarms.
Q: Is the Epro PR6423 a true drop-in replacement?
A: The Epro PR6423 is electrically compatible with most 3300 XL drivers, but physical dimensions and connector types may differ. Always verify with your site engineer before installation.
Q: Do you supply calibration certificates?
A: Yes. Factory calibration certificates are available for new-in-box units. For surplus stock, we can arrange third-party calibration upon request.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–6 weeks depending on sourcing channel. Contact us for real-time availability.
Q: Can Konmask.com supply the complete 3300 XL transducer system (probe + extension + driver)?
A: Yes. We can source and supply complete matched sets. Please provide your driver part number and installation requirements for a system-level quote.
