Bently Nevada 3500/40M 176449-01 Proximitor Monitor | Replacement, Equivalent & Selection Guide

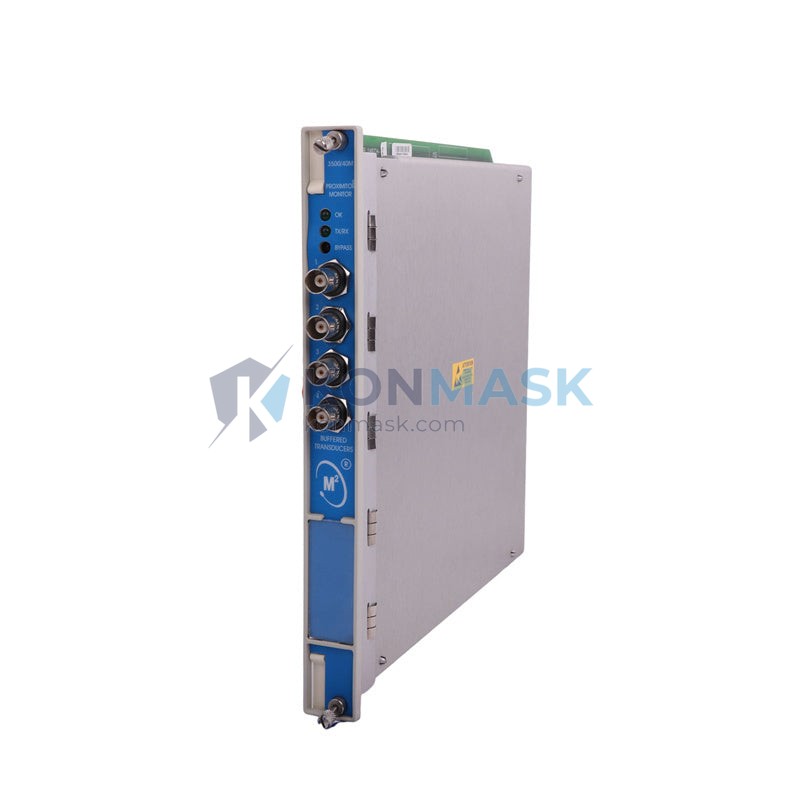

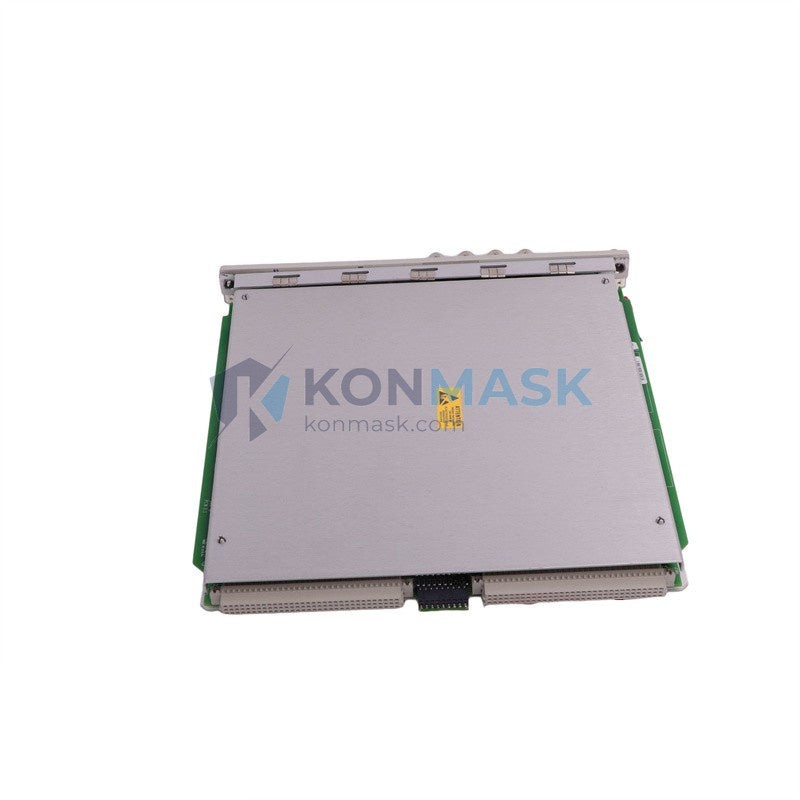

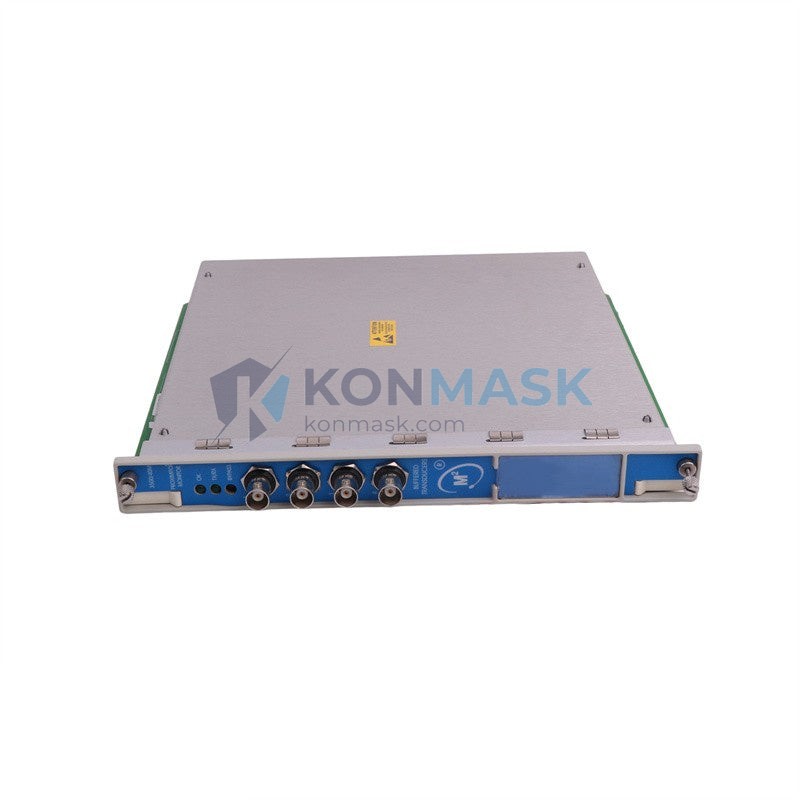

The Bently Nevada 3500/40M (Part No. 176449-01) is a Proximitor/Velomitor Monitor module within the industry-standard 3500 Series Machinery Protection System. It accepts signals from Proximitor sensors and Velomitor piezo-velocity transducers to provide continuous vibration and position monitoring for rotating machinery in critical industrial environments.
Selection Background
When sourcing a replacement or equivalent for the Bently Nevada 3500/40M 176449-01, buyers must evaluate signal compatibility, channel configuration, rack slot requirements, and firmware revision. Whether you need a direct substitute due to obsolescence, a spare-parts strategy, or a cross-brand equivalent for a new installation, this guide covers all key decision points. Konmask specializes in verified OEM and compatible sourcing for 3500 Series modules globally.
Technical Specifications
- Model: 3500/40M — Part No. 176449-01
- Module Type: Proximitor / Velomitor Monitor
- Input Channels: 2 (differential)
- Transducer Compatibility: Proximitor sensors (eddy-current) & Velomitor piezo-velocity transducers
- Measurement Parameters: Radial vibration, axial position, velocity
- Alert / Danger Setpoints: Independently configurable per channel
- Output: 4–20 mA analog, relay outputs (OK / Alert / Danger)
- Power Supply: Supplied via 3500 rack backplane (28 VDC)
- Communication: Compatible with 3500 System Rack (TDI/Modbus via rack)
- Rack Compatibility: 3500 Series standard rack (full-height slot)
- Operating Temperature: 0°C to +65°C
- Certifications: CE, SIL 1 capable (system-level), FM/CSA (hazardous area variants)
- Weight: ~800 g
- ⚠ Key parameters for replacement decisions: channel count, transducer type compatibility, rack slot type, firmware revision, and relay configuration.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
The following Bently Nevada part numbers are functionally identical or revision-updated equivalents that install in the same rack slot without reconfiguration:
- 176449-02 — Revision update of 176449-01; same functionality, updated firmware. Verify rack firmware compatibility before substitution.
- 3500/40M (no suffix) — Base model; confirm part suffix matches your rack’s I/O module configuration.
Prerequisite: Same 3500 Series rack, matching transducer wiring, and System 1 / rack configuration software access for re-commissioning.
2. Functional Equivalents (Same Series)
These modules serve overlapping measurement functions within the 3500 platform and may substitute depending on your monitoring scope:
- 3500/42M — Proximitor/Velomitor Monitor with enhanced channel density; suitable if expanding from 2 to 4 channels.
- 3500/45 — Position Monitor; use when axial position monitoring is the primary requirement without velocity input.
- 3500/46M — Hydro Monitor; applicable for hydro turbine applications requiring shaft position and guide vane monitoring.
Note: Functional equivalents require configuration changes in the 3500 rack software and may need different transducer wiring.
3. Cross-Brand Alternatives
For new installations or system migrations where OEM sourcing is not feasible:
- Emerson CSI 6500 Series — Machinery health monitor with Proximitor-compatible inputs; requires signal conditioning adapters.
- Metrix MX2033 — Dual-channel vibration monitor; compatible with eddy-current probes; suitable for non-API 670 applications.
- Wilcoxon / PCB Piezotronics monitoring modules — Velocity-input monitors for less critical machinery tiers.
⚠ Cross-brand alternatives are NOT drop-in replacements. They require full engineering review, new rack infrastructure, and re-certification. Contact Konmask for a compatibility assessment before proceeding.
Why Choose the Original Model
- Precision & Accuracy: Factory-calibrated to API 670 standards, ensuring measurement integrity for critical machinery protection.
- OEM Certification: Fully certified for use within the Bently Nevada 3500 MPS; maintains system SIL and FM/CSA ratings.
- Seamless Compatibility: Plug-and-play within existing 3500 racks — no signal conditioning, adapter boards, or firmware patches required.
- Technical Support: Full Bently Nevada / Emerson service network support, including System 1 software integration and field calibration.
- Warranty & Traceability: Comes with documented provenance, test certificates, and manufacturer warranty (new units) or Konmask-verified inspection report (surplus/refurbished).
- Long-Term Reliability: Proven MTBF in continuous 24/7 industrial operation; minimizes unplanned downtime risk in turbine, compressor, and pump protection systems.
Typical Applications
- Oil & Gas: Centrifugal compressor radial vibration and axial position monitoring on offshore platforms and LNG terminals.
- Power Generation: Steam turbine shaft vibration monitoring in coal-fired and combined-cycle power plants.
- Petrochemical: Reactor feed pump and boiler feed pump protection in refinery critical service.
- Marine & Offshore: Propulsion turbine and generator set monitoring on FPSOs and drillships.
- Pulp & Paper: High-speed roll and fan drive monitoring in continuous process lines.
- Mining & Minerals: Large ball mill and SAG mill drive train vibration surveillance.
System Compatibility
The 3500/40M 176449-01 is designed to operate within the following Bently Nevada 3500 Series ecosystem:
- 3500/01 Rack Interface Module (RIM) — Rack communication and power distribution backbone.
- 3500/05 System Rack — Standard 19-inch rack chassis; 3U / full-height slot.
- 3500/15 Power Supply — Redundant DC power supply for rack modules.
- 3500/20 Keyphasor Module — Phase reference signal for 1X/2X vibration vector analysis.
- 3500/92 Communication Gateway — Modbus TCP/RTU and OPC interface for DCS/SCADA integration.
- Bently Nevada 7200/7500 Series Proximitor Sensors — Eddy-current proximity probes; 5 mm or 8 mm tip diameter; -18 VDC or -24 VDC bias.
- Velomitor CT Sensor — Piezo-velocity transducer for casing vibration measurement.
- System 1 Software (v6.x / v7.x) — Configuration, trending, and alarm management platform.
Selection Guide
Answer these three questions to confirm the 3500/40M 176449-01 is the right fit — or to identify the correct replacement:
- What transducer type is installed? — If you are using Bently Nevada Proximitor eddy-current probes or Velomitor piezo-velocity sensors, the 3500/40M is the correct monitor. If you use accelerometers, consider the 3500/42M or 3500/44M instead.
- How many measurement channels do you need per slot? — The 3500/40M provides 2 channels. If you need 4 channels in a single slot, evaluate the 3500/42M. Contact Konmask if you are unsure of your rack’s slot availability.
- Is your rack running the same firmware revision? — Mixing firmware revisions across modules can cause communication faults. Provide your rack’s RIM firmware version to Konmask before ordering a replacement to ensure full compatibility.
📩 Not sure which model fits your system? Contact Konmask at support@konmask.com or +0086 19859288691 — our engineers will review your rack configuration and recommend the correct replacement or equivalent within 24 hours.
Quality Assurance & Sourcing
Konmask sources the Bently Nevada 3500/40M 176449-01 through the following verified channels:
- Authorized Emerson / Bently Nevada distribution network (new, sealed units)
- Certified surplus from decommissioned plant assets with full traceability documentation
- Factory-refurbished units with OEM-level test reports
4-Step Inspection Process:
- Visual Inspection: Board-level examination for corrosion, component damage, and connector integrity.
- Functional Test: Bench-tested against Bently Nevada factory test procedures using calibrated signal sources.
- Firmware Verification: Firmware revision confirmed and documented prior to shipment.
- Final QC & Packaging: ESD-safe packaging with desiccant; serial number and test date recorded.
Available Documentation: Certificate of Conformance (CoC) · Factory Test Report · Material Traceability Record · Customs HS Code Declaration
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (3500/40M 176449-01), required quantity, and any rack firmware or configuration details.
- Receive Quote & Compatibility Confirmation: Konmask will respond within 24 hours with pricing, lead time, and a compatibility confirmation based on your system details.
- Order & Ship: Confirm the order; we arrange ESD-safe packaging, export documentation, and worldwide shipping via DHL / FedEx / sea freight as required.
Replacement & Compatibility FAQ
Q1: Can I use the 3500/40M 176449-02 as a direct replacement for the 176449-01?
A: In most cases, yes — the 176449-02 is a revision update and is functionally equivalent to the 176449-01. However, you must verify that your rack’s RIM firmware supports the newer revision. Konmask can confirm compatibility before shipment.
Q2: Is the Bently Nevada 3500/40M compatible with third-party eddy-current probes?
A: The 3500/40M is optimized for Bently Nevada 7200/7500 Series Proximitor sensors. Third-party probes with the same -18 VDC or -24 VDC bias and sensitivity (200 mV/mil or 7.87 V/mm) may be compatible, but full system certification requires OEM probe use. Contact Konmask for a probe compatibility assessment.
Q3: What is the best cross-brand substitute if the 3500/40M is no longer available?
A: There is no true drop-in substitute from another brand due to the proprietary 3500 rack backplane interface. The closest functional replacement path is sourcing a verified surplus or refurbished 3500/40M — which Konmask specializes in — or planning a full system migration to an Emerson CSI 6500 platform. We recommend contacting Konmask first, as surplus stock is often available with short lead times.
