Bently Nevada 330903-00-02-10-02-00 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

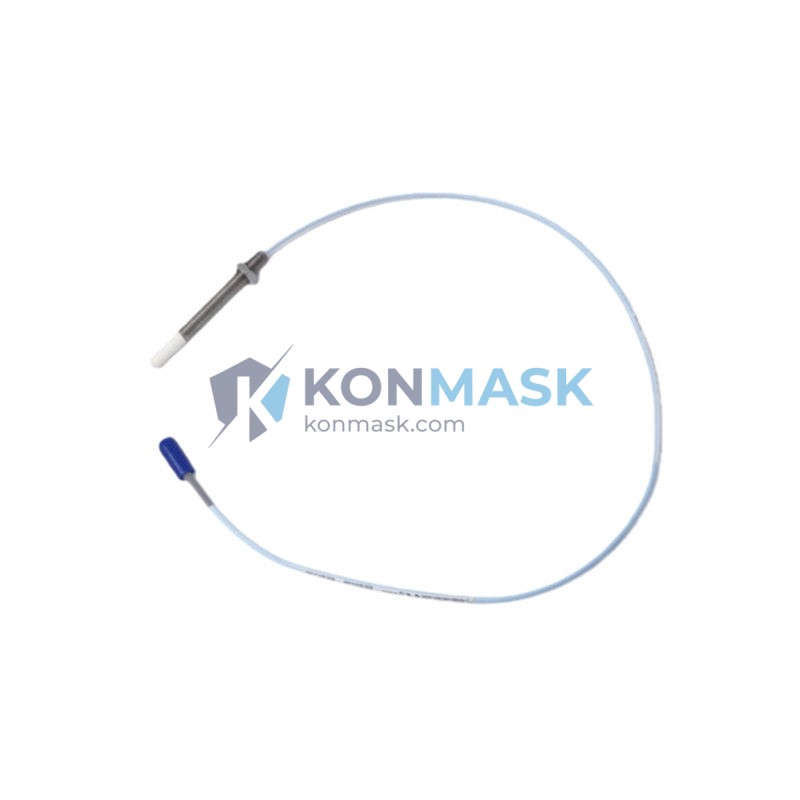

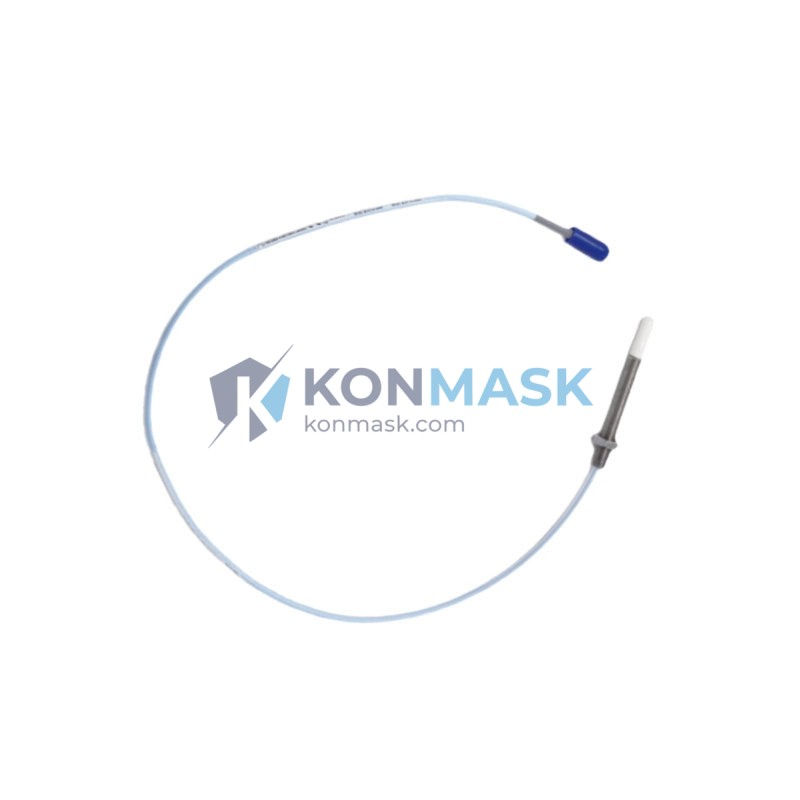

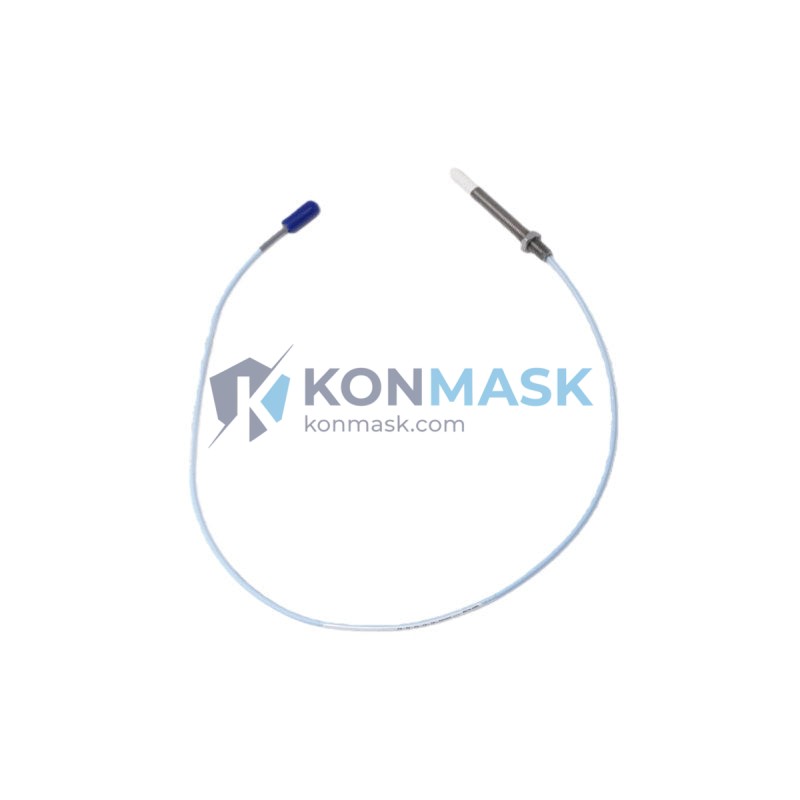

The Bently Nevada 330903-00-02-10-02-00 is an NSv Series eddy-current proximity probe designed for continuous, non-contact measurement of shaft vibration, position, and eccentricity in rotating machinery. It is a core component of the Bently Nevada 3300 XL monitoring system and is widely deployed in turbines, compressors, pumps, and generators across oil & gas, power generation, and heavy industry.
Technical Specifications
- Part Number: 330903-00-02-10-02-00
- Series: NSv (Non-contacting vibration)
- Probe Tip Diameter: 5 mm
- Cable Length: 9 m (standard)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 – 2.25 mm (10 – 90 mil)
- Operating Temperature: -35°C to +177°C
- Frequency Response: 0 – 10,000 Hz
- Supply Voltage: -24 VDC (nominal)
- Output Voltage: -1 to -21 VDC
- Connector: 2-pin MIL-C-5015 style
- Housing Material: Stainless steel
- Approvals: CE, ATEX, IECEx (intrinsically safe options available)
- Compatible Driver/Conditioner: 3300 XL 8mm Proximitor® Sensor
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents for the 330903-00-02-10-02-00. Always verify cable length, tip diameter, and driver compatibility before substitution.
| Part Number | Brand | Tip Dia. | Cable | Notes |
|---|---|---|---|---|
| 330903-00-02-05-02-00 | Bently Nevada | 5 mm | 5 m | Shorter cable variant |
| 330903-00-02-15-02-00 | Bently Nevada | 5 mm | 15 m | Extended cable variant |
| 330905-00-02-10-02-00 | Bently Nevada | 8 mm | 9 m | Larger tip, higher range |
| 3300-NSv-5mm-9m | Third-party OEM | 5 mm | 9 m | Drop-in compatible, verify driver |
| PR6423/010-030 | Epro / GE | 8 mm | — | Functional equivalent, different connector |
| CON021/916-000 | Epro / GE | — | — | Extension cable for Epro probes |
Note: Third-party equivalents must be validated against your specific Proximitor® driver and system configuration. Contact Konmask for pre-sale compatibility verification.
Why Choose the Original Model
- Factory-calibrated: Each probe is calibrated as a matched system with its Proximitor® sensor, ensuring accuracy within ±0.5% of full scale.
- Proven reliability: Bently Nevada NSv probes are the industry standard for API 670-compliant machinery protection systems.
- Long service life: Stainless steel housing and hermetically sealed tip resist harsh process environments including H₂S, steam, and high-pressure oil mist.
- OEM traceability: Full documentation, certificates of conformance, and calibration records available on request.
- System integrity: Using the original part preserves your machinery protection system’s SIL rating and insurance compliance.
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and thrust measurement
- Pump and motor bearing vibration surveillance
- Gearbox eccentricity and differential expansion measurement
- Generator rotor orbit analysis
- API 670 / ISO 10816 compliant machinery protection systems
System Compatibility
- Proximitor® Sensor: 3300 XL 8mm Proximitor® (330180-91-00), 3300 XL 5mm Proximitor® (330130-080-01-00)
- Monitoring Systems: Bently Nevada 3500 Series, 3300 Series, System 1® Evolution
- Extension Cable: 330130-080-01-00 (matched extension, sold separately)
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy (non-magnetic targets require recalibration)
- Gap Voltage: -10 VDC nominal at 1.0 mm gap (verify with Proximitor® datasheet)
Selection Guide
Use the following parameters to confirm the correct NSv probe part number for your application:
- Tip Diameter: 5 mm (330903-xx) or 8 mm (330905-xx) — choose based on shaft diameter and available mounting space.
- Cable Length: Encoded in positions 5–6 of the part number (e.g., -02- = 2 m, -09- = 9 m, -15- = 15 m). Total system cable = probe cable + extension cable ≤ system maximum.
- Connector Style: Position 7 of the part number (-02- = standard MIL connector). Armored cable options available for high-vibration installations.
- Temperature Rating: Standard (-35°C to +177°C) covers most applications; consult Konmask for high-temperature variants.
- Hazardous Area: Confirm ATEX/IECEx zone classification and select intrinsically safe (IS) certified variant if required.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels with full traceability.
- Pre-shipment inspection: visual, dimensional, and electrical output verification.
- Certificate of Conformance (CoC) and original packaging provided where available.
- Anti-counterfeit measures: holographic labels, serial number verification, and OEM documentation cross-check.
- Warranty: 12 months from date of shipment against manufacturing defects.
How to Order
- Part Number: 330903-00-02-10-02-00
- Quantity: Single unit or bulk orders accepted.
- Lead Time: In-stock items ship within 2 business days; contact us for urgent requirements.
- Payment: T/T, PayPal, credit card, and trade finance options available.
- Shipping: DHL, FedEx, UPS worldwide; export documentation and customs support included.
- Contact: Email support@konmask.com or call +0086 19859288691 for a quote.
Replacement & Compatibility FAQ
Q: Can I use a 330905 (8mm) probe as a replacement for the 330903 (5mm)?
A: Only if the mounting bore and target gap can accommodate the larger tip. The 8mm probe has a wider linear range but requires a different Proximitor® sensor. Not a direct drop-in replacement.
Q: Is the 330903-00-02-10-02-00 compatible with the Bently Nevada 3500 system?
A: Yes, when paired with the correct 3500/42M or 3500/40M monitor card and a matched Proximitor® sensor.
Q: Can third-party probes be used with Bently Nevada Proximitor® sensors?
A: Some OEM-compatible probes are electrically compatible, but system accuracy and API 670 compliance may be affected. Always validate with a calibration check before commissioning.
Q: What is the difference between NSv and standard 3300 XL probes?
A: NSv (Non-contacting vibration) probes use an improved eddy-current design with tighter manufacturing tolerances, resulting in better linearity and temperature stability compared to earlier 3300 XL generations.
Q: Do you provide calibration certificates?
A: Yes. OEM calibration certificates are available for new units. For refurbished stock, Konmask can arrange third-party calibration upon request.
