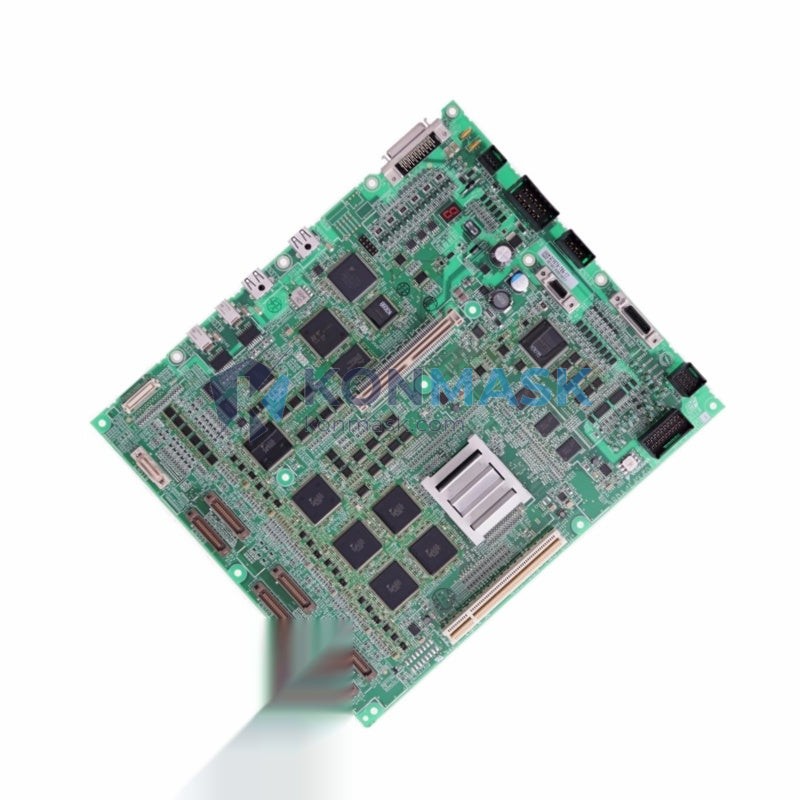

Industrial Robot Motion Control Solution — Yaskawa SRDA-EAXA21A | DX200 Series
Where This Product Is Used
The Yaskawa SRDA-EAXA21A axis control board is the core servo coordination module inside the DX200 robot controller, deployed across high-demand industrial environments worldwide:
- Automotive Assembly Lines — Spot welding, arc welding, and body-in-white handling with Motoman MA, VA, and EA series robots
- Electronics Manufacturing — PCB handling, precision pick-and-place, and component insertion requiring sub-millimeter repeatability
- Metal Fabrication & Cutting — Plasma and laser cutting paths coordinated across 6+ axes via DX200 multi-robot control
- Palletizing & Logistics — High-cycle palletizing with GP-series robots in food, beverage, and consumer goods facilities
- Painting & Coating — Continuous-path spray applications requiring smooth, jerk-free axis interpolation
- Semiconductor Fab & Cleanroom — Wafer handling and inspection with vibration-sensitive motion profiles
Whenever a DX200 controller loses axis synchronization, triggers SRDA alarm codes, or exhibits erratic servo behavior, the SRDA-EAXA21A is the primary board to inspect and replace.
Technical Specifications
| Part Number | SRDA-EAXA21A |
| Manufacturer | Yaskawa Electric Corporation |
| Series / Platform | DX200 Robot Controller |
| Function | Multi-Axis Servo Coordination & Control Board (EAXA) |
| Compatible Robots | Motoman MA, VA, EA, GP, HP, MH, MS, PL series (DX200 platform) |
| Axis Support | Up to 8 axes per controller; multi-robot coordinated control |
| Communication Interface | Internal DX200 backplane bus; MECHATROLINK-III compatible architecture |
| Operating Voltage | 24 VDC (logic supply via DX200 power unit) |
| Operating Temperature | 0 °C to 45 °C (controller ambient) |
| Weight | 560 g |
| Form Factor | PCB card assembly, DX200 rack-mount |
| Condition Available | New OEM / Tested Refurbished |
Why Engineers Specify This Model
- Real-Time Axis Synchronization — EAXA21A manages interpolated motion across all robot axes simultaneously, ensuring path accuracy at high speeds
- Direct OEM Replacement — Drop-in fit for DX200 controllers; no firmware re-flashing required when replacing like-for-like
- Alarm Diagnostics — Onboard logic interfaces with DX200 teach pendant to surface specific SRDA fault codes, accelerating root-cause analysis
- Proven Field Reliability — Deployed in 24/7 automotive and electronics production environments with MTBF exceeding typical PCB assemblies
- Multi-Robot Coordination — Supports DX200’s signature capability of coordinating up to 8 robots (72 axes) from a single controller
Complete System Bill of Materials
For a fully operational DX200 controller, the following modules work alongside the SRDA-EAXA21A:
- SRDA-COA01A — DX200 CPU / Main Control Board
- SRDA-EAXA21A — Axis Control Board (this item)
- SRDA-SCA01A — Safety Control Board
- SRDA-POA01A — Power Supply Unit
- SRDA-EAXB21A — Expanded Axis Board (for 7th/8th axis or positioner)
- JZRCR-YPU01B — Teach Pendant (with cable)
- DX200 Servo Amplifier Modules (per axis count)
Contact us to source any of the above as a matched set for faster commissioning.
Compliance & Industry Standards
- CE Marking — DX200 platform certified for EU Machinery Directive 2006/42/EC
- ISO 10218-1 — Industrial robots — Safety requirements for robot design
- IEC 61800-5-1 — Adjustable speed electrical power drive systems safety
- RoHS Compliant — Yaskawa OEM boards manufactured to RoHS II (EU) 2015/863
- UL Listed — DX200 controller UL 508C listed (Power Conversion Equipment)
Quality Assurance & Sourcing
At Konmask.com, every SRDA-EAXA21A unit is processed through a documented QA workflow before shipment:
- Visual inspection for PCB damage, burnt components, and connector integrity
- Functional bench test on DX200-compatible test rig (refurbished units)
- Anti-static packaging with humidity indicator card
- Serial number and firmware revision documented per shipment
- 30-day return window for DOA (Dead on Arrival) units
We source directly from authorized Yaskawa distributors and verified industrial surplus channels. All OEM units ship with original Yaskawa labeling intact.
How to Source This Part
- Add to Cart — Click the purchase button above for immediate checkout
- Request a Quote — Email support@konmask.com for volume pricing (3+ units) or matched-set BOM quotes
- Urgent Requirement — Call/WhatsApp +0086 19859288691 for same-day shipping confirmation on in-stock units
- Lead Time — In-stock units ship within 1 business day; OEM new orders 2–4 weeks depending on Yaskawa availability
Application-Specific FAQ
Q: Will SRDA-EAXA21A work with my DX100 controller?
A: No. The EAXA21A is designed exclusively for the DX200 platform. DX100 uses a different backplane architecture (SRDA-EAXA01A). Confirm your controller model before ordering.
Q: Do I need to re-teach robot positions after replacing this board?
A: In most cases, no — robot job files and calibration data are stored on the CPU board (SRDA-COA01A), not the axis board. However, always perform a mastering check after any control board replacement per Yaskawa maintenance procedures.
Q: What alarm codes indicate SRDA-EAXA21A failure?
A: Common alarms include 4100–4199 series (axis control errors), 4300 (EAXA communication fault), and servo alarm 8.1xx. Consult your DX200 alarm code manual for exact fault isolation.
Q: Can you supply a matched SRDA-EAXA21A + SRDA-COA01A pair?
A: Yes. Contact us with your controller serial number and we will source a firmware-matched pair to minimize compatibility risk.
Q: Is this board repairable if damaged?
A: Board-level repair is possible for certain fault types (capacitor failure, blown fuses). Contact us to discuss repair vs. replace economics for your situation.
