Vibration Monitoring Solution – Bently Nevada 330903-00-07-10-02-05/CN | 3300 NSv Series

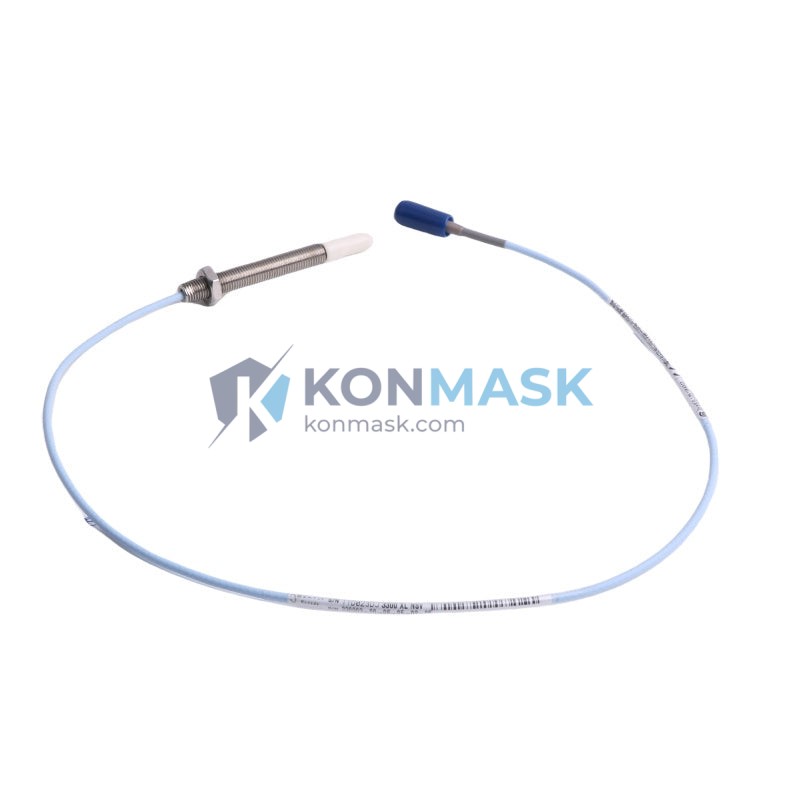

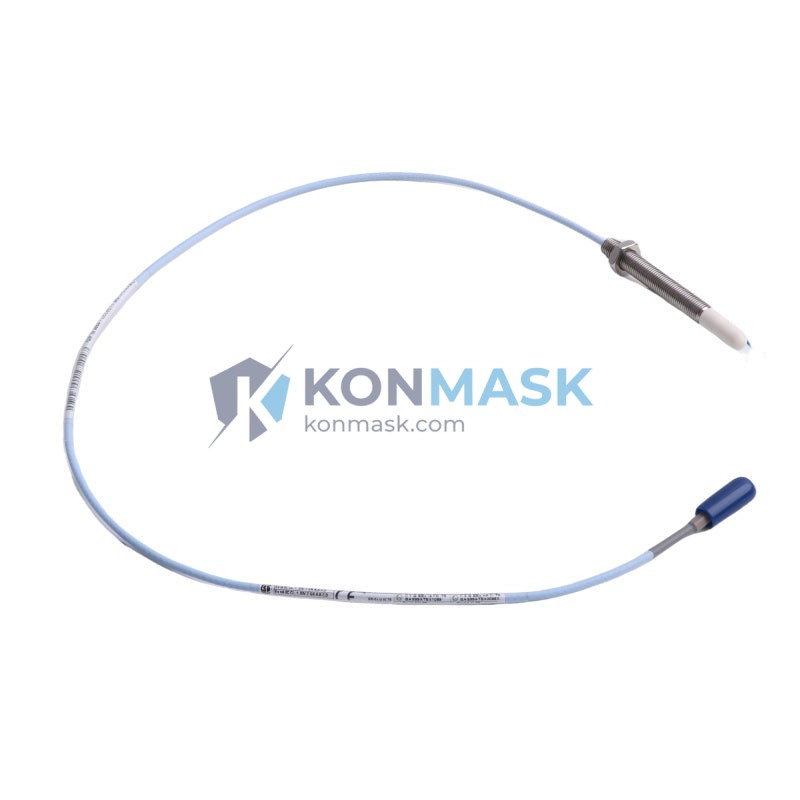

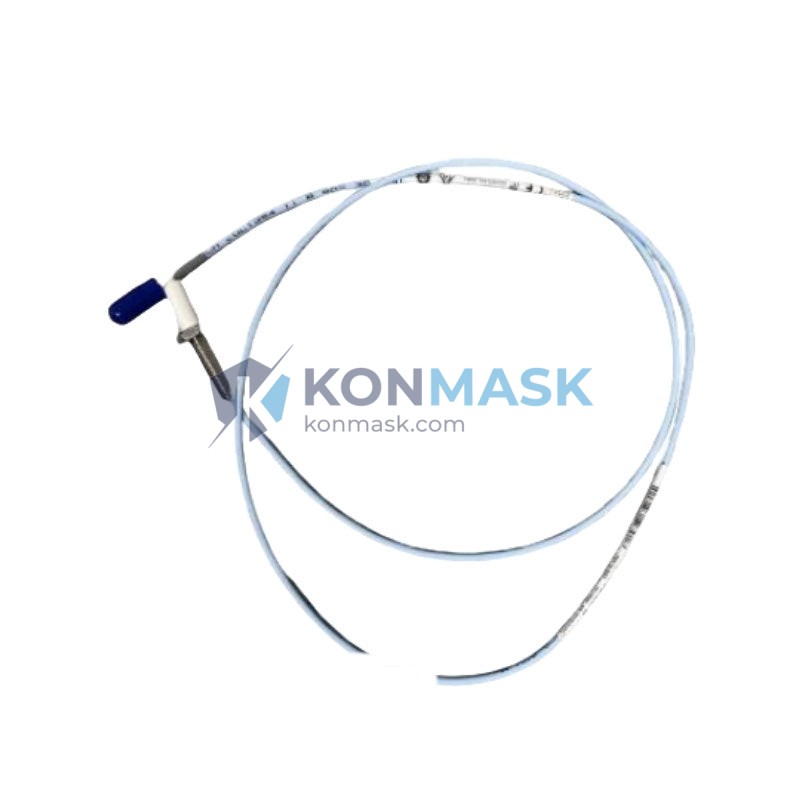

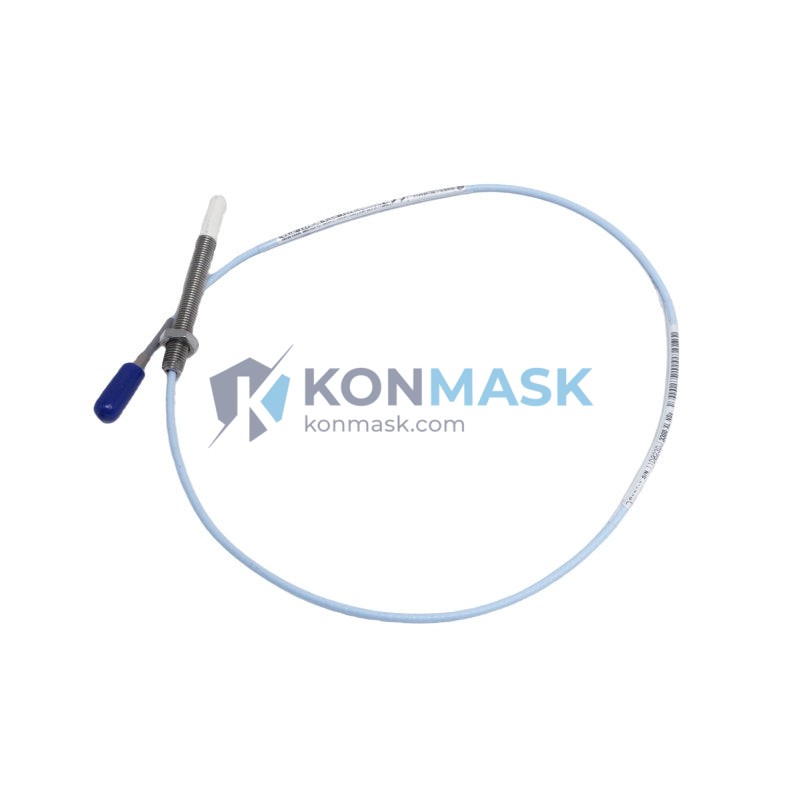

The Bently Nevada 330903-00-07-10-02-05/CN is a precision-engineered extension cable designed for the 3300 NSv Proximity Transducer System. It bridges the gap between the proximity probe and the proximitor/monitor, maintaining signal integrity in demanding industrial environments. Sourced and verified by Konmask.com for B2B industrial buyers who require OEM-specification components with traceable provenance.
Where This Product Is Used
This extension cable is a critical interconnect in rotating machinery health monitoring systems. Typical deployment environments include:
- Gas & Steam Turbines – Shaft radial vibration and axial position monitoring on power generation turbines
- Centrifugal Compressors – Continuous rotor displacement measurement in oil & gas compression trains
- Pumps & Fans – Bearing housing vibration surveillance in process-critical rotating equipment
- Gearboxes – Gear mesh frequency and shaft orbit analysis in heavy industrial drives
- Marine Propulsion Systems – Shaft monitoring in shipboard turbine and diesel-electric drive systems
- Petrochemical & Refinery Plants – API 670-compliant machinery protection systems
- Power Generation (Nuclear & Thermal) – Safety-critical turbine supervisory instrumentation (TSI)
Technical Specifications
| Part Number | 330903-00-07-10-02-05/CN |
| Series | Bently Nevada 3300 NSv Proximity Transducer System |
| Component Type | Extension Cable |
| Cable Length | 7 m (23 ft) |
| Armor Type | Armored construction |
| Compatible Probes | Bently Nevada 330900 / 330901 / 330902 NSv Proximity Probes |
| Compatible Proximitors | Bently Nevada 330180 / 3300 XL 8mm Proximitor Sensors |
| Operating Temperature | –50 °C to +120 °C (–58 °F to +248 °F) |
| Nominal Impedance | 50 Ω coaxial |
| Weight | Approx. 40 g |
Why Engineers Specify This Model
- OEM System Compatibility – Ensures calibrated gap voltage and sensitivity (200 mV/mil, –18.0 Vdc nominal) without field recalibration
- Armored Construction – Stainless steel armor protects against mechanical damage and high-vibration fatigue
- 7-Meter Reach – Optimized for standard turbine pedestal-to-junction-box routing without signal attenuation
- Low Noise Floor – Precision coaxial geometry minimizes EMI pickup in high-voltage environments
- Drop-In Replacement – Identical form, fit, and function; no DCS or monitor reconfiguration required
- Traceable Sourcing – Verified, non-counterfeit components with documentation available on request
Complete System Bill of Materials
For a complete 3300 NSv proximity measurement loop:
- Proximity Probe – Bently Nevada 330900-xx / 330901-xx / 330902-xx (8 mm NSv)
- Extension Cable – 330903-00-07-10-02-05/CN (this item)
- Proximitor Sensor – Bently Nevada 330180-x1-00 or 3300 XL 8mm Proximitor
- Monitor Module – Bently Nevada 3500/40M or 3500/42M Proximitor/Seismic Monitor
- Rack & Power Supply – Bently Nevada 3500 Rack with 3500/15 Power Supply
Contact support@konmask.com to source the complete loop as a kit.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition) – compatible transducer chain
- IEC 61511 – Functional Safety for Process Industry Sectors (SIL-capable system)
- ISO 10816 / ISO 20816 – Mechanical vibration measurement and evaluation
- ATEX / IECEx – Consult Bently Nevada documentation for hazardous area certifications
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation and condition monitoring components for B2B buyers in power generation, oil & gas, petrochemical, and heavy manufacturing. Every unit of the 330903-00-07-10-02-05/CN we supply is:
- Inspected for physical integrity and connector condition prior to dispatch
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with original manufacturer labeling and part number verification
- Available with Certificate of Conformance (CoC) upon request
- Backed by our sourcing guarantee – non-matching parts are replaced
How to Source This Part
- Add to Cart – Place an order directly online
- Request a Quote – Email support@konmask.com with quantity and delivery timeline for volume pricing
- Expedited Orders – Call or WhatsApp +0086 19859288691 for urgent requirements; same-day quotation available
- System Kits – Specify your full 3300 NSv loop requirements for a complete BOM configuration
Application-Specific FAQ
Q: Can this cable be used with older Bently Nevada 3300 (non-NSv) proximity probes?
A: No. The 330903 series is designed specifically for the 3300 NSv system. For legacy 3300 probes, use the 330130 series extension cable. Mixing cable series will result in calibration errors and incorrect gap voltage readings.
Q: What is the maximum total system cable length for the 3300 NSv?
A: Total cable length (probe integral cable + extension cable) must not exceed the system-specified maximum, typically 9 m (30 ft) for standard configurations. Verify your probe’s integral cable length before ordering.
Q: Is the /CN suffix a country-of-origin designation?
A: Yes. The /CN suffix indicates manufacture in China. The component meets the same OEM performance specification as non-suffixed variants. Verify import compliance requirements for your jurisdiction prior to ordering.
Q: Can I use this cable in a hazardous area (Zone 1 / Division 1)?
A: The 3300 NSv system has ATEX/IECEx certifications available for specific configurations. Consult the Bently Nevada 3300 NSv Installation Manual and your site’s area classification documentation. Contact us for certified-configuration sourcing.
Q: Do you supply the full 3300 NSv transducer loop?
A: Yes. Konmask.com can supply the complete loop including probe, extension cable, and proximitor. Contact support@konmask.com with your system requirements.
