Bently Nevada 330903-00-16-10-02-05/CN 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

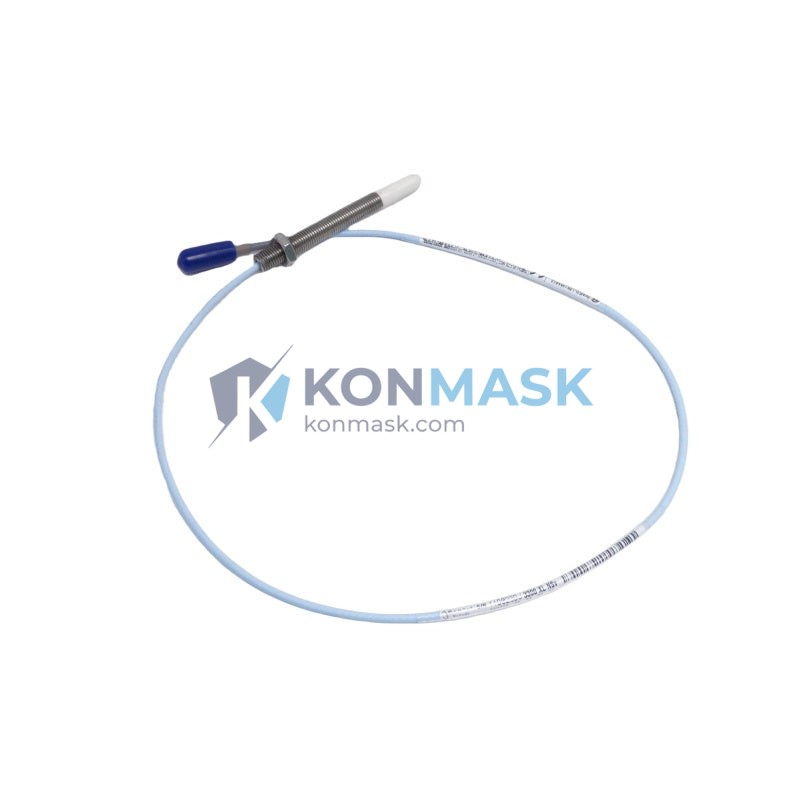

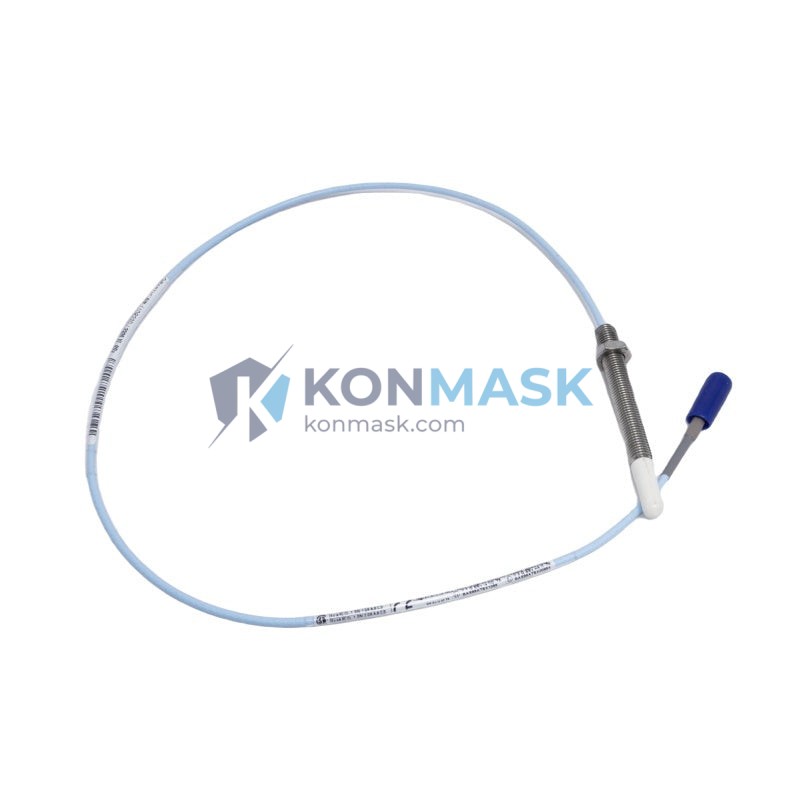

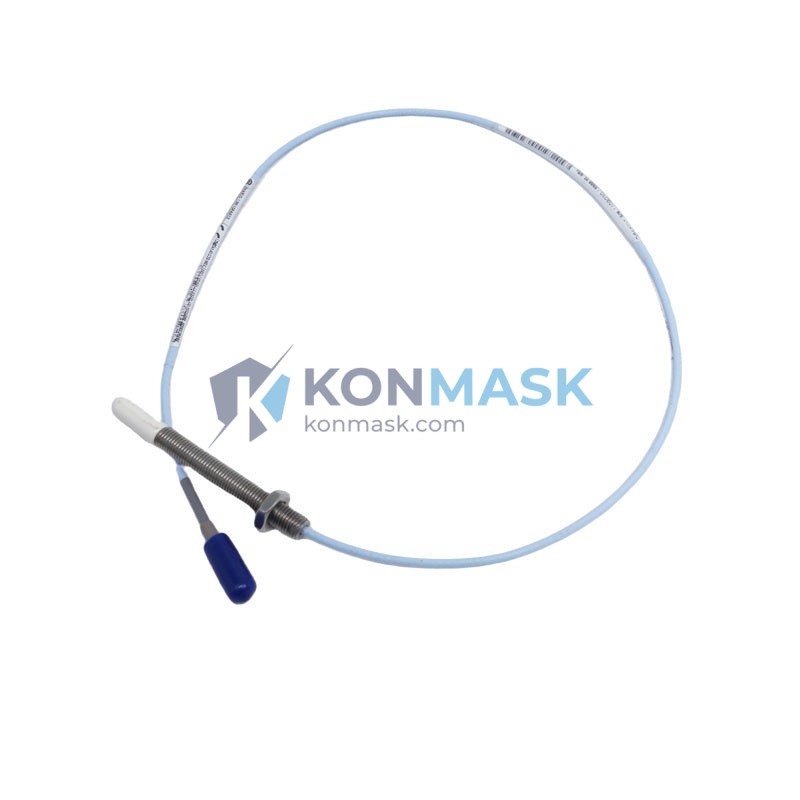

The Bently Nevada 330903-00-16-10-02-05/CN is a 5 mm proximity probe from the 3300 NSv (Non-Standard Voltage) Series, designed for continuous shaft vibration and position monitoring in rotating machinery. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Part Number | 330903-00-16-10-02-05/CN |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 NSv Proximity Transducer System |
| Probe Tip Diameter | 5 mm |
| Cable Length | 16 inches (approx. 406 mm) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Operating Temperature | -35°C to +177°C |
| Supply Voltage | -24 VDC (nominal) |
| Output Voltage Range | -2 VDC to -18 VDC |
| Connector Type | Integral armored cable with MIL-spec connector |
| Approvals | CE, ATEX (consult datasheet for zone ratings) |
| Country of Origin | CN (China-manufactured variant) |
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the 330903-00-16-10-02-05/CN. Always verify gap voltage, sensitivity, and connector compatibility before substitution.
| Model | Brand | Tip Dia. | Cable Length | Notes |
|---|---|---|---|---|
| 330903-00-16-10-02-00 | Bently Nevada | 5 mm | 16 in | Standard version (non-CN suffix) |
| 330903-00-08-10-02-05 | Bently Nevada | 5 mm | 8 in | Shorter cable variant |
| 330903-00-32-10-02-05 | Bently Nevada | 5 mm | 32 in | Longer cable variant |
| 3300 XL 8mm Probe | Bently Nevada | 8 mm | Various | Larger tip, wider linear range |
| PR6423/010-140 | Epro (GE) | 8 mm | 1.0 m | Cross-brand equivalent, verify driver |
| CS-1 / CS-3 | Metrix | 5 mm | Various | Third-party compatible, verify system |
⚠ Note: Always match the probe with the correct Bently Nevada driver/extension cable for the 3300 NSv system. Mixing incompatible components will affect calibration.
Why Choose the Original Model
- Factory-calibrated sensitivity of 200 mV/mil ensures measurement accuracy without field recalibration.
- NSv (Non-Standard Voltage) design provides enhanced noise immunity in electrically noisy plant environments.
- Armored cable construction resists mechanical damage in harsh industrial installations.
- OEM traceability — original Bently Nevada parts carry full Baker Hughes documentation and warranty support.
- Proven reliability in turbines, compressors, pumps, and motors across oil & gas, power generation, and petrochemical industries.
Typical Applications
- Shaft radial vibration monitoring (API 670 compliant systems)
- Axial position / thrust measurement
- Phase reference (Keyphasor) sensing
- Differential expansion monitoring on steam turbines
- Compressor rod drop detection
- Pump and motor bearing proximity measurement
System Compatibility
The 330903-00-16-10-02-05/CN is designed for use within the Bently Nevada 3300 NSv Proximity Transducer System. Confirm compatibility with the following system components:
- Extension Cable: 330130-xx-xx (matched length required)
- Driver / Proximitor: 3300 NSv Proximitor (e.g., 330180-91-00)
- Monitoring System: Bently Nevada 3300, 3500, or System 1 platforms
- Gap Voltage: Set to -10.0 VDC ± 0.5 V at nominal gap (1.0 mm / 40 mil)
Selection Guide
Use the table below to select the correct 330903 variant for your application:
| Parameter | Options | Code Position |
|---|---|---|
| Tip Diameter | 5 mm | 330903 |
| Cable Length | 08 in / 16 in / 32 in / 50 in | Positions 3–4 |
| Armor Type | 10 = Standard armor | Position 5–6 |
| Connector | 02 = Standard MIL connector | Position 7–8 |
| Temperature Rating | 05 = Standard (-35°C to +177°C) | Position 9–10 |
| Regional Variant | /CN = China-manufactured | Suffix |
If your application requires ATEX/IECEx certification, extended temperature range, or a different cable length, contact our team for the correct part number.
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus with full traceability documentation.
- Each probe undergoes incoming inspection including visual check, connector integrity, and where applicable, gap voltage verification.
- Packaging preserved in original or equivalent ESD-safe materials.
- Certificate of Conformance (CoC) and test reports available upon request.
- Konmask.com specializes in industrial automation components for MRO, OEM, and system integrator procurement.
How to Order
- Confirm your part number: 330903-00-16-10-02-05/CN
- Verify quantity and lead time requirements with our team.
- Add to cart or contact us directly for bulk pricing and expedited sourcing.
- Provide your system configuration (driver model, cable length) if requesting a compatible alternative.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use the 330903-00-16-10-02-05/CN with a 3500 monitoring rack?
A: Yes, provided the correct 3300 NSv Proximitor driver is used. The 3500 rack accepts 3300 NSv transducer inputs via compatible I/O modules.
Q: What is the difference between the /CN suffix and the standard model?
A: The /CN suffix denotes the China-manufactured variant. Electrically and mechanically, it meets the same Bently Nevada specifications as the standard model.
Q: Can I replace this probe with an 8 mm probe?
A: Not directly. An 8 mm probe has a different linear range and sensitivity. The driver, gap setting, and mounting hardware must all be updated accordingly.
Q: Do you offer calibration certificates?
A: Yes. Factory calibration data and CoC documents are available upon request for verified original units.
Q: What is the lead time?
A: In-stock items ship within 1–3 business days. For sourced or surplus units, typical lead time is 5–15 business days. Contact us for current availability.
