Rotating Machinery Vibration Monitoring Solution – Bently Nevada 330907-05-30-70-02-00 | 3300 NSv Series
Where This Product Is Used

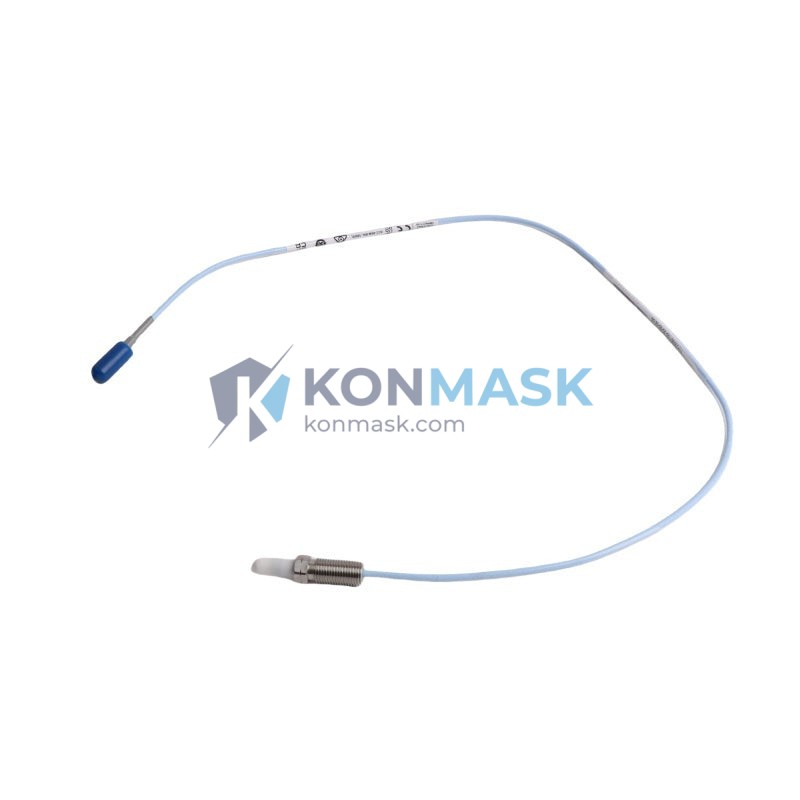

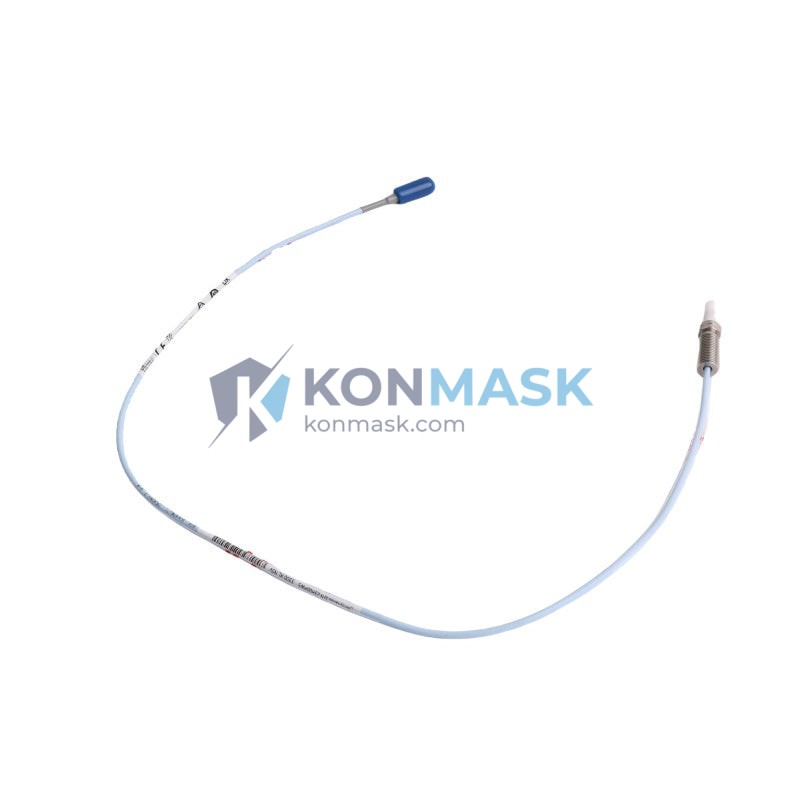

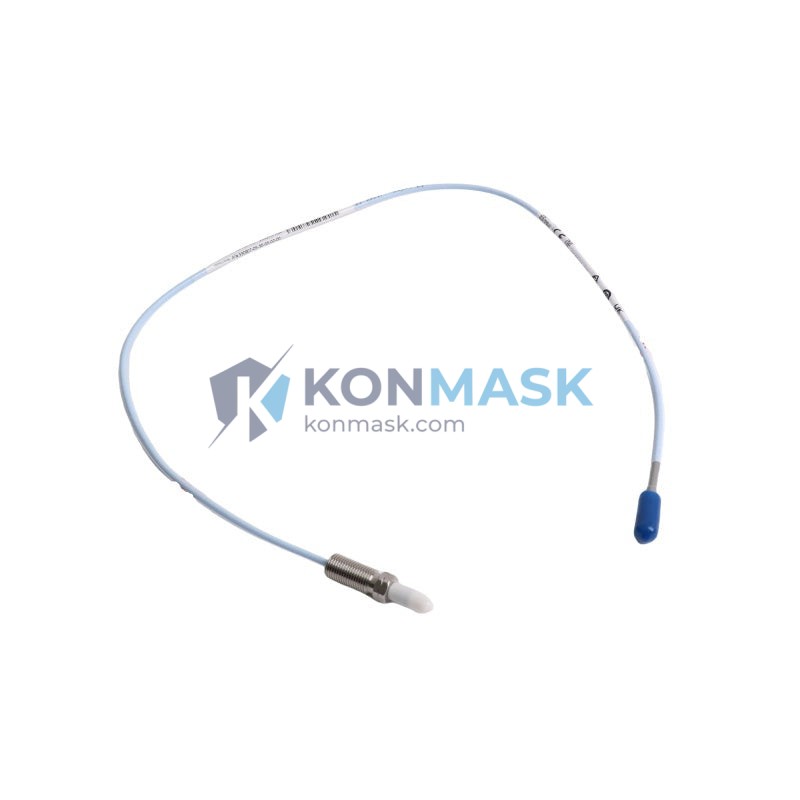

The Bently Nevada 330907-05-30-70-02-00 is a 3300 NSv Reverse Mount Proximity Probe engineered for continuous, non-contact vibration and position measurement on high-speed rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – shaft radial vibration and differential expansion monitoring per API 670
- Centrifugal Compressors – rotor dynamic instability detection in petrochemical and LNG plants
- Pumps & Fans – bearing condition monitoring in power generation and water treatment facilities
- Gearboxes – gear mesh frequency analysis in heavy industrial drives
- Marine Propulsion Systems – shaft alignment and vibration surveillance on vessel drive trains
- Paper & Steel Mills – roll and spindle monitoring in continuous process lines
The reverse-mount configuration allows installation from the back of the bearing housing, making it ideal for retrofits and space-constrained machinery where front-access probes cannot be accommodated.
Technical Specifications
| Part Number | 330907-05-30-70-02-00 |
| Series | 3300 NSv (Non-contacting Vibration) |
| Probe Type | Reverse Mount Proximity Probe (Eddy Current) |
| Tip Diameter | 5 mm |
| Cable Length | 30 cm (integral cable) |
| Extension Cable Length | 7.0 m (total system) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.54 mm (10 – 100 mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Supply Voltage | –24 VDC (nominal) |
| Target Material | AISI 4140 steel (standard) |
| Operating Temperature | –35°C to +177°C (probe tip) |
| Approvals | CE, ATEX, IECEx |
| Country of Origin | USA |
Why Engineers Specify This Model
- Reverse-Mount Geometry – Eliminates front-access machining; probe threads in from the non-drive end, preserving bearing housing integrity.
- NSv Technology – Superior signal-to-noise ratio vs. 3300 XL probes; reduces false trips in high-EMI environments.
- 5 mm Tip for Tight Clearances – Fits compact bearing housings where 8 mm probes cannot.
- Direct 3500 System Compatibility – Plug-and-play with Bently Nevada 3500 Series monitors; no re-ranging required.
- Wide Temperature Range – Rated to 177°C at probe tip for hot-section turbine applications.
- Long-Term Stability – Thermally compensated coil maintains calibration over multi-year continuous operation.
Complete System Bill of Materials
A fully functional 3300 NSv proximity measurement loop requires:
- Probe: 330907-05-30-70-02-00 (this item)
- Extension Cable: Bently Nevada 330130-xx-xx (match to total system length)
- Proximitor® Driver: Bently Nevada 330180-x1-00 or 330190-x0-CN
- Monitor: Bently Nevada 3500/40M or 3500/42M Proximitor® Monitor
- Rack Power Supply: Bently Nevada 3500/15 or 3500/05
- I/O Module: 3500/92 or 3500/94 for DCS/PLC integration
- Mounting Hardware: Reverse-mount probe holder (application-specific)
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition): full measurement chain compliance
- IEC 61511 – Functional Safety for SIS applications with certified 3500 monitors
- ATEX / IECEx – Hazardous area certifications available; confirm zone classification before ordering
- CE Marking – EMC Directive 2014/30/EU compliant
- ISO 10816 / ISO 20816 – Mechanical vibration measurement standards
Quality Assurance & Sourcing
Konmask.com sources the Bently Nevada 330907-05-30-70-02-00 through verified industrial distribution channels. Every unit undergoes:
- Visual inspection of probe tip, cable jacket, and connector condition
- Verification of OEM labeling, date codes, and traceability documentation
- Packaging inspection to confirm factory-sealed condition
- Part number cross-reference against Bently Nevada product catalog
Certificates of conformance and test reports available upon request.
How to Source This Part
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Online: Add to cart directly on this page for standard stock orders
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders quoted within 24 hours
- MOQ: 1 piece
- Payment: T/T, PayPal, credit card, and trade-term options for qualified buyers
Application-Specific FAQ
Q: Compatible with older Bently Nevada 3300 XL monitors?
A: Yes. The 3300 NSv uses the same –24 VDC supply and 200 mV/mil sensitivity as the 3300 XL, making it backward-compatible with most 3300 XL monitor cards. Verify input impedance before installation.
Q: What target material is required?
A: Factory-calibrated for AISI 4140 steel. For stainless steel, titanium, or other alloys, a field re-calibration or material correction factor must be applied.
Q: Suitable for hazardous (Ex) areas?
A: ATEX/IECEx-rated variants are available. Confirm zone classification and gas group with your safety engineer before specifying.
Q: Maximum shaft speed?
A: Flat frequency response to 10,000 Hz (–3 dB). Practical limits are governed by the monitor card’s input bandwidth.
Q: Can Konmask supply the complete measurement loop?
A: Yes. Konmask.com stocks or can source all 3300 NSv and 3500 Series components. Contact us with your system architecture for a complete BOM quotation.
